If you’re planning to set up a security camera system, understanding the wiring is key to a smooth installation. The 3 wire security camera wiring diagram is your roadmap to connecting your camera correctly—without the guesswork.
Whether you’re a beginner or just want to double-check your setup, this guide will help you identify which wire does what, so you avoid common mistakes that can cause frustration or poor video quality. Keep reading to learn how these three wires work together to power your camera and transmit video, making your home or business safer with confidence.
Credit: www.youtube.com
3 Wire Camera Basics
The 3 wire security camera usually has three main wires. Each wire has a special job. The red wire carries the positive power to the camera. The black wire is the ground or negative wire. The yellow wire sends the video signal from the camera to the recorder or monitor.
These colors are common for analog camera systems. The red and black wires supply power. The yellow wire carries the image data. This simple setup helps the camera work correctly and send clear video.
| Wire Color | Purpose |
|---|---|
| Red | Positive power supply |
| Black | Ground or negative connection |
| Yellow | Video signal transmission |
Tools And Materials Needed
Essential tools include a screwdriver, wire stripper, and drill. A multimeter helps check connections and voltage. A ladder may be needed for mounting cameras high.
Recommended cables for a 3 wire security camera are usually RG59 coaxial cable with power wires or CAT5/CAT6 Ethernet cable for IP cameras. The three wires are typically red for power (+), black for ground (-), and yellow for video signal. Use cables with proper insulation to prevent interference and damage.
Wiring Color Codes
Red wire carries the positive power to the camera. It supplies the needed voltage to turn the device on. Always connect it to the power source’s positive terminal.
The black wire serves as the ground or negative connection. It completes the circuit by linking to the power supply’s negative terminal or ground.
Yellow wire transmits the video signal from the camera to the monitor or recording device. This wire carries the data that shows the image captured by the camera.
Credit: www.eufy.com
Step-by-step Wiring Setup
Start by stripping the ends of each wire carefully. The red wire usually carries the positive power. The black wire is for ground or negative power. The yellow wire transmits the video signal. Make sure wires are clean and free from damage.
Connect the red wire to the positive terminal of the power supply. Attach the black wire to the negative terminal or ground. Secure connections tightly to avoid loose contacts.
Link the yellow wire to the video input on your recording device or monitor. Confirm the wire fits snugly to prevent signal loss.
After all connections, turn on the power and check if the camera displays the video. Wiggle wires gently to test for any loose connections. Tighten or redo any faulty links for steady performance.
Using Premade Siamese Cables
Premade Siamese cables combine video and power wires in one. This makes installation cleaner and faster. No need to buy separate cables or connectors.

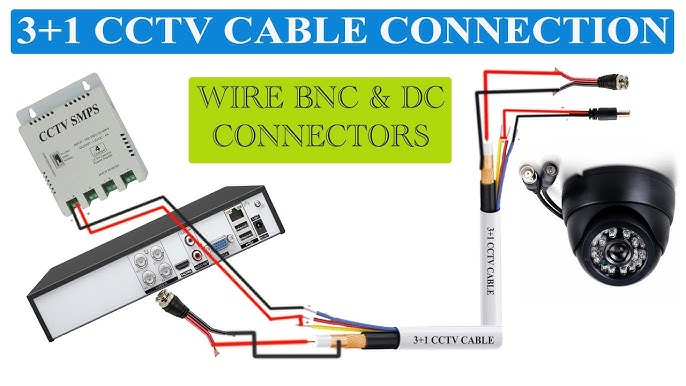

These cables have a coaxial wire for video and a pair of power wires. The red wire usually carries positive power, black is for ground, and the coax cable sends the video signal.
Connecting cameras and DVR is simple. Plug the coaxial end into the camera’s video port. Connect the red and black wires to a power supply. At the DVR, plug the coaxial cable into the video input. Connect power wires to the power adapter.
This setup saves time and reduces mistakes. It keeps wires organized and easy to manage. Premade cables are good for both indoor and outdoor cameras.
Troubleshooting Tips
Common wiring issues include loose connections, wrong wire colors, and damaged cables. Loose wires cause signal loss or flickering video. Always check that wires fit tightly into connectors.
Signal problems can happen if the yellow video wire is broken or crossed. Make sure the video cable is free from cuts and not tangled with power wires. This helps avoid interference and poor image quality.
Power problems often come from incorrect wiring of red (positive) and black (negative) wires. Reverse polarity can damage the camera or stop it from working. Use a multimeter to test voltage and wire direction.
| Issue | Cause | Fix |
|---|---|---|
| Loose Connection | Wires not plugged in firmly | Secure all connectors tightly |
| Signal Loss | Damaged or crossed video wire | Replace or separate video cable |
| Power Failure | Wrong polarity or broken power wire | Test wires and correct polarity |
Safety Precautions
Handling electrical parts needs care and attention. Always turn off the power before touching wires. Use insulated tools to avoid shocks. Check wires for damage or wear before installation. Keep wires away from water or damp places. Wear gloves to protect your hands.
Secure connections prevent failures and signal loss. Use wire nuts or connectors to join wires firmly. Ensure wires are tightly twisted before capping. Avoid loose ends that may cause shorts. Label wires by color for easy identification. Double-check connections before powering the system.
Credit: www.youtube.com
Upgrading And Expanding
Adding more cameras to your 3 wire security system needs careful planning. Use power supply boxes to provide enough power for all cameras. These boxes help keep the system stable and avoid power drops. Each camera must connect to the power box with the correct wires: red for positive, black for ground, and yellow for video signal. Use good quality cables to reduce signal loss.
Place the power supply box near the cameras but in a safe, dry spot. Connect all cameras in parallel to the power box to ensure each gets steady power. Avoid overloading the power supply by checking its maximum output. This setup allows easy expansion if you want to add more cameras later.
How Surveillance Guides Can Help You with 3 Wire Security Camera Wiring Diagram
Practical Learning with 3 Wire Security Camera Wiring Diagrams
Understanding a 3 wire security camera wiring diagram offers valuable hands-on experience that goes beyond theory. By applying knowledge of wiring color codes and following a step-by-step wiring setup, you not only enhance your technical skills but also gain confidence in managing your own surveillance system. Whether you are working with premade Siamese cables or troubleshooting connection issues, these practical exercises reinforce essential safety precautions and proper installation methods.
For those eager to deepen their understanding, resources like Surveillance Guides provide clear, instructional content tailored to homeowners and small business owners. Their tutorials simplify complex wiring concepts, making it easier to expand or upgrade your system effectively. Should questions arise during your project, reaching out to knowledgeable communities or consulting detailed guides can be a helpful way to ensure accuracy and safety throughout your installation process.
Conclusion
Understanding the 3 wire security camera wiring diagram simplifies installation. Each wire serves a clear purpose: power, ground, and video signal. Correct connections ensure your camera works smoothly and captures clear footage. Always double-check wire colors and connections before powering up.
This basic guide helps you set up a reliable security system. With patience and care, you can complete the wiring without hassle. Safe and secure monitoring becomes easier with this simple approach.
