If you’re setting up a security camera system, understanding the 5 wire security camera wiring diagram is essential. It’s the key to connecting your cameras properly, ensuring clear video and reliable power without frustrating interruptions.
Whether you’re a DIY enthusiast or just want to make sure your installer does it right, knowing how these wires work together can save you time and money. You’ll discover exactly what each wire does, how to identify them by color, and tips for running your cables safely and neatly.
Keep reading to get the confidence you need to set up your security cameras like a pro.
Wiring Color Codes
Power wires usually use the red color for positive (+) connection. The black wire is common for ground or negative (-) connection. This helps avoid confusion during installation.
The video signal wire often comes in yellow. This wire carries the camera’s video output to the recording device or monitor.
Ground wires are essential for safety and noise reduction. They typically use black or sometimes green in some systems to connect to earth ground.
| Wire Type | Common Color | Purpose |
|---|---|---|
| Power Wire | Red | Positive (+) power supply |
| Video Signal Wire | Yellow | Video output signal |
| Ground Wire | Black or Green | Ground or negative (-) connection |
Credit: www.aliexpress.com
Selecting The Right Cable
Weatherproof cables are essential for outdoor security cameras. These cables have a protective coating that resists rain, heat, and cold. They help keep the camera working in bad weather. Indoor cables usually do not have this protection because they stay inside. Using indoor cables outside can cause damage and signal loss.
For indoor cameras, standard cables work fine. They are cheaper and easier to install inside walls or ceilings. Outdoor cables are thicker and stronger to resist wear and tear from sun and moisture.
| Feature | Indoor Cables | Outdoor Cables |
|---|---|---|
| Weather Resistance | No | Yes |
| Coating | Thin | Thick and durable |
| Cost | Lower | Higher |
| Usage | Inside buildings | Outside, exposed areas |
Planning The Wire Route
Choosing concealed paths keeps wiring safe and neat. Running wires inside walls, attics, or under floors hides them from view. This also protects wires from damage and weather. Use conduits to shield cables from wear, especially outdoors. Avoid running wires near electrical cables or devices that cause interference. Such interference can make video signals unstable. Keep wires away from power lines and large metal objects. Seal any holes where wires enter your home to stop moisture and pests. Use fish tape to pull cables through tight spaces smoothly. Secure wires with clips or ties to prevent sagging or tangling. Planning a clear, concealed route helps keep your security system reliable and tidy.
Credit: www.dhgate.com
Indoor Wiring Steps
Start by drilling pilot holes where the wires will pass. Use a drill bit smaller than the wire size to avoid damage. Pilot holes make pulling wires easier and protect walls.
Use fish tape to guide wires through walls or tight spaces. Push the tape carefully, then attach the wire and pull it back slowly. This prevents wire snags and damage.
Conceal wires inside walls, baseboards, or cable channels. This keeps the installation neat and protects wires from pets or accidental cuts. Avoid leaving wires hanging loose.
Seal entry points where wires enter rooms or walls. Use silicone or caulk to stop drafts, dust, and pests. This also helps maintain home insulation and safety.
Use a junction box to join wires securely. It protects connections and makes future repairs easier. Always choose a box size that fits all wires comfortably.
Outdoor Wiring Tips
Conduit protects cables from weather and animals. It also stops wires from breaking. Use PVC or metal conduit for outdoor runs. Make sure the conduit is sealed to keep water out.
Bury cables at least 6 inches deep to avoid damage. Use a conduit underground for extra protection. Mark the buried wire path to prevent accidental digging.
Weatherproof connectors keep moisture from entering connections. Use waterproof tape or shrink tubing around connectors. This prevents short circuits and rust.
Create drip loops by letting cables hang down before going into the house. This stops water from running inside the cable entry points. Seal all entry points with silicone to keep water out.

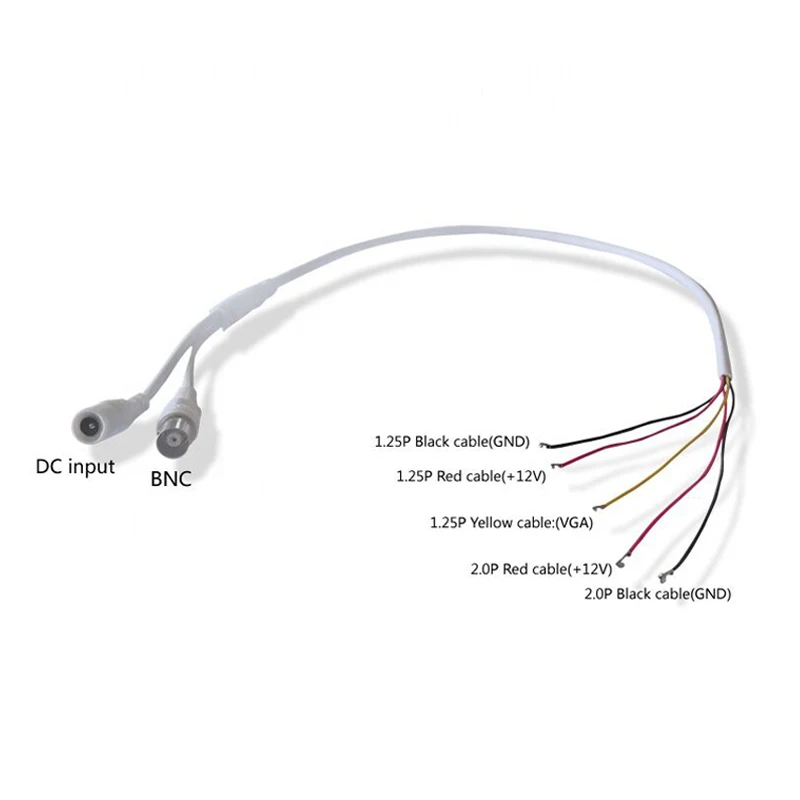

Connecting The Camera
Power connection requires matching the camera’s voltage needs. Use the red wire for positive (+) and black for negative (-). Make sure connections are tight to avoid power loss. Protect wires from water and damage for safety.
The video signal setup uses the yellow wire in analog systems. Connect it to the video input on your recorder or monitor. Secure connections prevent signal drops and interference.
Testing the connection is key. Power on the camera and check the video feed. Use a multimeter to check voltage if the camera does not turn on. Adjust or fix loose wires if needed.
Troubleshooting Wiring Issues
Common wiring problems include loose connections, damaged cables, and wrong wire colors. These issues can cause the camera to lose power or video signal.
For quick fixes, check all cable connections. Tighten any loose plugs and replace frayed wires. Make sure wires match the camera’s color code: red for power, black for ground, yellow for video.
Use a multimeter to test if wires carry electricity. Swap cables with a known good one to find faults. Clean connectors to remove dust and corrosion.
Call a professional if problems persist after basic checks. Professionals can diagnose complex wiring faults and ensure proper setup. Also seek help if working near high voltage or difficult wiring paths.
Credit: nightowlsp.com
How Surveillance Guides Can Help You with 5 Wire Security Camera Wiring Diagram
Practical Insights into 5 Wire Security Camera Wiring Diagrams
Understanding a 5 wire security camera wiring diagram provides an excellent hands-on opportunity to deepen your knowledge of wiring color codes and selecting the right cable. When you follow a diagram that clearly illustrates each wire’s function—power, video, audio, and ground—it becomes easier to plan the wire route effectively, whether indoors or outdoors.
For those aiming to enhance their installation skills, reviewing troubleshooting wiring issues as you work through the diagram can be particularly instructive. This process not only reinforces theoretical knowledge but also builds confidence in identifying and resolving common connection problems.
Resources like Surveillance Guides offer clear, step-by-step tutorials that simplify these concepts, helping homeowners and small business owners make informed decisions about their surveillance setups. For further clarification or technical questions, contacting their support team can provide practical assistance without the pressure of sales.
Conclusion
Understanding the 5 wire security camera wiring diagram makes installation easier. Clear wiring paths help avoid confusion and mistakes. Use proper cable types for indoor and outdoor settings. Secure and protect wires to ensure long-term performance. Simple steps lead to a reliable security system.
This guide helps you set up your cameras with confidence.
