AC or DC: Which Power Type Do Doorbell Transformers Use?

Ever wondered about the invisible power behind your doorbell’s familiar chime? It’s a tiny, unassuming device often tucked away in your basement, garage, or utility closet: the doorbell transformer. Many homeowners scratch their heads when trying to figure out if these essential components use direct current (DC) or alternating current (AC). And what about ‘DVC’? Is that a different type altogether?

This question is more common than you might think, especially with the rise of smart doorbells adding layers of complexity to traditional systems. Understanding whether your doorbell transformer outputs DVC or AC is crucial not just for troubleshooting but also for ensuring compatibility with new smart home gadgets.

In this comprehensive guide, we’ll demystify the power behind your doorbell. We’ll explore the fundamental differences between AC and DC, explain why most traditional doorbell transformers are AC, clarify any confusion around ‘DVC,’ and provide actionable insights to keep your doorbell system running smoothly. Let’s ring in the knowledge!

The Core Question: AC or DC for Your Doorbell Transformer?

Let’s cut straight to the chase: For the vast majority of traditional and even many smart doorbell systems, your doorbell transformer outputs AC (Alternating Current). This is a common point of confusion, as many low-voltage devices, especially in modern electronics, often run on DC power.

The transformer’s primary job is to safely step down the high voltage from your home’s main electrical supply (typically 120V or 240V AC) to a much lower, safer voltage, usually in the range of 8V, 16V, or 24V AC. This low-voltage AC power is what then travels through your doorbell wiring to power the chime and, in some cases, the doorbell button itself.

Why AC Reigns Supreme in Traditional Doorbell Systems

The dominance of AC in doorbell transformers isn’t arbitrary; it’s rooted in simplicity, efficiency, and historical context.

• Efficiency of Transformers: Transformers work by electromagnetism, which requires a fluctuating magnetic field. AC, by its very nature, alternates direction periodically, creating this necessary fluctuating field. DC, on the other hand, flows in one constant direction and cannot be efficiently transformed (stepped down or up) using a simple transformer.
• Simplicity and Cost: Using AC means the system doesn’t need additional components to convert AC from the transformer into DC for the chime unit. Traditional doorbell chimes are passive devices that react directly to AC power.
• Historical Standard: When doorbells became common, AC was the standard for power distribution. It was natural for peripheral devices to utilize AC for their stepped-down power needs.

This low-voltage AC is perfectly suited for powering electromechanical chimes, where a solenoid coil is energized to strike a metal bar, creating that classic ‘ding-dong’ sound. There’s no complex circuitry requiring precise DC power.

Understanding the “DVC” Confusion (and DC’s Role in Smart Doorbells)

If you’re asking ‘Are doorbell transformers DVC or AC?’, chances are you’ve encountered a typo, or you’re thinking about DC (Direct Current). ‘DVC’ isn’t a standard electrical term. Most likely, you mean DC.

While the doorbell transformer itself outputs AC, DC does play a crucial role in many modern doorbell setups, especially smart doorbells like Ring, Nest, or Eufy. Here’s the distinction:

• The Transformer: Still produces low-voltage AC power.
• The Smart Doorbell Unit: These devices are essentially mini-computers. Their internal electronics, microprocessors, and Wi-Fi modules require stable DC power. Therefore, most smart doorbells have a built-in rectifier circuit that takes the AC power from the transformer and converts it into the necessary DC power (e.g., 5V DC) for their internal components.
• Battery-Powered Doorbells: Some smart doorbells are entirely battery-powered and don’t require a transformer at all, using internal DC batteries. However, even these often have an option for hardwired charging, which again involves an AC transformer supplying power to the doorbell’s internal AC-to-DC converter.

So, while your smart doorbell power ultimately uses DC power internally, the power source from the wall and through the transformer is almost invariably AC.

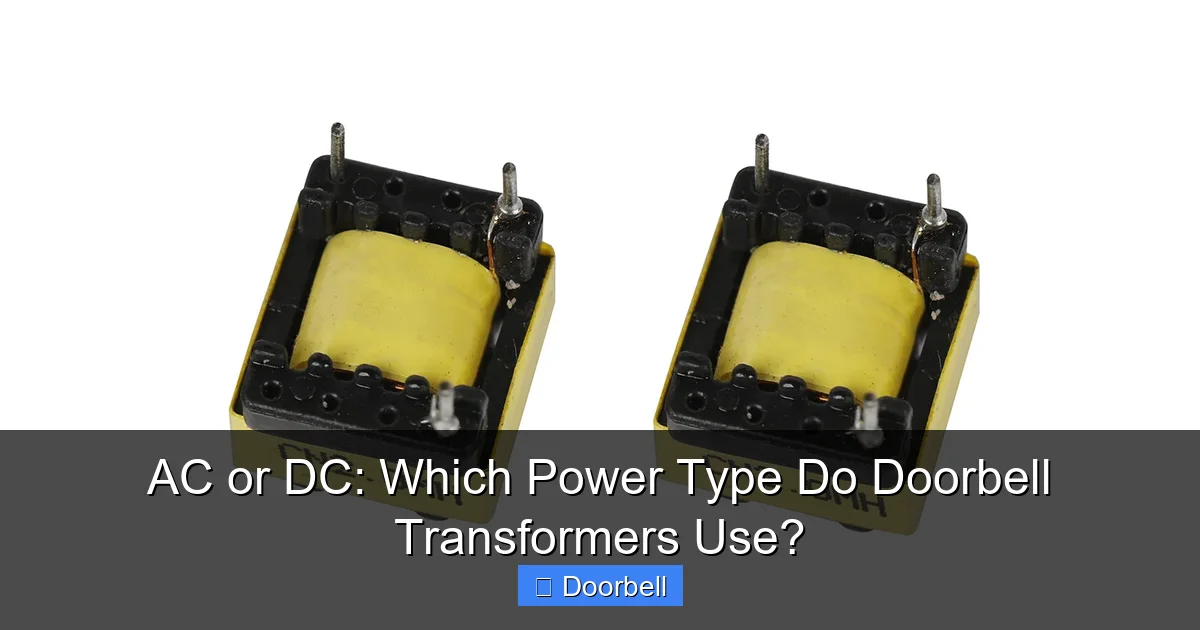

How a Doorbell Transformer Works (and Why It’s Crucial)

The magic of the doorbell transformer function lies in its ability to safely alter electrical voltage. Here’s a simplified breakdown:

1. Primary Coil: High-voltage AC (120V/240V) enters a coil of wire (the primary coil) wound around an iron core.
2. Magnetic Field: The alternating current creates a fluctuating magnetic field in the iron core.
3. Secondary Coil: This fluctuating magnetic field induces a current in a second coil of wire (the secondary coil), also wound around the same core.
4. Voltage Reduction: The number of turns in the secondary coil is significantly less than in the primary coil, resulting in a proportional reduction in voltage. For instance, if the primary has 100 turns and the secondary has 10, the voltage will be stepped down by a factor of 10.

This process is highly efficient with AC because the alternating current continuously builds and collapses the magnetic field. A reliable doorbell transformer is crucial for safety, preventing high voltage from reaching accessible parts of your home, and for delivering the correct, stable low voltage required by your doorbell wiring system.

Common Doorbell Transformer Voltages and What They Mean

Doorbell transformers come in a few standard voltage ratings, each designed for specific needs. Understanding these can help you choose the right transformer for your system.

• 8V AC: Typically found in older homes or very basic, single-chime systems. It’s often not enough for modern or smart doorbells.
• 16V AC: The most common voltage for traditional “ding-dong” chimes and many basic wired doorbell buttons. It provides enough power for most standard setups.
• 24V AC: Increasingly popular, especially with smart doorbells. Many smart doorbells require 16V-24V AC to operate reliably, provide enough power for their Wi-Fi modules, and potentially charge internal batteries. Some multi-chime systems also benefit from higher voltage to overcome voltage drop over longer wire runs.

Here’s a quick reference for typical doorbell transformer applications:

Voltage (AC)	Typical Application	Notes
8V	Very old or simple single chimes	Often insufficient for smart doorbells.
16V	Standard traditional chimes, basic wired doorbells	Minimum for many smart doorbells.
24V	Smart doorbells, multiple chimes, longer wire runs	Recommended for most modern smart doorbell installations.

Always check the specific voltage requirements of your doorbell chime and especially your smart doorbell. Using an underpowered transformer can lead to chimes not ringing correctly, smart doorbells constantly disconnecting, or not powering on at all.

Troubleshooting Your Doorbell Transformer & Safety Tips

A faulty doorbell transformer can cause issues ranging from a silent chime to a completely dead doorbell. Here are some troubleshooting tips and essential safety advice:

Troubleshooting Common Issues:

• No Chime: First, check the circuit breaker. If the transformer is getting power but the doorbell isn’t working, use a multimeter to test the transformer’s output voltage. It should match its rating (e.g., 16V AC).
• Weak Chime: This could indicate an underpowered transformer (e.g., 8V for a 16V chime) or a failing transformer. Voltage drop over long or thin wires can also be a factor.
• Smart Doorbell Connectivity Issues: Often, smart doorbells require higher voltage (16V-24V AC) and sufficient amperage. An old or weak transformer might not supply enough consistent power, leading to Wi-Fi dropouts or failure to charge.

Essential Safety Tips:

1. Always Turn Off Power: Before inspecting or working on your doorbell transformer, always turn off the power at the circuit breaker. This is paramount for your safety.
2. Check for Heat: A humming or excessively hot transformer can indicate it’s overloaded or failing. Replace it immediately if you notice this.
3. Match Voltage and VA: Ensure your new transformer matches the voltage requirements of your doorbell. Also, consider the VA (Volt-Amperes) rating, which indicates its power capacity. Smart doorbells often require a higher VA (e.g., 30VA or 40VA) than traditional chimes (10VA or 20VA).

Remember, while the voltage is low, it’s still part of your home’s electrical system. If you’re uncomfortable performing these checks, it’s always best to consult a qualified electrician.

Conclusion

So, when it comes to the heart of your wired doorbell system, the answer is clear: doorbell transformers are AC devices. They expertly step down your home’s high-voltage AC to a safe, low-voltage AC, ready to power your chime or provide the foundational energy for your smart doorbell’s internal AC-to-DC conversion.

Understanding this distinction not only clarifies common electrical misconceptions about your power type doorbell but also empowers you to make informed decisions about your home’s doorbell system, whether you’re troubleshooting an old chime or upgrading to the latest smart technology. Keep your doorbell ringing with confidence, knowing the AC power behind its reliable performance!

Frequently Asked Questions

Are Doorbell Transformers AC or DC?

Doorbell transformers primarily supply AC (alternating current) power. Traditional wired doorbells and chimes are specifically designed to operate using low-voltage AC, making it the standard for these applications.

Why do doorbell transformers use AC power instead of DC?

AC power is generally preferred for wired doorbell systems due to its simplicity and efficiency over short distances. It allows for simpler transformer designs and avoids issues like polarity sensitivity that can arise with DC power over doorbell wiring.

Can I use a DC power supply with my existing wired doorbell?

No, you should not use a DC power supply for a traditional wired doorbell designed for AC. Doing so could damage your chime unit or button, as they are specifically engineered to respond to alternating current.

What is the typical voltage output of doorbell transformers?

Most doorbell transformers output a low AC voltage, commonly 16V or 24V, but sometimes 8V for older systems. This low voltage is safe for household use and sufficient to power the doorbell chime mechanism.

How can I determine if my doorbell transformer is AC or DC?

Most standard doorbell transformers are AC, and this is usually indicated directly on the label with “VAC” (Volts AC) or an AC symbol (~). If it were DC, it would typically specify “VDC” or show a DC symbol (a straight line above a dashed line).

Do smart doorbells require an AC doorbell transformer?

Many modern smart doorbells are designed to be compatible with existing low-voltage AC doorbell wiring. While the smart doorbell itself might convert the AC to DC for its internal electronics, it still requires the AC input from a traditional doorbell transformer to operate and charge.
