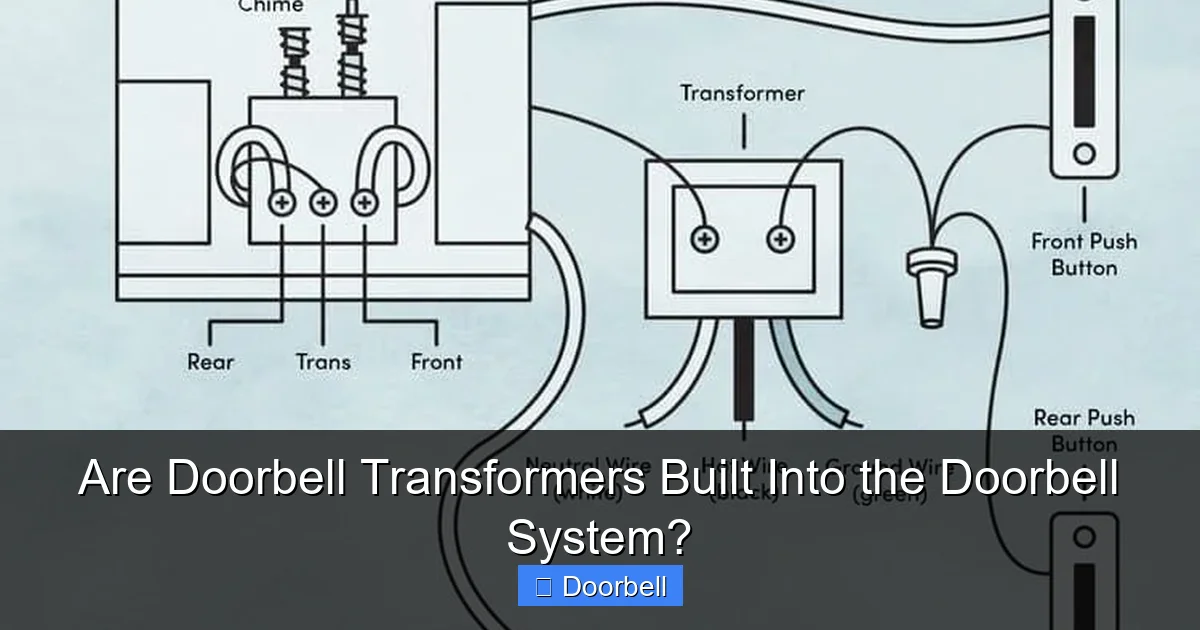

Are Doorbell Transformers Built Into the Doorbell System?

Ever wondered about the invisible powerhouse behind your home’s friendly “ding-dong”? Most of us take our doorbells for granted until they stop working or we decide to upgrade to a fancy new smart device. That’s when you might start digging into the wiring and come across a crucial, yet often overlooked, component: the doorbell transformer. A common question that arises is, “are doorbell transformers built into the doorbell itself?” It’s a logical thought, especially with how compact modern electronics have become.

The short answer, for most traditional wired doorbell systems, might surprise you. In this comprehensive guide, we’ll demystify the doorbell transformer, reveal its typical hiding spots, explain why it’s usually a separate entity, and provide valuable insights for troubleshooting or upgrading your doorbell system. Get ready to illuminate the unseen workings of your home’s entryway alert!

Are Doorbell Transformers Built-In? The Straight Answer

For the vast majority of traditional, wired doorbell systems, the answer is a resounding “no.” A doorbell transformer is not built into the doorbell button at your front door, nor is it typically integrated into the chime unit inside your home. These components require low-voltage power to operate, usually between 8 to 24 volts (V). Your home’s main electrical supply, however, is a much higher 120V or 240V. This significant voltage difference necessitates a separate device to step down the power – that’s the job of the doorbell transformer.

This separation is a fundamental aspect of wired doorbell design, driven by both safety and practicality. If you’re encountering issues with your traditional chime, knowing that the transformer is an independent part of the doorbell system is the first step in diagnosing the problem.

Understanding the Essential Role of Your Doorbell Transformer

So, what exactly does this little powerhouse do? The primary function of a doorbell transformer is to convert high-voltage household electricity (120V in North America) into the much safer, low-voltage power (typically 10-16V, sometimes up to 24V) that a wired doorbell system requires. This step-down process prevents electrical hazards, reduces heat generation at the button and chime, and makes the system safer to install and maintain for homeowners.

Without a properly functioning doorbell transformer, your wired doorbell simply won’t work. It provides the constant power needed for the chime unit to be ready to sound, and for the doorbell button to complete the circuit when pressed. Think of it as the heart of your wired doorbell’s power supply, pulsating low-voltage electricity through the system.

Unmasking the Hiding Spots: Where to Find Your Doorbell Transformer

Since the doorbell transformer is not built into the doorbell unit itself, finding its location can sometimes feel like a treasure hunt. However, these devices are typically installed in common, accessible locations within your home. Knowing where is doorbell transformer usually located can save you a lot of time and frustration:

• Near the Electrical Panel: This is one of the most common spots. Since the transformer needs to tap into your home’s main electrical supply, installing it close to the circuit breaker panel is often convenient for electricians.
• Utility Rooms or Basements: Areas where utilities are centralized are prime locations. Look on joists, walls, or near junction boxes.
• Attics or Crawl Spaces: Sometimes, especially in older homes, the transformer might be mounted on a joist in an attic or a crawl space, out of sight.
• Closets: Utility closets, particularly those near the front door or the chime unit, can also house a transformer, often mounted high up on the wall or ceiling.
• Near the Chime Unit Itself: While not *in* the chime unit, it’s sometimes mounted on the wall or ceiling directly adjacent to it, perhaps hidden behind a cover plate or in an accessible attic space above the chime.

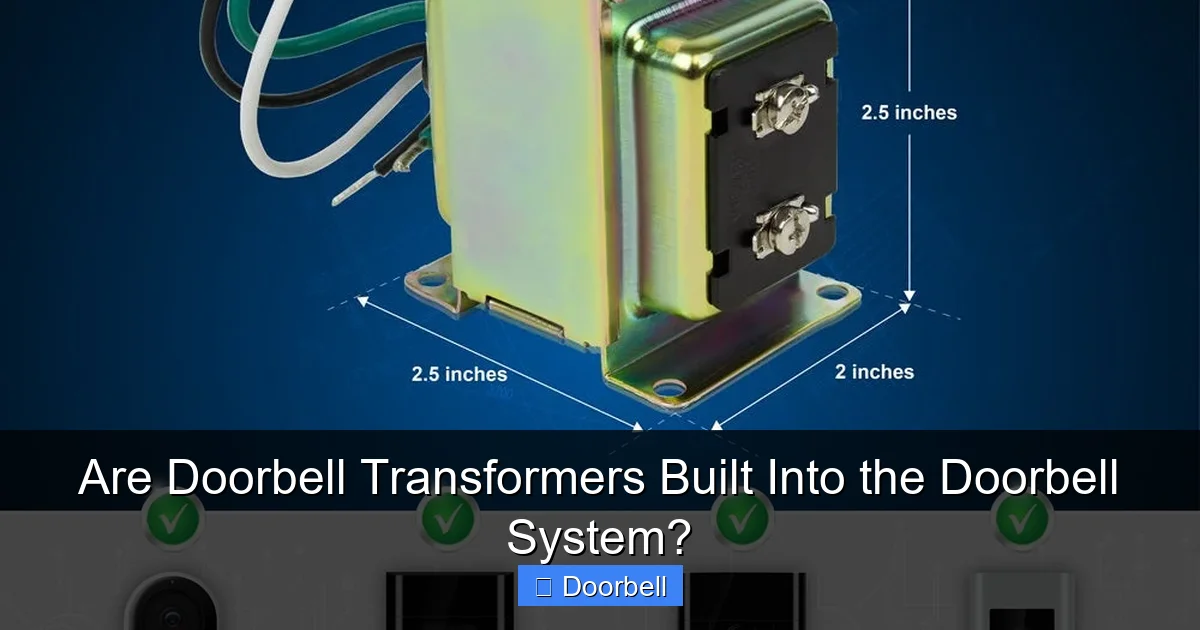

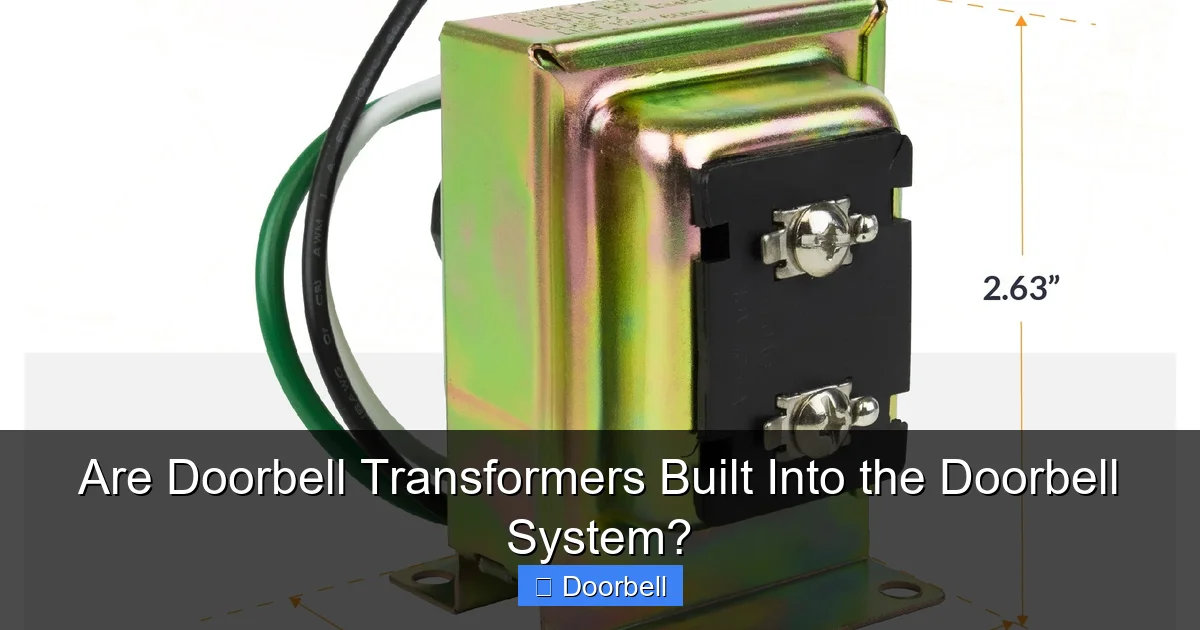

When searching, look for a small, rectangular or cube-shaped metal box, usually no larger than a deck of cards, with two low-voltage wires coming out of one side and higher-voltage wiring entering from the other (often through a junction box). It might be labeled with its voltage output (e.g., 16V, 10VA).

When “Built-In” Gets Confusing: Smart Doorbells and Power Adapters

The advent of smart home technology, particularly video doorbells, has introduced a bit of nuance to the “are doorbell transformers built into the doorbell” question. Many smart doorbells, like Ring or Nest, are designed to replace traditional wired doorbells and thus typically connect to your existing low-voltage doorbell wiring, which means they still rely on your home’s pre-existing doorbell transformer.

However, some smart doorbells or their associated chime kits might come with their own dedicated plug-in power adapters. While these adapters perform the same voltage-stepping function as a traditional transformer, they are still external components that plug into a standard wall outlet, not “built into” the doorbell button or chime itself. Similarly, completely wireless, battery-operated doorbells do not require a transformer at all, as they run on internal batteries.

Therefore, even with modern advancements, a true “built-in” transformer within the doorbell button or chime unit remains exceedingly rare for safety and practicality reasons.

Why a Separate Transformer Makes Sense: Design and Safety

There are several compelling reasons why the doorbell transformer is typically a standalone component, rather than being integrated into the doorbell button or chime:

1. Heat Dissipation: Transformers generate heat as they convert voltage. Housing them separately allows for better heat dissipation, preventing overheating that could damage sensitive doorbell electronics or become a fire hazard if confined within a small doorbell unit.
2. Size and Weight: Transformers are relatively bulky and heavy due to their copper windings. Integrating one would make the doorbell button or chime unit significantly larger and heavier, impacting aesthetics and ease of installation.
3. Longevity and Durability: Transformers are robust devices designed for continuous operation. Separating them allows the doorbell button and chime (which are more prone to wear and tear or obsolescence) to be replaced without replacing the transformer.
4. Safety: Handling high voltage (120V) inside a small device at your front door, or within an easily accessible chime, would pose a greater electrical shock risk during installation or maintenance.
5. Standardization: Keeping the transformer separate allows for a standardized low-voltage input for various doorbell brands and models, simplifying wiring and upgrades.

This design choice highlights a thoughtful approach to safety, performance, and long-term usability in your home’s doorbell system.

Replacing or Upgrading Your Doorbell Transformer: Key Considerations

If your doorbell isn’t working, or you’re upgrading to a smart doorbell that requires more power, you might need to replace or upgrade your doorbell transformer. Here’s what to keep in mind:

1. Identify Current Voltage: Most transformers are labeled with their output voltage (e.g., 10V, 16V, 24V) and VA (volt-ampere, indicating power capacity). A typical wired chime often uses a 16V, 10VA or 16V, 20VA transformer. Smart video doorbells often require a higher VA, sometimes 30VA or more, to ensure sufficient power for their advanced features.

2. Safety First: Always turn off the power to the doorbell circuit at your main electrical panel before inspecting or replacing the transformer. Use a voltage tester to confirm the power is off.

3. Matching Requirements: Ensure your new transformer’s voltage and VA match or exceed the requirements of your doorbell chime and/or smart doorbell. Underpowering can lead to poor performance, intermittent operation, or damage to the doorbell unit.

4. Professional Help: If you’re uncomfortable working with electrical wiring, it’s always best to consult a qualified electrician. They can safely locate, test, and replace your doorbell transformer.

Here’s a quick guide to common doorbell transformer voltages:

• 8V / 10VA: Basic, older single-chime doorbells.
• 16V / 10VA-20VA: Standard for most modern wired doorbells with one or two chimes.
• 16V-24V / 30VA-40VA: Often recommended or required for smart video doorbells to ensure stable operation and full functionality.

Selecting the correct transformer is crucial for the reliability and longevity of your entire doorbell system.

Conclusion

While the idea of a completely self-contained doorbell system with a built-in doorbell transformer is appealing for simplicity, the reality for traditional wired doorbells and most smart wired doorbells is that the transformer is a separate, vital component. Its external nature is a deliberate design choice that enhances safety, improves longevity, and allows for greater versatility in your home’s electrical setup. Now that you know where is doorbell transformer typically hidden and why it’s a separate entity, you’re better equipped to understand, troubleshoot, or upgrade your own doorbell system with confidence. So the next time your doorbell rings, you’ll know there’s a little transformer working diligently behind the scenes, ensuring that welcoming “ding-dong” always makes it through.

Frequently Asked Questions

Is the doorbell transformer typically integrated into the doorbell unit itself?

No, the doorbell transformer is almost never built directly into the doorbell chime unit or the push-button itself. It is a separate electrical component that powers the doorbell system.

Where is the doorbell transformer usually located in a house?

Common locations for a doorbell transformer include near your main electrical panel, in a utility room, attached to a junction box in a basement or attic, or sometimes even in a closet near the front door. It’s typically hardwired into your home’s electrical wiring.

Why do wired doorbells require a separate doorbell transformer?

Wired doorbells operate on a much lower voltage (typically 10-24 volts AC) than your home’s standard 120-volt AC power. The doorbell transformer reduces the higher household voltage to the safe, low voltage needed to power the chime and button.

Can I install a smart doorbell without a traditional doorbell transformer?

Most wired smart doorbells still require a low-voltage power supply, meaning they need a compatible doorbell transformer. While some models can be battery-powered, if you’re replacing a wired doorbell, you’ll likely use the existing transformer or need to upgrade it.

How can I tell what voltage my existing doorbell transformer provides?

The voltage output is usually printed on the doorbell transformer itself, typically on the housing. You’ll often see markings like “16V,” “24V,” or a range indicating the output voltage, which is crucial for compatibility with your doorbell.

Are wireless doorbells built with their own power transformer?

No, wireless doorbells do not use a traditional doorbell transformer. They are typically battery-powered for both the push-button and the chime unit, eliminating the need for hardwired electrical connections and voltage conversion.
