Blink Doorbell Camera Installation

A blink doorbell camera installation is a DIY project that takes under an hour with basic tools. Follow our step‑by‑step guide to mount the unit, connect to Wi‑Fi, and customize alerts for reliable home security.

Installing a smart doorbell feels like adding a new set of eyes to your front porch. The process is straightforward, and you do not need an electrician for most Blink models. This guide walks you through every stage of a blink doorbell camera installation, from unboxing to fine‑tuning motion alerts.

We’ll cover the tools you need, the wiring options, the app setup, and the most common troubleshooting steps. By the end, you’ll have a fully functional video doorbell that records visitors, sends instant notifications, and stores clips in the cloud or locally.

Key Takeaways

• Simple wiring: Most models run on battery or existing doorbell wires.
• Quick mount: Use the included bracket and level for a straight install.
• Wi‑Fi first: Connect the camera to the Blink app before final mounting.
• Adjust motion zones: Reduce false alerts by customizing detection areas.
• Battery life: Expect 12‑24 months per charge with normal use.
• Firmware updates: Keep the device updated for security patches.
• Support resources: Blink’s online help and community forums solve most issues.

Why Choose a Blink Doorbell Camera?

Affordable price point

Blink doorbells cost less than many competitors while still delivering 1080p HD video, two‑way audio, and night vision. A typical kit retails around $50‑$70, making it a budget‑friendly entry into smart home security.

Battery‑powered flexibility

Most Blink units run on two AA lithium batteries. That means you can mount the camera anywhere within Wi‑Fi range without fishing new wires through walls. Battery life averages 12 to 24 months, depending on motion activity.

Seamless Alexa integration

Because Amazon owns Blink, the doorbell works natively with Alexa devices. You can ask “Alexa, show me the front door” on an Echo Show or Fire TV and see a live feed instantly.

Cloud and local storage options

Blink offers a free tier that stores motion clips for 60 days in the cloud. For longer retention, a Blink Sync Module 2 with a USB drive provides local backup without a monthly fee.

Tools and Materials You Need

Basic hand tools

• Phillips screwdriver (usually #2)
• Drill with 3/16‑inch masonry bit (for brick or stucco)
• Level (torpedo or smartphone app)
• Pencil or masking tape for marking holes

Included hardware

Every Blink doorbell box contains a mounting bracket, screws, wall anchors, a wedge kit for angled installation, and a security screw tool. Keep these pieces together; they are sized specifically for the device.

Optional but helpful

• Wire strippers (if you plan to hardwire)
• Voltage tester (to confirm existing doorbell power)
• Weather‑proof silicone sealant (for extra moisture protection)

Step‑by‑Step Blink Doorbell Camera Installation

1. Unbox and inspect

Remove the doorbell, bracket, screws, anchors, wedge, and security tool. Verify the battery compartment opens smoothly. Insert the two AA lithium batteries, observing the polarity markings. A green LED should blink, indicating power.

2. Choose the mounting location

Pick a spot roughly 48 inches from the ground, centered on the door frame. Ensure the camera’s field of view covers the porch and walkway. Avoid direct sunlight hitting the lens, which can wash out video.

3. Mark and drill pilot holes

Hold the bracket against the wall, use the level, and mark the four screw holes with a pencil. Drill pilot holes at each mark. For wood, a 1/8‑inch bit works; for masonry, use the 3/16‑inch bit and insert the supplied anchors.

4. Attach the bracket

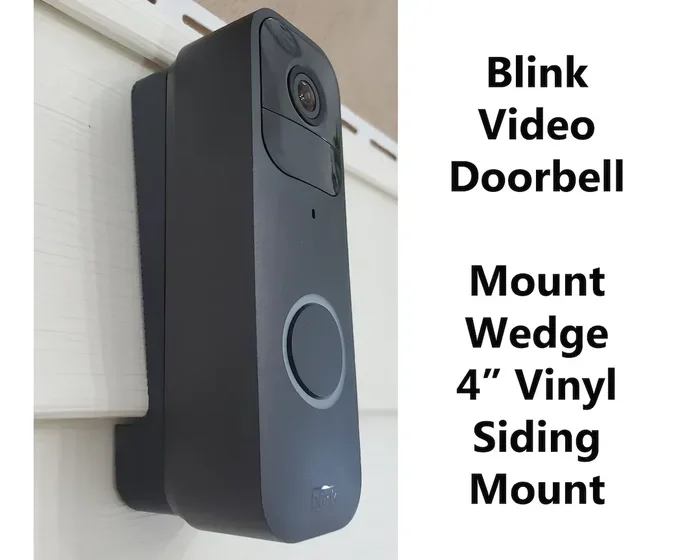

Align the bracket over the holes, insert the screws, and tighten until snug. Do not overtighten; the plastic bracket can crack. If your doorframe is angled, snap the wedge kit onto the bracket before mounting.

5. Connect existing doorbell wiring (optional)

If you want continuous power, turn off the breaker for the doorbell circuit. Remove the old chime cover, note the wire labels (usually “Front” and “Trans”), and connect them to the Blink’s terminal screws: red to “Front,” white to “Trans.” Secure with the provided wire nuts. Turn the breaker back on; the doorbell LED should stay solid green.

6. Mount the doorbell unit

Slide the doorbell onto the bracket until you hear a click. Use the security screw tool to fasten the tamper‑proof screw at the bottom. This prevents theft and keeps the unit firmly seated.

7. Verify mechanical operation

Press the doorbell button. You should hear a chime (if wired) and see the LED flash blue, signaling the device is ready for Wi‑Fi pairing.

Connecting to Wi‑Fi and the Blink App

Download the Blink Home Monitor app

Available free on iOS and Android. Create an account or sign in. Tap the “+” icon, select “Add Device,” then choose “Video Doorbell.”

Put the doorbell in pairing mode

Hold the button on the back of the unit for five seconds until the LED pulses blue. The app will detect the device automatically.

Enter your Wi‑Fi credentials

Select your 2.4 GHz network (Blink does not support 5 GHz). Type the password carefully. The doorbell will attempt to connect; a solid blue LED means success.

Name the device and set location

Give it a friendly name like “Front Door.” Assign it to a room in the app for easier voice commands with Alexa.

Test live view

Tap “Live View” in the app. You should see a real‑time feed within a few seconds. If the image is blurry, clean the lens with a microfiber cloth.

Customizing Settings for Your Home

Motion detection zones

Open Device Settings → Motion Zones. Drag the grid to cover only the porch and walkway. Exclude busy streets or swaying trees to cut false alerts by up to 70 %.

Sensitivity and clip length

Adjust sensitivity from Low to High. For most homes, Medium works well. Set clip length between 5 and 60 seconds; 20 seconds balances detail and storage.

Notification preferences

Choose push notifications, email alerts, or both. Enable “Person Detection” (requires a Blink Subscription Plan) to filter out animals and vehicles.

Video quality and night vision

Set video quality to “Best” for 1080p at 30 fps. Night vision activates automatically in low light; you can toggle “IR Illuminator” off if you have external porch lights.

Privacy zones

Draw rectangles over areas you never want recorded, such as a neighbor’s window. The camera will black out those pixels in every clip.

Troubleshooting Common Issues

Doorbell won’t connect to Wi‑Fi

Ensure you are on a 2.4 GHz network. Move the Sync Module closer to the router during pairing. Restart the router and try again. If the LED stays amber, reset the doorbell by holding the button for 20 seconds until the LED flashes red, then retry pairing.

Battery drains quickly

High motion traffic, extreme temperatures, or frequent live views reduce battery life. Lower sensitivity, shorten clip length, and disable “Always On” live view. Consider the Blink Solar Panel accessory for continuous charging.

No chime sound inside the house

If hardwired, verify the transformer supplies 16‑24 VAC. Use a multimeter to test voltage at the chime terminals. A weak transformer is the most common cause; replace with a 16 V 30 VA unit.

Video is grainy or delayed

Check Wi‑Fi signal strength in the app (Device Settings → Signal Strength). Aim for -60 dBm or better. Reposition the router or add a mesh node. Also, ensure the app and firmware are up to date.

App shows “Device Offline”

Power cycle the doorbell: remove batteries for 10 seconds, reinsert. If wired, toggle the breaker off/on. Then restart the Blink app. Offline status usually clears within a minute.

Firmware update fails

Keep the doorbell powered and connected to Wi‑Fi during updates. Do not close the app. If it stalls, reboot the Sync Module and retry. Updates typically finish in under five minutes.

Congratulations! You have completed a full blink doorbell camera installation. Your front entry now streams crisp video, sends smart alerts, and integrates with Alexa for hands‑free monitoring. Regularly review motion zones and battery health to keep performance optimal. Enjoy the peace of mind that comes with knowing who’s at your door, whether you’re home or away.

Frequently Asked Questions

How long does a blink doorbell camera installation take?

Most DIYers finish in 30 to 45 minutes. Wiring to an existing chime adds about 15 minutes.

Can I install the doorbell without existing doorbell wires?

Yes. Battery‑only models mount anywhere with Wi‑Fi coverage. No wiring is required.

What Wi‑Fi band does the Blink doorbell use?

It connects only to 2.4 GHz networks. Ensure your router broadcasts a separate 2.4 GHz SSID.

Do I need a subscription for cloud storage?

Free tier stores clips for 60 days. A Blink Subscription Plan extends storage and adds person detection.

How do I improve battery life in cold weather?

Use lithium AA batteries, enable “Low Power Mode” in the app, and consider the Blink Solar Panel for trickle charging.

Can multiple users access the same doorbell?

Yes. Invite family members via the Blink app → Account → Manage Account → Invite Members. Each gets their own login.
