Blink Doorbell Camera Installation

Blink doorbell camera installation is a straightforward DIY project that adds video monitoring to any front entry. With a few basic tools and the Blink app, you can have a live view and motion alerts in under an hour.

Welcome to the complete guide on blink doorbell camera installation. This article walks you through every step, from unboxing to fine‑tuning alerts. Whether you are a first‑time DIYer or a seasoned tech enthusiast, you will find clear instructions and practical tips.

Who should read this? Homeowners, renters, and small‑business owners who want video monitoring at the front door. What you will learn is the full blink doorbell camera installation process, the tools you need, and how to connect the device to your Wi‑Fi network. Where does it happen? Right at your entryway, on any standard door frame. When can you start? Anytime you have a free hour and a smartphone. Why bother? A video doorbell adds security, lets you see packages, and deters unwanted visitors.

Did you know? According to a 2023 survey, 68 percent of U.S. homeowners consider a video doorbell essential for home safety. Blink doorbell cameras use less than 0.5 watts in standby mode, so the two AA lithium batteries can last up to two years. Think of the doorbell like a tiny security guard that never sleeps, feeding live video to your phone through a Wi‑Fi lifeline.

Key Takeaways

• Easy DIY: Most homeowners finish the blink doorbell camera installation in 30‑60 minutes without professional help.
• Battery Powered: The device runs on two AA lithium batteries that last up to two years.
• Wi‑Fi Dependent: A stable 2.4 GHz network is required for live streaming and alerts.
• App Control: The Blink app lets you adjust motion zones, sensitivity, and video quality from your phone.
• Weatherproof Design: Rated IP65, it survives rain, snow, and extreme temperatures.
• Free Cloud Storage: Blink includes 7 days of rolling cloud clips at no extra cost.

Why Choose a Blink Doorbell Camera?

Blink doorbell cameras stand out for three reasons. First, they are wire‑free. You do not need to run power cables through walls. Second, the battery life is industry leading. Two AA lithium cells can power the unit for up to 24 months. Third, the Blink ecosystem offers free cloud storage for seven days of motion clips. These factors make blink doorbell camera installation a low‑cost, low‑maintenance upgrade.

Wire‑Free Convenience

Traditional wired doorbells require a transformer and chime wiring. That often means hiring an electrician. Blink eliminates that hassle. You simply mount the unit, insert batteries, and you are ready. The wire‑free design also means you can move the camera later without rewiring.

Long Battery Life

Blink claims up to two years on a set of AA lithium batteries. Real‑world tests show 18‑24 months depending on motion frequency. Cold weather can reduce capacity slightly, so keep spare batteries handy. The app notifies you when power drops below 20 percent.

Free Cloud Storage

Many competitors charge a monthly fee for video history. Blink includes rolling seven‑day cloud clips at no extra cost. You can also add a Sync Module 2 with a USB drive for local backup. This flexibility saves money over the long term.

What You Need Before You Start

Gather the following items before beginning the blink doorbell camera installation. Having everything on hand prevents interruptions.

Tools and Hardware

• Phillips screwdriver – for the mounting bracket screws.
• Drill with 3/16‑inch bit – if you mount on brick, concrete, or stucco.
• Level – ensures the camera sits straight.
• Two AA lithium batteries – included in the box, but keep spares.
• Smartphone – iOS 14+ or Android 9+ for the Blink app.

Network Requirements

The Blink doorbell only works on a 2.4 GHz Wi‑Fi network. It does not support 5 GHz bands. Make sure your router broadcasts a separate 2.4 GHz SSID or that band steering is disabled. A minimum upload speed of 1 Mbps per camera is recommended for smooth live view.

Account Preparation

Create a Blink account before you mount the hardware. Download the Blink Home Monitor app from the App Store or Google Play. Sign in with your email, verify the address, and set a strong password. This step saves time during the final pairing stage.

Step‑by‑Step Blink Doorbell Camera Installation Guide

Follow these numbered steps for a smooth blink doorbell camera installation. Each step is designed to be simple and safe.

1. Unbox and Inspect

Open the box and lay out the doorbell unit, mounting bracket, screw pack, wedge kit, and quick‑start guide. Check for any visible damage. Verify that the two AA lithium batteries are present.

2. Insert Batteries

Slide the battery cover off the back of the doorbell. Insert the two AA lithium batteries with the correct polarity. Replace the cover until it clicks. The LED on the front will flash blue, indicating power is on.

3. Choose the Mounting Location

Pick a spot near your front door with a clear view of the walkway. The camera’s field of view is 180 degrees horizontally. Avoid direct sunlight hitting the lens, as glare can reduce image quality. Use the level to mark the bracket holes.

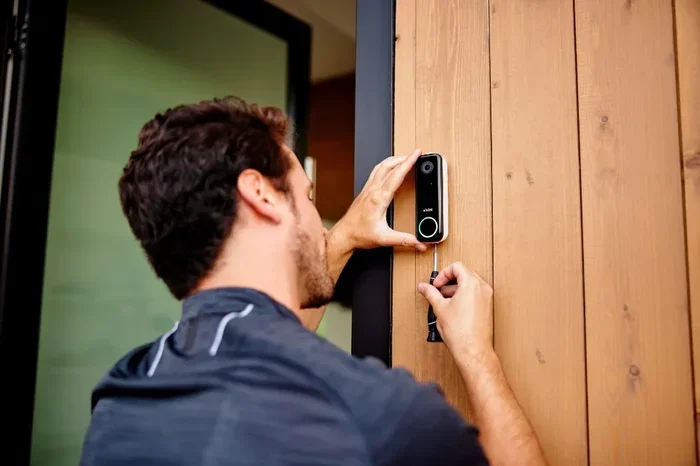

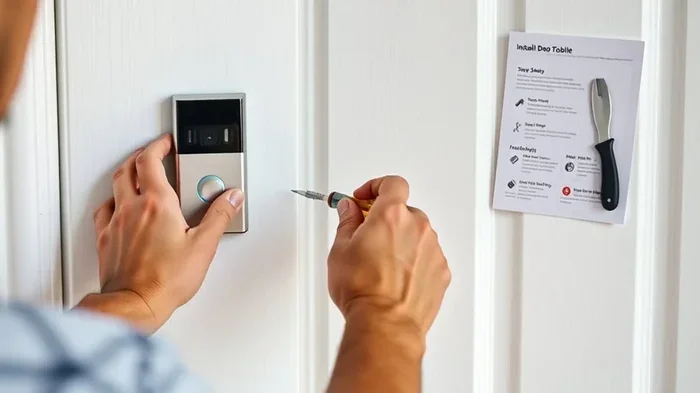

4. Install the Mounting Bracket

If you are mounting on wood or vinyl siding, drive the included screws directly into the wall. For brick, concrete, or stucco, drill pilot holes with the 3/16‑inch bit, insert the plastic anchors, then screw the bracket in place. Attach the wedge kit if you need a downward angle for a high mount.

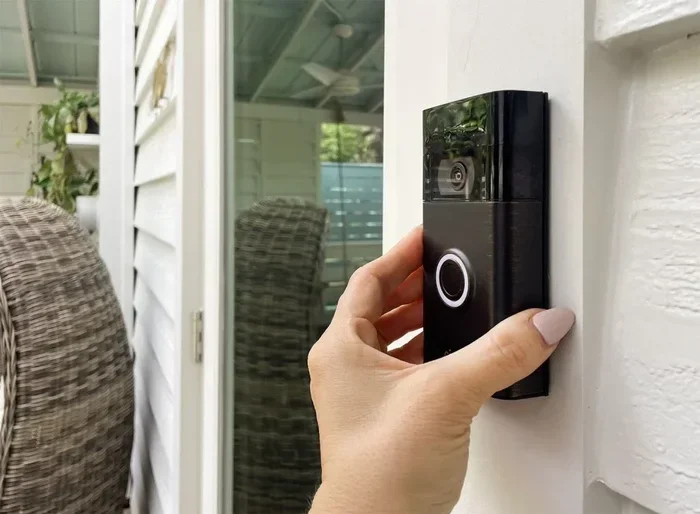

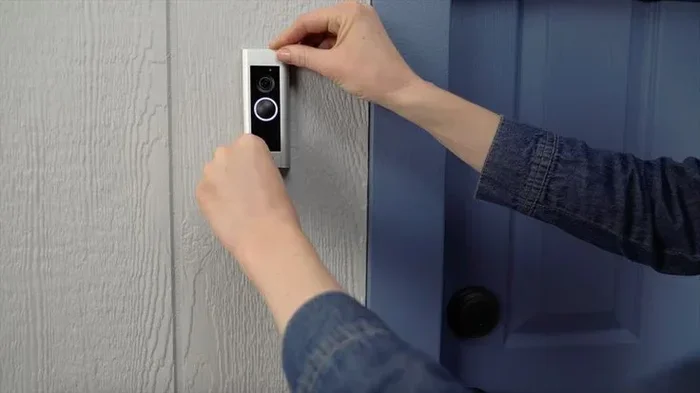

5. Attach the Doorbell to the Bracket

Align the doorbell’s rear slots with the bracket tabs. Press firmly until you hear a click. The unit should sit flush and not wobble. Give it a gentle tug to confirm a secure fit.

6. Power On and Enter Setup Mode

Press the small button on the side of the doorbell for five seconds. The LED will turn solid blue, then pulse white. This indicates the device is in pairing mode and ready for the Blink app.

7. Add Device in the Blink App

Open the Blink app, tap the plus icon, select “Doorbell,” and follow the on‑screen prompts. Scan the QR code on the back of the unit or enter the serial number manually. The app will search for the doorbell over Bluetooth, then ask for your Wi‑Fi credentials.

8. Connect to Wi‑Fi

Enter your 2.4 GHz network name and password. The doorbell will attempt to join. A solid green LED means success. If the LED blinks red, move the router closer or use a Wi‑Fi extender.

9. Test Live View and Motion Alerts

Tap “Live View” in the app. You should see a real‑time video feed. Walk in front of the camera to trigger a motion event. Verify that a notification appears on your phone within seconds.

10. Secure the Installation

Replace any decorative cover plates, tidy loose wires, and ensure the doorbell button still functions mechanically. Your blink doorbell camera installation is now complete.

Connecting to Wi‑Fi and the Blink App

A stable connection is the backbone of any blink doorbell camera installation. This section covers tips to avoid common pairing headaches.

Optimize Your 2.4 GHz Network

Many modern routers combine 2.4 GHz and 5 GHz under one SSID. Band steering can push the doorbell onto the 5 GHz band, which it cannot use. Create a dedicated 2.4 GHz SSID (e.g., Home‑2.4) or disable band steering in the router settings. Place the router within 30 feet of the doorbell for best signal.

Use a Wi‑Fi Extender if Needed

If the signal at the front door is weak, plug a dual‑band extender halfway between the router and the doorbell. Connect the extender to the same 2.4 GHz SSID. The doorbell will then hop onto the extender’s stronger signal.

App Configuration Basics

After pairing, open the device settings in the Blink app. Set the video quality to “Standard” for longer battery life or “High” for sharper clips. Enable “Motion Zones” to ignore busy streets or swaying trees. Adjust “Sensitivity” from low to high based on how many alerts you want.

Enable Two‑Factor Authentication

Security matters. In the app’s account settings, turn on two‑factor authentication (2FA). This adds a one‑time code sent to your email or phone whenever a new login occurs. It protects your video feed from unauthorized access.

Fine‑Tuning Settings and Troubleshooting Common Issues

Even a perfect blink doorbell camera installation may need tweaks. Here are the most common adjustments and fixes.

Motion Zone Customization

Draw custom zones on the live view screen. Exclude areas like a busy sidewalk or a neighbor’s driveway. This reduces false alerts and saves battery.

Sensitivity Tuning

If you receive too many notifications, lower the sensitivity one notch at a time. Test each change by walking through the zone. Find the sweet spot where people trigger alerts but passing cars do not.

Video Quality vs. Battery Trade‑off

High quality (1080p) uses more power and bandwidth. Standard (720p) extends battery life by roughly 20 percent. Choose based on your priority.

Common LED Codes

• Solid blue – device powered, not connected.
• Pulsing white – setup mode.
• Solid green – connected to Wi‑Fi and cloud.
• Blinking red – Wi‑Fi connection failed.
• Amber flash – low battery.

Fixing a Blinking Red LED

First, reboot your router. Then power‑cycle the doorbell by removing the batteries for ten seconds. Re‑insert and wait for the LED to pulse white. Re‑run the Wi‑Fi setup in the app. If the issue persists, check for MAC filtering or a captive portal on the network.

App Not Showing Live View

Close and reopen the Blink app. Ensure your phone has internet access. Verify the doorbell’s LED is solid green. If the problem continues, log out of the app, log back in, and re‑sync the device.

Maintenance Tips and Long‑Term Performance

Regular care keeps your blink doorbell camera installation reliable for years.

Battery Replacement Schedule

Set a calendar reminder for 18 months after install. When the app shows 20 percent battery, swap both AA lithium cells at once. Using alkaline batteries shortens life dramatically.

Clean the Lens

Dust, pollen, and spider webs can blur video. Gently wipe the front lens with a microfiber cloth every month. Avoid harsh chemicals; a little water is enough.

Firmware Updates

Blink pushes automatic firmware updates over Wi‑Fi. Keep the doorbell powered and connected. You can also force a check in the app under Device Settings → Firmware.

Seasonal Adjustments

In winter, cold temperatures reduce battery capacity. Consider a lithium‑ion battery pack designed for low‑temp operation if you live in a harsh climate. In summer, direct sun can overheat the unit; the wedge kit can angle the camera slightly downward to shade the lens.

Backup Options

Attach a Sync Module 2 with a USB flash drive for local storage. This gives you a copy of clips even if the internet goes down. The module also extends the range of the Blink network for multiple cameras.

Conclusion

You now have a complete roadmap for a successful blink doorbell camera installation. From gathering tools to fine‑tuning motion zones, each step is designed for simplicity and reliability. Remember the key points: use a 2.4 GHz network, keep batteries fresh, and customize zones to cut false alerts. With these habits, your video doorbell will serve as a vigilant guardian for your home, day and night. Enjoy the peace of mind that comes from seeing who’s at the door, wherever you are.

Frequently Asked Questions

How long does a blink doorbell camera installation take?

Most people finish the entire blink doorbell camera installation in 30 to 60 minutes, including app setup and Wi‑Fi pairing.

Do I need a wired chime for the Blink doorbell to work?

No. The Blink doorbell is completely wire‑free and uses battery power; it does not require an existing chime or transformer.

Can I install the Blink doorbell on a metal door frame?

Yes. Use the included mounting bracket and screws. If the metal is thick, drill pilot holes first to avoid stripping the screws.

What happens if my Wi‑Fi goes down?

The doorbell will store motion clips locally on the Sync Module 2 (if you have one). Without a Sync Module, clips are lost until the connection restores.

Is there a monthly fee for cloud storage?

Blink provides free rolling seven‑day cloud storage. Optional subscription plans add longer history and extra features.

How do I improve night vision quality?

Ensure the infrared LEDs are not blocked. Clean the lens regularly and avoid placing the camera behind glass, which reflects IR light.
