Blink Doorbell Camera Setup

Setting up your Blink doorbell camera is straightforward when you follow the right steps. This guide walks you through every stage from unboxing to live view, covering both wired and wire-free installations. You will have a working smart doorbell protecting your home in under 30 minutes.

You just bought a Blink Video Doorbell. The box is open. The parts are spread across the kitchen table. Now what? If you have ever stared at a pile of screws, a weird mounting bracket, and a QR code, wondering where to start, you are in the right place. A blink doorbell camera setup does not require an engineering degree. It requires a clear path, a little patience, and this guide.

We will walk through the entire process together. Think of me as the friend who has done this five times and knows exactly which step trips people up. We will cover unboxing, power choices, the app dance, mounting physics, and the “why is it not working” moments. By the end, you will have a live video feed on your phone and a doorbell that actually rings.

Key Takeaways

• Two Power Options: Choose between wire-free battery power or existing doorbell wiring for continuous charging.
• Sync Module Required: The Blink Video Doorbell requires a Sync Module 2 to function and store clips locally.
• 2.4 GHz Wi-Fi Only: The device connects exclusively to 2.4 GHz networks; 5 GHz bands will not work.
• App-Driven Setup: The Blink Home Monitor app handles pairing, Wi-Fi connection, and settings configuration.
• Mounting Matters: Proper height (48 inches) and angle (wedge kit) ensure optimal motion detection and facial recognition.
• Subscription Optional: Basic features work free; Blink Subscription Plan adds cloud storage and extended warranty.
• Quick Troubleshooting: Most issues resolve by power cycling the Sync Module or moving the router closer.

What You Need Before You Start

Preparation prevents poor performance. That old saying saves hours of frustration here. Gather these items before you peel the plastic off the doorbell.

The Hardware Checklist

• Blink Video Doorbell: The main unit.
• Sync Module 2: The square white hub. The doorbell will not work without it.
• Mounting Hardware: Screws, anchors, wire extenders, and the wedge kit (angled bracket) included in the box.
• Tools: Phillips head screwdriver, drill with 3/16-inch bit (for stucco/brick), level, and a pencil.
• Smartphone: iOS 14+ or Android 7.0+ with the Blink Home Monitor app installed.
• Wi-Fi Credentials: Your 2.4 GHz network name and password. Write them down.

The “Did You Know” Reality Check

Did you know? According to Parks Associates, 34% of US broadband households owned a video doorbell in 2023. That number jumps to 45% for households with home security systems. You are joining a massive club. But here is the kicker: nearly 1 in 5 returns happen because buyers miss the Sync Module requirement. The doorbell talks to the Sync Module via a private Low Frequency Radio (LFR) protocol, not directly to Wi-Fi. The Sync Module then bridges to your router. No module equals no doorbell.

Power Path Decision: Wired vs. Wire-Free

This is your first big fork in the road. The Blink Video Doorbell supports both.

Option A: Wire-Free (Battery Power)

Who this is for: Renters, homes without existing doorbell wiring, or anyone who wants a 10-minute install.

• Pros: Zero wiring. Mount anywhere. Portable.
• Cons: Batteries last 1–2 years (Blink claim) but real-world heavy traffic cuts that to 6–9 months. No pre-buffer recording (the 5 seconds before motion triggers). Live View drains battery fast.
• Best Practice: Use the included lithium AA batteries. Alkaline will die in weeks.

Option B: Wired (Existing Doorbell Wiring)

Who this is for: Homeowners with a working mechanical or digital chime (16–24 VAC).

• Pros: Continuous power. Enables “Pre-Buffer” recording (captures 5 seconds before motion). Saves battery for backup only. Rings your existing indoor chime.
• Cons: Requires turning off breaker. Slightly more complex install. Digital chimes often need the included “Chime Connector” (resistor) to prevent buzzing.
• Critical Check: Use a multimeter. Verify 16–24 VAC at the doorbell wires. Under 16V? The doorbell won’t charge. Over 24V? You risk damage.

Analogy Time: Think of Wire-Free like a laptop on battery—portable but you watch the percentage. Wired is like a desktop plugged into the wall—always ready, full performance, but stuck near an outlet.

Step-by-Step Blink Doorbell Camera Setup

Now the main event. Follow these in order. Skipping steps is how you end up resetting everything at 11 PM.

1. Install the Sync Module 2 First

The Sync Module is the brain. The doorbell is just a sensor. Plug the Sync Module into power near your router for the initial setup. Use the included USB cable and power adapter.

1. Open the Blink Home Monitor app.
2. Tap the + icon (top right) > Add Device > Sync Module.
3. Scan the QR code on the back of the Sync Module (or enter serial manually).
4. Name your system (e.g., “Front Door System”).
5. The app will search for the module’s temporary Wi-Fi network (BLINK-XXXX). Join it.
6. Select your home 2.4 GHz Wi-Fi network. Enter password.
7. Wait for the solid blue and green lights. Success.

Pro Tip: Place the Sync Module within 20 feet of the doorbell location and your router. Thick walls, metal doors, and microwaves kill the LFR signal. If your front door is far from the router, plug the Sync Module into an outlet halfway between.

2. Add the Doorbell to the System

With the Sync Module online, add the camera.

1. In the app, tap + > Add Device > Video Doorbell.
2. Scan the QR code inside the doorbell’s battery compartment (pull the tab first).
3. The app pairs the doorbell to the Sync Module via LFR. You will see blinking blue on the doorbell, then solid blue.
4. Name the doorbell (e.g., “Front Door”).

Did You Know? The LFR (Low Frequency Radio) link operates at 915 MHz (US). It penetrates walls better than 2.4 GHz Wi-Fi but has shorter range than you think—about 100 feet line-of-sight, 30–40 feet through walls.

3. Configure Wi-Fi for the Doorbell (Wired Path Only)

If you chose wired installation, the doorbell now needs your Wi-Fi credentials for firmware updates and cloud connectivity (the Sync Module handles routine traffic). The app will prompt you to join the doorbell’s temporary Wi-Fi and hand off your 2.4 GHz credentials. Follow the on-screen prompts. Wire-free installs skip this; they sleep until motion wakes them, then relay via Sync Module.

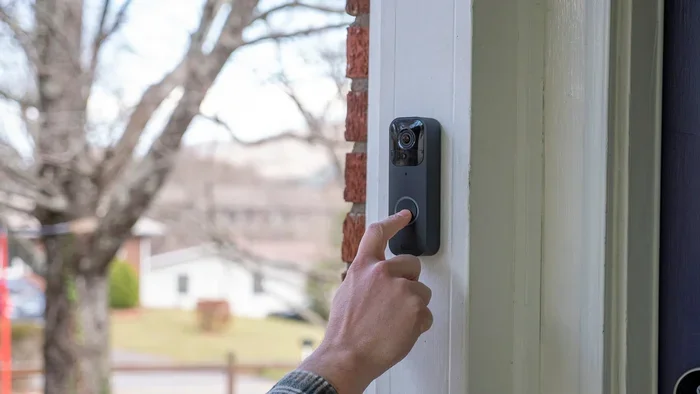

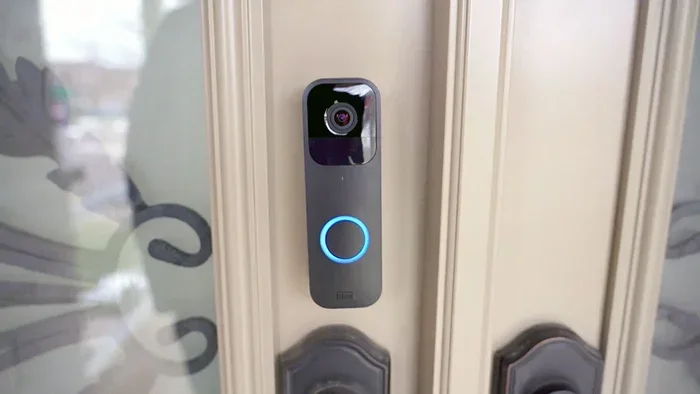

4. Physical Installation: Mounting the Doorbell

This is where physics meets aesthetics. Get it wrong and you get knees instead of faces.

Height and Angle

• Ideal Height: 48 inches (4 feet) from ground to bottom of doorbell. This captures faces, not packages on the porch.
• Wedge Kit: Use the included 5° or 15° wedge if your door frame is recessed or you need to angle the view away from a wall/sunlight.
• Level It: Crooked doorbell = skewed motion zones = missed alerts.

Wire-Free Mounting

1. Hold mounting plate at 48 inches. Level. Mark holes.
2. Drill pilot holes. Use anchors for brick/stucco/vinyl.
3. Screw plate tight.
4. Insert batteries (pull plastic tab).
5. Slide doorbell onto plate until it clicks.
6. Insert security screw (tiny Torx) at bottom.

Wired Mounting (Power Off First!)

1. Turn off power at breaker. Verify with voltage tester.
2. Remove old doorbell. Label wires (Front/Trans/Common) with included tags.
3. Connect wires to Blink terminal block: Front/Red to “F”, Common/White to “C”. (If digital chime, install Chime Connector across F and C per diagram).
4. Tuck wires. Mount plate (same as wire-free).
5. Slide doorbell on. Security screw.
6. Turn breaker ON. Doorbell should pulse white, then blue.

Safety Note: If you are uncomfortable with electrical work, hire a pro. A $100 electrician visit beats a $500 ER visit.

5. App Configuration: The “Make It Smart” Phase

The hardware is up. Now make it intelligent.

Motion Zones & Sensitivity

Go to Device Settings > Motion Settings.

• Activity Zones: Draw boxes to ignore the street, sidewalk, or swaying tree. Only keep the walkway and porch.
• Sensitivity: Start at 5 (middle). Too high = car headlights trigger. Too low = misses visitors. Adjust after 48 hours.
• Retrigger Time: Set to 10–30 seconds. Prevents 50 clips of the mail carrier standing there.

Video Quality & Night Vision

• Video Quality: “Best” (1080p) uses more bandwidth/storage. “Standard” saves battery/bandwidth. Wired? Use Best. Wire-free? Standard is fine.
• Night Vision: Auto is fine. “IR Intensity” High if your porch is dark. Low if streetlights wash it out.

Audio Settings

• Two-Way Talk: Enable. Test it. Stand outside, talk to phone. Adjust speaker volume if feedback occurs.
• Doorbell Chime: Choose a tone. Set volume. Enable “Announce on Alexa” if you have Echo devices.

Privacy Zones

Draw black boxes over neighbor’s windows or areas you legally shouldn’t record. The camera blacks them out at hardware level. Good neighbor policy.

Sync Module Placement: The Hidden Performance Factor

We touched on this, but it deserves its own section. The Sync Module is the lifeline. Bad placement = “Camera Offline” notifications.

The Goldilocks Zone

• Too close to router (< 3 ft): Wi-Fi interference kills LFR.
• Too far from doorbell (> 40 ft through walls): LFR drops.
• Just right: Central hallway outlet, 15–25 ft from both router and doorbell.

Local Storage: The USB Drive Trick

The Sync Module 2 has a USB-A port. Plug in a USB drive (16 GB–256 GB, FAT32/exFAT). The app will format it. Now all clips save locally—no subscription needed for playback. You can even pull the drive and watch on a laptop. This is a killer feature most people ignore.

Stat Alert: Blink reports that users with local USB storage save an average of $36/year vs. cloud-only plans. Over 3 years, that’s a free Sync Module.

Blink Subscription Plan: Do You Need It?

Blink sells a subscription. Here is the honest breakdown.

Free Tier (No Subscription)

• Live View on demand.
• Motion alerts with thumbnail.
• Two-way talk.
• Local storage only (requires USB drive in Sync Module 2).
• No cloud backup. No 60-day history. No extended warranty.

Blink Subscription Plan ($3/mo or $30/yr per device / $10/mo or $100/yr unlimited devices)

• Cloud storage (60-day rolling history).
• Extended warranty (as long as subscribed).
• Photo Capture (hourly snapshots for timeline view).
• Video sharing links.
• Discounts on future Blink purchases (10%).

My Take: If you have the USB drive, the free tier covers 90% of needs. Subscribe if you travel often and need cloud access if the Sync Module is stolen, or if you want the Photo Capture timeline feature.

Troubleshooting Common Setup Issues

Things go wrong. Here are the top 5 failures and fixes.

1. “Sync Module Offline” / Solid Red Light

• Power cycle: Unplug USB power for 10 seconds. Replug.
• Check router: 2.4 GHz band enabled? Guest network off? MAC filtering off?
• Move closer to router temporarily.

2. Doorbell Won’t Pair to Sync Module (Blinking Blue Forever)

• Distance: Bring doorbell within 5 feet of Sync Module during pairing.
• Battery: Ensure lithium AAs are fresh. Low voltage kills LFR radio.
• Reset: Hold doorbell button 20 seconds until red flashes. Retry.

3. “No Chime” on Wired Install

• Digital chime? You must install the Chime Connector (included) across Front and Common terminals.
• Mechanical chime? Ensure wires on F and C. Check chime voltage (16–24 VAC).
• App: Device Settings > Doorbell & Chime > “Ring Indoor Chime” ON.

4. False Alerts / Missed Motion

• Redraw Activity Zones smaller.
• Lower Sensitivity by 1 notch.
• Enable “Person Detection” (requires subscription) to ignore cars/animals.
• Check wedge angle—camera pointing at ground = missed faces.

5. Live View Fails / Spins Forever

• Phone on 5 GHz? Switch to 2.4 GHz or cellular.
• Sync Module too far from router.
• Force close app. Reopen.
• Firmware: Check Device Settings > General > Update Firmware.

Advanced Tips for Power Users

You have the basics down. Let’s level up.

Alexa Integration: Voice Is Faster Than App

1. Alexa App > Skills > Search “Blink SmartHome” > Enable.
2. Link Blink account.
3. Say: “Alexa, show front door.” Works on Echo Show, Fire TV, Fire Tablet.
4. Routine: “When front door motion detected, announce ‘Someone at front door’ on all Echos.”

IFTTT & SmartThings (Community Drivers)

Blink has no official IFTTT or SmartThings support. But community developers maintain SmartThings Edge drivers and Home Assistant integrations that pull motion events and battery status. If you run a smart home hub, search “Blink SmartThings Edge” on GitHub. It works surprisingly well.

Battery Life Hacks (Wire-Free)

• Disable “Early Notification” (sends alert before clip saves—drains radio).
• Set Retrigger Time to 30+ seconds.
• Lower IR Intensity to Medium.
• Use “Scheduled Arming” to disarm during high-traffic hours (e.g., kids coming home 3–5 PM).
• Buy a Blink Solar Panel Mount ($30). 2 hours sun = 1 day charge. Game changer.

Winter Prep

Lithium batteries hate cold. Below 32°F (0°C), capacity drops 30–50%. If you live in Minnesota:

• Go wired if possible.
• Solar panel helps (keeps battery topped up).
• Keep spare warmed lithium AAs inside. Swap in 30 seconds.

Maintenance: Keep It Running for Years

Set a calendar reminder every 6 months.

Physical Cleaning

• Lens: Microfiber cloth. No Windex (coating damage).
• PIR Sensor (black rectangle under lens): Gently brush cobwebs. Spider silk triggers motion.
• Button: Compressed air. Dust kills the click feel.

Digital Hygiene

• Firmware: App auto-updates, but check manually quarterly.
• USB Drive: Check “Local Storage” in app. If “Drive Error,” reformat (backs up clips first!).
• Battery Report: Device Settings > General > Battery. Track trend. Replace at 20%.

Security Hygiene

• Enable 2FA in Blink Account Settings (SMS or Authenticator app).
• Use unique password. Check Have I Been Pwned.
• Review “Shared Access” list. Remove ex-partners, old house sitters.

Blink vs. The Competition: Quick Context

You bought Blink. Good choice for value. But know where it sits.

Feature	Blink Video Doorbell	Ring Battery Doorbell Plus	Arlo Essential Wire-Free
Price	$50–$60	$180	$150
Resolution	1080p	1536p (Head-to-Toe)	1080p HDR
Local Storage	Yes (Sync Module 2 + USB)	No (Cloud only)	Yes (SmartHub + USB)
Subscription Required?	No	Yes (for recording)	No (local via Hub)
Battery Life	1–2 yr (claim)	6–12 mo	6 mo
Pre-Buffer	Wired only	Yes (w/ sub)	Yes (w/ sub)

Bottom Line: Blink wins on price, local storage freedom, and battery life. Ring/Arlo win on resolution and ecosystem polish. You picked the “Toyota Camry” of doorbells—reliable, affordable, easy to fix.

Conclusion

You did it. The Blink doorbell camera setup is complete. The Sync Module hums quietly in the hallway. The doorbell sits straight at 48 inches, lens clean, motion zones drawn, privacy zones masking the neighbor’s window. Your phone buzzes. You tap. There is your neighbor waving. You tap “Talk.” “Hey, grab my package?” Done.

That is the promise delivered. No monthly fee anxiety. No cloud dependency for your clips. A system that works when the internet hiccups because the USB drive keeps recording. You invested 30 minutes and $60. You got peace of mind that lasts years.

Remember the maintenance calendar. Swap batteries before they die. Wipe the lens when pollen coats it. Update firmware when the app nags. Treat it like a smoke detector—boring until it saves the day.

Now go enjoy that package delivery notification. You earned it.

Frequently Asked Questions

Does the Blink Video Doorbell require a Sync Module?

Yes, the Blink Video Doorbell requires a Sync Module 2 to operate. It communicates with the module via Low Frequency Radio (LFR), and the module bridges the connection to your Wi-Fi network and cloud services. It will not function as a standalone Wi-Fi device.

Can I install the Blink Doorbell without existing wiring?

Absolutely. The Blink Video Doorbell supports a wire-free installation using two included AA lithium batteries. This is ideal for renters or homes without doorbell wiring. Battery life typically lasts 1–2 years depending on traffic and settings.

Why won’t my Blink Doorbell connect to 5 GHz Wi-Fi?

Blink devices only support 2.4 GHz Wi-Fi networks. The 2.4 GHz band offers better range and wall penetration, which is critical for outdoor devices. Ensure your router broadcasts a separate 2.4 GHz SSID or has band steering disabled during setup.

How do I fix a Blink Doorbell that won’t ring my mechanical chime?

First, verify power is on at the breaker and you have 16–24 VAC at the wires. In the Blink app, go to Device Settings > Doorbell & Chime Settings and ensure “Ring Indoor Chime” is enabled. For digital chimes, you must install the included Chime Connector across the Front and Common terminals.

Can I use Blink Doorbell without a subscription?

Yes. Without a subscription, you get Live View, motion alerts, two-way talk, and local storage if you plug a USB drive into the Sync Module 2. You lose cloud backup, 60-day video history, Photo Capture, and the extended warranty.

What is the best height to mount a Blink Doorbell?

Mount the doorbell at 48 inches (4 feet) from the ground to the bottom of the device. This height optimizes the PIR motion sensor and camera angle for facial recognition rather than capturing packages or passing cars. Use the wedge kit to adjust the viewing angle if needed.
