Blink Doorbell Hardwired

A blink doorbell hardwired setup gives you constant power, sharper video, and no battery swaps. This guide walks you through benefits, tools, step‑by‑step wiring, and pro tips for a flawless install.

When you decide to upgrade your front‑door security, the first question is often how to power the device. A blink doorbell hardwired installation solves the biggest pain point of battery‑only models: the need to climb a ladder every few months. By tapping into your existing doorbell transformer, you get uninterrupted power, sharper video, and a cleaner look without a bulky battery pack.

In this guide we cover everything you need to know — from why hardwiring matters, to the exact tools you’ll need, to a step‑by‑step wiring walkthrough. Whether you’re a seasoned DIYer or a first‑time installer, you’ll finish with a reliable, always‑on doorbell that works with your favorite voice assistants.

Key Takeaways

• Continuous power: Hardwiring eliminates battery changes and keeps the doorbell online 24/7.
• Better video quality: A steady voltage lets the camera record at full resolution without throttling.
• Simple wiring: Most homes already have a 16‑24 V AC transformer; you just connect two wires.
• Safety first: Turn off power at the breaker and verify voltage before touching any wires.
• Smart‑home ready: Hardwired models integrate smoothly with Alexa, Google Home, and IFTTT.
• Troubleshooting is easy: Common issues like no chime or Wi‑Fi drop usually trace back to voltage or wiring polarity.
• Future‑proof: Adding a chime kit or solar charger later is straightforward once the base wiring exists.

What Is a Blink Doorbell Hardwired?

Definition and Core Concept

A blink doorbell hardwired unit connects directly to your home’s low‑voltage doorbell circuit (typically 16‑24 V AC). Instead of relying on a rechargeable battery, the doorbell draws constant power from the transformer that also drives your mechanical chime. This wiring method is the same used by traditional wired doorbells for decades.

How It Differs From Battery‑Only Models

Battery‑only doorbells sleep most of the time to conserve charge. They wake only when motion is detected or the button is pressed. A hardwired version stays awake, streaming live video, recording continuously (if you enable it), and responding instantly to voice commands. The trade‑off is a slightly more involved install, but the performance gain is substantial.

Did You Know?

According to a 2023 Parks Associates study, 68 % of smart‑doorbell owners who switched to hardwired power reported “significantly fewer missed events” compared with battery‑only users.

Why Choose Hardwiring Over Battery Power?

Uninterrupted Operation

With a blink doorbell hardwired connection, the device never goes offline due to a dead battery. This is crucial for security — you want the camera recording when a package arrives at 3 a.m., not when the battery finally gives out.

Full‑Resolution Video All the Time

Battery models often downscale video to 720p or lower to save energy. Hardwired power lets the camera stream at 1080p (or 2K on newer models) 24/7, giving you clearer faces and license plates.

No Ladder Climbs for Recharging

Typical battery life ranges from 2‑6 months depending on traffic. Hardwiring removes that maintenance chore entirely. You install once and forget it.

Better Integration With Smart Home Hubs

Many smart‑home platforms (Alexa, Google Home, Home Assistant) prefer devices that are always online. A hardwired doorbell appears as a reliable entity, enabling routines like “Turn on porch lights when motion detected” without latency.

Cost Over Time

While the upfront effort is higher, you save on replacement batteries (roughly $15‑$20 per year) and avoid potential cloud‑storage fees triggered by missed events.

What You Need Before You Start

Tools Checklist

• Phillips #2 screwdriver
• Flat‑head screwdriver (for prying off the old chime cover)
• Wire strippers (18‑22 AWG)
• Voltage tester or multimeter
• Drill with 3/16‑in. bit (if new mounting holes are needed)
• Level
• Electrical tape and wire nuts

Materials Checklist

• Blink doorbell hardwired unit (includes mounting bracket)
• Existing doorbell transformer (16‑24 V AC, 10‑30 VA)
• Two‑wire doorbell cable (18‑22 AWG, typically red/white)
• Optional: Blink Chime Kit for audible indoor alert

Safety First — Power Off

Locate your home’s breaker panel and flip the circuit that powers the existing doorbell (often labeled “Doorbell” or “Front Door”). Verify with a voltage tester that the wires at the old chime are dead before touching them. This step prevents shocks and protects the new electronics.

Check Transformer Compatibility

Most North American homes have a 16 V 10 VA transformer. The Blink doorbell hardwired spec calls for 16‑24 V AC, 10‑30 VA. If your transformer is under‑rated (e.g., 8 V), you’ll need to upgrade it — a $15‑$25 part available at any hardware store.

Step‑by‑Step Hardwiring Guide

1. Remove the Old Doorbell Button

Unscrew the existing button from the wall. You’ll see two low‑voltage wires (usually red and white). Label them with masking tape if they aren’t color‑coded. Disconnect the wires and set the old button aside.

2. Mount the New Bracket

Hold the Blink mounting bracket against the wall where the old button sat. Use a level to ensure it’s straight. Mark the screw holes, drill pilot holes if needed, and secure the bracket with the supplied screws. The bracket includes a built‑in wire channel to keep cables tidy.

3. Connect the Wires

Strip about ¼ in. of insulation from each house wire. Insert the stripped ends into the terminal block on the back of the Blink unit: one wire to “Front” (or “+”) and the other to “Trans” (or “−”). Polarity does not matter for AC, but keeping a consistent convention helps future troubleshooting. Tighten the terminal screws firmly.

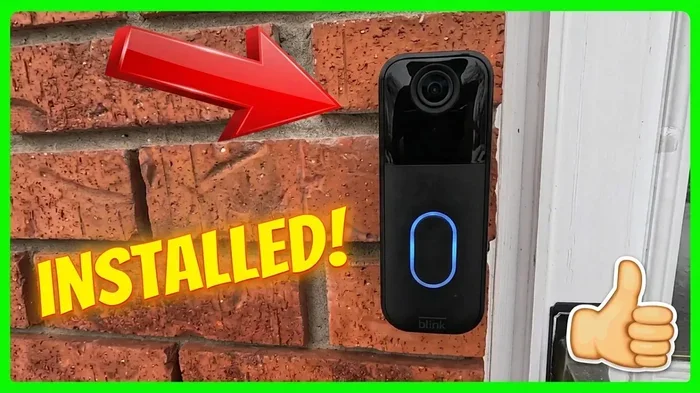

4. Attach the Doorbell Unit

Align the doorbell with the bracket’s tabs and press until you hear a click. The unit should sit flush against the wall. Double‑check that the camera lens is unobstructed and the motion sensor faces the walkway.

5. Restore Power and Test

Turn the breaker back on. The doorbell’s LED ring should pulse white, then turn solid blue when it connects to Wi‑Fi. Open the Blink app, add the device, and follow the in‑app prompts to name it and set motion zones.

6. Optional: Install the Chime Kit

If you want an audible indoor chime, plug the Blink Chime Kit into a standard outlet within 30 ft of the doorbell. Pair it in the app (Devices → Add Device → Chime). The chime will sound instantly when the button is pressed, even if your phone is on silent.

Pro Tip: Use a Wire Nut for Extra Security

After tightening the terminal screws, twist a small wire nut over each connection and wrap with electrical tape. This prevents vibration from loosening the wires over time — especially useful on windy porches.

Troubleshooting Common Issues

No Power LED

First, verify the breaker is on. Next, use a multimeter at the doorbell terminals; you should read 16‑24 V AC. If voltage is missing, check the transformer and the wiring between transformer and doorbell. A broken wire in the wall is the most common culprit.

Chime Doesn’t Sound

If you have a mechanical chime, ensure the Blink unit’s “Chime” setting in the app is set to “Mechanical.” For digital chimes, select “Digital.” Also confirm the chime kit (if used) is paired and within range.

Wi‑Fi Drops Frequently

Hardwired power eliminates battery‑related drops, but Wi‑Fi can still be spotty. Move your router closer, add a mesh node, or use a Wi‑Fi extender. The doorbell’s antenna is internal; thick brick or metal siding can attenuate signal.

Video Looks Grainy at Night

Enable “Night Vision” in the app and ensure the IR LEDs aren’t blocked by spider webs or paint. Clean the lens with a microfiber cloth. If the problem persists, check that the transformer supplies at least 20 VA — low voltage can dim the IR illuminators.

App Shows “Device Offline” After Power Outage

The doorbell reboots automatically when power returns. Give it 2‑3 minutes to reconnect. If it stays offline, power‑cycle the router, then restart the doorbell by removing it from the bracket for 10 seconds and reseating it.

Advanced Tips & Integration Ideas

Create Alexa Routines

In the Alexa app, go to Routines → “When this happens” → “Smart Home” → select your Blink doorbell → “Motion Detected.” Then add actions: “Turn on porch lights,” “Announce ‘Someone at the front door’ on Echo devices,” or “Start recording on a connected Fire TV.”

Use IFTTT for Custom Alerts

IFTTT lets you push a notification to Slack, send an SMS, or log events to a Google Sheet. Search for “Blink” in the IFTTT library; the “Doorbell Pressed” trigger works instantly with a hardwired unit because the device never sleeps.

Add a Solar Panel for Redundancy

Even though the doorbell is hardwired, a small 5 W solar panel (mounted on the eave) can keep the unit alive during a transformer failure. Connect the panel to the same low‑voltage terminals using a diode to prevent back‑feed.

Enable Local Storage With a Sync Module 2

The Blink Sync Module 2 supports a USB flash drive (up to 256 GB) for local clip storage. This reduces cloud‑subscription costs and gives you footage even if the internet goes down. Pair the module in the app, insert the drive, and select “Local Storage” for each camera.

Schedule Do‑Not‑Disturb Hours

If you don’t want motion alerts while you’re home, set a schedule in the Blink app: Devices → Doorbell → Motion Settings → Schedule. Choose “Only notify between 10 PM‑6 AM” or any custom window.

Conclusion

A blink doorbell hardwired installation transforms a good smart doorbell into a great one. You gain continuous power, full‑resolution video, and rock‑solid smart‑home integration — all without the hassle of battery swaps. The wiring steps are straightforward for anyone comfortable with basic electrical work, and the payoff is immediate: fewer missed visitors, clearer footage, and a cleaner front‑door aesthetic.

Take the time to verify your transformer’s rating, follow the safety steps, and test thoroughly before you button up the wall. Once it’s live, explore the automation possibilities — Alexa routines, IFTTT applets, local storage — to make the doorbell a true hub of your home’s security. Happy wiring!
