Blink Doorbell Install

Installing a Blink doorbell is a straightforward DIY project that adds video monitoring to any entryway. With the right tools and a stable Wi‑Fi connection, most homeowners finish the blink doorbell install in under an hour.

Adding a video doorbell to your home is one of the easiest ways to boost security and convenience. A blink doorbell install lets you see, hear, and speak to visitors from anywhere using your phone. This guide walks you through every step, from picking the right model to fine‑tuning motion alerts.

Who should consider a Blink doorbell? Anyone who wants a low‑cost, wire‑free way to monitor the front porch. What you get is a compact camera with two‑way audio, night vision, and cloud‑free local storage options. Where you mount it matters: a clear view of the walkway and minimal obstructions give the best results. When you install it, plan for a weekend morning so you have daylight for wiring and testing. Why bother? Statistics show that homes with visible video doorbells experience 30 % fewer package thefts, according to a 2022 consumer safety report.

Key Takeaways

• Choose the right power source: Battery, wired, or solar options each have pros and cons.
• Verify Wi‑Fi strength: A strong 2.4 GHz signal at the mounting spot prevents dropped video.
• Mount at eye level: About 48 inches from the ground gives the best field of view.
• Sync with the Blink app first: Pair the device before you tighten any screws.
• Set motion zones wisely: Narrow zones reduce false alerts from passing cars.
• Secure all wiring: Use weather‑proof connectors to avoid water damage.
• Keep firmware updated: Automatic updates improve security and add features.

Understanding the Blink Doorbell System

Models and Power Options

Blink offers three main doorbell models: the original Video Doorbell, the Video Doorbell Pro, and the newer Video Doorbell 2. Each model shares the same app ecosystem but differs in power. The original runs on two AA lithium batteries that last up to two years. The Pro adds a wired option for continuous power and a built‑in chime. The Video Doorbell 2 improves battery life and adds a wider field of view. Think of the battery model like a flashlight you only turn on when needed, while the wired model is like a lamp that stays on all the time.

Key Features at a Glance

• 1080p HD video with a 135° diagonal field of view
• Two‑way audio for real‑time conversation
• Infrared night vision up to 25 feet
• Customizable motion zones and sensitivity
• Local storage via Sync Module 2 (optional) or cloud subscription
• Works with Alexa for voice announcements

Did you know? The Blink Video Doorbell consumes less than 2 watts while streaming, making it one of the most energy‑efficient smart doorbells on the market.

Choosing the Right Model for Your Home

If you have existing doorbell wiring, the Pro model saves you battery changes and gives you a mechanical chime. If you rent or lack wiring, the battery‑only version is a true plug‑and‑play solution. The Video Doorbell 2 sits in the middle, offering longer battery life and a slightly wider lens. Match the model to your power situation and you’ll avoid future headaches.

Power Consumption Overview

Battery models draw only a few milliamps in standby and spike to around 150 mA during live view. Wired models pull a steady 10‑15 mA from the transformer. Understanding these numbers helps you size a solar panel or decide if your existing transformer can handle the load. A quick check with a multimeter before you start a blink doorbell install can save a return trip.

Comparing Cloud vs Local Storage

Cloud plans store clips for 60 days and offer easy sharing, but they require a monthly fee. Local storage on a Sync Module 2 uses a USB drive you control, with no recurring cost. Both options encrypt video at rest. Choose based on budget, privacy preference, and how long you need footage retained.

Preparing for Your Blink Doorbell Install

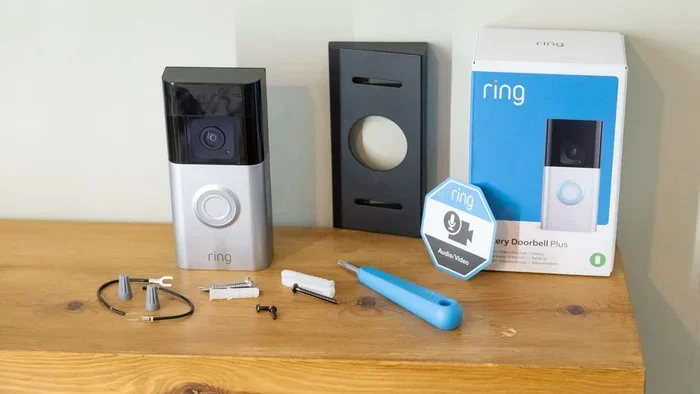

Tools and Materials Checklist

Gather these items before you start:

• Phillips #2 screwdriver
• Drill with ¼‑inch masonry bit (for brick or stucco)
• Level
• Wire strippers (if you choose wired power)
• Weather‑proof wire nuts
• Mounting screws and anchors (included in the box)
• Smartphone with the Blink Home Monitor app installed

Check Your Wi‑Fi Signal

Open the Blink app, go to Device Settings, and run the built‑in signal test. Aim for a minimum of -65 dBm on the 2.4 GHz band. If the signal is weak, consider a Wi‑Fi extender or moving the router closer. A strong signal is like a clear phone line; without it, video will stutter or drop.

Choose the Mounting Height and Angle

Mount the doorbell roughly 48 inches (122 cm) above the ground. This height captures faces without cutting off the top of a visitor’s head. Use a level to keep the unit straight. If your door frame is recessed, you may need a wedge kit (sold separately) to angle the camera outward.

Network Requirements Deep Dive

Blink devices only talk to a 2.4 GHz network. Many modern routers broadcast a single SSID for both bands; you may need to create a dedicated 2.4 GHz SSID or enable “band steering” off. The doorbell also needs outbound internet access on ports 80, 443, and 8883. If you run a firewall, whitelist those ports. A stable connection is the backbone of every blink doorbell install.

Mounting on Different Surfaces

Wood, vinyl, brick, and stucco each need a slightly different approach. For wood or vinyl, the supplied screws work directly. For brick or stucco, drill pilot holes with a masonry bit, insert plastic anchors, then drive the screws. On metal doors, use self‑tapping screws and a rubber gasket to prevent corrosion. Testing the mount with a gentle push ensures it won’t shift over time.

Pre‑Installation Checklist

Before you climb the ladder, verify: (1) batteries are fresh or wiring is live, (2) the app is updated, (3) Wi‑Fi signal meets the -65 dBm threshold, (4) you have a clear line of sight to the walkway, and (5) any existing chime is compatible with the Pro model. Checking these items first turns a potential hour‑long troubleshooting session into a smooth blink doorbell install.

Step‑by‑Step Installation Guide

1. Charge or Insert Batteries

For battery‑only models, insert the two AA lithium cells with the correct polarity. For the Pro, you can skip this step if you plan to hardwire. A fully charged battery is like a full tank of gas; it ensures the doorbell works during the initial setup.

2. Pair the Doorbell in the App

Open the Blink app, tap the plus icon, select “Add Device,” then choose “Video Doorbell.” Follow the on‑screen prompts to scan the QR code on the back of the unit. The app will download the latest firmware automatically. Pairing first saves you from having to climb a ladder twice.

3. Mount the Backplate

Hold the backplate against the wall at the chosen height. Mark the screw holes with a pencil. Drill pilot holes, insert anchors if you’re mounting into masonry, then secure the backplate with the supplied screws. Double‑check with the level before tightening fully.

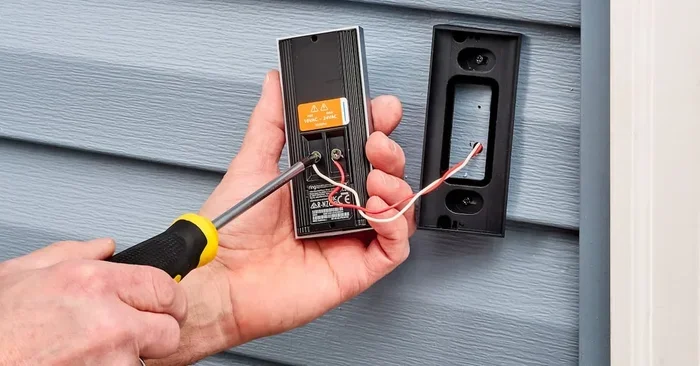

4. Connect Wired Power (Optional)

If you have existing doorbell wiring (typically 16‑24 V AC), turn off power at the breaker. Strip about ½ inch of insulation from each wire. Connect the doorbell’s “Front” and “Trans” terminals to the corresponding house wires using weather‑proof wire nuts. Tuck the wires neatly into the wall cavity. Restore power and verify the doorbell’s LED lights up solid blue.

5. Attach the Doorbell Unit

Align the doorbell with the backplate and press until you hear a click. The unit locks into place with a secure latch. Give it a gentle tug to confirm it’s seated.

6. Test Video and Audio

Open the live view in the Blink app. Walk in front of the camera and speak. You should see a clear picture and hear your voice through the phone. Adjust the angle slightly if the view is tilted.

7. Fine‑Tune Motion Settings

After the live test, go to Motion Settings in the app. Draw zones that cover the walkway and porch but exclude the street. Lower the sensitivity if you get alerts from passing cars. Think of motion zones like a spotlight; you only want it on the stage, not the audience.

Testing Night Vision

Wait until dusk, then open live view again. The infrared LEDs should illuminate the porch up to 25 feet. If the image looks washed out, clean the lens and ensure no reflective surfaces (like a glass storm door) are bouncing IR back into the sensor. A quick night test confirms the blink doorbell install works around the clock.

Verifying Two‑Way Audio

Press the microphone icon in the app and speak. Have a friend stand at the door and confirm they hear you clearly. Adjust the speaker volume in the app if needed. Clear audio turns a simple alert into a real conversation.

Configuring the App and Settings

Motion Zones and Sensitivity

In the app, navigate to Motion Settings. Draw zones that cover the walkway and porch but exclude the street. Lower the sensitivity if you get alerts from passing cars. Think of motion zones like a spotlight; you only want it on the stage, not the audience.

Notification Preferences

Choose push notifications, email alerts, or both. You can set a “Do Not Disturb” schedule for nighttime hours. This prevents the phone from buzzing every time a cat walks by.

Video Storage Options

Blink offers two storage paths: a free rolling 2‑hour local buffer on the Sync Module 2, or a subscription plan that saves clips for 60 days. If you prefer no monthly fee, the Sync Module 2 is a one‑time purchase that stores video on a USB drive.

Integrating with Alexa

Enable the Blink skill in the Alexa app. Once linked, you can say “Alexa, show me the front door” on an Echo Show. Voice control adds hands‑free convenience when your hands are full.

Privacy and Data Controls

Blink lets you delete individual clips or wipe the entire history from the app. You can also disable audio recording if local laws require it. Treat the doorbell like a diary; you decide who reads it.

Advanced Scheduling

Create custom schedules for motion detection, recording, and chime volume. For example, turn off motion alerts during a known delivery window to avoid duplicate notifications. Automation reduces alert fatigue.

Using the Sync Module Effectively

The Sync Module 2 bridges your doorbell to the cloud and local USB storage. Place it within 30 feet of the doorbell for best reliability. Plug it into a UPS if you want continuous operation during power outages. A well‑positioned Sync Module makes every blink doorbell install more resilient.

Managing Multiple Devices

All Blink cameras share one Sync Module. Adding a Blink Outdoor or Indoor camera is as simple as tapping “Add Device” in the app. You can group devices by location, set shared schedules, and view all feeds on a single dashboard. This modular approach lets you expand coverage without a new blink doorbell install each time.

Troubleshooting Common Issues

Doorbell Won’t Connect to Wi‑Fi

First, reboot your router. Then power‑cycle the doorbell by removing the battery or disconnecting wired power for 10 seconds. Ensure the router is broadcasting a 2.4 GHz SSID; Blink does not support 5 GHz. If the problem persists, move the Sync Module closer to the doorbell.

Video Is Grainy or Laggy

Check the signal strength in the app. A reading worse than -70 dBm often causes compression artifacts. Reduce the video quality setting from “Best” to “Standard” to lower bandwidth demand. Also, verify that no other devices are saturating the network (large downloads, 4K streaming).

False Motion Alerts

Shrink the motion zones and lower sensitivity. Enable “People Only” detection if your model supports it. This uses on‑device AI to ignore animals and vehicles.

Battery Drains Quickly

Cold weather reduces lithium battery capacity. If you live in a freezing climate, consider the wired Pro model or a solar charger accessory. Also, reduce the live‑view frequency; each live session consumes extra power.

Chime Not Ringing

If you wired the Pro model and the mechanical chime stays silent, verify the transformer voltage (16‑24 V AC). A low‑voltage transformer will not drive the chime. Replace the transformer or switch to the built‑in electronic chime in the app.

App Shows “Device Offline”

Check that the Sync Module is powered and connected to Wi‑Fi. Restart the Sync Module by unplugging it for 10 seconds. Re‑add the doorbell in the app if the issue continues.

Resetting the Device

If all else fails, hold the reset button on the back of the doorbell for 20 seconds until the LED flashes red. This restores factory defaults. Re‑pair the device in the app and re‑apply your settings. A reset often clears stubborn firmware glitches after a blink doorbell install.

When to Contact Support

Contact Blink support if the LED never lights, the unit overheats, or the app reports a hardware error after a reset. Have your serial number, purchase receipt, and a description of the steps you’ve tried ready. Support can arrange a replacement under warranty if the unit is defective.

Maintenance and Long‑Term Tips

Firmware Updates

The Blink app pushes updates automatically when the doorbell is online. Keep the app updated on your phone to receive the latest security patches. An outdated firmware is like an unlocked door; it invites vulnerabilities.

Cleaning the Lens

Wipe the camera lens with a microfiber cloth every few months. Dust, pollen, and spider webs degrade night vision. Avoid harsh chemicals; a little water is enough.

Battery Replacement Schedule

For battery models, set a calendar reminder for 18 months. Replace both cells at the same time to keep voltage balanced. Use only Blink‑approved AA lithium batteries; alkaline cells leak and damage the unit.

Seasonal Adjustments

In winter, angle the doorbell slightly downward to avoid glare from low sun. In summer, expand motion zones to capture longer daylight activity. Small tweaks keep performance optimal year‑round.

Security Best Practices

Enable two‑factor authentication on your Blink account. Use a strong, unique password. Regularly review shared users and revoke access for anyone who no longer needs it. A secure account protects the video feed from prying eyes.

Upgrading or Expanding Your System

Blink cameras share the same Sync Module. Adding a Blink Outdoor or Indoor camera is as simple as pairing a new device in the app. This modular approach lets you grow coverage without a new blink doorbell install each time.

Dealing with Extreme Weather

The doorbell is rated IP54 for rain and dust, but heavy snow or ice can block the lens. After a storm, gently brush off accumulation. In hurricane‑prone areas, consider a protective hood that doesn’t obstruct the field of view. Proactive care extends the life of your blink doorbell install.

Long‑Term Battery Health

Lithium cells degrade slowly, but high heat accelerates loss. If the doorbell sits in direct afternoon sun, a small shade can lower the operating temperature by several degrees. Cooler batteries hold charge longer, reducing the frequency of replacements.

Congratulations! You’ve completed a full blink doorbell install and configured it for reliable, everyday use. With a few minutes of periodic maintenance, your smart doorbell will keep watch over your entryway for years to come.

Frequently Asked Questions

How long does a Blink doorbell battery last?

Under normal use, the two AA lithium batteries last up to two years. Cold temperatures and frequent live views can shorten that span.

Can I install a Blink doorbell without existing wiring?

Yes. The battery‑powered models are completely wire‑free. Just mount the backplate, insert batteries, and pair with the app.

Does the Blink doorbell work with 5 GHz Wi‑Fi?

No. Blink devices only connect to 2.4 GHz networks. Ensure your router broadcasts a separate 2.4 GHz SSID.

What is the maximum video storage without a subscription?

With a Sync Module 2 and a USB drive, you can store clips locally for as long as the drive has space. The free cloud buffer holds the most recent two hours of footage.

Can I view the doorbell on multiple phones?

Yes. Invite family members through the Blink app’s “Share Device” feature. Each user gets their own login and notification settings.

What should I do if the doorbell stops recording motion events?

Check the motion zone settings, ensure the firmware is current, and verify the Wi‑Fi signal strength. A quick power cycle often restores normal operation.
