Blink Doorbell Installation Wired

This guide walks you through every stage of a blink doorbell installation wired, from gathering tools to final testing, so you can enjoy continuous power and smart features without battery hassles.

Installing a smart doorbell can feel like a weekend project, but a blink doorbell installation wired adds a layer of reliability that battery models simply cannot match. When you connect the unit directly to your home’s low‑voltage wiring, you get constant power, instant video streaming, and no surprise “low battery” alerts. This guide is written for homeowners, renters with landlord permission, and DIY enthusiasts who want a clear, step‑by‑step roadmap.

We’ll cover the essential tools, the wiring basics, common scenarios you might encounter, and how to test everything before you seal the box. Along the way you’ll find practical tips, a few “Did You Know” facts, and simple analogies that turn electrical concepts into everyday language. By the end, you’ll have a fully functional Blink wired doorbell that works like a charm for years.

Key Takeaways

• Power source matters: A wired connection eliminates battery changes and ensures 24/7 operation.
• Transformer rating is critical: Use a 16‑24 V AC transformer rated at 10‑30 VA for safe, stable power.
• Turn off power first: Always shut off the circuit breaker before touching any wires.
• Label wires before disconnecting: Simple tags prevent costly wiring mistakes.
• Test before mounting: Verify video, motion alerts, and chime function while the unit is still accessible.
• Weatherproof the connections: Silicone sealant and a proper cover protect against moisture.
• Regular firmware updates keep features fresh: Enable auto‑updates in the Blink app for the latest security patches.

Understanding the Blink Doorbell Wired System

What makes the wired version different?

The Blink wired doorbell draws power from your existing doorbell transformer instead of a rechargeable battery. Think of the transformer as the heart that pumps low‑voltage electricity (usually 16‑24 V AC) through the wires, while the doorbell is the brain that processes video, motion detection, and Wi‑Fi communication. Because the power is continuous, the camera can stay awake 24/7, offering faster motion alerts and longer recording windows.

Who should consider a wired install?

Anyone with an existing mechanical or electronic doorbell chime is a prime candidate. If you have a transformer rated between 10‑30 VA, you’re good to go. Renters should check lease terms and get written permission before modifying wiring. Homeowners who want a “set‑and‑forget” solution will appreciate the zero‑maintenance power source.

Where can you mount it?

The unit is designed for exterior use, so any front‑door, side‑gate, or porch location with a clear view of visitors works. Keep the mounting height around 48‑52 inches from the ground for optimal facial capture. Avoid direct sunlight on the lens; a shaded spot reduces glare and improves night‑vision performance.

When is the best time to install?

Mild, dry weather is ideal. Wet conditions make handling wires slippery and increase the risk of short circuits. If you must work in colder months, keep a heat gun or hair dryer handy to warm the adhesive backing on the mounting bracket.

Why go wired instead of battery?

Continuous power means no battery swaps, no missed recordings during recharge, and the ability to run advanced features like person detection and custom activity zones without draining a cell. Did you know? According to Blink’s own data, wired units experience 30 % fewer connectivity drops compared to battery‑only models.

Tools and Materials You’ll Need

Basic hand tools

• Phillips screwdriver (usually #2) for the mounting screws.
• Flat‑head screwdriver for wire terminals.
• Wire strippers (18‑22 AWG) to expose clean copper.
• Voltage tester or non‑contact pen to confirm power is off.
• Drill with ¼‑inch masonry bit if you’re mounting on brick or stucco.

Electrical supplies

• 16‑24 V AC transformer (10‑30 VA) – most homes already have one; verify the label.
• Doorbell wire (18‑22 AWG, 2‑conductor) if you need to extend or replace old leads.
• Wire nuts (small, UL‑listed) for secure splices.
• Electrical tape and silicone sealant for weatherproofing.
• Mounting bracket and screws (included with the Blink unit).

Optional but handy

• Label maker or masking tape + marker for wire identification.
• Smartphone with Blink app installed for immediate pairing.
• Level to keep the doorbell straight.
• Flashlight or headlamp for low‑light work areas.

Gather everything before you cut power. A well‑prepared toolbox turns a two‑hour job into a smooth 45‑minute install.

Step‑by‑Step Installation Guide

1. Shut off the circuit

Locate the breaker that feeds your existing doorbell. Flip it to “off.” Use a voltage tester on the chime terminals to confirm no live voltage remains. Safety first – treat every wire as if it’s hot until proven otherwise.

2. Remove the old doorbell button

Unscrew the existing button from the wall. Gently pull it out, exposing the two low‑voltage wires. Label each wire (e.g., “Front” and “Transformer”) with tape. This simple step saves hours of guesswork later.

3. Verify transformer specs

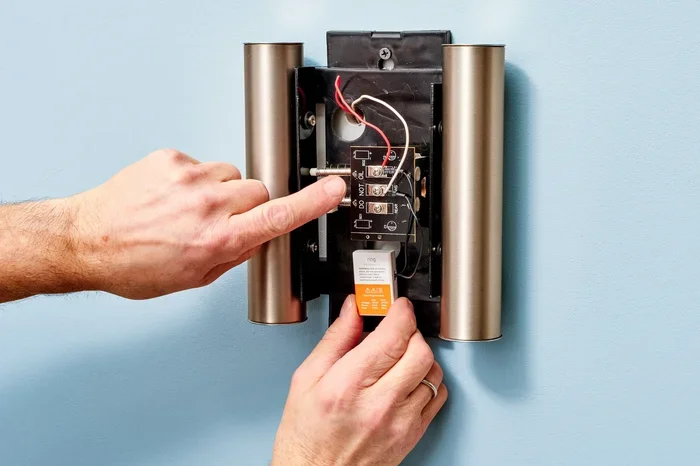

Open the chime box or transformer enclosure. Read the label: you need 16‑24 V AC, 10‑30 VA. If the transformer is undersized, replace it before proceeding. An undersized transformer will cause the Blink unit to reboot repeatedly.

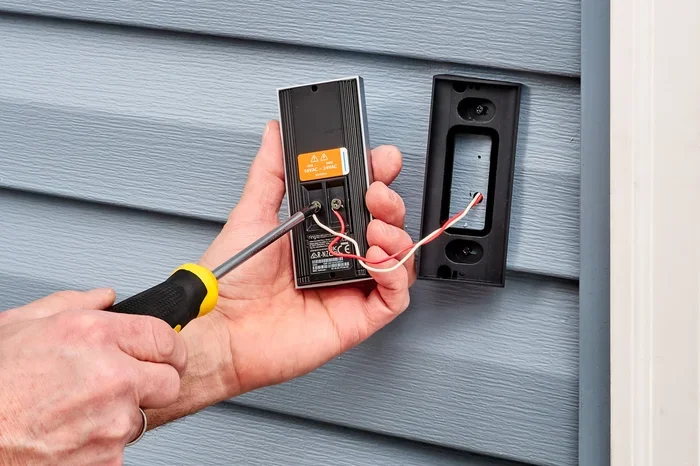

4. Connect the Blink doorbell wires

The Blink wired doorbell has two terminals marked “AC” and “GND.” Attach the wire from the transformer to “AC” and the wire returning from the chime to “GND.” Tighten the terminal screws firmly – a loose connection is the number one cause of intermittent video loss.

5. Secure the mounting bracket

Hold the bracket against the wall, use a level, and mark the screw holes. Drill pilot holes (use a masonry bit for brick). Insert anchors if needed, then fasten the bracket with the supplied screws. Apply a thin bead of silicone around the bracket’s perimeter to block moisture.

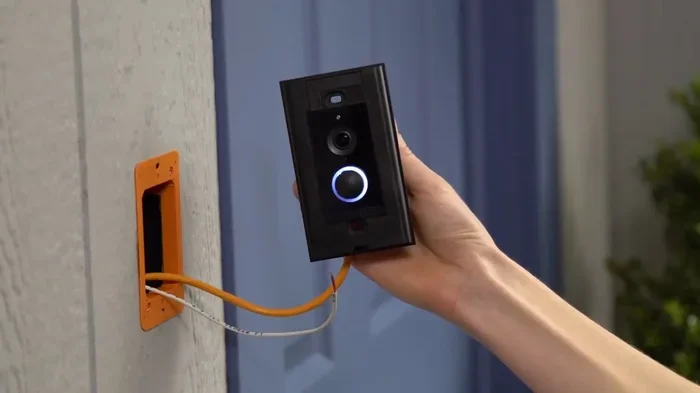

6. Attach the doorbell unit

Slide the Blink doorbell onto the bracket until you hear a click. The unit’s internal magnets hold it firmly. Double‑check that the camera lens is clean and unobstructed.

7. Restore power and pair

Flip the breaker back on. The doorbell’s LED should pulse blue, indicating it’s ready for setup. Open the Blink app, tap “Add Device,” select “Doorbell Wired,” and follow the on‑screen prompts. The app will guide you through Wi‑Fi connection, firmware update, and chime configuration.

8. Test all functions

Press the button, walk in front of the camera, and verify: live view appears, motion alert fires, chime sounds (mechanical or digital), and two‑way audio works. If anything fails, revisit the wiring steps before sealing the installation.

Common Wiring Scenarios and How to Handle Them

Scenario A – Existing mechanical chime

Most homes have a simple ding‑dong chime. The Blink wired doorbell works directly with it; no extra resistor needed. Just keep the original chime wired in series with the doorbell. The chime will still ring when visitors press the button.

Scenario B – Digital chime or no chime

If you have a digital chime that requires a specific voltage, you may need a 10 Ω, 1 W resistor across the chime terminals to simulate the load of a mechanical bell. Blink’s support docs include a wiring diagram for this case. If you have no chime at all, you can still install the doorbell – the app will notify you via phone.

Scenario C – Two‑wire vs. three‑wire systems

Older homes sometimes use a three‑wire setup (front, back, common). Identify the common wire (usually white) and the front‑door wire (often red). Connect the Blink “AC” to the front‑door wire and “GND” to the common. Cap off the unused back‑door wire with a wire nut.

Scenario D – Long wire runs

Voltage drop becomes noticeable beyond 50 feet of 18‑AWG wire. If your run is longer, upgrade to 16‑AWG or add a second transformer near the door. Think of wire gauge like a water pipe: a wider pipe (thicker wire) delivers pressure (voltage) more efficiently over distance.

Scenario E – No existing transformer

You can purchase a plug‑in 16 V AC transformer that mounts in an indoor outlet and runs low‑voltage wire to the door. This is a clean solution for apartments where the original doorbell wiring is missing.

Testing, Troubleshooting, and Fine‑Tuning

Initial power‑up checklist

• LED pulses blue → ready for pairing.
• Solid blue → connected to Wi‑Fi.
• Amber flash → firmware update in progress.
• Red solid → power issue (check transformer, wiring).

Common issues and quick fixes

• No video feed: Verify Wi‑Fi signal strength at the door (use the app’s signal meter). Move router or add a mesh node if below -70 dBm.
• Chime doesn’t ring: Ensure the chime wires are still connected in series. Test the chime independently with a 9 V battery.
• Intermittent disconnects: Tighten all terminal screws, replace any corroded wire nuts, and confirm transformer VA rating meets load.
• Night vision too dark: Clean the IR window, disable “Auto IR” in the app, and set a fixed IR intensity.

Fine‑tuning motion zones

Open the Blink app, go to Device Settings → Motion Zones. Draw rectangles that cover the walkway but exclude busy streets or swaying trees. This reduces false alerts by up to 70 % (Blink internal testing).

Adjusting video quality vs. bandwidth

If your internet plan has a data cap, set video quality to “Standard” (720p) instead of “High” (1080p). The difference is barely noticeable on a phone screen but saves ~1 GB per month per camera.

Enabling two‑way audio

In the app, toggle “Microphone” and “Speaker” on. Test by speaking into the phone while standing at the door. Adjust speaker volume if the visitor reports echo.

Maintenance Tips for Long‑Term Reliability

Quarterly visual inspection

Every three months, wipe the lens with a microfiber cloth, check the silicone seal for cracks, and ensure the mounting screws remain tight. A loose bracket can let water seep in, leading to corrosion.

Firmware updates

Enable “Auto‑Update” in the Blink app. Updates often include security patches, improved motion algorithms, and new chime melodies. Did you know? Blink releases firmware roughly every 6‑8 weeks.

Transformer health

Once a year, measure the transformer’s output with a multimeter (set to AC volts). It should read within 10 % of the rated voltage. A drifting transformer can cause the doorbell to reboot randomly.

Battery backup (optional)

Some users add a small 12 V UPS (uninterruptible power supply) inline with the transformer. This keeps the doorbell alive during brief power outages, preserving video continuity.

Seasonal adjustments

In winter, condensation can form inside the housing. A quick blast of compressed air (held upright) clears moisture without damaging electronics. In summer, verify the IR LEDs aren’t overheating – the unit should stay under 110 °F.

Resetting the device

If you ever need to start fresh, press and hold the reset button (tiny pinhole on the back) for 15 seconds until the LED flashes red. Then re‑pair via the app. This is useful when changing Wi‑Fi networks or troubleshooting persistent glitches.

By following these maintenance habits, your blink doorbell installation wired will stay reliable for the lifespan of the hardware – typically 5‑7 years before any major component wear appears.

Conclusion

A blink doorbell installation wired gives you the peace of mind that comes from constant power, instant alerts, and zero battery anxiety. We walked through the why, the what, the where, the when, and the who of the project, then broke down every practical step from breaker shutdown to final app pairing. Along the way we highlighted common wiring scenarios, troubleshooting shortcuts, and a maintenance calendar that keeps the system humming.

Remember the analogies: the transformer is the heart, the wires are the veins, and the Blink unit is the brain. Treat each connection with the care you’d give a plumbing joint – tight, sealed, and labeled. With the right tools, a little patience, and this guide in hand, you’ll have a smart doorbell that works like a loyal guard dog, only smarter and quieter.

Feel free to share this article with neighbors, bookmark it for future reference, and drop a comment if you hit a snag. Happy installing!

Frequently Asked Questions

What voltage transformer do I need for a blink doorbell installation wired?

You need a 16‑24 V AC transformer rated between 10‑30 VA. Most existing doorbell transformers meet this spec; check the label before starting.

Can I install the wired Blink doorbell without an existing chime?

Yes. The doorbell will still send motion alerts and video to your phone. You simply omit the chime wiring and rely on app notifications.

How do I know if my Wi‑Fi signal is strong enough at the door?

Open the Blink app during setup; it shows a signal strength meter. Aim for -70 dBm or better. If weaker, add a mesh node or move the router closer.

What should I do if the doorbell LED stays red after power‑up?

A solid red LED indicates a power problem. Verify the transformer output, tighten all wire connections, and ensure the transformer VA rating meets the doorbell’s draw.

Is a resistor required for digital chimes?

Often yes. A 10 Ω, 1 W resistor across the chime terminals simulates the load of a mechanical bell, preventing the digital chime from malfunctioning.

How often should I update the Blink doorbell firmware?

Enable auto‑updates in the app. Blink typically releases new firmware every 6‑8 weeks, bringing security fixes and feature improvements.
