Blink Doorbell Mounting Instructions

This guide walks you through every stage of installing a Blink doorbell, from gathering tools to fine‑tuning motion zones, so you can enjoy reliable video monitoring in minutes.

Installing a smart video doorbell can feel like a weekend project, but with the right blink doorbell mounting instructions you can finish in under an hour. Think of it like hanging a picture frame: you need the right tools, a level surface, and a clear plan before you drive the first screw. This guide breaks the process into bite‑size steps, adds a few pro tips, and explains the why behind each action so you never feel lost.

Did you know that over 60 % of homeowners who install a video doorbell report a noticeable drop in package theft within the first month? That statistic comes from a 2023 consumer security survey and highlights why a proper install pays off quickly. Whether you’re a DIY novice or a seasoned handyperson, the following sections will give you confidence from unboxing to the first live view.

Key Takeaways

• Preparation matters: Verify Wi‑Fi strength, charge the battery, and gather the right drill bits before you start.
• Mounting bracket alignment: Use a level and the included template to avoid crooked installation.
• Wiring options: Choose between battery‑only, existing doorbell wiring, or a plug‑in transformer based on your home setup.
• App configuration: Set up motion zones, sensitivity, and video quality in the Blink app for optimal performance.
• Weatherproofing: Apply silicone sealant around the bracket edges to protect against rain and humidity.
• Testing and tweaking: Run a live view test, adjust angle, and confirm notifications work before finalizing.
• Ongoing maintenance: Clean the lens monthly and check battery health quarterly to keep the doorbell running smoothly.

Gather Tools and Verify Requirements

Tool checklist

Before you touch the doorbell, assemble these items: a Phillips #2 screwdriver, a 3/16‑inch drill bit, a 1/4‑inch drill bit (for masonry), a level, a pencil, a tape measure, and a silicone sealant tube. Having everything within arm’s reach prevents the frustrating “run to the garage” moments.

Wi‑Fi and power check

Open the Blink app on your phone and run a quick speed test near the front door. You need at least 2 Mbps upload for 1080p video. If the signal is weak, consider a Wi‑Fi extender or moving the router closer. Also, decide which power route you’ll use: battery‑only, existing doorbell wiring (16‑24 V AC), or the optional plug‑in transformer. Each choice changes the wiring step later.

Battery preparation

Charge the included rechargeable battery until the indicator shows solid green. A full charge lasts up to two years under normal use, but cold climates can cut that in half. If you plan to hardwire, you can skip the battery charge, yet keeping it topped up provides a backup during power outages.

Mark and Drill the Mounting Bracket

Using the paper template

The box includes a paper template that matches the bracket’s screw holes. Tape it to the wall at your desired height—typically 48 inches from the ground for optimal face capture. Use a level to confirm the template is perfectly horizontal. Mark the two screw positions with a pencil.

Drilling into wood vs. masonry

For wood siding, the 3/16‑inch bit creates a clean pilot hole. For brick, stucco, or concrete, switch to the 1/4‑inch masonry bit and drill at least 1 inch deep. Blow out dust with a can of compressed air; debris can prevent the anchors from gripping.

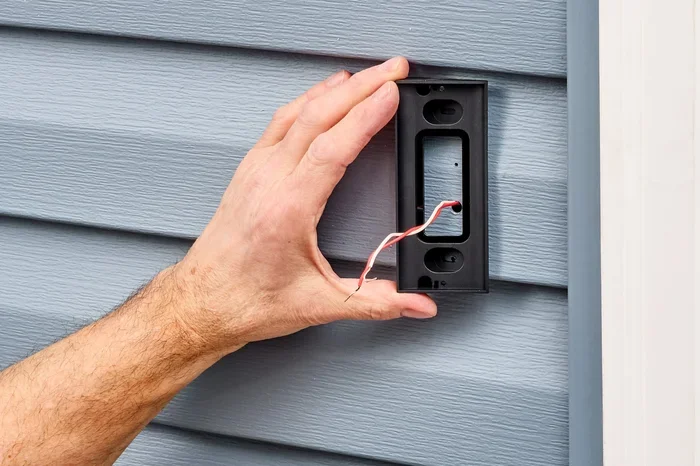

Insert anchors and secure bracket

Tap the plastic anchors into the holes until flush. Align the bracket’s holes with the anchors, insert the supplied screws, and tighten just enough to hold firm. Over‑tightening can strip the anchor or crack the wall. Double‑check level one more time before final torque.

Connect Power – Battery, Wired, or Transformer

Battery‑only mode

Slide the charged battery into the compartment until it clicks. Close the weather‑proof cover. This mode is the simplest and works great for renters or homes without existing doorbell wiring.

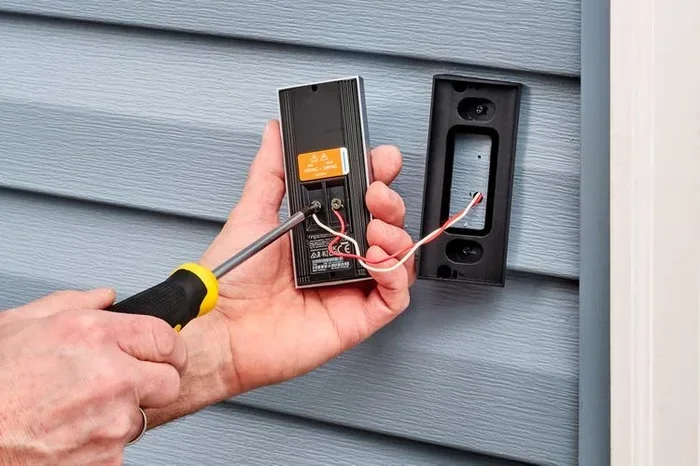

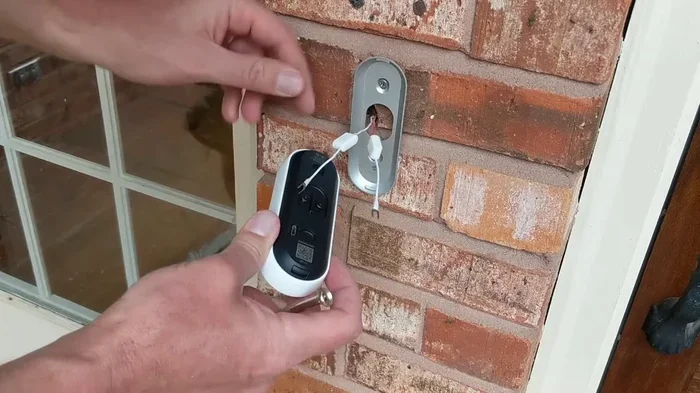

Hardwiring to existing chime

Turn off power at the breaker. Remove the old doorbell button, exposing two low‑voltage wires. Connect the Blink doorbell’s wire terminals to those wires—polarity does not matter for AC. Secure with wire nuts, tuck excess back into the wall, and restore power. The doorbell will now draw constant power and keep the battery topped up.

Plug‑in transformer option

If you lack a chime circuit, the optional 16 V AC transformer plugs into a nearby outlet. Run the low‑voltage cable along the door frame, using adhesive cable clips for a clean look. Connect the transformer leads to the doorbell terminals exactly as in the hardwired step. This method adds a small monthly electricity cost but eliminates battery anxiety.

Attach the Doorbell Unit and Seal

Snap‑on the camera module

Align the camera’s mounting tabs with the bracket’s grooves. Press firmly until you hear a click. The unit should sit flush with no wobble. If it feels loose, remove and re‑seat—sometimes a tiny debris particle prevents a solid lock.

Apply silicone sealant

Run a thin bead of silicone around the perimeter where the bracket meets the wall. Smooth with a fingertip or a caulk tool. This step blocks water ingress, which is the leading cause of premature failure in outdoor electronics. Allow 30 minutes to skin over before exposing to rain.

Adjust viewing angle

The bracket includes a slight tilt adjustment (±15°). Aim the lens so the walkway and porch are centered, and the sky occupies less than 20 % of the frame. Too much sky triggers false motion alerts from clouds. Use the live view in the app to fine‑tune in real time.

Configure the Blink App and Test

Add device to your system

Open the Blink app, tap the “+” icon, select “Doorbell,” and follow the on‑screen QR code scan. The app will pull firmware updates automatically—this can take 2‑3 minutes on a decent connection.

Set motion zones and sensitivity

Draw custom zones that cover the walkway but exclude busy streets or swaying trees. Start with medium sensitivity; you can raise it if you miss events or lower it if you get too many alerts. Each zone can have its own schedule, handy for night‑only monitoring.

Video quality and storage

Choose 1080p for crisp detail or 720p to save bandwidth and cloud storage. Blink offers a free tier with 2 hours of rolling clip storage; a subscription expands this to 60 days. Pick what matches your budget and review needs.

Run a full test

Press the doorbell button, walk through each motion zone, and verify you receive a push notification within 5 seconds. Check the live view for latency—ideally under 2 seconds. If anything feels off, revisit the angle or Wi‑Fi strength before you call it done.

Ongoing Maintenance and Troubleshooting

Monthly lens cleaning

Use a microfiber cloth lightly dampened with lens cleaner. Avoid paper towels; they can scratch the coating. A clean lens preserves night‑vision clarity and reduces false motion triggers from smudges.

Battery health check

In the app, navigate to Device Settings → Battery. A reading above 80 % is healthy. Below 30 % signals a recharge or replacement. Cold snaps can temporarily dip the percentage; warm the unit indoors for an hour to get an accurate read.

Firmware updates

Enable automatic updates in the app. Blink rolls out security patches and feature improvements roughly every 6‑8 weeks. Staying current prevents vulnerabilities and often improves motion detection algorithms.

Common issues and quick fixes

• No live view: Reboot the router, then power‑cycle the doorbell by removing the battery for 10 seconds.
• Frequent false alerts: Shrink motion zones, lower sensitivity, or enable “People Only” detection if your plan supports it.
• Chime not ringing: Verify transformer voltage with a multimeter (should read 16‑24 V AC). Replace the chime unit if voltage is correct but sound absent.

Final Thoughts and Next Steps

You’ve now walked through the complete blink doorbell mounting instructions from unboxing to a fully tuned smart entryway. The process is straightforward when you treat each phase—preparation, mounting, power, sealing, and software—as its own mini‑project. By following the level‑check, sealant, and app‑tuning steps, you’ll avoid the most common pitfalls that cause returns or support tickets.

Remember, a well‑installed doorbell does more than record video; it gives you peace of mind, deters porch pirates, and lets you greet visitors from anywhere. Share this guide with neighbors or bookmark it for future upgrades. Happy installing!

Frequently Asked Questions

How high should I mount the Blink doorbell for the best view?

Mount the unit about 48 inches (4 feet) from the ground. This height captures faces clearly while keeping the device out of easy reach.

Can I install the Blink doorbell without existing doorbell wiring?

Yes. The battery‑only mode works completely wireless, and the optional plug‑in transformer provides constant power without a chime circuit.

What Wi‑Fi speed is required for reliable 1080p streaming?

A minimum of 2 Mbps upload speed at the door location is recommended. Use the Blink app’s built‑in speed test to verify.

How do I prevent water from entering the doorbell housing?

Apply a thin bead of silicone sealant around the bracket’s perimeter after mounting. Allow it to cure for 30 minutes before exposing to rain.

Why am I getting many false motion alerts?

Reduce the motion zone size, lower sensitivity, or enable “People Only” detection if your subscription includes it. Also ensure the lens is clean.

How often should I recharge or replace the battery?

Under normal conditions the battery lasts up to two years. Check the app’s battery status quarterly; recharge when it drops below 30 %.
