Can Ip Cameras Go to an Ethernet Switch

Yes, IP cameras can absolutely connect to an Ethernet switch, offering a stable, efficient way to manage video feeds over a wired network. Unlike wireless options, Ethernet connections provide consistent bandwidth, lower latency, and reduced interference—ideal for security systems in homes or businesses. With the right setup, you’ll enjoy crystal-clear footage and easy scalability without Wi-Fi headaches.

Key Takeaways

• Direct Connection Works: Most PoE-enabled IP cameras connect directly to a standard Ethernet switch using a single cable.
• Power over Ethernet (PoE): PoE switches deliver both power and data through one cable, eliminating the need for separate power adapters.
• Network Performance Matters: A properly configured switch ensures minimal lag and supports multiple camera streams simultaneously.
• Cable Length Limits: Standard Ethernet cables (Cat5e/Cat6) work up to 100 meters; longer runs may require repeaters or fiber.
• Switch Capacity Planning: Match your switch port count to your camera count, plus extra ports for future expansion or NVRs.
• Quality of Service (QoS): Enable QoS settings to prioritize camera traffic and prevent network congestion from other devices.
• Security Considerations: Use VLANs or firewall rules to isolate camera traffic and enhance network security.

Quick Answers to Common Questions

Can I connect my IP camera directly to a regular Ethernet switch?

Yes, but only if your switch supports Power over Ethernet (PoE). If it doesn’t, you’ll need a separate power adapter for each camera.

How far can an Ethernet cable run for an IP camera?

Standard Cat5e/Cat6 cables support up to 100 meters (about 328 feet) between the camera and switch. Beyond that, you’d need repeaters or fiber optics.

Do I need a special switch for 4K IP cameras?

While not mandatory, a gigabit managed PoE switch is highly recommended. 4K cameras use significant bandwidth, and a fast switch ensures smooth streaming without bottlenecks.

Can multiple IP cameras share one switch port?

No. Each camera needs its own dedicated port unless you’re using a PoE splitter or daisy-chaining (which isn’t supported by most switches).

Will connecting IP cameras to a switch affect my internet speed?

Only if your internet upload speed is already saturated. Locally, cameras communicate over your LAN — so internal traffic doesn’t impact external bandwidth unless you’re streaming externally.

Can IP Cameras Go to an Ethernet Switch? Yes — Here’s How It Works

Imagine setting up a home security system with several cameras monitoring different angles of your property. You want them to record clearly, transmit smoothly, and stay online without glitches. Now picture this: instead of running power cords everywhere, you plug each camera into a central hub using just one cable. That’s where Ethernet switches come in — and yes, IP cameras absolutely can go to an Ethernet switch, and doing so offers serious advantages over wireless-only setups.

But before we dive deep, let’s clarify what an IP camera actually is. Unlike analog security cams that send raw video over coax cable, IP cameras digitize footage and send it over a network — usually via Ethernet or Wi-Fi. When connected to an Ethernet switch, they become part of your local area network (LAN), communicating directly with your router or recording device like a Network Video Recorder (NVR). This wired approach gives you more control, reliability, and often better image quality than Wi-Fi alternatives.

In this guide, we’ll walk through everything you need to know about connecting IP cameras to Ethernet switches — from choosing the right hardware to optimizing performance. Whether you’re building a small office surveillance system or upgrading your home security, understanding how these components interact will save you time, money, and frustration down the road.

Understanding IP Cameras and Their Network Requirements

Before jumping into wiring diagrams or switch models, it helps to understand why IP cameras behave differently from traditional security cameras. At their core, IP cameras are essentially computers on a network. They have built-in processors, memory, and network interfaces designed to capture video, compress it (usually using H.264 or H.265 codecs), and stream it over TCP/IP protocols.

This digital nature means they rely heavily on consistent network connectivity. Dropped packets, fluctuating bandwidth, or signal interference can cause choppy video, delayed alerts, or even complete loss of feed — especially when multiple cameras share the same network segment. That’s why many professionals prefer wired Ethernet connections over Wi-Fi whenever possible.

Most modern IP cameras support two main types of network connection:
– **Wi-Fi**: Convenient for temporary installations or locations where running cable isn’t feasible.
– **Ethernet**: Offers superior stability, higher throughput, and easier management — especially when paired with Power over Ethernet (PoE).

When you choose Ethernet, you’re opting for a dedicated physical link between the camera and your network infrastructure. This reduces reliance on radio frequencies, minimizes latency, and ensures predictable performance — critical factors if you plan to store hours of high-definition video or integrate motion detection with smart home systems.

What Is Power over Ethernet (PoE)?

One of the biggest perks of using Ethernet switches with IP cameras is PoE technology. Instead of needing a wall outlet near every camera location, PoE delivers both electrical power and data signals through a single Cat5e or Cat6 cable. The magic happens at two ends:

1. **The switch** supplies small amounts of DC voltage (typically 12V–48V) along with data.
2. **The camera** has a built-in PoE injector or uses an internal splitter to separate power from data.

This means you only need to run one cable from the switch to each camera — drastically cutting installation time and eliminating messy power strips. For example, consider a retail store installing four ceiling-mounted IP cameras in hard-to-reach areas. Without PoE, workers would have to drill new holes for power lines or install bulky transformers. With PoE, a single cable does double duty — and keeps everything neat and tidy.

However, not all switches support PoE. You’ll need either:
– A **PoE switch** (built-in capability)
– Or a **non-PoE switch + PoE injector** (external power source)

Always check your camera’s specifications to confirm its PoE class (e.g., IEEE 802.3af, at, or bt) and ensure compatibility with your chosen switch or injector.

Bandwidth and Resolution Considerations

Another key factor when planning your IP camera setup is bandwidth usage. Higher-resolution cameras (like 4K or even 8MP models) generate significantly more data than lower-res ones. If you’ve got multiple high-def cameras streaming simultaneously, your switch must handle the load without bottlenecking.

Here’s a quick reference table showing approximate bandwidth needs:

| Camera Resolution | Bitrate (Mbps) | Notes |
|——————-|—————-|——-|
| 720p (HD) | 2–4 | Suitable for most indoor use |
| 1080p (Full HD) | 4–8 | Common for home/outdoor systems |
| 4MP / 5MP | 6–12 | Ideal for detailed facial recognition |
| 4K | 12–20+ | Requires robust networking gear |

If your switch lacks sufficient backplane speed or uses shared-bandwidth architecture, adding too many high-bitrate cameras can overwhelm the system — leading to dropped frames or buffering. Modern managed switches solve this by offering dedicated bandwidth per port and advanced traffic-shaping features.

As a rule of thumb, start with a switch rated for at least 1 Gbps total throughput per 10–12 cameras, depending on resolution and frame rate. And remember: even if your internet upload speed is high, your local network (including the switch) sets the ceiling for internal camera communication.

Choosing the Right Ethernet Switch for Your IP Cameras

Not every Ethernet switch is created equal — especially when dealing with video surveillance. While consumer-grade unmanaged switches might seem tempting due to low cost, they often lack the features needed for professional-grade camera networks. Let’s break down what to look for.

Managed vs. Unmanaged Switches

– **Unmanaged switches**: Plug-and-play devices with no configuration options. Great for basic home networks but risky for multi-camera setups because they can’t prioritize traffic or segment networks.
– **Managed switches**: Allow customization via web interfaces or CLI. You can enable VLANs, set up Quality of Service (QoS), monitor port status, and configure redundancy — all crucial for reliable surveillance.

For anything beyond a single-room setup, invest in a managed gigabit switch. Even mid-tier models from brands like TP-Link, Netgear, or Ubiquiti offer excellent value and reliability.

PoE Budget and Port Count

Every PoE switch has a maximum power budget — usually listed in watts (W). For instance, a 150W switch can power up to 25 cameras drawing 6W each (assuming 802.3af compliance). Always calculate your total power draw before buying:

> Total Watts = Σ(Camera Power Draw × Number of Cameras)

Also, count your required ports carefully. Don’t forget space for your NVR, router, NAS, or other network gear. A common mistake is underestimating future expansion — always leave 2–4 spare ports.

Gigabit vs. Fast Ethernet

Fast Ethernet (10/100 Mbps) is fine for older 720p cameras, but gigabit (1000BASE-T) is strongly recommended for any modern system. Why? Because even modest 1080p streams consume ~4–8 Mbps, and multiple cameras quickly add up. Gigabit switches ensure headroom for growth and reduce contention during peak usage.

Additionally, some advanced features like PoE++ (up to 90W per port) or intelligent fanless designs (for silent operation in offices) are only available in higher-end gigabit models.

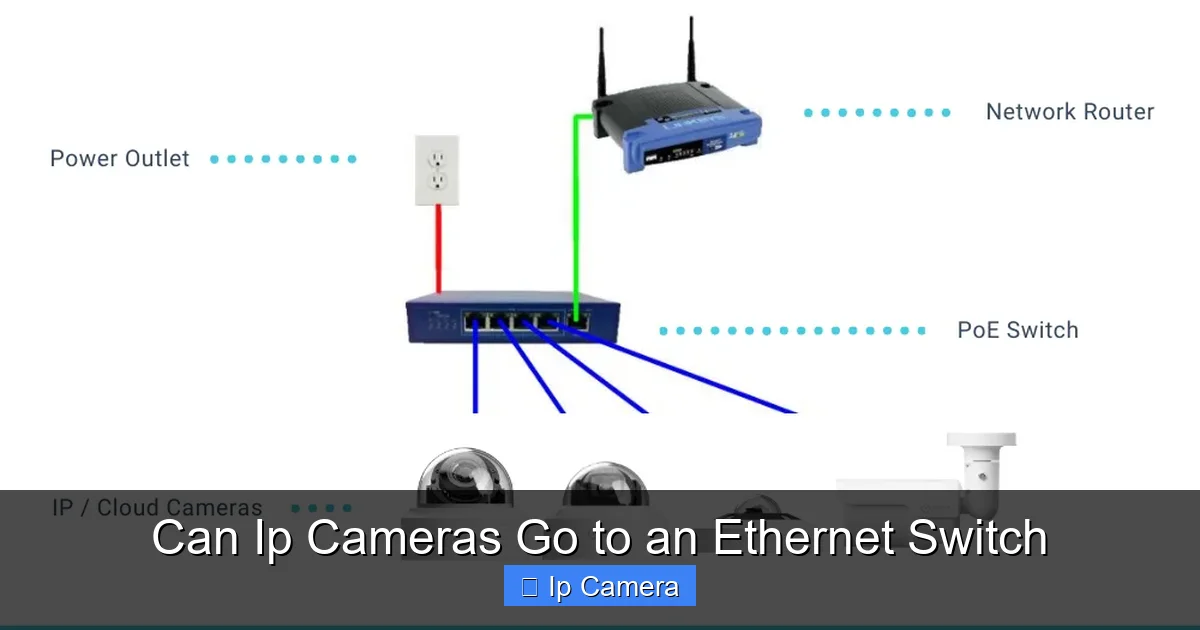

Step-by-Step: Connecting IP Cameras to an Ethernet Switch

Ready to get hands-on? Here’s a simple process to wire up your IP cameras using an Ethernet switch:

Gather Your Equipment

– Ethernet switch (PoE-capable if applicable)
– Cat5e or Cat6 cables (preferably pre-cut to length)
– IP cameras with compatible connectors
– NVR or computer for viewing/recording
– Optional: patch panel, wall plates, or conduit for clean routing

Physical Installation Tips

1. Mount cameras securely and route cables neatly through walls, ceilings, or conduits.
2. Keep cables away from sources of interference (power lines, fluorescent lights).
3. Label each cable at both ends for easy troubleshooting later.
4. Test continuity with a cable tester before finalizing installations.

Network Configuration Basics

1. Connect your main router to the switch using one of its uplink ports.
2. Plug each camera into a switch port using a short patch cable.
3. Access the camera’s web interface (via its default IP address) to assign static IPs or join your DHCP pool.
4. Configure recording schedules, motion zones, and alert settings as needed.
5. Point your NVR or mobile app to the camera IP addresses to view live feeds.

Pro tip: Use the same subnet for all devices (e.g., 192.168.1.x) to simplify communication. Avoid overlapping IP ranges or conflicting gateways.

Optimizing Performance and Security on Your Camera Network

Once everything’s wired up, don’t assume it’ll run perfectly forever. Regular maintenance and smart configurations go a long way toward preventing issues.

Enable Quality of Service (QoS)

QoS tells your router or switch which traffic gets priority. Since video surveillance is sensitive to delay, tag camera packets as high-priority. This prevents lag when someone starts streaming a video doorbell or accessing cloud storage.

Segment with VLANs

Virtual LANs isolate camera traffic from general internet users. If your switch supports VLAN tagging (802.1Q), create a dedicated VLAN for cameras. This limits exposure to hacking attempts and reduces broadcast storms that slow down the entire network.

Update Firmware Regularly

Manufacturers release updates to fix bugs, close vulnerabilities, and improve performance. Set calendar reminders to check for firmware updates on both cameras and the switch.

Monitor Bandwidth Usage

Use tools like Wireshark or built-in switch dashboards to spot unusual spikes. Sudden increases might indicate a compromised camera or misconfigured stream settings.

Practice Good Physical Security

Keep switch enclosures locked if accessible to unauthorized personnel. Tampering with network infrastructure is a common attack vector.

Common Mistakes to Avoid

Even experienced IT folks stumble when deploying IP camera networks. Watch out for these pitfalls:

– **Using too many non-PoE injectors**: Mixing cheap injectors can cause instability or power drops.
– **Ignoring cable quality**: Poorly shielded Cat5e cables introduce noise and packet loss.
– **Overloading the switch**: Adding more cameras than the switch can handle degrades performance.
– **Skipping VLANs on managed switches**: Leaves your entire network vulnerable.
– **Plugging cameras into Wi-Fi extenders**: Adds unnecessary hops and reduces reliability.

If you’re unsure about any step, consult the manufacturer’s documentation or reach out to a pro. Better safe than sorry!

Conclusion: Wired Wins for Reliable Surveillance

So, can IP cameras go to an Ethernet switch? Absolutely — and now you know why it’s often the smarter choice. Wired connections deliver unmatched stability, scalability, and security compared to wireless alternatives. With PoE technology simplifying installation and managed switches enabling fine-tuned control, modern Ethernet setups make professional-grade surveillance accessible to everyone.

Whether you’re securing a single-family home, a small business, or a large campus, taking the time to plan your network infrastructure pays dividends in peace of mind. Just remember: choose quality components, respect power and bandwidth limits, and keep learning as your needs evolve.

Your next step? Start mapping out your ideal camera layout, grab a decent gigabit PoE switch, and get those cables routed. Before long, you’ll be watching crisp, uninterrupted footage — all thanks to a solid foundation built on Ethernet.

Frequently Asked Questions

Can I use a regular router as an Ethernet switch for IP cameras?

Yes, most modern routers have built-in switches with multiple Ethernet ports. Just ensure they support PoE if you want to avoid separate power supplies.

What happens if my Ethernet switch fails?

All connected IP cameras will lose network access and stop sending video. For critical installations, consider redundant switches or UPS backup to maintain uptime.

Are there any security risks with IP cameras on Ethernet?

Like any networked device, IP cameras can be vulnerable to attacks. Use strong passwords, disable unused services, and segment cameras on a VLAN for added protection.

Can I mix PoE and non-PoE cameras on the same switch?

Yes, but you’ll need to use non-PoE ports for cameras without built-in PoE support and provide external power via injectors or wall adapters.

Should I upgrade from Cat5e to Cat6 for IP cameras?

Not strictly necessary for current standards, but Cat6 offers better shielding and future-proofing for higher resolutions or PoE++ devices. Worth considering for new builds.

How do I troubleshoot a camera that won’t connect after wiring?

First, verify the Ethernet cable works (try another device). Check the camera’s LED indicators, confirm IP assignment, and test connectivity using ping commands. Reboot both camera and switch if needed.
