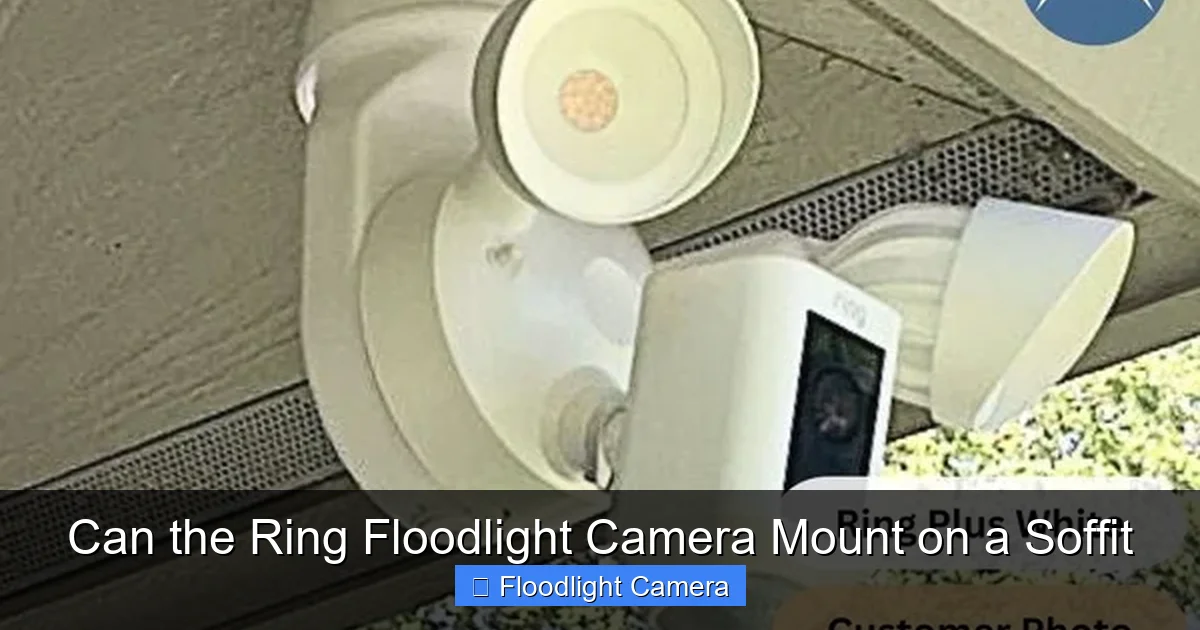

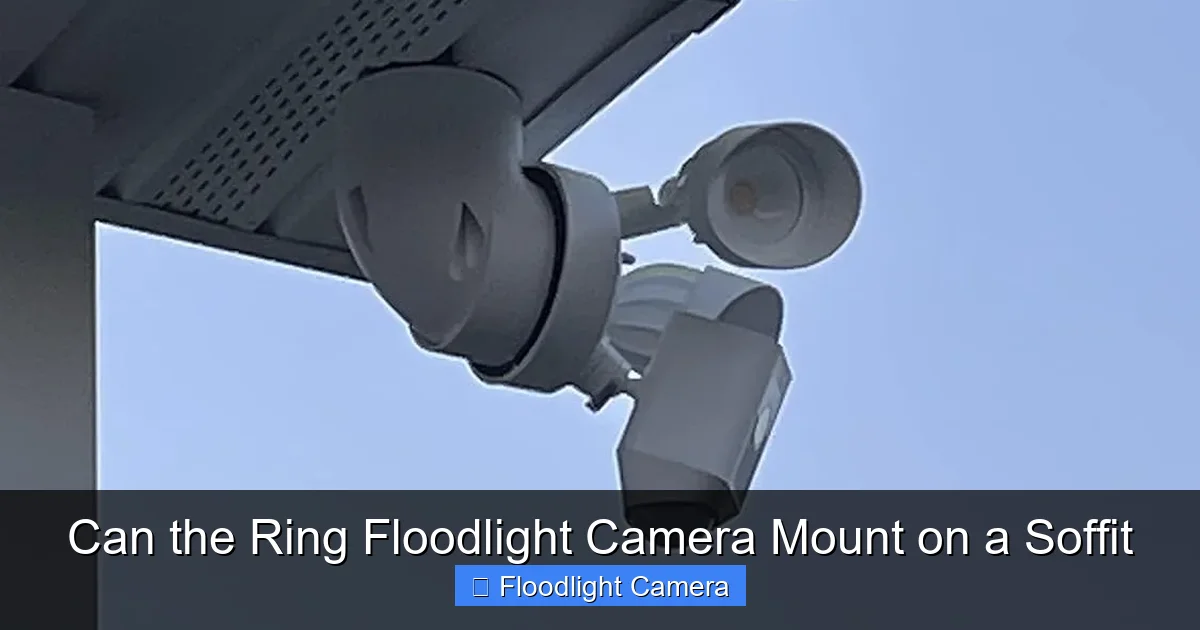

Can the Ring Floodlight Camera Mount on a Soffit

Yes, the Ring Floodlight Camera can be mounted on a soffit, but it requires careful planning and the right mounting accessories. With proper tools, alignment, and electrical connections, you can achieve a secure and functional installation that enhances your home security.

Key Takeaways

• Mounting on a soffit is possible: The Ring Floodlight Camera can be installed on a soffit using the right bracket or adapter, though it’s not the default setup.
• Use the correct mounting hardware: A soffit-specific mount or an adjustable angle bracket ensures stability and proper camera alignment.
• Ensure proper wiring access: Soffit installations often require running wires through the soffit or using wireless options to avoid visible cables.
• Check local building codes: Always verify electrical and structural requirements before drilling into your home’s exterior.
• Optimize camera angle and coverage: Position the camera to avoid blind spots and maximize motion detection and video quality.
• Consider weatherproofing: Soffits may expose the camera to moisture; ensure all connections are sealed and protected.
• Professional installation recommended: For complex setups, hiring an electrician or installer ensures safety and compliance.

Can the Ring Floodlight Camera Mount on a Soffit?

If you’re looking to boost your home security with a Ring Floodlight Camera, you might be wondering: *Can I mount this device on a soffit?* The short answer is yes—but it’s not as simple as just screwing it into place. Soffits, the horizontal boards that cover the underside of your roof overhang, are common mounting spots for outdoor cameras. However, they come with unique challenges, especially when installing a device as feature-rich and heavy as the Ring Floodlight Camera.

The Ring Floodlight Camera combines a high-definition security camera, motion-activated LED floodlights, two-way audio, and smart alerts—all in one sleek package. It’s designed to deter intruders and give you peace of mind. But its dual functionality means it’s bulkier than standard doorbell cameras, and mounting it on a soffit requires extra attention to detail. You’ll need the right tools, the correct mounting hardware, and a solid understanding of your home’s structure.

In this guide, we’ll walk you through everything you need to know about mounting your Ring Floodlight Camera on a soffit. From choosing the right bracket to running wires and optimizing camera angles, we’ll cover the practical steps, common pitfalls, and pro tips to ensure a safe, secure, and effective installation. Whether you’re a DIY enthusiast or considering professional help, this article will help you make the best decision for your home.

Understanding the Ring Floodlight Camera and Its Mounting Requirements

Before we dive into soffit mounting, let’s get familiar with the Ring Floodlight Camera itself. This device is more than just a camera—it’s a full-fledged outdoor security system. It features 1080p HD video, night vision, motion detection with customizable zones, and powerful LED floodlights that automatically turn on when motion is detected. It also includes two-way talk, so you can communicate with visitors or deter suspicious activity remotely via the Ring app.

Because of its advanced features, the Ring Floodlight Camera is heavier and larger than many other outdoor cameras. It typically weighs around 2.5 pounds and requires a stable, secure mount to function properly. The standard mounting setup includes a wall-mounted bracket that attaches directly to an exterior wall, usually near a doorway or garage. But what if your ideal viewing angle is from above, under the eaves of your roof? That’s where soffit mounting comes into play.

Why Choose a Soffit Mount?

Mounting your Ring Floodlight Camera on a soffit offers several advantages. First, it provides a higher vantage point, giving you a broader view of your driveway, yard, or walkway. This elevated angle can reduce blind spots and improve motion detection accuracy. Second, soffits are often out of reach, which makes the camera less vulnerable to tampering or theft. Finally, installing the camera under the soffit can help protect it from direct rain and harsh weather, potentially extending its lifespan.

However, soffit mounting isn’t without its challenges. Soffits are typically made of wood, vinyl, or aluminum, and they’re not always designed to support heavy loads. Additionally, accessing power and running wires through a soffit can be tricky, especially if your home doesn’t have existing electrical outlets in that area. You’ll also need to ensure the camera is angled correctly to capture the desired area without pointing directly into the sun or capturing too much sky.

Standard vs. Soffit Mounting

The Ring Floodlight Camera comes with a standard wall mount that’s designed for vertical surfaces. This mount uses screws to attach directly to a flat wall, and it includes a ball joint for adjusting the camera angle. While this works well for most installations, it’s not ideal for soffits, which are often horizontal or angled.

To mount the camera on a soffit, you’ll need an alternative mounting solution. Ring offers an optional **Angle Mount** (sold separately) that allows you to adjust the camera’s tilt and rotation. This mount can be adapted for soffit use, but you may also need additional hardware, such as a soffit bracket or a universal mounting plate. Some homeowners use third-party mounts designed specifically for soffit installations, which provide extra stability and flexibility.

Tools and Materials Needed for Soffit Installation

Before you start drilling into your soffit, make sure you have all the necessary tools and materials. A successful installation depends on preparation, so don’t skip this step.

Essential Tools

You’ll need a few basic tools to get the job done:
– **Drill and drill bits** – For creating pilot holes in the soffit.
– **Screwdriver or impact driver** – To secure screws and brackets.
– **Level** – To ensure the camera is mounted straight.
– **Measuring tape** – For accurate placement and alignment.
– **Wire stripper and electrical tape** – If you’re connecting to existing wiring.
– **Ladder** – A sturdy ladder is essential for reaching the soffit safely.
– **Safety gear** – Gloves, safety glasses, and non-slip shoes.

Mounting Hardware

The right hardware is crucial for a secure soffit mount. Here’s what you’ll need:
– **Ring Angle Mount or compatible soffit bracket** – This allows you to adjust the camera angle.
– **Long screws or lag bolts** – These should be long enough to penetrate the soffit and reach the underlying joist or framing.
– **Wall anchors (if needed)** – For softer soffit materials like vinyl, anchors can provide extra grip.
– **Weatherproof sealant** – To seal screw holes and prevent moisture intrusion.

Electrical Components

Since the Ring Floodlight Camera requires a constant power source, you’ll need to consider how to get electricity to the soffit. Options include:
– **Existing outdoor outlet** – If there’s an outlet nearby, you can use an extension cord (though this isn’t ideal for aesthetics or safety).
– **Hardwired connection** – Running wires from your home’s electrical system through the soffit to the camera. This requires basic electrical knowledge or a licensed electrician.
– **Solar panel accessory** – Ring offers a solar panel that can charge the camera’s battery, but this only works with the battery-powered version (not the wired Floodlight Camera).

Step-by-Step Guide to Mounting on a Soffit

Now that you’re prepared, let’s walk through the installation process. This step-by-step guide will help you mount your Ring Floodlight Camera on a soffit safely and effectively.

Step 1: Choose the Right Location

Start by identifying the best spot on your soffit. Look for an area that:
– Offers a clear view of the area you want to monitor (e.g., driveway, front door, backyard).
– Is within range of your Wi-Fi signal.
– Has access to power (either an outlet or a way to run wires).
– Is structurally sound and not damaged.

Use your measuring tape to mark the center point where the camera will be mounted. Make sure there’s enough space around the camera for the floodlights to function without obstruction.

Step 2: Check for Obstructions and Wiring Path

Before drilling, inspect the soffit from the inside (if accessible) to ensure there are no electrical wires, plumbing, or insulation in the way. If you’re hardwiring the camera, plan the route for the electrical cable. You may need to drill through the soffit and into the attic or wall cavity to run the wire to your electrical panel.

If you’re not comfortable with electrical work, this is a good time to call a professional. Improper wiring can be dangerous and may void your warranty.

Step 3: Install the Mounting Bracket

Attach the Ring Angle Mount or soffit bracket to the soffit using long screws. Make sure the bracket is level and securely fastened. If your soffit is made of a soft material like vinyl, use wall anchors to prevent the screws from pulling out over time.

Once the bracket is in place, attach the camera mount to the bracket. The Ring Floodlight Camera uses a quick-release mechanism, so you can easily remove the camera for maintenance or charging.

Step 4: Connect the Power

If you’re hardwiring the camera, connect the wires according to the manufacturer’s instructions. Typically, this involves connecting black (hot), white (neutral), and green or bare (ground) wires. Use wire nuts and electrical tape to secure the connections, and tuck them into a junction box if required by local codes.

If you’re using an existing outlet, plug in the camera’s power adapter and route the cord neatly along the soffit or through a conduit to prevent tripping hazards and weather damage.

Step 5: Attach and Adjust the Camera

Slide the Ring Floodlight Camera onto the mount and secure it. Use the adjustment knobs on the mount to tilt and rotate the camera until it’s pointing at the desired area. Avoid pointing it directly at the sun or bright lights, as this can cause glare and reduce video quality.

Test the camera’s view using the Ring app on your smartphone. Make sure the field of view covers the area you want to monitor and that motion detection zones are properly set.

Step 6: Seal and Secure

Apply weatherproof sealant around the screw holes and any wire entry points to prevent water from seeping into your soffit. This is especially important in rainy or humid climates.

Double-check that all connections are tight and that the camera is securely mounted. Give it a gentle tug to ensure it doesn’t wobble or come loose.

Common Challenges and How to Overcome Them

Mounting a Ring Floodlight Camera on a soffit isn’t always straightforward. Here are some common issues you might encounter and how to solve them.

Challenge 1: Weak or Damaged Soffit Material

If your soffit is made of thin vinyl or is rotting, it may not support the weight of the camera. In this case, reinforce the area with a backing board or choose a different mounting location. You can also use a longer bracket that spans multiple joists for added stability.

Challenge 2: No Access to Power

If there’s no nearby outlet and you’re not comfortable running wires, consider using a solar panel or switching to a battery-powered Ring camera like the Ring Spotlight Cam Battery. While the Floodlight Camera is wired-only, other Ring models offer more flexibility for soffit mounting.

Challenge 3: Poor Wi-Fi Signal

Soffits can be far from your router, leading to weak Wi-Fi signals. To improve connectivity, consider installing a Wi-Fi extender or mesh network system. You can also use a wired Ethernet connection if you’re already running power to the soffit.

Challenge 4: Camera Angle Limitations

Even with an adjustable mount, you may find it difficult to angle the camera perfectly on a soffit. To improve coverage, consider mounting the camera slightly forward of the soffit edge or using a longer extension bracket. Some users also install the camera upside down and rotate the video feed in the Ring app.

Tips for Optimal Performance and Maintenance

Once your Ring Floodlight Camera is installed, follow these tips to keep it running smoothly.

Regular Cleaning

Dust, dirt, and spider webs can accumulate on the camera lens and floodlights, reducing image quality and brightness. Clean the camera monthly with a soft, dry cloth. Avoid using water or cleaning solutions directly on the device.

Check Connections

Periodically inspect the mounting hardware and electrical connections to ensure they’re secure. Loose screws or frayed wires can lead to malfunctions or safety hazards.

Update Firmware

Keep your camera’s firmware up to date through the Ring app. Updates often include performance improvements, bug fixes, and new features.

Test Motion Zones

Adjust motion detection zones as needed to reduce false alerts from trees, animals, or passing cars. Use the Ring app to customize sensitivity and zone boundaries.

Conclusion

Mounting a Ring Floodlight Camera on a soffit is absolutely possible—and can be a smart choice for maximizing security coverage. While it requires more planning and effort than a standard wall mount, the elevated vantage point and added protection from the elements make it worthwhile for many homeowners.

With the right tools, hardware, and preparation, you can achieve a clean, secure, and functional installation. Just remember to prioritize safety, follow local building codes, and consider professional help if you’re unsure about electrical work. Once installed, your Ring Floodlight Camera will provide reliable surveillance, bright lighting, and peace of mind—all from the comfort of your soffit.

Whether you’re protecting your driveway, monitoring your backyard, or keeping an eye on your front entrance, a soffit-mounted Ring Floodlight Camera can be a powerful addition to your home security system. So go ahead—take the plunge, follow the steps, and enjoy the benefits of a smarter, safer home.

Frequently Asked Questions

Can the Ring Floodlight Camera be mounted upside down on a soffit?

Yes, you can mount the Ring Floodlight Camera upside down on a soffit. The camera’s video feed can be rotated 180 degrees in the Ring app, so the image appears correctly. Just make sure the mount allows for secure inverted installation.

Do I need a special bracket to mount the Ring Floodlight Camera on a soffit?

Yes, the standard wall mount isn’t ideal for soffits. Use the Ring Angle Mount or a compatible soffit bracket to ensure proper alignment and stability. Third-party mounts designed for horizontal surfaces also work well.

Can I run wires through my soffit to power the camera?

Yes, but it requires drilling and routing wires through the soffit and into your home’s electrical system. This should be done carefully to avoid damage and ensure weatherproofing. Hire an electrician if you’re not experienced with wiring.

Will mounting on a soffit affect the camera’s Wi-Fi signal?

It might, especially if the soffit is far from your router. To improve signal strength, use a Wi-Fi extender or mesh network. A wired Ethernet connection is another reliable option if you’re already running power.

Is it safe to install a Ring Floodlight Camera on a vinyl soffit?

Yes, but use wall anchors and long screws to ensure a secure hold. Avoid over-tightening screws, as vinyl can crack. Reinforce the area with a backing board if the soffit feels weak.

Can I use a solar panel with the Ring Floodlight Camera on a soffit?

No, the Ring Floodlight Camera is wired-only and doesn’t support solar panels. However, you can use solar-powered alternatives like the Ring Spotlight Cam Battery for soffit installations without wiring.
