Do Doorbell Transformers Use AC or DC Power? Explained Simply

Ever wondered what kind of electrical magic makes your doorbell ring? It’s a common question, and one that often leads people down a rabbit hole of AC vs. DC power. If you’re like many homeowners, you might assume all low-voltage devices operate on direct current (DC). But when it comes to your doorbell system, especially the unsung hero, the transformer, things are a little different. Let’s demystify this and answer the burning question: are doorbell transformers AC or DC?

The short answer, in most residential setups, is that doorbell transformers primarily use AC (alternating current). But understanding why, and what that means for your doorbell’s operation, is key. This post will break down the intricacies of doorbell power, helping you understand the heart of your chime system and how to troubleshoot it effectively. Let’s dive in!

The Heart of the System: Understanding Your Doorbell Transformer

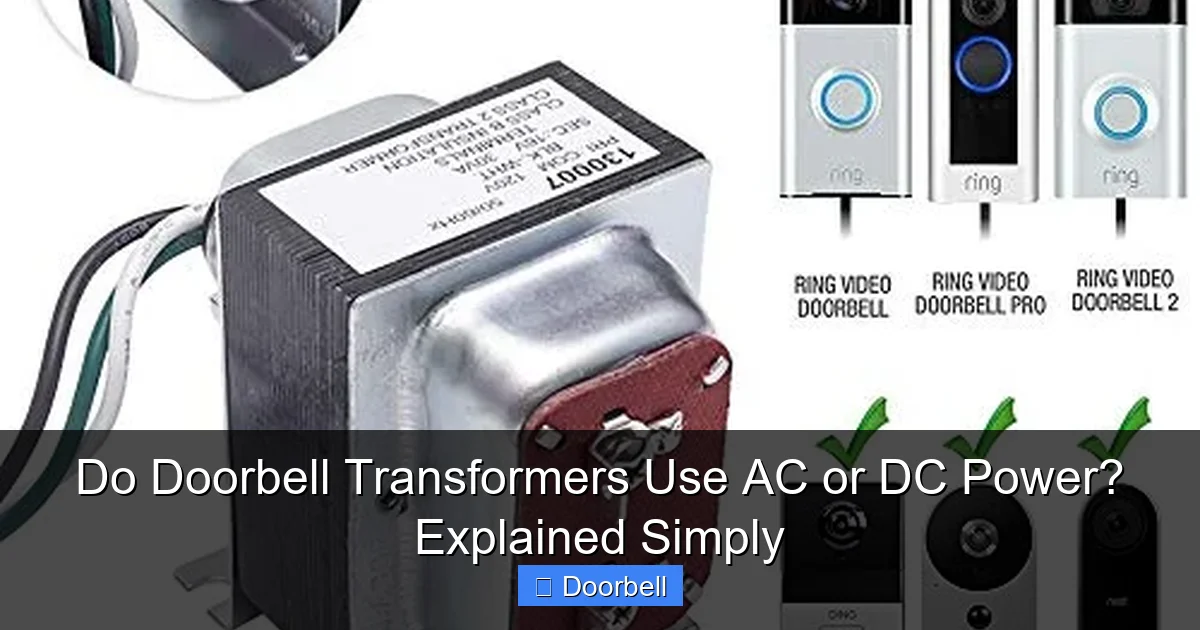

Before we dissect AC or DC, let’s establish what a transformer does. A doorbell transformer is a small, but mighty, device responsible for converting the high voltage from your home’s electrical system (typically 120V or 240V AC) down to a much lower, safer voltage (commonly 8V, 16V, or 24V AC) suitable for your doorbell chime and button. Without it, your doorbell button would either zap you or burn out the chime instantly!

The “transformer” part of its name gives a clue. Transformers, by their very design, work most efficiently and cost-effectively with alternating current. They use electromagnetic induction, where a changing magnetic field (created by AC) induces current in a secondary coil. This is why doorbell transformers are AC devices on both the input and output sides for traditional wired doorbells.

Why AC for Doorbell Transformers?

• Efficiency and Cost: Transformers are inherently designed for AC. AC power can be stepped up or down efficiently using transformers, which is much harder and more costly with DC.
• Simplicity: Traditional mechanical chimes (the “ding-dong” type) are designed to operate on low-voltage AC. The electromagnet inside the chime uses the alternating current to move a plunger back and forth, creating the familiar sound.
• Long-Standing Standard: The use of low-voltage AC has been the industry standard for wired doorbells for decades due to its reliability and simplicity.

AC vs. DC: A Quick Refresher for Your Doorbell

To truly grasp why doorbell transformers use AC, it’s helpful to remember the fundamental differences between alternating current (AC) and direct current (DC).

• Alternating Current (AC): This is the type of electricity supplied to your home. The current periodically reverses direction, flowing back and forth. It’s excellent for transmitting power over long distances and for use with transformers.
• Direct Current (DC): This is electricity that flows in one constant direction. Batteries produce DC power, and many smaller electronic devices (like smartphones, laptops, and smart home gadgets) operate on DC power, often converting AC from the wall outlet into DC using an adapter.

So, while many of your modern gadgets run on DC, your traditional wired doorbell system stands firm with AC. It’s a testament to the robustness and simplicity of the original design.

What About Smart Doorbells and DC Power?

This is where things get a little more nuanced. While the doorbell transformer itself typically outputs AC, many modern smart doorbells (like Ring, Nest, Arlo, etc.) actually operate internally on DC power. So, how does this work?

Most smart doorbells are designed to be compatible with existing low-voltage AC doorbell systems. They have internal rectifiers and power management circuitry that convert the incoming low-voltage AC from your traditional doorbell transformer into the DC power they need to operate their electronics, cameras, Wi-Fi modules, and other features. This means:

1. Your home’s main power (AC) goes into the doorbell transformer.
2. The doorbell transformer outputs low-voltage AC (e.g., 16V AC).
3. The smart doorbell receives this low-voltage AC and converts it to the DC power it requires internally.

This clever design allows smart doorbells to be easily integrated into existing setups without needing a separate DC power supply at the doorbell itself. However, it’s crucial to ensure your existing transformer provides sufficient voltage and VA (volt-ampere) rating to power the smart doorbell, as these devices often require more power than a simple mechanical chime. Check your smart doorbell’s specifications for minimum voltage and VA requirements. Many smart doorbells recommend at least a 16V, 30VA transformer.

Checking Your Doorbell Transformer’s Output

Knowing that your doorbell transformer is AC is one thing, but verifying its output voltage can be crucial for troubleshooting or installing a new doorbell. Here’s how you can do it safely:

1. Locate the Transformer: Common locations include near your electrical panel, in the attic, basement, or garage, or sometimes attached to a junction box near the ceiling.
2. Safety First: Turn off the power to the doorbell circuit at your home’s circuit breaker.
3. Inspect the Labels: Most transformers have labels indicating their input (e.g., 120V) and output (e.g., 16V, 10VA) specifications. The output voltage will almost always be listed as AC.
4. Use a Multimeter (Optional, Advanced): If you need to confirm the voltage, use a multimeter. Set the multimeter to measure AC voltage (VAC). With the power back on (be extremely careful!), touch the probes to the two low-voltage terminals on the transformer. You should get a reading close to the indicated output voltage (e.g., 16V AC).

If you’re upgrading to a smart doorbell and your existing transformer is, for example, 8V AC or only 10VA, you’ll likely need to replace it with a higher-voltage and higher-VA transformer (e.g., 16V AC, 30VA) to ensure reliable operation.

Conclusion: AC is the King for Doorbell Transformers

To sum it all up, when asking “are doorbell transformers AC or DC?” the answer is unequivocally AC for standard wired systems. Your doorbell transformer uses AC power from your home’s main supply and outputs lower-voltage AC power to your doorbell chime and button. This has been the standard for decades due to the inherent efficiency of transformers with alternating current and the simplicity of powering mechanical chimes.

Even with the advent of smart doorbells, the fundamental role of the AC doorbell transformer remains. These smart devices simply convert that incoming low-voltage AC to DC internally. Understanding this crucial component ensures you can effectively troubleshoot your doorbell, choose the right replacement, or correctly install a new smart doorbell system. So, next time your doorbell rings, you’ll know it’s the humble, yet essential, AC transformer making the magic happen!

Frequently Asked Questions

Are doorbell transformers AC or DC?

Most standard doorbell transformers are designed to output low-voltage Alternating Current (AC). This AC power then goes to your doorbell chime, which typically operates on AC.

Why do doorbell transformers typically use AC power?

AC power is generally more efficient for transmission over longer distances and easier to step down from higher household voltages using a simple transformer. Many traditional mechanical chimes are also designed specifically to operate using AC current.

Can I use a DC power supply for my doorbell system?

It depends on your specific doorbell system. While traditional mechanical chimes require AC, many newer smart doorbells are designed to work with either AC or DC, or might even come with their own DC power adapter. Always check your specific doorbell’s voltage and current requirements before using a DC power supply.

What are the common voltage and amperage ratings for doorbell transformers?

Standard doorbell transformers typically output low voltages like 10V, 16V, or 24V AC. The amperage rating usually ranges from 10VA to 30VA (Volt-Amperes), which indicates the maximum power output the transformer can safely provide.

How can I tell if my existing doorbell transformer provides AC or DC power?

Look for labels on the transformer itself. It will typically specify “VAC” (Volts Alternating Current) or “VDC” (Volts Direct Current) next to the output voltage. If it just says “V” with a wavy line symbol (~), it’s AC; if it has a solid line with a dashed line below it (—), it’s DC.

What happens if I connect an AC doorbell chime to a DC transformer, or a DC chime to an AC transformer?

Connecting an AC chime to a DC transformer will likely result in the chime not working at all, or only producing a weak hum. Conversely, connecting a DC-only chime to an AC transformer could damage the chime’s internal electronics, as it’s not designed to handle the alternating current. Always match the power type to your doorbell’s requirements to prevent damage.
