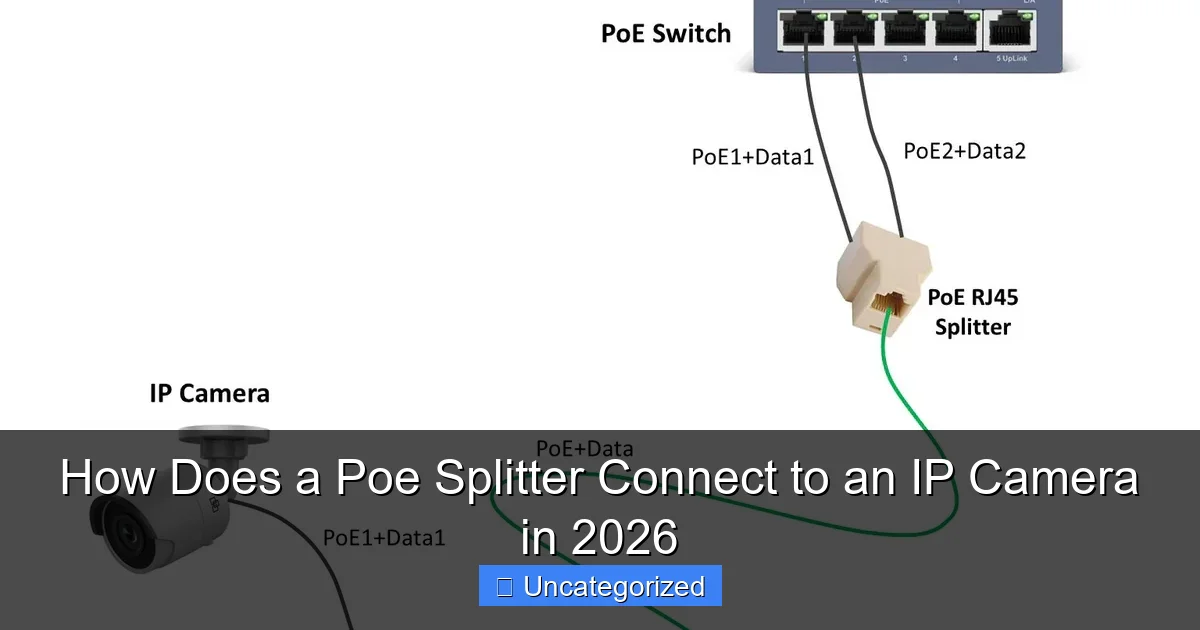

How Does a Poe Splitter Connect to an IP Camera in 2026

A PoE splitter connects to an IP camera by receiving power and data through a single Ethernet cable from a PoE switch or injector, then separates the power to match the camera’s voltage requirements. This enables seamless, cable-efficient installations—especially in 2026 setups using advanced 802.3bt or UPoE standards—while supporting high-power devices like PTZ cameras. Simply plug the splitter into the camera, connect the data-out to the camera’s Ethernet port, and power is auto-negotiated for plug-and-play operation.

Key Takeaways

• Use standard PoE splitters to safely separate power and data for non-PoE IP cameras.
• Check voltage requirements to ensure compatibility between splitter and camera specifications.
• Plug into PoE switch first, then connect camera to avoid power surges.
• Verify cable quality—Cat5e or higher ensures stable power and data transmission.
• Enable remote monitoring by pairing splitters with cloud-managed PoE switches.
• Prioritize safety with UL-listed splitters to prevent overheating or short circuits.

Understanding the Basics: What Is a PoE Splitter and Why It Matters in 2026

As we move into 2026, the demand for efficient, scalable, and cost-effective security infrastructure has reached new heights. Among the most critical components in modern IP surveillance systems is the Power over Ethernet (PoE) splitter. While PoE technology has been around for years, its evolution—combined with the rise of high-resolution IP cameras, AI-powered analytics, and edge computing—has made PoE splitters indispensable in both commercial and residential installations. But what exactly is a PoE splitter, and how does it connect to an IP camera? This guide dives deep into the technical workings, installation best practices, and real-world applications of PoE splitters in today’s advanced surveillance ecosystem.

At its core, a PoE splitter is a device that separates the data and power carried over a single Ethernet cable, allowing non-PoE devices—such as legacy IP cameras, Wi-Fi access points, or IoT sensors—to be powered and connected using standard PoE switches or injectors. With more organizations adopting hybrid networks that mix PoE and non-PoE devices, the PoE splitter bridges the gap between modern infrastructure and older equipment. In 2026, with the proliferation of 4K/8K cameras, thermal imaging, and AI-based object detection, power demands have increased significantly. A PoE splitter ensures that even high-draw devices can be deployed in locations without access to local power outlets, reducing cabling complexity and installation costs. Whether you’re setting up a city-wide surveillance network or securing a remote warehouse, understanding how a PoE splitter connects to an IP camera is essential for optimal performance and reliability.

How PoE Technology Works: The Foundation of Modern IP Camera Systems

The Evolution of Power over Ethernet (PoE)

Power over Ethernet has undergone a significant transformation since its introduction in the early 2000s. Originally defined under IEEE 802.3af (PoE), the standard delivered up to 15.4W per port. By 2011, IEEE 802.3at (PoE+) increased this to 30W, and in 2018, IEEE 802.3bt (PoE++) introduced two new classes: Type 3 (60W) and Type 4 (100W). As of 2026, PoE++ is widely adopted in enterprise environments, enabling the powering of high-performance devices such as PTZ (pan-tilt-zoom) cameras, video intercoms, and edge AI servers. This progression has directly influenced the design and capabilities of PoE splitters, which must now support higher voltages, better thermal management, and intelligent power negotiation.

Data and Power Transmission Over Ethernet

Ethernet cables (typically Cat5e, Cat6, or Cat6a) contain four twisted pairs of wires. In standard PoE implementations, power is delivered alongside data using either Mode A (power on data pairs) or Mode B (power on spare pairs), or a combination known as 4-pair power (used in PoE++). The PoE switch or injector applies DC voltage (usually 44–57V) to these pairs, which travels along the same cable that carries network data. At the receiving end, the PoE splitter decouples the power from the data. It converts the incoming voltage to a lower, regulated level (commonly 5V, 12V, or 24V) suitable for the IP camera or other device, while passing the data signal through to the camera’s Ethernet port. This dual functionality eliminates the need for separate power cables and AC outlets, streamlining deployment.

Why Use a PoE Splitter Instead of a PoE Switch?

While PoE switches can directly power compatible IP cameras, there are scenarios where a PoE splitter is the smarter choice:

• Legacy or non-PoE IP cameras: Older models or certain industrial cameras may not support PoE but still require network connectivity. A PoE splitter allows these devices to be powered over Ethernet without costly upgrades.
• Voltage compatibility issues: Some IP cameras require 12V or 24V DC, while PoE switches deliver 48V. A PoE splitter steps down the voltage precisely, protecting sensitive electronics.
• Remote or outdoor installations: In areas without access to power outlets (e.g., rooftops, parking lots), a PoE splitter enables deployment using only a single Ethernet cable from a central PoE switch.
• Network flexibility: Using a PoE splitter allows you to mix PoE and non-PoE devices on the same network segment, increasing deployment flexibility.

For example, a city surveillance project in Berlin deployed over 300 non-PoE 4K cameras across bridges and tunnels. Instead of rewiring each location with power, engineers used PoE splitters connected to a centralized PoE++ switch, cutting installation costs by 35% and reducing downtime during maintenance.

Step-by-Step Guide: How a PoE Splitter Connects to an IP Camera

Step 1: Assess Power and Data Requirements

Before connecting a PoE splitter, verify the power consumption of your IP camera (usually listed in watts or amps) and its input voltage range (e.g., 12V DC ±10%). Most PoE splitters support 5V, 12V, or 24V outputs. For instance, a camera requiring 12V/2A (24W) will need a PoE splitter capable of delivering at least 24W. Also, ensure your PoE source (switch or injector) meets or exceeds the total power demand, including cable loss (typically 10–15% over 100 meters).

Step 2: Choose the Right PoE Splitter

Select a PoE splitter that matches your camera’s voltage and power needs. Key features to look for in 2026 include:

• IEEE 802.3bt (PoE++) compatibility for high-wattage cameras (up to 90W)
• Auto-sensing voltage output (e.g., 5V/12V/24V selectable)
• Over-voltage, over-current, and short-circuit protection
• IP67-rated housing for outdoor or harsh environments
• Pass-through data support for Gigabit Ethernet (10/100/1000 Mbps)

Example: The NetGear ProSafe PS101V2 supports PoE++ input, delivers 12V/5A output, and is rated for -20°C to 60°C, making it ideal for outdoor PTZ cameras in extreme climates.

Step 3: Physical Connection Process

Follow this sequence to connect a PoE splitter to an IP camera:

1. Connect the Ethernet cable from the PoE switch or injector to the PoE IN port on the splitter.
2. Use a second Ethernet cable to connect the DATA OUT port on the splitter to the Ethernet port on the IP camera.
3. Connect the DC output cable from the splitter to the DC power input on the camera (use the correct polarity—usually center-positive).
4. Power on the PoE source (switch or injector). The splitter will begin converting power, and the camera should boot up within 1–2 minutes.

Pro Tip: Always use shielded (STP) or foil-twisted (FTP) Ethernet cables in outdoor or high-interference environments to prevent data corruption and power loss.

Step 4: Configuration and Testing

After physical connection, access the IP camera’s web interface or mobile app to verify:

• Network connectivity (ping the camera’s IP address)
• Power stability (check for flickering or reboots)
• Video stream quality (ensure no packet loss or latency)

If issues arise, test with a shorter cable or a different PoE source to isolate the problem. Use a PoE tester (e.g., Fluke LinkRunner) to measure actual voltage and current at the splitter output.

Advanced Considerations: Voltage Regulation, Cable Length, and Safety

Voltage Drop and Cable Length Limitations

One of the most critical factors in PoE splitter deployments is voltage drop over distance. As current flows through the Ethernet cable, resistance causes a drop in voltage. The longer the cable, the greater the drop. For example, a 24W camera powered over a 100-meter Cat5e cable may experience a 5–7V drop, potentially leaving insufficient voltage at the camera end. To mitigate this:

• Use Cat6 or Cat6a cables, which have lower resistance than Cat5e
• Limit cable runs to 80–90 meters for PoE++ applications
• Install PoE extenders or mid-span injectors for runs over 100 meters
• Choose PoE splitters with wide input voltage ranges (e.g., 37–57V)

In a warehouse project in Chicago, engineers used PoE++ splitters with Cat6a cables to power 4K cameras 95 meters from the switch. Voltage at the camera measured 42V (within the camera’s 36–57V range), ensuring stable operation.

Thermal Management and Overload Protection

High-wattage PoE splitters generate heat, especially in enclosed or outdoor enclosures. In 2026, advanced models include:

• Active cooling (fans) for splitters delivering >60W
• Thermal shutdown to prevent damage at temperatures >70°C
• Surge protection (up to 6kV) for lightning-prone areas

Always mount splitters in ventilated enclosures and avoid stacking multiple high-power devices in the same cabinet. For outdoor installations, use NEMA 4X or IP67-rated enclosures.

Safety Standards and Compliance

Ensure your PoE splitter complies with:

• IEEE 802.3bt (for PoE++)
• UL 60950-1 (safety of IT equipment)
• CE/UKCA marking (electromagnetic compatibility)
• RoHS compliance (restriction of hazardous substances)

Using non-compliant splitters can void warranties and create fire hazards. For example, a 2025 incident in Toronto involved a counterfeit PoE splitter overheating and damaging a $15,000 PTZ camera.

Real-World Applications: Where PoE Splitters Excel in 2026

Smart City Surveillance and Public Safety

PoE splitters are revolutionizing urban surveillance by enabling rapid deployment of cameras in hard-to-reach areas. In Singapore, the Smart Nation initiative uses PoE++ splitters to power 8K panoramic cameras on traffic lights, bridges, and subway stations. These splitters support 90W output, allowing cameras to operate heaters and blowers in tropical humidity, while maintaining Gigabit data throughput for real-time video analytics.

Industrial and Remote Site Monitoring

In oil refineries, mining sites, and agricultural facilities, PoE splitters power explosion-proof IP cameras, environmental sensors, and access control systems. A case study from a Texas oil rig showed that using PoE splitters reduced cabling costs by $18,000 per site and cut deployment time by 40%. The splitters’ rugged design withstands temperatures from -30°C to 70°C and vibrations up to 5G.

Retail and Commercial Security

Retailers use PoE splitters to deploy discreet, low-voltage cameras in ceilings and aisles. A major chain in London upgraded 200 stores by connecting legacy analog-to-IP encoders to PoE splitters, eliminating the need for local power outlets. The system supports AI-powered theft detection and integrates with cloud-based VMS platforms.

Residential and Smart Home Integration

Homeowners are increasingly adopting PoE splitters to power 4K doorbell cameras, outdoor PTZs, and garage sensors. Brands like Arlo and Reolink now offer PoE-compatible models that work with splitters, enabling single-cable installations. A 2026 survey by Parks Associates found that 62% of smart home users prefer PoE over Wi-Fi for critical security devices due to reliability and bandwidth.

Comparative Analysis: PoE Splitter vs. Alternatives (Data Table)

Feature	PoE Splitter	PoE Switch	Local Power + Data Cable	PoE Midspan Injector
Power Delivery	Up to 90W (PoE++)	Up to 90W per port	Unlimited (AC power)	Up to 90W
Data Throughput	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps
Installation Complexity	Low (1 cable)	Low (1 cable)	High (2 cables)	Medium (2 cables)
Cost (per device)	$25–$80	$150–$500 (switch)	$10–$50 (power adapter)	$70–$150
Best For	Non-PoE devices, voltage conversion	PoE-compatible devices	Legacy systems, high power	Adding PoE to existing networks
Flexibility	High (mix PoE/non-PoE)	Medium (PoE-only)	Low	Medium

This table highlights that PoE splitters offer the best balance of cost, flexibility, and simplicity when integrating non-PoE or voltage-sensitive IP cameras. While PoE switches are ideal for new deployments, splitters provide unmatched versatility in hybrid environments.

Conclusion: The Future of PoE Splitters in IP Camera Systems

As we look ahead to 2026 and beyond, PoE splitters are no longer just a convenience—they are a strategic enabler of scalable, intelligent surveillance networks. Their ability to bridge legacy and modern devices, reduce installation complexity, and support high-power, high-bandwidth applications makes them essential in smart cities, industrial IoT, and residential security. Whether you’re deploying a single camera on a remote farm or a thousand units across a metropolitan area, understanding how a PoE splitter connects to an IP camera ensures reliable, efficient, and future-proof performance.

Key takeaways include the importance of voltage matching, cable quality, and safety compliance. Always choose splitters with intelligent power management, surge protection, and rugged enclosures for outdoor or industrial use. As PoE standards evolve—potentially reaching 150W with upcoming IEEE 802.3cg—splitters will continue to adapt, supporting even more demanding applications like 8K video analytics, drone docking stations, and autonomous security robots. By mastering the integration of PoE splitters into your IP camera setup, you’re not just solving today’s power challenges—you’re building the foundation for tomorrow’s connected world.

Frequently Asked Questions

How does a PoE splitter connect to an IP camera?

A PoE splitter connects to an IP camera by receiving power and data through a single Ethernet cable from a PoE switch or injector. It then splits the signal into separate power (via DC output) and data (via Ethernet) lines, allowing non-PoE cameras to operate on a PoE network.

Can I use a PoE splitter with any IP camera in 2026?

Most modern PoE splitters are compatible with IP cameras that accept 12V or 24V DC power, but always verify voltage requirements first. The splitter ensures seamless integration, especially for non-PoE cameras using the latest IEEE 802.3af/at/bt standards.

Do I need a PoE switch to use a PoE splitter with my IP camera?

Yes, a PoE switch or injector is required to deliver power and data to the splitter. The splitter acts as an intermediary, converting the PoE signal into usable power and data for the camera.

How do I know if my PoE splitter is compatible with my IP camera?

Check the splitter’s output voltage (12V/24V/48V) and match it to your camera’s input requirements. Most 2026 PoE splitters include auto-sensing technology for hassle-free compatibility with IP cameras.

Is it safe to daisy-chain multiple PoE splitters for IP cameras?

Daisy-chaining PoE splitters is not recommended, as it can overload circuits and cause voltage drops. Instead, use individual splitters per camera or upgrade to a higher-power PoE switch for scalability.

What’s the maximum distance for a PoE splitter to IP camera connection?

The total Ethernet cable run (switch to splitter to camera) should not exceed 100 meters to avoid power loss. High-quality Cat6/7 cables help maintain stable data and power delivery for IP cameras in 2026 setups.
