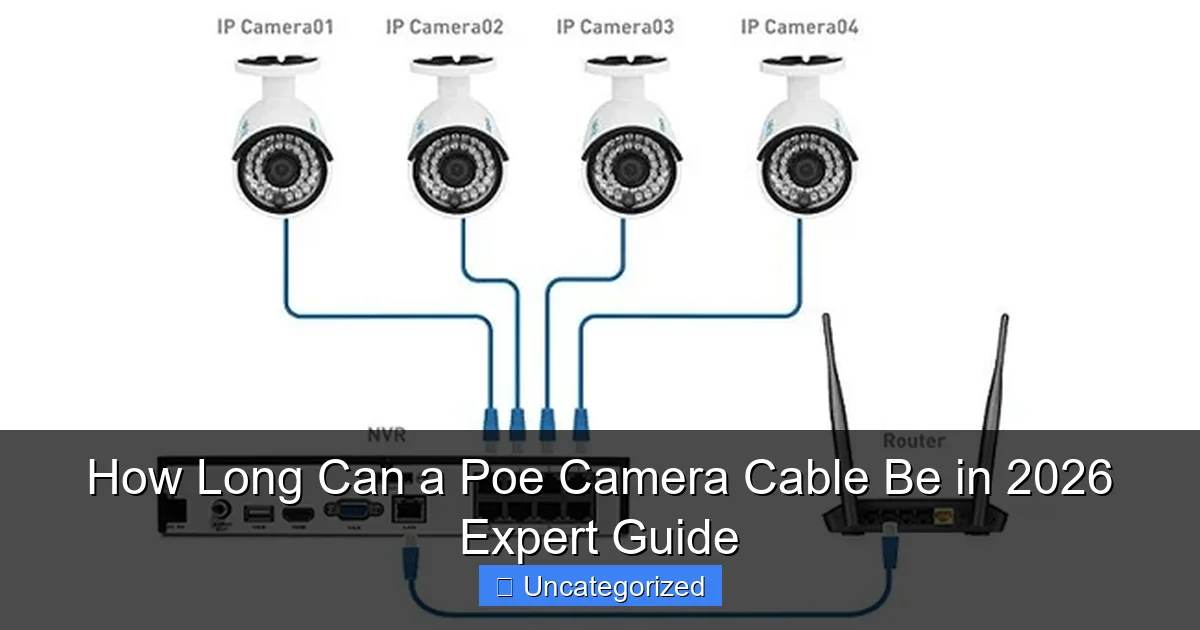

How Long Can a Poe Camera Cable Be in 2026 Expert Guide

The maximum recommended length for a PoE camera cable is 100 meters (328 feet), as defined by the IEEE 802.3 Ethernet standard, ensuring reliable power and data delivery without signal loss. Exceeding this limit risks voltage drop and unstable performance, though using PoE extenders or fiber media converters can effectively increase coverage in large installations.

Key Takeaways

• Maximize cable length: Use Cat 6a cables for reliable 100-meter PoE camera runs.
• Avoid signal loss: Keep runs under 80 meters for consistent power and data delivery.
• Upgrade infrastructure: Use PoE extenders or injectors to exceed standard distance limits.
• Check standards: Ensure compliance with IEEE 802.3bt for high-power, long-distance setups.
• Test connections: Always verify voltage drop before finalizing camera installation.
• Future-proof installs: Prefer shielded cables for better performance in 2026 networks.

How Long Can a PoE Camera Cable Be? Understanding the Limits in 2026

In the rapidly evolving world of surveillance and smart security systems, Power over Ethernet (PoE) technology has emerged as the backbone of modern IP camera installations. From small homes to sprawling commercial campuses, PoE cameras offer a streamlined, cost-effective, and highly reliable method of delivering both data and electrical power over a single cable. However, one of the most frequently asked—and often misunderstood—questions in the industry is: How long can a PoE camera cable be? As of 2026, with advancements in PoE standards, cabling technology, and network infrastructure, the answer is more nuanced than a simple number. While the traditional 100-meter (328-foot) limit still holds in most cases, real-world performance depends on a variety of technical, environmental, and equipment-specific factors.

This comprehensive guide dives deep into the technical underpinnings of PoE camera cabling, explores the latest IEEE standards, and provides practical advice for installers, integrators, and DIY enthusiasts. Whether you’re setting up a home security system, managing a multi-building campus, or designing a city-wide surveillance network, understanding the limitations and capabilities of PoE cabling is essential to ensuring optimal performance, reliability, and longevity. We’ll examine cable types, PoE standards, voltage drop considerations, and real-world deployment scenarios to give you the expert insight needed to make informed decisions in 2026 and beyond.

Understanding PoE Basics: How Power and Data Travel Together

What Is Power over Ethernet (PoE)?

Power over Ethernet (PoE) is a technology that allows both electrical power and data to be transmitted over standard Ethernet cabling (typically Cat5e, Cat6, or Cat6a). Instead of requiring separate power supplies and data lines, PoE enables a single cable to power devices like IP cameras, wireless access points, and VoIP phones while simultaneously carrying data signals. This integration reduces installation complexity, lowers costs, and enhances system reliability.

PoE works by using the unused wire pairs in Ethernet cables (in 10/100 Mbps systems) or all four pairs (in Gigabit systems) to deliver DC power. The power is injected by a PoE switch or a PoE injector, which negotiates with the powered device (PD), such as a camera, to ensure safe and efficient power delivery. The process is governed by IEEE standards to prevent overheating, overcurrent, or damage to devices.

How PoE Delivers Power and Data Simultaneously

Modern PoE systems use one of two primary methods to transmit power and data:

• Alternative A: Power is sent over the same pairs used for data (pins 1,2 and 3,6) using common-mode voltage injection. This method is used in 10/100 Mbps networks and Gigabit networks with specific configurations.
• Alternative B: Power is sent over the spare pairs (pins 4,5 and 7,8) in 10/100 Mbps networks. In Gigabit Ethernet, all four pairs carry data, so power is typically injected using phantom power techniques that superimpose DC voltage on data-carrying pairs without interfering with data signals.

For IP cameras, which are typically low-power devices, PoE is ideal because it supports both power delivery (up to 90W in PoE++) and high-speed data (up to 10 Gbps with Cat6a). The key challenge arises when distance increases: both data integrity and power delivery can degrade due to resistance, signal attenuation, and voltage drop.

Why Distance Matters in PoE Systems

While data signals can travel up to 100 meters over copper Ethernet cables without significant loss (per IEEE 802.3 standards), the delivery of power introduces additional constraints. The longer the cable, the greater the resistance in the copper conductors, which leads to voltage drop—a critical factor in PoE camera performance. If the voltage at the camera end falls below the minimum required for operation (typically 37–57V depending on PoE class), the camera may fail to power on, reboot intermittently, or operate at reduced performance.

For example, a PoE+ (802.3at) camera drawing 15.4W may require at least 44V to function properly. If the cable run causes a 10V drop, and the switch outputs 50V, the camera receives only 40V—potentially below the operational threshold. This is why understanding cable length, gauge, and PoE class is essential.

IEEE PoE Standards and Their Impact on Cable Length

Overview of IEEE 802.3 PoE Standards

The Institute of Electrical and Electronics Engineers (IEEE) has developed a series of PoE standards, each with increasing power capabilities and implications for cable length and performance. As of 2026, the most relevant standards are:

• IEEE 802.3af (PoE): Delivers up to 15.4W of power (12.95W usable at the device). Minimum voltage: 44V. Maximum current: 350mA. Supports 10/100 Mbps and Gigabit Ethernet.
• IEEE 802.3at (PoE+): Delivers up to 30W (25.5W usable). Minimum voltage: 44V. Maximum current: 600mA. Ideal for high-resolution cameras, PTZ units, and heaters.
• IEEE 802.3bt (PoE++): Divided into Type 3 (up to 60W, 51W usable) and Type 4 (up to 90W, 71W usable). Requires all four pairs for power delivery. Used in advanced cameras with heaters, illuminators, or pan-tilt-zoom motors.

Each standard has specific requirements for voltage, current, and cabling. Higher power delivery (especially in PoE++) increases the risk of voltage drop over long distances due to higher current draw. For instance, PoE++ Type 4 draws up to 960mA, which significantly increases resistive losses in long cable runs.

How PoE Standards Affect Maximum Cable Length

While the IEEE does not officially extend the 100-meter limit for Ethernet cabling, the practical PoE cable length is often shorter than 100 meters due to power constraints. Here’s how different standards impact distance:

• PoE (802.3af): With lower current (350mA), voltage drop is minimal. In most cases, a 100-meter run is feasible with Cat5e or better cable. However, in high-temperature environments or with marginal cabling, 90–95 meters may be safer.
• PoE+ (802.3at): Higher current (600mA) increases voltage drop. For reliable operation, limit runs to 90 meters with Cat6 or Cat6a. In critical installations, 80–85 meters is recommended.
• PoE++ (802.3bt Type 3/4): Due to high current (600–960mA), voltage drop becomes significant. Even with Cat6a, 70–80 meters is the practical limit for stable operation. Beyond 80 meters, active solutions (like midspan injectors or fiber extenders) are necessary.

Example: A 4K PTZ camera with a heater and IR illuminator may require PoE++ Type 3 (60W). If installed 90 meters from the switch, the voltage drop could exceed 15V, causing the camera to underperform or fail. Reducing the run to 75 meters or using a higher-quality cable (Cat6a with 23 AWG conductors) can mitigate this.

Future-Proofing with 802.3bt and Beyond

As of 2026, the IEEE is exploring next-generation PoE standards (sometimes referred to as “PoE+++” or “Ultra PoE”) that could support up to 100W or more. While not yet standardized, these systems will likely require enhanced cabling (e.g., 22 AWG conductors, active cooling, or fiber hybrid cables) and may further reduce the effective cable length due to increased current and heat dissipation. Installers should stay informed about emerging standards and consider scalable infrastructure to avoid obsolescence.

Cable Type, Gauge, and Quality: The Hidden Variables

How Cable Category Affects PoE Performance

The category (or “Cat”) of the Ethernet cable plays a crucial role in determining both data speed and power delivery capability. Here’s how different cable types perform with PoE:

• Cat5e: Supports up to 1 Gbps and PoE/PoE+. Suitable for short to medium runs (up to 80 meters for PoE+, 90–100 meters for PoE). However, thinner conductors (24 AWG) increase resistance, making it less ideal for high-power PoE++.
• Cat6: Supports 1 Gbps up to 100 meters and 10 Gbps up to 55 meters. Uses 23 AWG conductors, reducing resistance and improving power delivery. Ideal for PoE+ and moderate PoE++ applications (up to 80 meters).
• Cat6a: Supports 10 Gbps up to 100 meters. Uses 23 AWG conductors with improved shielding. Best for PoE++ and long-distance installations. Recommended for runs beyond 70 meters.
• Cat7/Cat7a: Not officially recognized by IEEE for Ethernet, but often used in Europe. Features 22–23 AWG conductors and full shielding, offering excellent power delivery and noise immunity. Suitable for PoE++ and industrial environments.

Tip: Always verify the actual conductor gauge when purchasing cable. Some “Cat6” cables use 24 AWG conductors, which are thinner and increase resistance. Look for cables labeled “23 AWG” or “solid core” for optimal PoE performance.

Solid vs. Stranded Cables: When to Use Each

Ethernet cables come in two core types:

• Solid-core cables: Made of a single, rigid wire. Lower resistance, better for long runs (70–100 meters). Ideal for fixed installations (e.g., in walls, conduits). Not suitable for frequent bending.
• Stranded-core cables: Made of multiple thin wires. More flexible, better for patch cords and temporary setups. Higher resistance, so limit runs to 30–50 meters for PoE applications.

For PoE camera installations in walls or ceilings, solid-core Cat6 or Cat6a is the gold standard. Avoid stranded cables for backbone runs.

Shielding and Environmental Factors

External interference (EMI/RFI) from motors, power lines, or wireless devices can disrupt data and cause power fluctuations. Shielded cables (STP, FTP, or S/FTP) reduce noise and improve signal integrity, especially in industrial or high-interference environments.

Additionally, temperature affects resistance: higher ambient temperatures increase cable resistance, accelerating voltage drop. For outdoor or attic installations, use plenum-rated or outdoor-rated cables with UV and moisture protection. A 100-meter run in a hot attic may perform like a 110-meter run in a cool room due to thermal effects.

Voltage Drop, Resistance, and Power Calculations

Understanding Voltage Drop in PoE Cables

Voltage drop is the reduction in voltage between the power source (switch/injector) and the powered device (camera). It occurs due to the resistance of the copper conductors and is calculated using Ohm’s Law:

Voltage Drop (V) = Current (I) × Resistance (R)

Resistance (R) depends on:

• Cable length (in meters)
• Conductor gauge (AWG)
• Number of wire pairs used (2 or 4)
• Temperature

For a standard 100-meter Cat6 cable (23 AWG, 4-pair, 20°C), the resistance is approximately 9.38 ohms per 100 meters (or 0.0938 ohms per meter). If a PoE+ camera draws 600mA (0.6A) and uses two pairs (4 wires), the resistance is halved (since two paths reduce total resistance).

Total resistance = (0.0938 ohms/m × 100m) / 2 = 4.69 ohms
Voltage drop = 0.6A × 4.69Ω = 2.81V

This is acceptable. But for a PoE++ Type 4 camera (960mA, 4-pair use):

Total resistance = 0.0938 × 100 = 9.38Ω (4-pair use)
Voltage drop = 0.96A × 9.38Ω = 9.0V

If the switch outputs 57V, the camera receives 48V—still within the 37–57V range, but close to the limit. Add heat or poor-quality cable, and the drop could exceed 12V.

Using Online Calculators and Manufacturer Tools

Many PoE equipment manufacturers (e.g., Ubiquiti, Axis, Hikvision) provide PoE distance calculators that factor in cable type, temperature, and device power draw. These tools can predict voltage drop and recommend maximum cable lengths. Always use them during planning.

Alternatively, use the formula above or consult the Resistance Table below to estimate performance.

Data Table: Resistance and Voltage Drop Estimates (Per 100 Meters)

Cable Type	Conductor Gauge (AWG)	Resistance (Ω/100m, 20°C)	PoE (15.4W, 350mA)	PoE+ (30W, 600mA)	PoE++ (60W, 600mA)	PoE++ (90W, 960mA)
Cat5e	24	13.7	4.8V drop (safe)	8.2V drop (caution)	8.2V drop (caution)	13.1V drop (risky)
Cat6	23	9.38	3.3V drop (safe)	5.6V drop (safe)	5.6V drop (safe)	9.0V drop (caution)
Cat6a	23	9.38	3.3V drop (safe)	5.6V drop (safe)	5.6V drop (safe)	9.0V drop (caution)
Cat7 (22 AWG)	22	6.5	2.3V drop (safe)	3.9V drop (safe)	3.9V drop (safe)	6.2V drop (safe)

Note: Values assume 4-pair power delivery and 20°C ambient temperature. Actual performance may vary with installation conditions.

Extending PoE Beyond 100 Meters: Solutions and Best Practices

Using PoE Extenders and Repeaters

When a camera must be placed beyond 100 meters, PoE extenders are the most common solution. These devices:

• Receive the PoE signal at the 100-meter limit
• Regenerate the data and power
• Re-transmit it over the next 100 meters

PoE extenders are typically daisy-chained (up to 3–4 hops, totaling 400+ meters). They require no external power (powered by the incoming PoE) and support up to 100 Mbps or 1 Gbps, depending on model.

Example: A warehouse has a camera 250 meters from the control room. Install a PoE extender at 100 meters, another at 200 meters, and the camera at 250 meters. Total: 3 segments of 100 meters each.

Fiber Optic Conversion (Media Converters)

For runs beyond 300 meters or in high-interference environments, fiber optic media converters are ideal. A copper-to-fiber converter at the switch end sends data and PoE over fiber (up to 20+ km), while a remote converter at the camera end converts back to PoE. This method eliminates voltage drop entirely and provides lightning-fast data speeds (1–10 Gbps).

Tip: Use single-mode fiber for long distances (e.g., campus-wide networks) and multimode for shorter runs (under 500 meters).

Midspan PoE Injectors and Active Cabling

Midspan injectors (also called “midspans”) can be placed at intermediate points to “boost” the PoE signal. They draw power from an external source (e.g., 120V outlet) and re-inject PoE into the line. This is useful when extenders aren’t available or when using non-standard cable runs.

Alternatively, some vendors offer active PoE cables with built-in signal amplification, though these are rare and expensive.

Best Practices for Long-Distance PoE Installations

• Test with a PoE tester before finalizing installation.
• Use high-quality, certified cables (look for UL, ETL, or TIA/EIA certification).
• Label cable runs and document power budgets.
• Avoid sharp bends and kinks in cables, which increase resistance.
• Consider future upgrades—install conduit or fiber for scalability.

Conclusion: Planning for Performance and Longevity in 2026

The question “How long can a PoE camera cable be?” no longer has a one-size-fits-all answer. As of 2026, while the 100-meter Ethernet limit remains a firm technical boundary, the effective PoE cable length depends on a matrix of factors: PoE class, cable type, conductor gauge, ambient temperature, and device power requirements. For most standard installations, 90 meters with Cat6 or Cat6a is a safe target. For high-power PoE++ applications, 70–80 meters is more realistic without active extension.

Smart installers and system designers go beyond the basics: they calculate voltage drop, use high-gauge cables, and plan for scalability with PoE extenders or fiber. They test every run, document their work, and stay ahead of emerging standards. In an era where security systems are increasingly integrated with AI, cloud analytics, and remote monitoring, reliable power and data delivery are non-negotiable.

Whether you’re wiring a suburban home or a smart city, understanding the limits of PoE cabling ensures that your cameras stay online, your footage remains crisp, and your system performs flawlessly—today and for years to come. As technology advances, the principles remain the same: plan meticulously, install precisely, and future-proof wisely. The right cable, the right length, and the right knowledge make all the difference in 2026 and beyond.

Frequently Asked Questions

How long can a PoE camera cable be without losing power or signal?

The maximum recommended length for a PoE camera cable is 100 meters (328 feet) using Cat6 or higher Ethernet cable. Beyond this, voltage drop and signal degradation can compromise performance, even with PoE standards like 802.3af/at/bt.

Does the type of Ethernet cable affect how long a PoE camera cable can be?

Yes, cable quality matters: Cat6 or Cat6a cables support full 100-meter runs for PoE cameras, while older Cat5e may risk power loss over 80 meters. Shielded cables also help maintain stable power delivery over long distances.

Can I extend a PoE camera cable beyond 100 meters?

While technically possible, extending past 100 meters requires a PoE extender, media converter, or midspan injector to boost power and signal. Without these, the camera may fail to power on or experience intermittent connectivity.

What happens if I exceed the maximum PoE camera cable length?

Exceeding 100 meters risks insufficient power delivery, leading to camera reboots, poor image quality, or complete failure. Data transmission may also become unstable, causing lag or dropped feeds.

Does PoE standard (e.g., 802.3af vs. 802.3bt) impact cable length limits?

PoE standards don’t change the 100-meter physical limit, but higher-power standards like 802.3bt (90W) are more sensitive to voltage drop over long runs. Always use thicker cables (e.g., Cat6) for high-power PoE camera setups.

Are there exceptions to the 100-meter PoE camera cable rule?

Exceptions include using fiber optic converters or PoE extenders, which can push distances to 200+ meters. However, these add cost and complexity, making them ideal for specialized installations rather than standard setups.
