How Much Power for Camera Monitor D Tap

Understanding how much power for camera monitor D tap is essential to avoid equipment damage and ensure smooth operation. This guide breaks down voltage, current, and power requirements, helping you choose the right setup for your gear.

If you’ve ever set up a camera rig with an external monitor, you’ve probably encountered the D tap connector. It’s that small, cylindrical plug that looks like it belongs on a power tool—but it’s actually a lifeline for your gear. Whether you’re shooting a documentary, filming a wedding, or live-streaming an event, your camera monitor needs steady, reliable power. And that’s where the D tap comes in. But here’s the million-dollar question: *How much power for camera monitor D tap is actually needed?*

The answer isn’t one-size-fits-all. It depends on your monitor’s specs, the type of battery you’re using, and how long you plan to shoot. Too little power, and your screen might flicker or shut off mid-shot. Too much, and you risk frying delicate electronics. Getting it right means understanding voltage, amperage, wattage, and how they all work together. Don’t worry—we’ll walk you through it step by step, without the confusing jargon.

By the end of this guide, you’ll know exactly how to power your camera monitor safely and efficiently using a D tap connection. Whether you’re a beginner setting up your first rig or a seasoned pro optimizing your workflow, this information will help you avoid common pitfalls and keep your gear running smoothly.

Key Takeaways

• Standard D tap power output: Most D tap connectors deliver 12V DC at 2–4 amps, ideal for small to medium camera monitors.
• Check your monitor’s specs: Always match the monitor’s input voltage (usually 7–17V) and current draw to avoid underpowering or overloading.
• Use quality cables and adapters: Poor-quality D tap cables can cause voltage drop, leading to flickering or shutdowns.
• Battery compatibility matters: V-mount and Gold-mount batteries commonly power D tap devices, but confirm amp-hour (Ah) ratings for runtime.
• Power calculators help: Use online tools to estimate total power consumption and required battery capacity.
• Avoid daisy-chaining without planning: Connecting multiple devices via one D tap can exceed safe current limits.
• Tap into safety features: Some monitors have built-in voltage protection—use them to prevent damage.

What Is a D Tap Connector?

The D tap—short for “DC tap”—is a standardized power connector used widely in the film and broadcast industry. It’s designed to draw direct current (DC) power from high-capacity batteries, like V-mount or Gold-mount types, and deliver it to accessories such as camera monitors, wireless transmitters, and follow focus motors.

Physical Design and Compatibility

The D tap connector has a distinctive cylindrical shape with a center pin and outer sleeve, typically measuring 4.0mm x 1.7mm. This size is smaller than a standard barrel plug, making it compact and ideal for tight camera rigs. Most professional batteries come equipped with one or more D tap ports, allowing you to power multiple devices simultaneously.

But here’s a key point: not all D tap connectors are created equal. While the physical plug may look the same, the internal wiring and current capacity can vary. Always use cables and adapters from reputable brands to ensure consistent power delivery. Cheap knockoffs might save you a few bucks upfront but can lead to voltage drops or even short circuits.

Common Uses in Camera Rigs

D taps are everywhere on professional camera setups. You’ll find them powering:

• On-camera monitors (like the Atomos Ninja V or SmallHD Focus)
• Wireless video transmitters (such as Teradek or Hollyland)
• Audio receivers and recorders
• Motorized lens controllers

Because these devices often draw power simultaneously, understanding how much power your D tap can safely deliver is crucial. Most professional batteries support multiple D tap outputs, but each port usually has a current limit—often around 2–4 amps.

Understanding Power Requirements: Voltage, Amperage, and Wattage

To answer “how much power for camera monitor D tap,” you need to understand three core electrical concepts: voltage (V), amperage (A), and wattage (W). These aren’t just textbook terms—they directly affect whether your monitor turns on, stays on, or gets damaged.

Voltage: The Electrical Pressure

Voltage is like the “push” that moves electricity through a circuit. Most camera monitors operate on **12V DC**, which is the standard output of most D tap ports. However, many monitors accept a range—commonly **7V to 17V**—giving you some flexibility.

For example, the popular Atomos Ninja V accepts 6.5V to 16.8V, meaning it can run safely on a 12V D tap supply. But if you accidentally plug it into a 24V source, you’ll likely fry the internal circuitry. Always double-check your monitor’s input voltage range before connecting.

Amperage: The Flow Rate of Electricity

Amperage (or current) measures how much electricity flows per second. Think of it like water flow through a hose—voltage is the pressure, amperage is the volume. Your monitor will only draw as much current as it needs, but the D tap and battery must be able to supply it.

Most small to medium monitors draw between **0.5A and 2A** under normal use. For instance, the SmallHD Ultra 7 draws about 1.8A at 12V. If your D tap port can deliver 3A, you’re in good shape. But if it’s limited to 1A, your monitor might not get enough power, especially when brightness is maxed out or recording high-res video.

Wattage: Total Power Consumption

Wattage is the product of voltage and amperage (W = V × A). It tells you the total power your device consumes. For example:

• A monitor drawing 1.5A at 12V uses 18 watts (12 × 1.5 = 18W)
• A wireless transmitter using 0.8A at 12V uses 9.6 watts

Knowing wattage helps you calculate total system draw and choose the right battery capacity. If your monitor uses 18W and you plan to shoot for 4 hours, you’ll need a battery that can supply at least 72 watt-hours (18W × 4h).

How Much Power Does a Typical Camera Monitor Need?

Now that we’ve covered the basics, let’s get specific. How much power for camera monitor D tap is actually required? The answer varies by model, but most fall into predictable ranges.

Power Draw by Monitor Size and Type

Here’s a quick breakdown of common monitor power needs:

• 5-inch monitors (e.g., Atomos Shogun Connect): ~1.2A at 12V (14.4W)
• 7-inch monitors (e.g., SmallHD Focus 7): ~1.8A at 12V (21.6W)
• 10-inch field monitors (e.g., Convergent Design Odyssey 7Q+): ~2.5A at 12V (30W)

Larger screens with higher brightness, HDR support, or built-in recorders naturally consume more power. If your monitor has a touchscreen or runs intensive software, expect higher current draw—especially during startup or when processing 4K video.

Real-World Example: Powering an Atomos Ninja V

Let’s say you’re using an Atomos Ninja V with a V-mount battery via D tap. The Ninja V draws about 1.3A at 12V, so it uses roughly 15.6 watts. If your battery has a 98Wh capacity (common for 14.4V, 6.8Ah batteries), you can estimate runtime:

• 98Wh ÷ 15.6W ≈ 6.3 hours of continuous use

But remember: this is ideal. In practice, factors like screen brightness, recording format, and ambient temperature can reduce runtime by 20–30%. Always bring spare batteries or a power bank for long shoots.

What Happens If You Underpower or Overpower?

Using the wrong power setup can cause problems:

• Underpowering: Low voltage or insufficient current can cause the monitor to flicker, shut down randomly, or fail to turn on. This often happens with weak batteries or long, thin cables that cause voltage drop.
• Overpowering: While rare with D tap (since most outputs are fixed at 12V), connecting a 24V source to a 12V monitor will likely destroy it. Always verify voltage compatibility.

The good news? Most modern monitors have built-in protection circuits that shut down if voltage is too high or too low. But it’s still best to avoid testing those limits.

Choosing the Right Battery and D Tap Setup

Your battery is the heart of your power system. Choosing the right one ensures your monitor gets clean, stable power for as long as you need it.

V-Mount vs. Gold-Mount Batteries

These are the two most common battery types in professional video. Both support D tap outputs and deliver 14.4V nominal (which steps down to 12V for accessories).

• V-mount: Common in cinema cameras, widely available, often cheaper. Look for models with multiple D tap ports.
• Gold-mount: Used by ARRI and other high-end brands, slightly more compact. Offers similar performance but may cost more.

For most users, either works fine. Just ensure the battery has enough watt-hours (Wh) for your shoot duration. A 98Wh battery is a solid all-around choice.

Calculating Required Battery Capacity

To estimate how long your battery will last, use this formula:

• Runtime (hours) = Battery Capacity (Wh) ÷ Total Power Draw (W)

For example:

• Battery: 98Wh
• Monitor: 18W
• Wireless TX: 10W
• Total: 28W
• Runtime: 98 ÷ 28 ≈ 3.5 hours

Always add a 20% buffer for safety. If you need 3 hours, aim for a battery that can deliver 4.

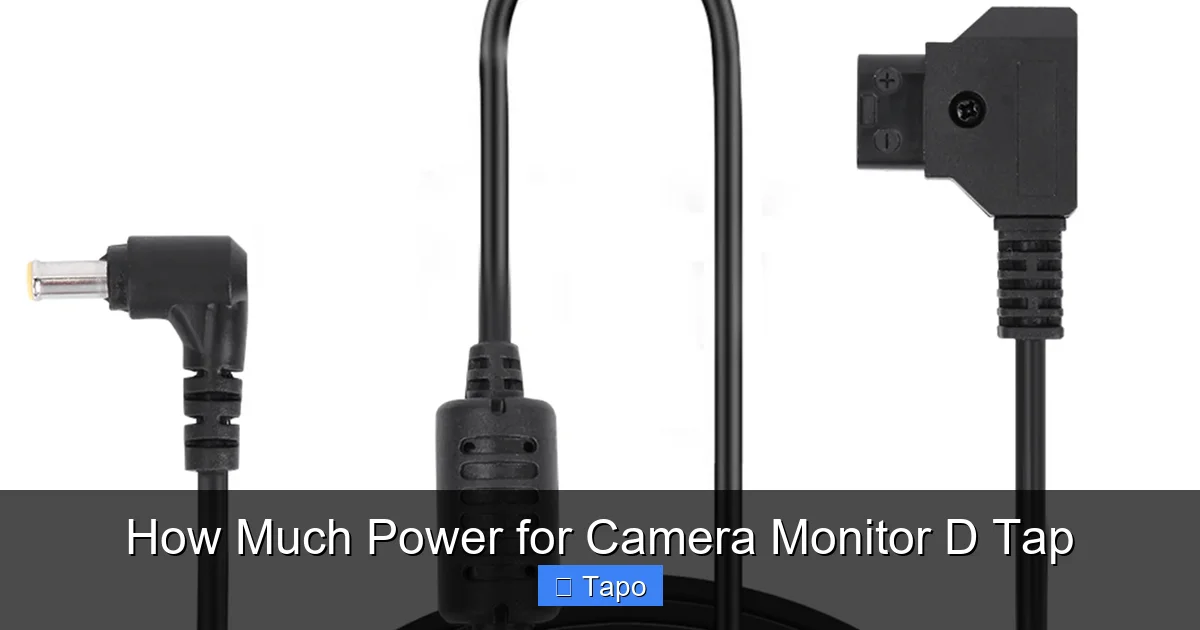

Cable Quality and Length Matter

A long or poorly made D tap cable can cause voltage drop, especially under high current. Use high-quality, shielded cables no longer than 3 feet when possible. Look for cables with thick gauge wire (16AWG or lower) to minimize resistance.

Safety Tips and Best Practices

Powering your monitor safely isn’t just about performance—it’s about protecting your investment.

Always Check Polarity

D tap connectors are center-positive (+), meaning the center pin carries positive voltage. Most cables are wired correctly, but if you’re using a custom adapter, double-check with a multimeter. Reversing polarity can destroy your monitor instantly.

Avoid Daisy-Chaining Without Planning

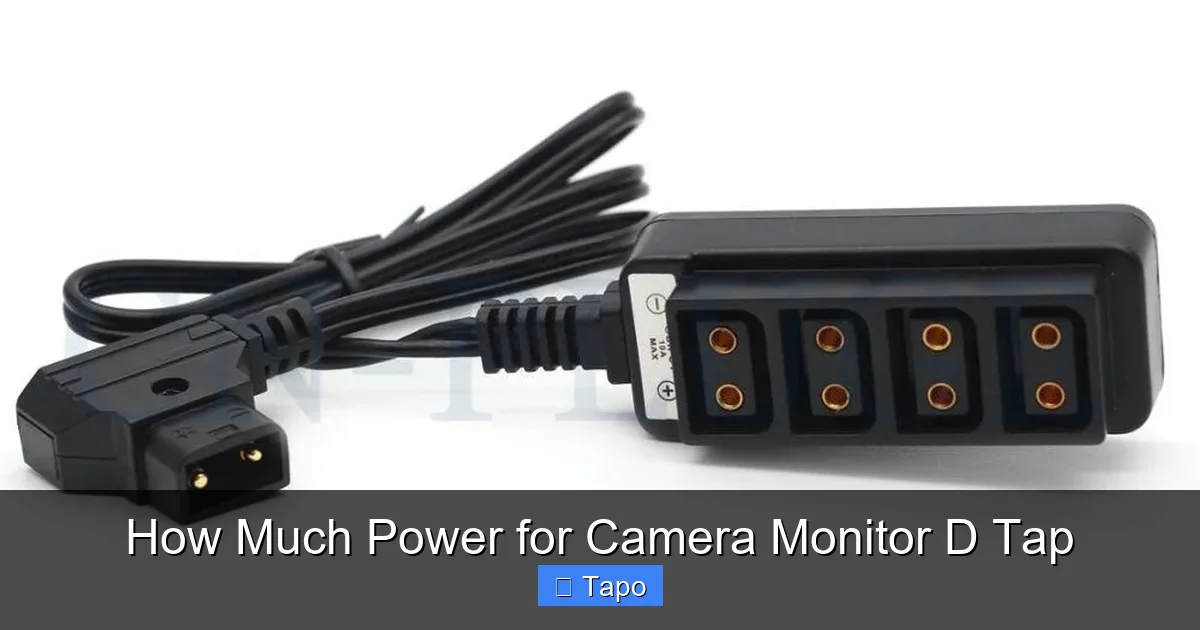

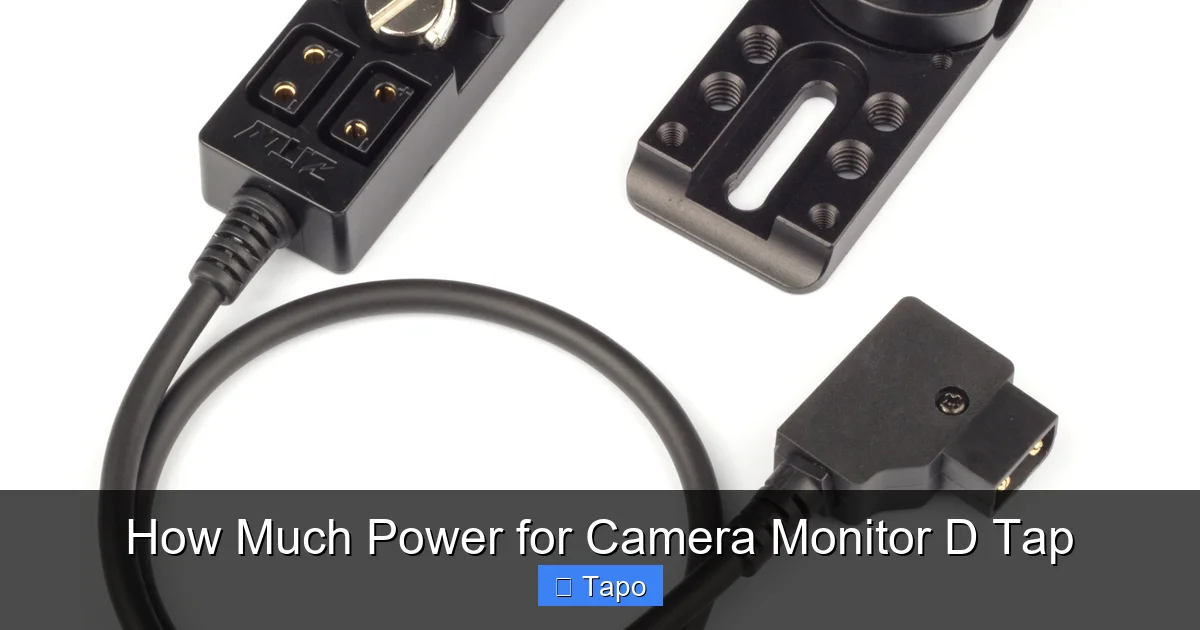

Some rigs use a D tap splitter to power multiple devices. While convenient, this can overload a single port. For example, if your D tap port supports 3A, and you connect a monitor (2A) and a transmitter (1.5A), you’re already over the limit. Use a power distribution box with fused outputs for multi-device setups.

Monitor Battery Health

Old or damaged batteries may not deliver full voltage under load. If your monitor shuts off unexpectedly, test the battery with a voltmeter. A healthy 14.4V battery should read 16V+ when fully charged and stay above 12V under load.

Use Power Management Tools

Some monitors (like SmallHD) display real-time voltage and battery level. Use these features to monitor power status. You can also use external power meters to track total system draw.

Common Mistakes to Avoid

Even experienced shooters make power mistakes. Here are the top ones to watch out for:

• Assuming all D taps are the same: Voltage and current limits vary by battery model.
• Ignoring cable quality: Cheap cables = poor performance.
• Overestimating battery life: Always calculate with a safety margin.
• Mixing incompatible voltages: Never connect 24V to a 12V device.
• Forgetting to test before shooting: Do a full power test on location.

Conclusion

So, how much power for camera monitor D tap? The short answer: **most monitors need 12V DC and draw 1–2.5A, depending on size and features**. But the real answer lies in understanding your specific gear, calculating total power needs, and choosing reliable components.

By matching your monitor’s voltage range, ensuring adequate current supply, and using quality batteries and cables, you’ll keep your screen alive and your footage rolling. Whether you’re powering a compact 5-inch field monitor or a beefy 10-inch recorder, the principles remain the same: know your numbers, plan your power, and never skip the safety checks.

With this knowledge, you’re not just plugging in a cable—you’re building a reliable, professional-grade power system that supports your creative work. So next time you’re on set, you can focus on framing the shot, not worrying about your monitor dying mid-take.

Frequently Asked Questions

Can I power my camera monitor directly from a D tap on a V-mount battery?

Yes, most V-mount batteries have D tap outputs designed for this purpose. Just ensure the battery can supply enough current (usually 2–4A) and that your monitor accepts 12V input.

What happens if my monitor draws more power than the D tap can provide?

The monitor may flicker, shut down, or fail to turn on. In extreme cases, it could overheat. Always check the D tap’s current rating and your monitor’s power draw.

Is it safe to use a D tap splitter for multiple devices?

Only if the total current draw doesn’t exceed the D tap port’s limit. For example, don’t connect two 2A devices to a 3A port. Use a powered distribution box for safety.

Can I use a D tap to USB-C adapter to power my monitor?

Only if the adapter outputs the correct voltage (usually 12V) and can supply enough current. Most USB-C adapters are designed for 5V devices and won’t work.

How do I calculate how long my battery will last?

Divide the battery’s watt-hour (Wh) rating by the total power draw (in watts) of all connected devices. Add a 20% safety buffer for real-world conditions.

Why does my monitor shut off even with a full battery?

This could be due to voltage drop from a long or low-quality cable, a weak battery under load, or a faulty D tap connection. Test with a multimeter and try a different cable.
