How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide
Key Takeaways
- Verify compatibility: Ensure your Hikvision DVR supports analog cameras before setup.
- Use correct cables: Connect cameras via coaxial or twisted pair cables for stable signals.
- Access DVR menu: Navigate to camera management to add and configure new devices.
- Adjust video settings: Match camera type (TVI/CVI/AHD) in DVR settings for optimal performance.
- Test connections: Confirm live feed and recording functionality after installation.
- Update firmware: Keep DVR firmware current to avoid compatibility issues.
Why This Matters / Understanding the Problem
So, you’ve got an old analog camera lying around or a legacy security setup that still works great—but now you want to add it to your Hikvision DVR for centralized monitoring. Maybe your business upgraded to IP cameras, but you don’t want to toss out working analog gear. Or perhaps you’re building a hybrid surveillance system on a budget.
In 2026, hybrid DVRs (like most Hikvision models) still support analog cameras via BNC connections, making it easier than ever to integrate older systems. But if you’ve never done it before, the process can seem confusing—especially with all the cables, settings, and compatibility issues.
That’s why this How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide exists: to walk you through every step, from wiring to live view, without the tech jargon. Whether you’re a homeowner, small business owner, or DIY enthusiast, this guide ensures your analog camera works seamlessly with your Hikvision DVR—saving time, money, and stress.
Plus, with rising concerns about data privacy and cybersecurity, many users prefer analog systems because they’re not connected to the internet. This guide helps you leverage that advantage while using modern Hikvision DVR features like motion detection, remote access, and smart playback.
What You Need
Before diving in, gather these tools and materials. Having everything ready saves you from frustrating mid-process trips to the hardware store.

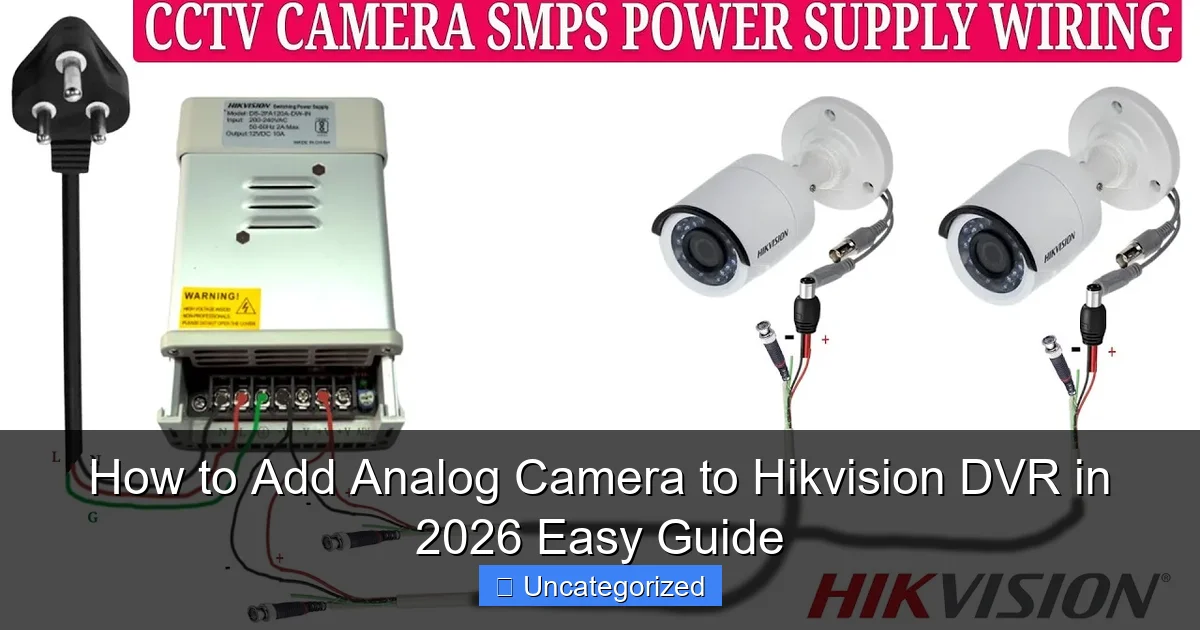

Visual guide about how to add analog camera to hikvision dvr
Image source: i.ytimg.com
- Analog CCTV camera (NTSC or PAL format—most common)
- Hikvision DVR with analog (BNC) input ports (e.g., DS-7100/7200/7600 series)
- RG59 coaxial cable with BNC connectors (or pre-made Siamese cable with power + video)
- 12V DC power supply (usually included with camera; check voltage and polarity)
- Power connector (2.1mm barrel plug) or pigtail adapter for camera
- BNC-to-BNC coupler or patch cable (if using separate power and video cables)
- Monitor or TV with HDMI/VGA input (to connect to DVR)
- Keyboard and mouse (for DVR interface navigation)
- Multimeter (optional, but helpful for testing voltage)
- Cable ties and clips (for neat installation)
Pro Tip: Always verify your DVR model supports analog inputs. Look for “Hybrid DVR” or “HD-TVI/Analog” in the specs. Some newer models are IP-only. For example, DS-7104HQHI-K1 supports up to 4 analog channels—perfect for small setups.
You don’t need a computer or internet for basic setup, but you’ll need one later if you want remote viewing via Hik-Connect or web access. The core How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide focuses on local, physical integration.
Step-by-Step Guide to How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide
Now, let’s get your analog camera up and running. Follow these clear, no-nonsense steps. Each one is designed for real-world use—no lab conditions required.

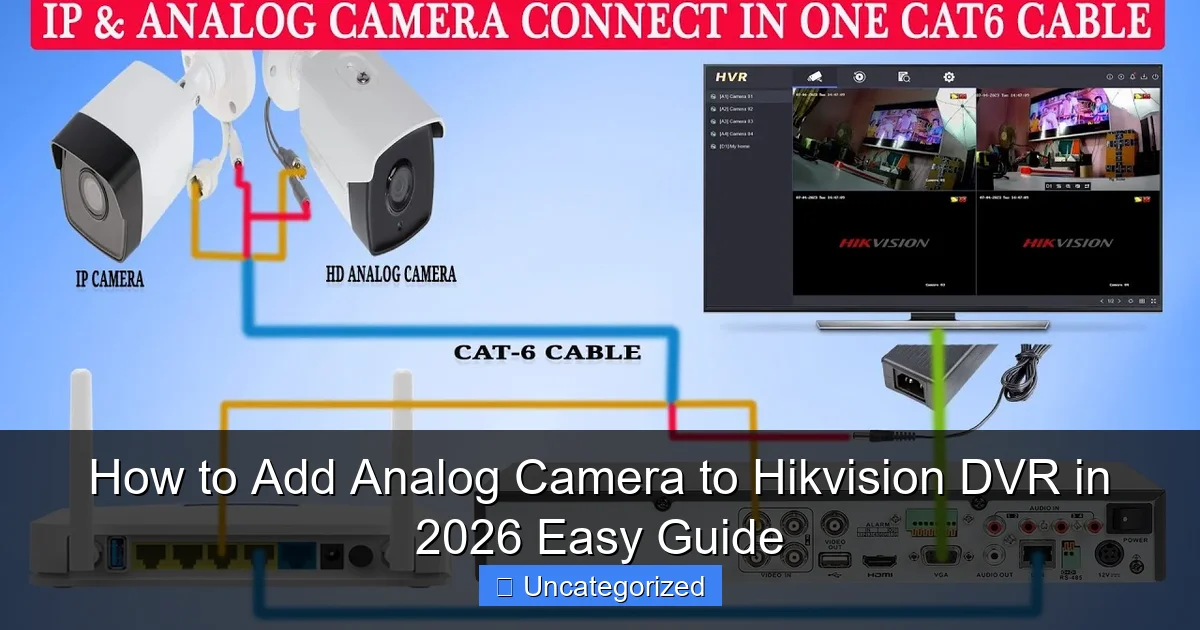

Visual guide about how to add analog camera to hikvision dvr
Image source: i.ytimg.com
Step 1: Power Down Everything
Start with safety. Turn off your DVR and unplug it from the power source. Also, disconnect any power to the analog camera (if it’s already installed).
Why? You don’t want to risk short circuits or damage to your DVR’s BNC ports. Even a small surge can fry sensitive electronics. Think of this like unplugging your router before opening it.
Warning: Never work on powered DVRs or cameras. Even if it seems harmless, a loose wire can cause permanent damage.
Once everything is off, place your DVR and monitor on a stable surface. Make sure there’s enough space for cables and airflow around the DVR.
Step 2: Run the Coaxial (BNC) Cable
Run your RG59 coaxial cable from the camera location to the DVR. Use the shortest practical path to reduce signal loss and interference.
If you’re mounting the camera outdoors, use weatherproof BNC connectors or seal them with silicone. For indoor runs, cable clips keep things tidy and prevent tripping hazards.
Pro tip: Label each end of the cable with tape (“Front Door,” “Backyard,” etc.). It saves headaches when you add more cameras later.
At the DVR end, plug the BNC connector into any available BNC input port. Most Hikvision DVRs label them as “CH1,” “CH2,” etc. Pick an empty one—we’ll assign it in software later.
Pro Tip: Avoid running coax parallel to power cables. Cross them at 90° if they must intersect—this reduces electromagnetic interference that causes fuzzy video.
Step 3: Connect the Camera’s Power Supply
Analog cameras need power to operate. There are two ways to do this:
- Siamese cable: Combines RG59 coax (video) and 2-wire power (12V DC). Connect the power wires to your 12V adapter.
- Separate cables: Use RG59 for video and a separate 2-wire cable for power.
Strip about 1/4 inch of insulation from the power wires. Connect the positive (+) wire to the red wire on the power adapter (or center pin of the barrel plug), and the negative (-) to the black wire (or outer sleeve).
Double-check polarity! Reversed power can burn out the camera. If unsure, use a multimeter to verify voltage and polarity before connecting.
Plug the power adapter into an outlet. Don’t turn it on yet—wait until the camera is fully connected.
Common Mistake: Using a 9V or 24V power supply. Most analog cameras require exactly 12V DC. Too much voltage = fried camera. Too little = no power.
Step 4: Connect Video and Power at the Camera
At the camera end, connect the BNC connector from the coax cable to the camera’s BNC video output port. It should snap in with a twist—don’t force it.
Then, connect the power wires (or barrel plug) to the camera’s power input. Again, ensure correct polarity.
Now, plug in the power adapter. The camera should power on—look for a small LED light (if present) or a faint hum. If nothing happens, double-check connections and voltage.
For outdoor installations, seal all connections with heat-shrink tubing or electrical tape. Moisture is the #1 enemy of analog CCTV.
Step 5: Power On and Access the DVR Menu
Plug in your DVR and turn it on. Connect your monitor via HDMI or VGA. You should see the Hikvision splash screen, then the main interface.
Log in using your DVR password (default is often 12345—change it immediately for security).
Navigate to Main Menu → Camera → Camera (or “Channel Settings” depending on firmware). You’ll see a list of channels (CH1, CH2, etc.).
Find the channel where you connected your camera (e.g., CH1). Click on it to open settings.
Pro Tip: If the screen is blank, wait 30 seconds—some DVRs take a moment to detect analog signals. Also, ensure the DVR is set to “Analog” or “Hybrid” mode in system settings.
Step 6: Enable and Configure the Analog Channel
In the channel settings, look for a toggle like “Enable” or “Channel Status.” Turn it ON.
Set the Video Type to “Analog” or “CVBS.” Avoid “HD-TVI” or “AHD” unless your camera supports those formats.
Check the Signal Format. Most analog cameras use NTSC (North America, Japan) or PAL (Europe, Asia, Australia). Choose the one that matches your camera. Mismatches cause rolling bars or no image.
Click Apply or OK to save. Exit the menu.
Now, go back to the live view screen. You should see your analog camera feed on the assigned channel. If it’s black and white, that’s normal—many analog cameras are B/W unless they’re color models.
Common Mistake: Forgetting to enable the channel. Even with correct wiring, the DVR won’t display the feed if the channel is disabled in software.
Step 7: Adjust Video Quality and Settings
Right-click on the live view window and select Image Settings or Video Settings.
Adjust brightness, contrast, and sharpness to improve clarity. Avoid over-sharpening—it can create noise.
Enable Motion Detection if you want alerts or recording triggers. Set detection zones (e.g., only the driveway, not trees).
Go to Recording Settings to set up continuous or motion-based recording. Choose your storage location (internal HDD or external drive).
For better night performance, enable Smart IR (if available) to prevent overexposure of close objects.
Save all changes. Your analog camera is now fully integrated!
Step 8: Test and Troubleshoot (If Needed)
Walk in front of the camera. Check if motion detection works and if the DVR records properly.
If the image is blurry, check focus (if adjustable). For flickering, verify power supply stability and avoid fluorescent lights.
No image? Try these fixes:
- Swap the BNC cable with a known-good one.
- Test the camera directly with a BNC-to-HDMI converter.
- Check DVR firmware—update via Hikvision’s website if outdated.
- Ensure the DVR isn’t in “IP Camera” mode (some models auto-detect).
Still stuck? Use the DVR’s “Channel Status” page to see if it detects the camera. A green light means signal detected; red means no signal.
Pro Tip: Use a video test monitor (small BNC screen) to check the camera feed before connecting to the DVR. It isolates problems fast.
Step 9: Optional – Set Up Remote Viewing
Want to see your analog camera from your phone? Use Hik-Connect:
- Connect your DVR to the router via Ethernet.
- Enable Hik-Connect in Network → Hik-Connect.
- Scan the QR code with the Hik-Connect app (iOS/Android).
- Log in and view your analog camera remotely.
Note: Analog feeds stream at lower resolution (typically 720×480 or 720×576), but they’re perfectly usable for live viewing.
For web access, enable Web Service in network settings and log in via browser (use HTTPS for security).
Pro Tips & Common Mistakes to Avoid
Even with perfect wiring, small mistakes can ruin your setup. Here’s what seasoned installers wish they knew earlier.
Pro Tip #1: Use twisted-pair power cables if running power over long distances. They reduce voltage drop and interference. For runs over 300 feet, consider a local power supply at the camera.
Pro Tip #2: Label your DVR channels in the menu (e.g., “Front Gate,” “Garage”). It makes troubleshooting and playback much easier.
Pro Tip #3: For outdoor cameras, add a surge protector to the power line. Lightning strikes can fry both camera and DVR—even with a UPS.
Common Mistake #1: Using cheap, thin coax cables. They cause signal loss and ghosting. Always use RG59 or RG6 with solid copper core (not copper-clad steel).
Common Mistake #2: Ignoring grounding. If you have multiple cameras, ground the DVR and cameras to the same point. Floating grounds cause hum bars and static.
Common Mistake #3: Overloading the DVR’s power supply. Most Hikvision DVRs have a 12V/2A output for cameras. If you connect more than 2-3 cameras, use an external power supply.
Common Mistake #4: Forgetting to format the HDD. If the DVR doesn’t detect your hard drive, go to Storage → HDD Management and format it (NTFS for large drives).
Common Mistake #5: Using the wrong BNC connector. Some cameras have “F-type” connectors—use an adapter. Always match the connector type to your cable.
Remember, the How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide isn’t just about connecting wires—it’s about creating a reliable, long-term system. A little extra attention now saves hours of frustration later.
FAQs About How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide
Got questions? We’ve got answers. Here are the most common ones from real users.
Q1: Can I mix analog and IP cameras on the same Hikvision DVR?
Yes! Most Hikvision hybrid DVRs support both. Analog cameras go on BNC ports; IP cameras connect via Ethernet. Just assign each to a channel. Note: IP cameras may need PoE or a separate switch.
Q2: My analog camera shows a rolling black bar. What’s wrong?
This is a ground loop issue. It happens when multiple devices share different ground potentials. Fix it by:
- Using an isolation transformer on the coax.
- Grounding all devices to the same point.
- Using a single power source for all cameras.
Avoid running power and video cables in the same conduit.
Q3: How far can I run an analog camera cable?
With RG59 coax, up to 1,000 feet (300 meters) is possible, but signal quality degrades over 500 feet. Use a video amplifier or active balun for longer runs. For extreme distances, consider fiber optic converters.
Q4: Can I use a wireless analog camera with my DVR?
Not directly. Wireless analog cameras send video via RF (e.g., 2.4GHz), which the DVR can’t decode. But you can use a wireless receiver that outputs CVBS to BNC, then connect that to the DVR.
Q5: Why does my DVR show “No Signal” even with correct wiring?
Check:
- Is the camera powered on?
- Is the BNC cable damaged (test with a multimeter)?
- Is the DVR set to the right video standard (NTSC/PAL)?
- Is the channel enabled in the DVR menu?
Also, try swapping the camera with a known-working one to isolate the issue.
Q6: Do I need a hard drive to record analog cameras?
Yes. The DVR needs storage to record. You can use an internal HDD (up to 10TB on most models) or an external USB drive. Without storage, you can only view live feed.
Q7: Can I upgrade my analog camera to HD without replacing the DVR?
Yes! Use an HD-TVI, AHD, or CVI camera. These send HD analog signals over the same RG59 cable. Your Hikvision DVR will auto-detect them (if compatible) and give you 1080p resolution—no rewiring needed.
Final Thoughts
Adding an analog camera to your Hikvision DVR in 2026 is easier than ever, thanks to hybrid DVRs and user-friendly interfaces. Whether you’re repurposing old gear, building a hybrid system, or just keeping things simple, the How to Add Analog Camera to Hikvision DVR in 2026 Easy Guide gives you everything you need—from wiring basics to remote access.
The key is patience and attention to detail. Double-check every connection, verify power and signal, and take your time with settings. A well-setup analog camera can last years, providing reliable surveillance at a fraction of the cost of IP systems.
Now that you’re done, take a moment to:
- Label your cables and channels.
- Set up motion alerts and notifications.
- Back up your DVR configuration (in System → Maintenance).
And remember: analog isn’t obsolete. In a world of cyber threats and complex tech, sometimes the simplest solution is the best. With this guide, you’ve future-proofed your security—one BNC cable at a time.
Ready to add another camera? Just repeat the steps. You’ve got this.
