Adding a Dahua IP camera to a Hikvision DVR is possible with the right configuration. This guide walks you through network setup, ONVIF activation, and DVR integration for seamless surveillance.
Key Takeaways
- ONVIF compatibility is essential: Both Dahua cameras and Hikvision DVRs support ONVIF, enabling cross-brand integration when properly configured.
- Network configuration matters: Ensure both devices are on the same local network with correct IP settings to avoid connection issues.
- Use the correct port and protocol: Typically, port 80 or 8000 with RTSP or ONVIF protocol ensures smooth video streaming.
- Firmware updates improve compatibility: Keep both the Dahua camera and Hikvision DVR updated to the latest firmware for optimal performance.
- Manual camera addition is required: You cannot auto-discover Dahua cameras on a Hikvision DVR; manual IP entry is necessary.
- Test the connection before finalizing: Always verify video feed and PTZ controls (if applicable) after adding the camera.
- Troubleshooting is common: Issues like no video or login errors can often be resolved by checking credentials, firewalls, or network settings.
How to Add Dahua IP Camera to Hikvision DVR
If you’re looking to expand your surveillance system by integrating a Dahua IP camera with a Hikvision DVR, you’re in the right place. While Dahua and Hikvision are separate brands, their devices often work together thanks to industry-standard protocols like ONVIF. This guide will walk you through the entire process—from network preparation to final testing—so you can enjoy a unified security setup without replacing your existing equipment.
Many users assume that only cameras from the same brand can connect to a DVR. However, with the right settings, a Dahua IP camera can successfully stream video to a Hikvision DVR. This is especially useful if you already have a Hikvision DVR but want to add a high-quality Dahua camera for better image clarity, wider coverage, or specialized features like starlight night vision or AI-powered detection.
In this comprehensive guide, you’ll learn how to configure your network, enable ONVIF on the Dahua camera, add it manually to the Hikvision DVR, and troubleshoot common issues. Whether you’re a DIY enthusiast or a professional installer, these steps will help you achieve a reliable, cross-brand surveillance system.
Why Integrate Dahua Cameras with Hikvision DVRs?

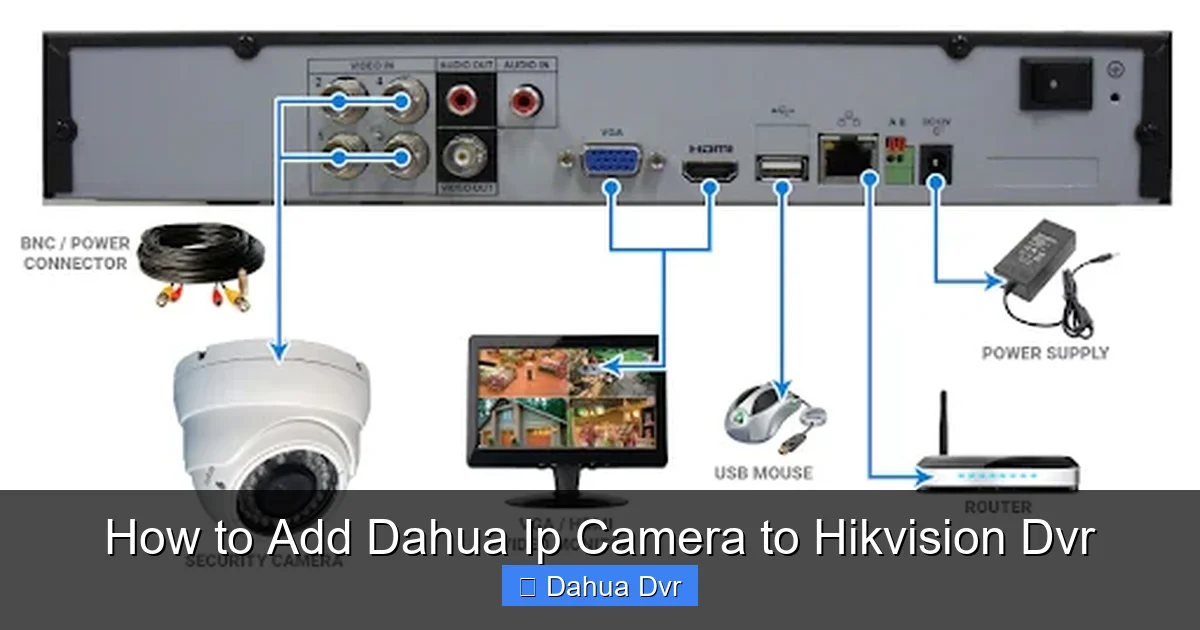

Visual guide about How to Add Dahua Ip Camera to Hikvision Dvr
Image source: cucctv.co.uk
Before diving into the technical steps, it’s important to understand why this integration makes sense. Dahua and Hikvision are two of the largest players in the global security market. Both companies design products with compatibility in mind, especially through ONVIF (Open Network Video Interface Forum), a global standard that allows different brands of IP cameras and recorders to communicate.
Dahua cameras are known for their advanced imaging technology, including high-resolution sensors, smart IR, and built-in analytics. Hikvision DVRs, on the other hand, offer robust recording capabilities, user-friendly interfaces, and strong local storage options. By combining the two, you get the best of both worlds: superior image quality from Dahua and reliable recording and management from Hikvision.
This setup is ideal for users who:
– Already own a Hikvision DVR and want to expand without upgrading the entire system.
– Prefer Dahua’s camera features but don’t want to switch to a Dahua NVR.
– Are building a hybrid system with cameras from multiple brands.
Prerequisites: What You’ll Need
Before starting the setup, make sure you have the following:
- A Dahua IP camera (e.g., Dahua IPC-HDW5442T, IPC-HFW2431S, or similar model)
- A Hikvision DVR (supports IP camera input, such as DS-7200HI-SL or DS-7300HUHI series)
- A network router or switch to connect both devices
- Ethernet cables (Cat5e or Cat6) for wired connections
- A computer or smartphone to access camera and DVR web interfaces
- Access to the Dahua camera’s web interface (via IP address)
- Admin credentials for both the Dahua camera and Hikvision DVR
Ensure that both devices are powered on and connected to the same local network. Wireless connections can work, but a wired Ethernet connection is recommended for stability and better video quality.
Step 1: Configure the Dahua IP Camera
The first step is to set up the Dahua camera so it can be discovered and accessed by the Hikvision DVR.
Connect the Camera to the Network
Use an Ethernet cable to connect the Dahua IP camera to your router or switch. Power it on using the included power adapter or via PoE (Power over Ethernet) if your switch supports it. Wait a minute or two for the camera to boot up and obtain an IP address from your router via DHCP.
Find the Camera’s IP Address
To access the camera’s settings, you need its IP address. Here’s how to find it:
- Use Dahua’s ConfigTool: Download and install Dahua’s free ConfigTool software on your computer. Launch it, and it will scan your network for Dahua devices. The camera should appear with its IP address, MAC address, and model number.
- Check your router’s DHCP client list: Log in to your router’s admin page (usually via 192.168.1.1 or 192.168.0.1), go to the DHCP or connected devices section, and look for a device named “Dahua” or with a MAC address starting with Dahua’s OUI (e.g., 00:1A:2B).
- Use an IP scanner: Tools like Advanced IP Scanner or Angry IP Scanner can help locate the camera on your network.
Once you have the IP address (e.g., 192.168.1.108), open a web browser and enter it in the address bar.
Access the Dahua Camera’s Web Interface
You’ll be prompted to log in. Use the default credentials (usually admin/admin or admin/123456) unless you’ve changed them. For security, it’s recommended to change the default password after initial setup.
Once logged in, you’ll see the camera’s live view and configuration menu.
Enable ONVIF on the Dahua Camera
ONVIF is the key to making the Dahua camera compatible with the Hikvision DVR. Here’s how to enable it:
- Go to Setup > Network > Advanced > ONVIF.
- Check the box to Enable ONVIF.
- Click Add to create a new ONVIF user.
- Enter a username (e.g., “hikvision”) and a strong password.
- Set the user level to Administrator for full access.
- Click Save.
This ONVIF user account will be used later when adding the camera to the Hikvision DVR.
Set a Static IP Address (Recommended)
To avoid IP conflicts and ensure the camera is always reachable, assign it a static IP address:
- Go to Setup > Network > TCP/IP.
- Change the IP mode from DHCP to Static.
- Enter an IP address within your network range (e.g., 192.168.1.108), subnet mask (255.255.255.0), and gateway (your router’s IP, e.g., 192.168.1.1).
- Click Save and reboot the camera if prompted.
Now the Dahua camera is ready to be added to the Hikvision DVR.
Step 2: Access the Hikvision DVR Interface
Next, you’ll need to log in to your Hikvision DVR to add the Dahua camera.
Connect to the DVR
You can access the DVR in two ways:
- Directly via monitor: Connect a monitor to the DVR using HDMI or VGA, and use the included mouse to navigate the interface.
- Remotely via web browser: Enter the DVR’s IP address in a web browser on a computer connected to the same network. The default IP is often 192.168.1.64.
Log in using the admin username and password (default is often admin/12345).
Navigate to Camera Management
Once logged in:
- Go to Main Menu > Camera > Camera Management.
- You’ll see a list of existing cameras (if any). Look for an empty channel where you can add the Dahua camera.
Step 3: Add the Dahua Camera to the Hikvision DVR
Now comes the crucial step: manually adding the Dahua camera using its IP address and ONVIF credentials.
Select an Empty Channel
Click on an unused camera channel (e.g., Channel 3). Then click Edit or Modify.
Enter Camera Details
Fill in the following information:
- Camera Type: Select IP Camera.
- IP Address: Enter the static IP of the Dahua camera (e.g., 192.168.1.108).
- Port: Use 80 (default HTTP port) or 8000 (common for Dahua ONVIF). Try 80 first; if it fails, switch to 8000.
- Protocol: Choose ONVIF.
- Username: Enter the ONVIF username you created earlier (e.g., “hikvision”).
- Password: Enter the corresponding password.
Test the Connection
Click Test to verify the connection. If successful, you’ll see a message like “Connection successful.” If it fails, double-check the IP, port, and credentials.
Save and Apply
Once the test passes, click Save or Apply. The DVR will attempt to connect to the Dahua camera and display the live feed.
Adjust Stream Settings (Optional)
For better performance, you can adjust the video stream settings:
- Go to Setup > Camera > Encoding.
- Select the channel where the Dahua camera is added.
- Choose the appropriate resolution, bitrate, and frame rate. Match it to the camera’s capabilities (e.g., 4MP at 15fps).
- Save the settings.
Step 4: Verify the Video Feed
After adding the camera, check if the video appears on the DVR’s live view.
Check Live View
Navigate to the live view screen. The Dahua camera’s feed should now appear in the assigned channel. You should see clear video with proper color and exposure.
Test PTZ Controls (If Applicable)
If your Dahua camera supports pan-tilt-zoom (PTZ), test the controls from the DVR interface:
- Click the PTZ icon on the live view screen.
- Use the directional arrows to move the camera.
- Adjust zoom and focus if available.
If PTZ doesn’t work, ensure that PTZ is enabled in the Dahua camera’s settings and that the correct protocol (e.g., ONVIF PTZ) is selected in the DVR.
Check Recording
Set up a recording schedule to ensure the DVR is capturing footage from the Dahua camera:
- Go to Main Menu > Storage > Schedule.
- Select the channel with the Dahua camera.
- Enable continuous or motion-based recording.
- Save the schedule.
Troubleshooting Common Issues
Even with careful setup, you might encounter problems. Here are solutions to the most common issues:
No Video Feed After Adding Camera
- Check IP address: Ensure the Dahua camera’s IP hasn’t changed. Use ConfigTool to verify.
- Verify port and protocol: Try switching between port 80 and 8000. Confirm ONVIF is enabled on the camera.
- Firewall or antivirus: Temporarily disable firewall or antivirus software that might block the connection.
- Network congestion: Ensure the network isn’t overloaded. Use a dedicated switch for cameras if needed.
Login Failed or Authentication Error
- Double-check credentials: Ensure the ONVIF username and password match exactly (case-sensitive).
- Reset ONVIF user: Re-add the ONVIF user in the Dahua camera settings.
- Factory reset camera: As a last resort, reset the Dahua camera and reconfigure it.
Video is Laggy or Choppy
- Reduce resolution or frame rate: Lower the stream settings in the DVR to match network capacity.
- Use wired connection: Avoid Wi-Fi for IP cameras; use Ethernet for stable bandwidth.
- Check bandwidth usage: Ensure other devices aren’t consuming too much network traffic.
PTZ Controls Not Working
- Enable PTZ in camera settings: Go to Dahua camera > Setup > PTZ and ensure it’s enabled.
- Select correct PTZ protocol: In the DVR, choose ONVIF PTZ or Dahua protocol if available.
- Update firmware: Ensure both camera and DVR are running the latest firmware.
Best Practices for a Reliable Setup
To ensure long-term stability and performance, follow these best practices:
- Use static IPs for all cameras: Prevents IP conflicts and ensures consistent access.
- Update firmware regularly: Check for updates on both Dahua and Hikvision websites.
- Secure your network: Change default passwords, enable WPA3 on your router, and disable remote access if not needed.
- Label your cameras: Physically label each camera with its IP and location for easy identification.
- Test during installation: Always test video, audio (if applicable), and PTZ before finalizing the setup.
Conclusion
Adding a Dahua IP camera to a Hikvision DVR is not only possible but also a smart way to enhance your surveillance system without replacing existing equipment. By leveraging ONVIF compatibility, proper network configuration, and careful setup, you can achieve a seamless integration that delivers high-quality video and reliable recording.
This guide has walked you through every step—from enabling ONVIF on the Dahua camera to manually adding it to the Hikvision DVR and troubleshooting common issues. With the right approach, you can build a hybrid security system that combines the strengths of both brands.
Remember, patience and attention to detail are key. If you encounter problems, don’t hesitate to revisit the network settings or consult the user manuals for both devices. Once set up correctly, your Dahua camera will function just like any native Hikvision camera, giving you peace of mind and a more robust security solution.
Whether you’re upgrading a small home system or managing a larger installation, this cross-brand integration opens up new possibilities for flexibility and performance. So go ahead—connect that Dahua camera and enjoy the benefits of a truly unified surveillance setup.
