How To Add Dahua Ip Camera To Hikvision Nvr

Adding a Dahua IP camera to a Hikvision NVR is possible through ONVIF compatibility, allowing cross-brand integration with proper configuration. Ensure both devices support ONVIF, then add the camera via the NVR’s IP search or manual entry using the correct credentials—no proprietary software required.

Key Takeaways

• Verify compatibility first: Ensure Dahua camera and Hikvision NVR support ONVIF or RTSP protocols.
• Use ONVIF mode: Enable ONVIF on Dahua camera for seamless Hikvision NVR integration.
• Assign static IP: Set a fixed IP address to avoid connection drops during setup.
• Add via NVR interface: Manually input camera IP and ONVIF port (usually 80 or 8899).
• Update firmware: Keep both devices updated to prevent compatibility issues.
• Test stream quality: Adjust resolution and bitrate for optimal performance after adding.

The Challenge of Cross-Brand Integration in Modern Surveillance Systems

Today’s surveillance landscape is more complex than ever, with businesses and homeowners increasingly relying on IP camera systems for comprehensive security. However, one of the most common challenges faced by users is integrating equipment from different manufacturers—specifically, how to add a Dahua IP camera to a Hikvision NVR. While Dahua and Hikvision are two of the most prominent players in the video surveillance industry, each maintains its own ecosystem of protocols, software, and firmware. This often leads to confusion and frustration when users attempt to mix and match devices for cost efficiency, performance, or legacy system upgrades.

Despite the branding differences, the good news is that many Dahua IP cameras can successfully connect to Hikvision NVRs, provided you follow the right procedures. The key lies in understanding ONVIF compliance, RTSP streaming, and network configuration nuances. Whether you’re a DIY home security enthusiast, a small business owner expanding your surveillance setup, or an integrator working on a multi-brand deployment, this guide will walk you through every step of the process. From initial setup to troubleshooting common pitfalls, we’ll cover everything you need to know to ensure a seamless integration—maximizing functionality while minimizing downtime and compatibility headaches.

Understanding Compatibility: Dahua and Hikvision Protocols

Before diving into the technical steps, it’s crucial to understand the underlying protocols that enable cross-brand communication. Both Dahua and Hikvision have historically developed proprietary systems, but in recent years, both companies have adopted open standards to improve interoperability. This shift is largely due to the widespread adoption of ONVIF (Open Network Video Interface Forum), an industry-wide standard designed to ensure seamless integration between IP video devices from different manufacturers.

ONVIF: The Universal Bridge

ONVIF is the primary enabler when adding a Dahua IP camera to a Hikvision NVR. It provides a standardized framework for discovery, configuration, and streaming of video, audio, and metadata. Most Dahua and Hikvision devices manufactured after 2018 support ONVIF Profile S, which covers video streaming and basic PTZ control. To check if your Dahua camera supports ONVIF:

• Log into the Dahua camera’s web interface using its IP address in a browser.
• Navigate to Configuration > Network > Advanced > ONVIF.
• Ensure ONVIF is enabled and that the user account has sufficient permissions (e.g., “admin” or “operator”).

Pro Tip: If ONVIF is disabled, enable it and restart the camera to ensure the NVR can detect it during discovery.

RTSP as a Fallback Option

If ONVIF fails due to firmware issues or older hardware, RTSP (Real-Time Streaming Protocol) can serve as a reliable alternative. RTSP allows direct streaming of video feeds using a URL format. For example, a Dahua camera’s RTSP stream typically follows this pattern:

rtsp://[username]:[password]@[camera_ip]:554/cam/realmonitor?channel=1&subtype=0

This method is especially useful for older Dahua models that may not fully support ONVIF or for users who prefer manual configuration over automated discovery.

Firmware and Model Considerations

Not all Dahua cameras are created equal. Some older models (e.g., pre-2016) use Dahua’s proprietary DH-SD protocol, which is not compatible with Hikvision NVRs without additional middleware. Always verify your camera’s model and firmware version:

• Check the label on the camera or use the Dahua Config Tool to scan the network and identify the device.
• Upgrade the camera’s firmware to the latest version via Dahua’s official website. Updated firmware often includes better ONVIF compliance and bug fixes.

Note: Hikvision NVRs typically support ONVIF Profile S and Profile G. Profile G adds support for recording and playback, which is essential for full functionality.

Pre-Installation: Network and Security Setup

Proper network preparation is the foundation of a successful integration. A misconfigured network can lead to connectivity issues, dropped streams, or security vulnerabilities. Here’s how to set up your environment for optimal performance.

IP Addressing and Subnet Configuration

Both the Dahua camera and the Hikvision NVR must be on the same local network subnet to communicate directly. For example:

• Dahua camera: 192.168.1.100
• Hikvision NVR: 192.168.1.200

If they’re on different subnets (e.g., 192.168.1.x and 192.168.2.x), you’ll need a router or VLAN configuration to enable communication. Use the Dahua camera’s web interface or the Dahua SmartPSS software to assign a static IP address. Avoid DHCP for critical devices to prevent IP changes that break connectivity.

Port Forwarding and Firewall Settings

Ensure the following ports are open and accessible between the camera and NVR:

Port	Protocol	Purpose
80	TCP	HTTP (web interface)
554	TCP/UDP	RTSP streaming
8000	TCP	ONVIF discovery (Hikvision NVR)
37777	TCP	Dahua device communication

Disable any firewall rules on the NVR or router that might block these ports. If using a managed switch, ensure IGMP snooping is disabled to prevent multicast issues.

User Accounts and Authentication

Create a dedicated user account on the Dahua camera specifically for integration with the Hikvision NVR. This improves security and simplifies troubleshooting. Steps:

1. Log into the Dahua camera’s web interface.
2. Go to Configuration > Security > User Management.
3. Add a new user (e.g., “nvr_integration”) with Operator or Administrator privileges.
4. Note the username and password—you’ll need these during NVR setup.

Security Tip: Avoid using the default “admin” account for integration. Change default credentials on both devices to prevent unauthorized access.

Step-by-Step: Adding Dahua Camera via ONVIF

Now that your network is configured, it’s time to connect the Dahua camera to the Hikvision NVR using ONVIF. This method is recommended for most users due to its simplicity and full feature support.

Step 1: Access the Hikvision NVR Interface

Connect to your Hikvision NVR using one of the following methods:

• Directly via HDMI/Monitor using a mouse and keyboard.
• Remotely via iVMS-4200 or Hik-Connect software.

Navigate to Camera Management > Add Camera. Select IP/Domain as the connection type.

Step 2: Enable ONVIF Discovery

In the Add Camera window:

• Click Search to initiate ONVIF device discovery.
• The NVR will scan the network for ONVIF-compliant devices.
• Your Dahua camera should appear in the list (identified by its IP address and model).

If the camera doesn’t appear, verify:

• The camera is powered and connected to the network.
• ONVIF is enabled on the Dahua camera.
• Both devices are on the same subnet.

Step 3: Authenticate and Add

Select the Dahua camera from the list and click Add. You’ll be prompted to enter:

• Username: The integration account you created earlier (e.g., “nvr_integration”).
• Password: The corresponding password.
• Port: Usually 80 (HTTP) or 443 (HTTPS).

After authentication, the NVR will attempt to connect. If successful, the camera status will change to Online, and a preview will appear in the live view.

Step 4: Configure Stream Settings

Once added, optimize the camera’s stream settings for the NVR:

• Go to Camera Management > Camera Parameters.
• Select the Dahua camera and adjust:
• Stream Type: Choose Main Stream (high resolution) for recording, Sub Stream (low resolution) for remote viewing.
• Resolution and Bitrate: Match the NVR’s recording settings to avoid performance issues.
• Frame Rate: Set to 25/30 fps for smooth video.

Example: For a Dahua IPC-HDW5231R-ZE (2MP), use Main Stream: 1920×1080, 4096 Kbps, 25 fps.

Manual RTSP Integration: When ONVIF Fails

If ONVIF discovery fails due to firmware bugs, network issues, or legacy hardware, RTSP streaming offers a reliable workaround. This method gives you full control over the connection but requires manual URL entry.

Step 1: Obtain the RTSP URL

Log into the Dahua camera’s web interface and navigate to Configuration > Network > Advanced > RTSP. Ensure RTSP is enabled. The RTSP URL format is:

rtsp://[username]:[password]@[camera_ip]:554/cam/realmonitor?channel=1&subtype=[stream_type]

Where:

• subtype=0 → Main Stream
• subtype=1 → Sub Stream

Example: rtsp://nvr_integration:pass123@192.168.1.100:554/cam/realmonitor?channel=1&subtype=0

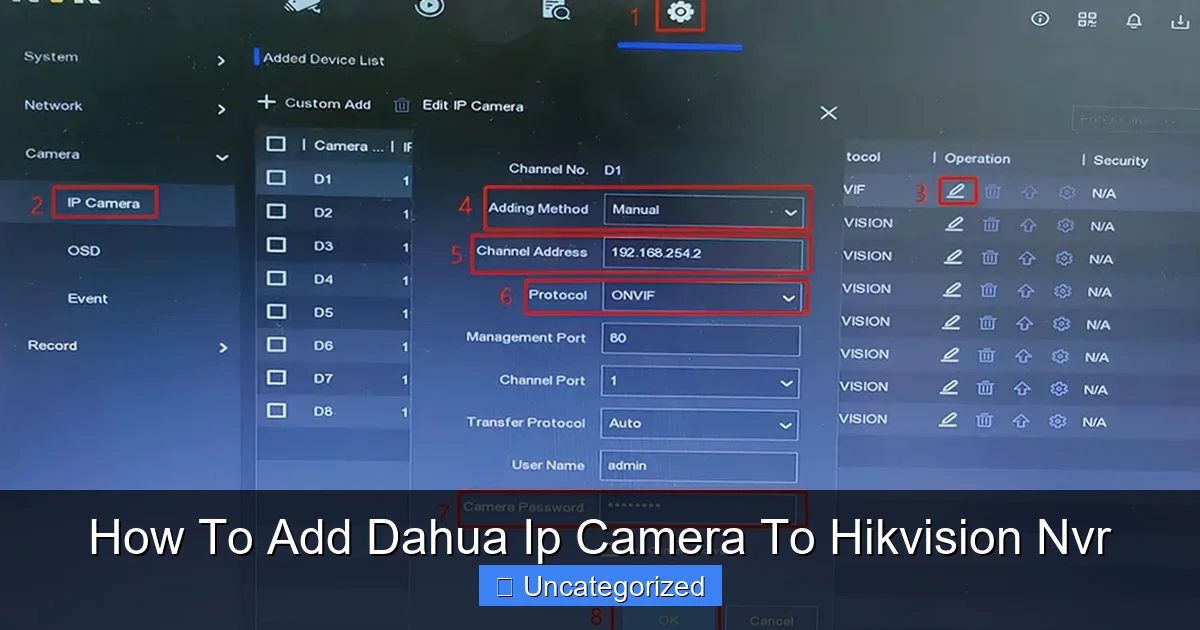

Step 2: Add Camera via Hikvision NVR

In the Hikvision NVR:

• Go to Camera Management > Add Camera.
• Select IP/Domain and click Manual.
• Enter:
• IP Address: 192.168.1.100
• Port: 554
• Username/Password: Your integration account
• Protocol: RTSP
• Under Stream Type, select Custom and paste the full RTSP URL.

Step 3: Test and Troubleshoot

After adding, check the live view. If the stream fails:

• Verify the RTSP URL is correct (test it in VLC Media Player).
• Check firewall settings on the NVR.
• Ensure the camera’s stream settings (resolution, bitrate) are compatible with the NVR.

Pro Tip: Use Wireshark to capture network traffic and diagnose RTSP handshake issues.

Advanced Configuration and Optimization

Once the camera is connected, fine-tune settings to ensure long-term reliability and performance. This section covers advanced configurations for power users and professionals.

Recording and Storage Management

Hikvision NVRs support multiple recording modes. For Dahua cameras:

• Continuous Recording: Set in Storage > Schedule.
• Motion-Activated Recording: Enable motion detection on the Dahua camera (not the NVR) to reduce false alerts.
• Smart Event Triggers: Use Dahua’s built-in analytics (e.g., line crossing, face detection) to trigger recordings.

Storage Tip: Allocate sufficient disk space. A 2MP camera at 4 Mbps uses ~2.1 TB/month (24/7 recording).

Remote Access and Mobile Viewing

To view Dahua cameras remotely via the Hikvision NVR:

1. Enable Hik-Connect on the NVR (Network > Platform Access).
2. Register the NVR on the Hik-Connect mobile app.
3. All connected cameras (including Dahua) will appear in the app.

Note: Ensure the NVR has a static IP or DDNS configured for remote access.

Firmware Synchronization and Updates

To avoid compatibility issues:

• Update the Dahua camera’s firmware to the latest version.
• Check Hikvision NVR firmware for ONVIF improvements.
• Test the integration after updates—some firmware changes may reset ONVIF settings.

Best Practice: Maintain a backup of working firmware versions in case an update causes issues.

Conclusion: Bridging the Gap with Confidence

Integrating a Dahua IP camera with a Hikvision NVR is not only possible but often straightforward when you understand the underlying protocols and follow the right steps. By leveraging ONVIF for automatic discovery or RTSP for manual control, you can create a hybrid surveillance system that combines the strengths of both brands. This flexibility is invaluable for users who want to expand their existing setups without replacing legacy equipment or breaking the budget.

Throughout this guide, we’ve emphasized the importance of network preparation, security best practices, and post-installation optimization. Whether you’re adding a single Dahua camera to a Hikvision NVR or managing a multi-brand deployment, attention to detail at every stage ensures reliability and longevity. Remember, compatibility is rarely a “one-size-fits-all” scenario—always verify your camera’s ONVIF support, keep firmware updated, and test configurations in a staging environment when possible.

As surveillance technology continues to evolve, the lines between proprietary ecosystems will blur further. However, the principles outlined here—standardization, security, and systematic troubleshooting—will remain timeless. By mastering how to add a Dahua IP camera to a Hikvision NVR, you’re not just solving a technical challenge; you’re future-proofing your security infrastructure for years to come.

Frequently Asked Questions

How do I add a Dahua IP camera to a Hikvision NVR?

To add a Dahua IP camera to a Hikvision NVR, ensure both devices are on the same network. In the NVR’s interface, go to Camera Management > Add, then enter the Dahua camera’s IP address, username, and password.

Can I use a Dahua IP camera with a Hikvision NVR?

Yes, Dahua IP cameras can often be added to a Hikvision NVR if they support ONVIF or RTSP protocols. Enable ONVIF on the Dahua camera and use the Hikvision NVR’s “Plug-and-Play” or manual add feature for cross-brand compatibility.

Why won’t my Dahua camera connect to my Hikvision NVR?

Connection issues may stem from mismatched ONVIF settings, IP conflicts, or outdated firmware. Verify the Dahua camera’s ONVIF is enabled and update both devices’ firmware for optimal compatibility.

What credentials are needed to add a Dahua IP camera to a Hikvision NVR?

You’ll need the Dahua camera’s IP address, port number (default: 80 or 8000), and its admin username/password. Ensure the credentials match the camera’s settings to avoid authentication errors.

Is ONVIF required to integrate a Dahua IP camera with a Hikvision NVR?

ONVIF is the most reliable method for cross-brand integration. Enable ONVIF on the Dahua camera via its web interface, then add it to the Hikvision NVR using the ONVIF protocol option.

How to troubleshoot Dahua camera not showing up on Hikvision NVR?

Check network connectivity, confirm the camera’s IP is reachable, and ensure the NVR’s firmware supports Dahua’s encoding. Reboot both devices and retry the “Add” process in the NVR’s menu.
