How to Add External Hard Drive to Reolink NVR in 2026

Adding an external hard drive to your Reolink NVR in 2026 is a seamless process that boosts storage capacity without replacing internal drives. Simply connect the drive via USB, format it through the NVR’s menu, and assign it as primary or backup storage—no technical expertise required. This quick upgrade ensures uninterrupted 4K recording and future-proofs your surveillance system.

Key Takeaways

• Connect via USB: Plug the drive directly into the NVR’s USB port.
• Format correctly: Use FAT32 or exFAT for compatibility with Reolink NVR.
• Enable in settings: Navigate to Storage > Manage in the NVR interface.
• Verify detection: Confirm the drive appears under external storage devices.
• Set backup rules: Schedule recordings or enable overwrite protection as needed.
• Check power: Use a powered hub for drives requiring more than 5V.

Understanding the Importance of Expanding Your Reolink NVR Storage

As surveillance technology continues to evolve in 2026, the demand for high-resolution video recording, longer retention periods, and uninterrupted monitoring has skyrocketed. Whether you’re securing a residential property, managing a small business, or overseeing a large-scale facility, your Reolink Network Video Recorder (NVR) is likely the backbone of your security system. While most Reolink NVRs come equipped with a built-in hard drive, the default storage capacity often falls short of long-term needs—especially when recording multiple 4K cameras 24/7.

Enter the external hard drive: a cost-effective, scalable, and reliable solution for expanding your NVR’s storage capacity. By integrating an external hard drive, you not only extend your video retention window—potentially from weeks to months or even years—but also gain greater flexibility in managing your surveillance data. This is particularly crucial in 2026, where smart analytics, AI-powered motion detection, and continuous cloud backups generate more data than ever before. The good news? Adding an external hard drive to your Reolink NVR is simpler than you might think, and with the right guidance, it can be completed in under 30 minutes. This guide will walk you through every step, from choosing the right drive to formatting, connecting, and troubleshooting common issues, ensuring your security system remains robust and future-proof.

Why You Should Add an External Hard Drive to Your Reolink NVR

Overcoming Built-In Storage Limitations

Most Reolink NVRs ship with internal hard drives ranging from 1TB to 6TB. While this may seem sufficient at first, consider that a single 4K camera can consume up to 10GB of storage per day. For a 4-camera system, that’s 40GB daily—meaning a 4TB drive would fill up in roughly 100 days. With AI-based recording (e.g., person/vehicle detection), you might save space, but full-time recording or high-motion environments quickly eat through capacity. Adding an external hard drive allows you to bypass these constraints, enabling longer retention for critical footage.

Enhanced Data Redundancy and Backup

While internal drives are convenient, they represent a single point of failure. If the internal drive fails, you lose all recordings. By using an external drive as a secondary storage device, you create a manual backup layer that can be disconnected and stored offsite. This is especially valuable in scenarios like natural disasters, theft, or cyberattacks. For example, a small retail store might use the internal drive for real-time monitoring and the external drive to store archived footage for insurance claims or legal disputes.

Cost-Effective Scalability

Upgrading your NVR’s internal storage often requires replacing the entire unit or voiding warranties. In contrast, external hard drives are modular, affordable, and easy to swap. You can start with a 4TB drive today and upgrade to 12TB in the future without changing your NVR. This scalability is ideal for growing businesses or homeowners adding more cameras over time. Plus, external drives can be repurposed for other devices (e.g., computers, media servers) if needed.

Improved Performance with Dedicated Drives

Running all recordings on a single internal drive can lead to fragmentation and slower write speeds, especially with multiple high-bitrate cameras. By offloading some recordings to an external drive, you reduce strain on the internal drive, potentially improving system responsiveness and longevity. Reolink NVRs in 2026 support USB 3.0 and higher, enabling transfer speeds up to 5 Gbps—fast enough to handle 4K streams without bottlenecks.

Choosing the Right External Hard Drive for Your Reolink NVR

Storage Capacity: How Much Do You Need?

Calculating your required storage depends on several factors: number of cameras, resolution (1080p, 4K), frame rate, motion detection settings, and desired retention period. Use the following formula as a starting point:

• Daily storage per camera (approx.):
  • 1080p: 3–5 GB
  • 4K: 8–12 GB
• Total daily storage = (Daily GB per camera) × (Number of cameras)
• Required drive size = (Total daily storage) × (Retention days) + 20% buffer

Example: A 6-camera 4K system with 90-day retention needs: (10 GB × 6) × 90 = 5,400 GB ≈ 5.4 TB. Add 20% buffer → 6.5 TB minimum. A 8TB drive would be ideal.

Drive Type: HDD vs. SSD vs. NAS

While SSDs offer faster speeds and better durability, they’re significantly more expensive per terabyte. For most Reolink NVR setups, a 7200 RPM HDD (e.g., WD Purple, Seagate SkyHawk) is the best balance of cost, capacity, and reliability. These surveillance-optimized drives are designed for 24/7 operation and handle constant write cycles better than standard desktop drives.

SSDs are suitable for small setups (1–2 cameras) or if you prioritize speed for quick footage retrieval. However, they’re overkill for long-term archival. Avoid NAS drives unless you’re using a network-attached storage system—Reolink NVRs in 2026 only support USB-attached external drives, not networked storage.

Compatibility and Interface

Reolink NVRs support USB 2.0 and USB 3.0 (5 Gbps) ports. For optimal performance, choose a drive with a USB 3.0/3.1/3.2 interface (backward compatible with USB 2.0). Ensure the drive is formatted in NTFS, exFAT, or FAT32—Reolink NVRs do not support ext4 or other Linux file systems. Most external drives are pre-formatted for Windows (NTFS), which works perfectly.

Recommended Drives in 2026:

• WD My Book 8TB (NTFS, USB 3.0) – Best for large systems

<

• Seagate Expansion 4TB (exFAT, USB 3.0) – Budget-friendly
• LaCie Rugged 5TB (NTFS, USB 3.1) – Weather-resistant for harsh environments

Power Requirements and Portability

Large external drives (6TB+) often require external power (AC adapter), while smaller drives (≤4TB) can draw power via USB. For permanent NVR installations, powered drives are more stable. For portability (e.g., taking backups offsite), consider bus-powered drives. Always check the drive’s power specifications before purchase.

Step-by-Step Guide: How to Add an External Hard Drive to Reolink NVR

Step 1: Prepare the External Drive

Before connecting, ensure your drive is properly formatted and free of errors:

1. Connect the drive to a computer using the included USB cable.
2. Back up any existing data (this process will erase the drive).
3. Open File Explorer (Windows) or Finder (Mac) and right-click the drive.
4. Select “Format” and choose NTFS (for Windows compatibility) or exFAT (for cross-platform use).
5. Set allocation unit size to “Default” and check “Quick Format.”
6. Click “Start” and wait for completion.

Tip: Use Disk Management (Windows) or Disk Utility (Mac) for advanced formatting options. Avoid FAT32 if your drive is larger than 32GB (file size limit).

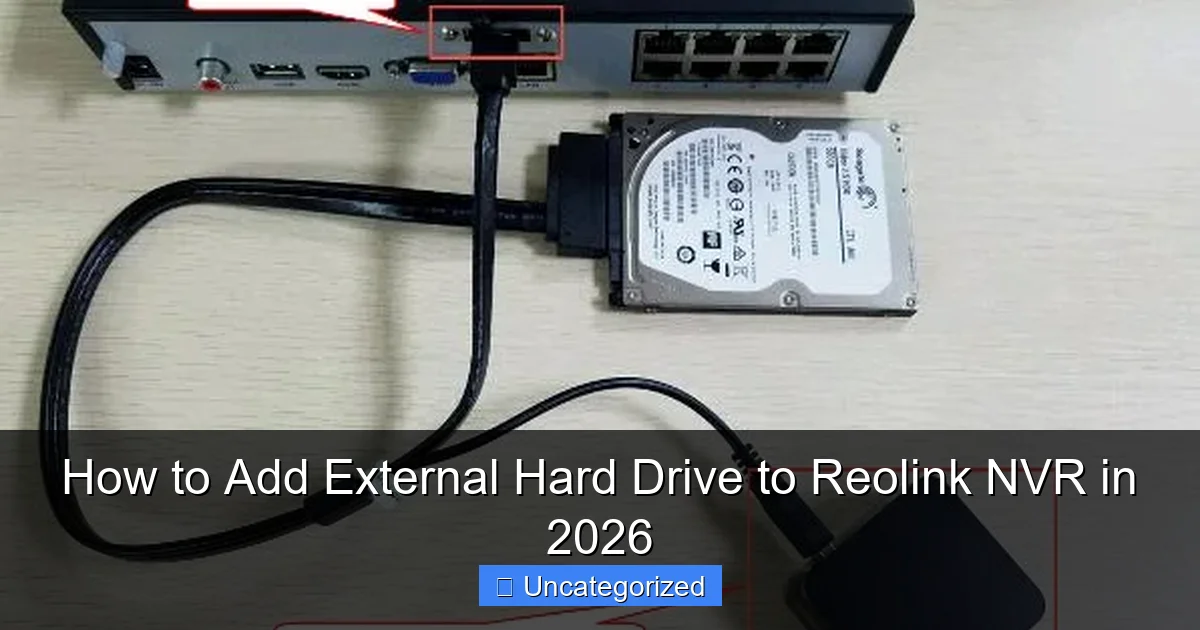

Step 2: Connect the Drive to the Reolink NVR

1. Power off the NVR to prevent data corruption.
2. Locate the USB port(s) on the NVR (typically on the back or side panel).
3. Connect the external drive using a high-quality USB 3.0 cable.
4. Plug in the drive’s power adapter (if required).
5. Power on the NVR and wait for it to boot fully (1–2 minutes).

Note: The NVR will automatically detect the drive. If it doesn’t appear, try a different USB port or cable.

Step 3: Format the Drive via Reolink NVR Interface

1. Access the NVR’s interface via:
   • Reolink Client (desktop app)
   • Web browser (enter NVR’s IP address)
   • Reolink mobile app (scan QR code)
2. Navigate to “Device Settings” > “Storage” > “HDD Management”.
3. Select the external drive from the list (labeled as “USB HDD”).
4. Click “Format” and confirm. This creates Reolink’s proprietary partition structure.
5. Wait for formatting to complete (5–30 minutes, depending on drive size).

Warning: Formatting erases all data. Do not interrupt the process.

Step 4: Configure Recording Settings

1. Go to “Recording” > “Schedule” > “Storage”.
2. Select the external drive as the primary or secondary storage.
3. Set recording mode:
   • Continuous: All footage saved to external drive.
   • Event-Only: Only motion-triggered clips saved (saves space).
   • Dual Storage: Split recordings between internal and external drives.
4. Adjust retention period (e.g., “Overwrite oldest files after 90 days”).
5. Save settings and restart the NVR if prompted.

Step 5: Verify and Test

1. Check storage status: Go to “Storage” > “HDD Info” to confirm the external drive is active.
2. Test recording: Trigger motion detection (e.g., wave your hand) and verify clips save to the external drive.
3. Monitor performance: Ensure no “HDD Error” or “Write Failure” alerts appear.

Troubleshooting Common Issues

Drive Not Detected by NVR

Symptoms: Drive not listed in “HDD Management” or shows as “Not Initialized.”

• Check USB connection: Try a different port or cable. Use USB 3.0 ports for large drives.
• Test drive on a computer: If it’s not recognized there, the drive may be faulty.
• Reformat on the computer: Use NTFS/exFAT. Avoid third-party tools.
• Update NVR firmware: Outdated firmware may lack USB drive support.

Slow Performance or Dropped Frames

Symptoms: Laggy playback, missing clips, or “Write Speed Too Low” warnings.

• Use a 7200 RPM drive: 5400 RPM drives may struggle with 4K streams.
• Reduce camera bitrate: Lower resolution or frame rate in “Camera Settings.”
• Disconnect other USB devices: Printers, flash drives, etc., can consume bandwidth.
• Check for drive errors: Run chkdsk (Windows) or First Aid (Mac).

Drive Fails to Power On

Symptoms: Drive not spinning up or LED not lit.

• Use the original power adapter: Third-party adapters may not provide enough wattage.
• Try a powered USB hub: For bus-powered drives with high power draw.
• Check power outlet: Test with another device.

File System Compatibility Errors

Symptoms: “Unsupported File System” or “Format Failed” errors.

• Reformat as NTFS: This is the most reliable option for Reolink NVRs.
• Avoid macOS-specific formats: HFS+ or APFS are not supported.
• Use a Windows PC for formatting: Macs may apply incompatible settings.

Best Practices for Managing External Storage

Regular Maintenance and Monitoring

External drives require periodic checks to ensure longevity:

• Monthly health checks: Use tools like HD Tune (Windows) or Smartmontools to monitor S.M.A.R.T. status.
• Clean dust regularly: Dust buildup can overheat drives.
• Update firmware: Both the NVR and drive (if applicable).

Data Backup Strategy

Never rely solely on one drive. Implement a 3-2-1 backup rule:

• 3 copies: Original (NVR) + External drive + Cloud/Offline backup.
• 2 media types: HDD + Cloud or HDD + USB flash drive.
• 1 offsite: Store one copy in a safe location (e.g., safety deposit box).

Example: A homeowner might use:

• Internal NVR drive (live monitoring)
• External HDD (90-day retention)
• Encrypted cloud backup (Reolink Cloud or third-party)

Optimizing for Long-Term Use

• Enable “Auto-Overwrite”: Prevents manual deletion of old footage.
• Use event-based recording: Reduces unnecessary storage use.
• Label drives: Clearly mark external drives with installation date and capacity.
• Rotate drives: For critical systems, swap drives every 2–3 years.

Drive Type	Recommended Use Case	Max Capacity (2026)	Lifespan (Avg.)	Cost per TB (USD)
Surveillance HDD (WD Purple)	24/7 recording, 4K cameras	20TB	5–7 years	$25–$30
Desktop HDD (Seagate BarraCuda)	Low-motion environments, 1080p	16TB	3–5 years	$15–$20
External SSD (Samsung T7)	Portable backups, 1–2 cameras	4TB	7–10 years	$80–$100
Network-Attached (NAS) Drive	Not supported (USB only)	N/A	N/A	N/A

Conclusion: Future-Proof Your Security System

Adding an external hard drive to your Reolink NVR in 2026 isn’t just a storage upgrade—it’s a strategic move to enhance reliability, scalability, and peace of mind. With high-resolution cameras, AI analytics, and increasing regulatory requirements for data retention, the days of relying solely on internal drives are over. By following this guide, you’ve learned how to select the right drive, connect it seamlessly, configure recording settings, and troubleshoot common issues.

Remember, the key to long-term success lies in proactive maintenance and a layered backup strategy. Whether you’re securing a family home, a retail store, or a commercial facility, an external hard drive transforms your Reolink NVR into a resilient, future-ready system. As surveillance technology continues to advance, staying ahead of storage demands ensures you’re always prepared—no matter what the future holds. Invest in the right tools, follow best practices, and your security footage will remain accessible, secure, and ready when you need it most.

Frequently Asked Questions

How do I add an external hard drive to my Reolink NVR?

To add an external hard drive to your Reolink NVR, connect the drive via USB to the NVR’s port, then go to Device Settings > Storage > HDD Management to format and initialize it. Ensure the drive is compatible (FAT32/NTFS) and powered externally if over 3TB.

Can I use an external hard drive for extra storage on my Reolink NVR?

Yes, Reolink NVRs support external hard drives for expanded storage. Simply plug in the drive, format it through the NVR interface, and assign it as a backup or primary storage device in the settings.

Why isn’t my Reolink NVR recognizing my external hard drive?

Your drive may not be formatted correctly (use NTFS for drives over 32GB) or lack sufficient power. Try reformatting it via the NVR’s HDD Management menu or use a powered USB hub for larger drives.

What external hard drive formats work with Reolink NVR in 2026?

Reolink NVRs support FAT32 (for drives ≤32GB) and NTFS (for drives >32GB). For optimal performance, pre-format the drive using the NVR’s built-in formatting tool under Storage Settings.

How do I set up continuous recording on an external hard drive with my Reolink NVR?

After connecting and formatting the drive, navigate to Storage > Record Settings and select “Continuous” under the recording schedule. Ensure the drive has enough capacity to handle your camera’s bitrate and retention needs.

Can I use both internal and external hard drives on my Reolink NVR simultaneously?

Yes, Reolink NVRs allow dual storage (internal + external). Configure each drive’s recording priority in Storage > HDD Management, with options to set one as primary and the other for backups or overflow.
