Adding an IP camera to OBS is easier than you think! This guide walks you through connecting your network camera to OBS Studio using RTSP, USB capture, or software tools. Whether you’re streaming a security feed or enhancing your broadcast setup, we’ve got you covered with clear steps and expert advice.
Quick Answers to Common Questions
Can I use any IP camera with OBS?
Not all IP cameras work out-of-the-box with OBS. Look for models that support RTSP streaming or have OBS-compatible drivers. Check reviews and forums before purchasing.
Do I need special software to add an IP camera to OBS?
No—OBS has built-in support for RTSP streams via the Media Source filter. For non-RTSP cameras, you may need a capture card or helper software like VLC or ONVIF Device Manager.
Why is my IP camera feed lagging in OBS?
Lagging is usually caused by high resolution, Wi-Fi interference, or insufficient bandwidth. Try lowering the resolution, switching to Ethernet, or reducing the frame rate in your camera settings.
Can I use multiple IP cameras in one OBS scene?
Yes! Add each camera as a separate source (using Media Source or Window Capture) and position them within your scene layout. You can even create picture-in-picture effects.
Is it safe to stream my IP camera feed online?
Only if properly secured. Change default passwords, disable remote access unless necessary, and use strong encryption. Consider placing sensitive cameras on isolated networks.
How to Add IP Camera to OBS: Complete Step-by-Step Guide
Have you ever wanted to include your security camera feed in a live stream? Or maybe you’re building a multi-camera broadcast setup and need to integrate an IP camera into OBS Studio? You’re not alone. Adding an IP camera to OBS opens up creative possibilities for streamers, educators, content creators, and security professionals alike.
In this comprehensive guide, we’ll walk you through exactly how to add an IP camera to OBS—whether it’s a standalone network camera, a surveillance system, or even a smartphone acting as a wireless camera. We’ll cover multiple methods, from direct RTSP integration to using capture devices, and include troubleshooting tips to keep your stream running smoothly.
By the end of this guide, you’ll know how to connect your IP camera to OBS, optimize settings for performance, and avoid common pitfalls. Let’s get started!
What Is an IP Camera?
An IP camera—short for Internet Protocol camera—is a digital video camera that transmits data over a network or the internet. Unlike traditional analog cameras, IP cameras convert video into digital signals and send them via Ethernet cables or Wi-Fi. They often come with advanced features like motion detection, night vision, two-way audio, and remote access.

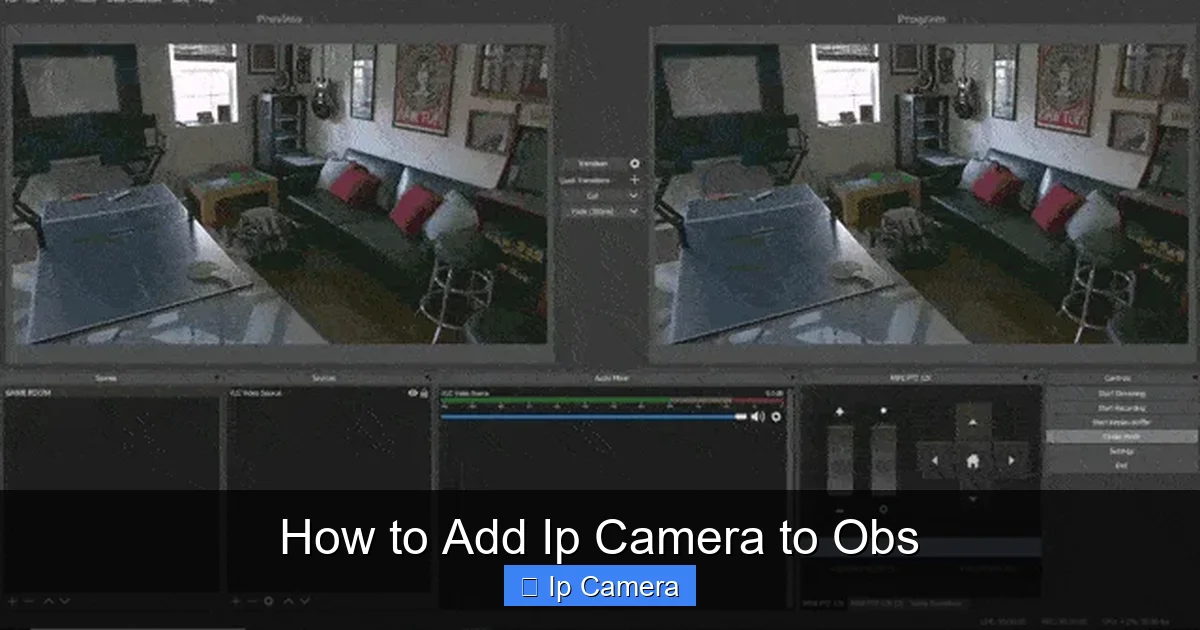

Visual guide about How to Add Ip Camera to Obs
Image source: ptzoptics.com
Popular brands include Hikvision, Dahua, Axis, Reolink, Amcrest, and UniFi. Many also support industry-standard protocols like RTSP (Real-Time Streaming Protocol), which makes them compatible with software like OBS Studio.
Why Add an IP Camera to OBS?
Integrating an IP camera into OBS allows you to:
- Include real-time security footage in your streams
- Create dynamic multi-angle broadcasts (e.g., showing audience reactions alongside your main camera)
- Monitor events remotely while streaming
- Build professional-looking productions without expensive hardware
Whether you’re hosting a Q&A session and want to show off your workspace or streaming a live event with crowd safety monitoring, OBS gives you full control over what appears on screen.
Prerequisites Before You Begin
Before diving in, make sure you have the following:
- A working IP camera connected to your network
- OBS Studio installed on your computer (download from obsproject.com)
- The IP camera’s RTSP URL (usually found in its web interface)
- Your computer and camera on the same local network (or configure port forwarding if accessing remotely)
- A stable internet connection (especially if streaming remotely)
Finding Your IP Camera’s RTSP URL
Most IP cameras support RTSP streaming, which OBS can use directly. To find your camera’s RTSP URL:
- Log into your camera’s web interface (typically by typing its IP address into a browser).
- Look under “Network” > “Streaming” or “RTSP” settings.
- The default RTSP URL usually follows this format:
rtsp://[username]:[password]@[camera_ip]:[port]/stream[1/2] - Example:
rtsp://admin:mypassword@192.168.1.100:554/stream1
If you can’t locate the RTSP settings, consult your camera’s manual or manufacturer’s website. Some cameras require enabling RTSP first.
Method 1: Adding IP Camera via RTSP in OBS (Recommended)
This is the most common and reliable way to add an IP camera to OBS. It uses the camera’s built-in RTSP stream.
Step 1: Open OBS Studio
Launch OBS Studio on your computer. If you haven’t installed it yet, download it from obsproject.com.
Step 2: Go to Sources Panel
In the bottom-left corner, click the + button under “Sources” to add a new source.
Step 3: Select “Media Source” or “Video Capture Device”
- For RTSP streams: Choose “Media Source” (best for RTSP URLs).
- Alternative: Use “Video Capture Device” if your camera appears as a virtual device (rare with IP cameras).
Step 4: Name Your Source and Click OK
Give your source a recognizable name like “IP Camera – Front Door” and click OK.
Step 5: Enter the RTSP URL
In the newly added source window:
- Click the folder icon next to “Source”.
- Paste your RTSP URL into the field labeled “URL”.
- Enable “Loop” only if you want the stream to repeat when disconnected (not recommended for live feeds).
- Click OK.
Step 6: Adjust Resolution and Performance Settings
OBS may auto-detect the resolution, but you can manually set it under “Resolution Scaling” and “FPS”. Match these values to your camera’s native output (e.g., 1280×720 at 30fps).
Step 7: Preview and Test
Click the Preview button at the bottom of OBS to see the feed. If the video plays, you’re ready to go live!
Method 2: Using a USB Capture Card (For Non-RTSP Cameras)
If your IP camera doesn’t support RTSP or you’re having trouble with the stream, you can use a USB capture card to convert the video signal.
Step 1: Connect Camera to Capture Card
Use an HDMI or SDI cable (depending on your camera model) to connect your IP camera to the capture card.
Step 2: Plug Capture Card into Computer
Insert the USB end of the capture card into your PC or Mac.
Step 3: Add Video Capture Device in OBS
- Click + in the Sources panel.
- Select “Video Capture Device”.
- Name it and click OK.
- From the device dropdown, select your capture card.
- Adjust resolution and FPS as needed.
Note:
This method works best with cameras that output HDMI/SDI signals. Not all IP cameras support this—check your model specs first.
Method 3: Using Third-Party Software (VLC, ONVIF, etc.)
If OBS doesn’t recognize your camera directly, you can use intermediary software to bridge the gap.
Using VLC Media Player
- Open VLC and go to Media > Open Network Stream.
- Paste your RTSP URL and click Play.
- Once the stream loads, go to Tools > Codec Information to confirm it’s working.
- In OBS, add a Window Capture source and select the VLC window.
Using ONVIF Device Manager
- Download and install ONVIF Device Manager.
- Add your camera using its IP, username, and password.
- Right-click the device and choose Start Live View.
- In OBS, use Window Capture to grab the live view window.
Optimizing Performance for Smooth Streaming
Adding an IP camera shouldn’t slow down your entire stream. Here’s how to keep things running smoothly:
Reduce Resolution and Bitrate
High-resolution streams strain your CPU and network. Lower the camera’s output to 720p instead of 1080p if needed.
Use Wired Ethernet
Wi-Fi can introduce lag or dropouts. Connect both your camera and computer to a router via Ethernet for maximum stability.
Close Background Apps
Free up system resources by closing unnecessary programs, especially bandwidth-heavy ones like downloads or video editors.
Update OBS and Drivers
Ensure OBS is updated to the latest version. Also update your network adapter and graphics card drivers.
Enable Hardware Encoding
In OBS Settings > Output, use NVENC (NVIDIA), AMF (AMD), or Quick Sync (Intel) instead of x264 for better performance.
Troubleshooting Common Issues
Issue 1: Black Screen or No Video
- Double-check the RTSP URL for typos.
- Verify the camera and computer are on the same network.
- Try pinging the camera’s IP address from your computer.
- Restart both the camera and OBS.
Issue 2: Laggy or Stuttering Feed
- Lower the resolution or frame rate in OBS.
- Switch from Wi-Fi to Ethernet.
- Reduce the bitrate in your camera’s settings.
- Close other applications using bandwidth.
Issue 3: Authentication Failed
- Confirm the username and password are correct.
- Some cameras require changing default credentials immediately.
- Check if the camera uses HTTP Basic Auth or Digest Auth.
Issue 4: Audio Not Working
Most IP cameras don’t transmit audio over RTSP. To add audio:
- Use a separate microphone or audio input.
- If your camera supports audio, ensure it’s enabled in its settings and check OBS audio sources.
Issue 5: Camera Not Detected Over Internet
- Set up port forwarding on your router (usually port 554 for RTSP).
- Use a DDNS service if your ISP assigns dynamic IPs.
- Consider cloud-based solutions like Reolink or Amcrest for remote access.
Security Best Practices When Using IP Cameras
IP cameras are powerful tools—but they can also be security risks if misconfigured.
- Change Default Passwords: Never leave your camera using “admin/admin”.
- Disable Unused Features: Turn off UPnP, remote admin, and FTP if not needed.
- Use HTTPS and Certificates: Enable encrypted connections where possible.
- Regularly Update Firmware: Manufacturers release patches for vulnerabilities.
- Isolate Cameras on a Separate Network: Use VLANs or guest networks to limit exposure.
Advanced Tips for Power Users
- NDI Integration: Some IP cameras support NDI (Network Device Interface). Use OBS’s NDI plugin to stream directly without RTSP.
- Multi-Camera Switching: Add multiple IP cameras as separate sources and switch between them during streams.
- Motion Detection Alerts: Trigger OBS scenes based on camera motion using third-party automation tools.
- Record Locally + Stream: Use OBS to simultaneously record the camera feed and broadcast it live.
Conclusion
Adding an IP camera to OBS is a game-changer for anyone looking to enhance their live streams with real-world visuals. With the right setup—usually involving an RTSP URL—you can integrate your network camera seamlessly into your broadcast without expensive gear or complex wiring.
Remember to test your setup beforehand, optimize performance settings, and follow security best practices. Whether you’re streaming a product demo, hosting a webinar, or monitoring a live event, your IP camera can become a valuable asset in your production toolkit.
Ready to give it a try? Grab your camera, fire up OBS, and start creating more engaging content today!
