Adding IP cameras to an NVR is easier than you think! This guide walks you through connecting, configuring, and managing your network video recorder with clear steps and practical tips. Whether you’re building a new system or expanding your existing setup, you’ll learn how to ensure reliable video feeds, secure connections, and full remote access.
Quick Answers to Common Questions
Should I use Wi-Fi or Ethernet for my IP cameras?
For reliability and security, use Ethernet with PoE. Wi-Fi can drop signals during storms or interference, and encrypted wireless traffic uses more bandwidth than necessary for video streaming.
Can I mix brands of IP cameras with my NVR?
Yes—especially if all devices support ONVIF or RTSP. However, advanced features (like color night vision or AI analytics) may only work within the same brand ecosystem.
How many cameras can one NVR handle?
It depends on the model. Entry-level NVRs support 4 channels, while enterprise units handle 64+. Check your NVR’s specs for maximum supported cameras and resolution.
Do I need a separate server to run my NVR?
No. Modern NVRs are self-contained appliances with built-in storage (HDD/SSD), processors, and operating systems. They plug in and run without needing extra hardware.
What if my NVR doesn’t have PoE ports?
Use a PoE switch or individual PoE injectors. Each injector powers one camera and sends data over a single Ethernet cable—simple and cost-effective for small setups.
How to Add IP Cameras to NVR: A Complete Step-by-Step Guide
Setting up a professional-grade security system doesn’t have to be intimidating. Whether you’re protecting your home, small business, or warehouse, adding IP cameras to a Network Video Recorder (NVR) gives you high-resolution video, remote access, and intelligent features like motion detection and cloud storage. This guide will walk you through everything from planning your setup to troubleshooting common issues—so you can get your surveillance system running smoothly in no time.
What You’ll Learn
By the end of this article, you’ll know exactly how to:
- Choose compatible IP cameras and NVRs
- Physically connect cameras using Ethernet (PoE)
- Assign proper IP addresses to each camera
- Add cameras to your NVR using auto-discovery or manual configuration
- Configure settings like resolution, frame rate, and recording modes
- Troubleshoot connection problems and ensure system stability
Before You Start: Planning Your Setup
Understand IP Cameras vs. Analog Cameras
Unlike older analog systems that use coaxial cables and require separate DVRs, IP cameras send digital video over a network directly to an NVR. This means better image quality (up to 4K), easier scalability, and advanced analytics like facial recognition or people counting—but only if both the camera and NVR support these features.
Check Camera & NVR Compatibility
Not all IP cameras work with every NVR. Look for compatibility in one of these ways:
- ONVIF Support: An industry standard that guarantees interoperability between brands.
- RTSP Stream: Real-Time Streaming Protocol lets you pull video feeds manually.
- Manufacturer Lists: Many NVR makers publish supported camera models on their websites.
Gather Your Equipment
You’ll need:
- An NVR (with at least one available channel)
- IP cameras (wired recommended)
- Ethernet cables (Cat5e or Cat6, preferably longer than needed)
- A PoE switch or PoE injector (if your NVR lacks built-in PoE ports)
- A computer or smartphone for initial setup
- A router with DHCP enabled
Step 1: Physically Connect the Cameras
Option A: Direct Connection to NVR (Best for Small Systems)
- Plug one end of an Ethernet cable into the NVR’s PoE port.
- Run the other end to your first camera.
- Ensure the camera powers on (LED indicator should light up).

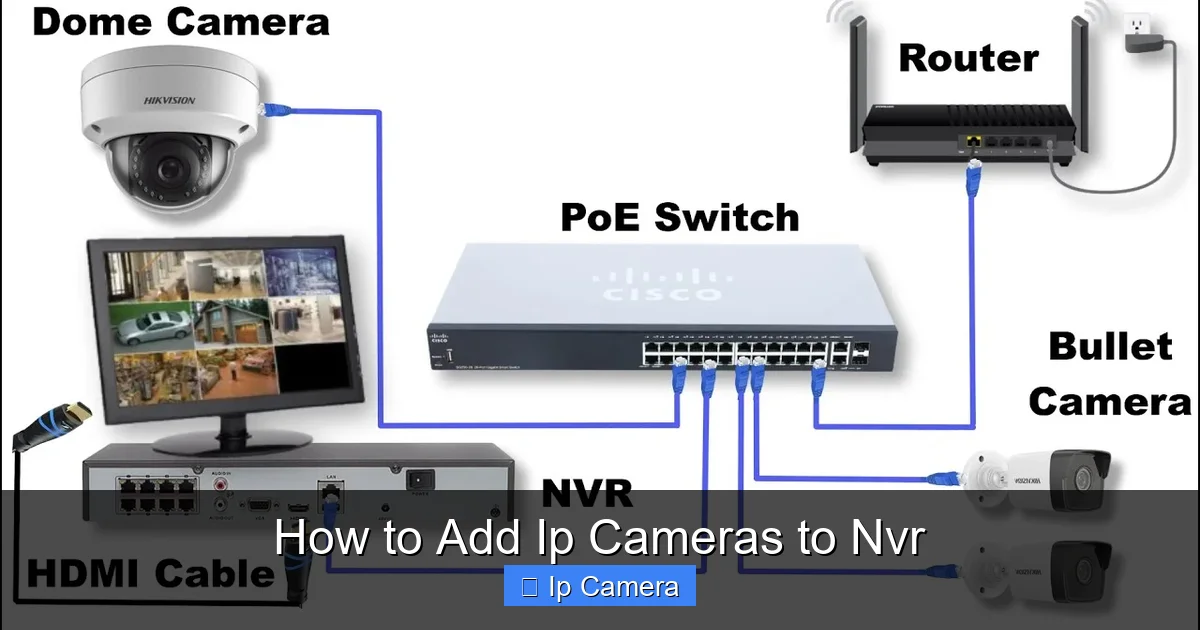

Option B: Using a PoE Switch (Scalable Solution)
- Connect the PoE switch to your router via Ethernet.
- Link the NVR to the same switch using another cable.
- Attach all cameras to available PoE ports on the switch.
Pro Tip: Label each cable at both ends to avoid confusion during installation or future maintenance.
Step 2: Assign IP Addresses to Cameras
Why Static IPs Matter
When a camera gets its address via DHCP (the default), it might change after reboots or network restarts. That breaks your NVR’s ability to find it. A static or reserved IP ensures consistency.
Method 1: Reserve IPs via Router (Recommended)
- Log into your router’s admin panel (usually at 192.168.1.1).
- Find the “DHCP Reservation” or “Address Reservation” section.
- Note each camera’s MAC address (found in its web interface under “Network Settings”).
- Assign a fixed IP (e.g., 192.168.1.101–192.168.1.110) linked to that MAC.
Method 2: Set Static IPs Manually on Cameras
- Access the camera’s web interface by typing its current IP into a browser.
- Go to Network > Basic Settings.
- Change from “Obtain IP Automatically” to “Static IP.”
- Enter:
- IP Address: e.g., 192.168.1.101
- Subnet Mask: 255.255.255.0
- Default Gateway: Your router’s IP (e.g., 192.168.1.1)
Step 3: Add Cameras to Your NVR
Automatic Discovery (Fastest Method)
- Open your NVR’s desktop interface or mobile app.
- Navigate to Device Management > Search.
- Click “Auto Search” or “Scan.” The NVR will detect connected cameras.
- Select the detected cameras and click “Add.”
Manual Addition (For Non-Discovery Cameras)
- In the NVR interface, go to Add Device > Manual Add.
- Enter:
- IP Address of the camera
- Port (usually 80, 554, or 8000)
- Username and password (default is often admin/admin)
- Click “Connect Test” to verify.
- If successful, save the settings.
Verify Camera Status
Once added, check the NVR’s main screen. Each camera should show a live feed. If not, look for red X icons—these indicate connection failures.
Step 4: Configure Recording & Alerts
Set Up Continuous or Event-Based Recording
- Continuous: Records 24/7. Best for high-security areas.
- Motion-Activated: Saves space and bandwidth by recording only when movement is detected.
Adjust Quality Settings
Lower bitrates save storage but reduce clarity. For example:
- Indoor cameras: 2MP at 1–2 Mbps
- Outdoor cameras: 4MP at 4–6 Mbps (with good lighting)
Enable Push Notifications
Most NVR apps let you receive instant alerts on your phone when motion is detected. Turn this on in Settings > Notification > Motion Alert.
Step 5: Secure Your System
Change Default Credentials
Hackers scan networks daily for devices still using “admin/password.” Immediately change usernames and passwords for both the NVR and each camera.
Update Firmware Regularly
Check manufacturer websites monthly for firmware updates. These often fix bugs and patch vulnerabilities.
Disable Unused Services
If your camera has UPnP or Telnet enabled, turn them off unless absolutely necessary—they create security holes.
Troubleshooting Common Issues
Camera Shows “Offline” After Adding
- Check physical connections—loose cables are the #1 cause.
- Confirm the camera’s IP hasn’t changed.
- Ping the camera’s IP from a computer to test basic connectivity.
No Video Feed Despite Successful Addition
- Verify the correct video stream type (main/sub) is selected in NVR settings.
- Try accessing the camera directly via its IP in a browser.
- Ensure firewall isn’t blocking ports 80, 554, or 8000.
NVR Can’t Find Cameras During Auto-Search
- Make sure cameras and NVR are on the same subnet (e.g., both start with 192.168.1.x).
- Try temporarily disabling your router’s firewall during setup.
- Use a dedicated VLAN if you have a complex network.
Conclusion
Adding IP cameras to an NVR transforms your space into a smart, responsive security environment. With the right planning, simple tools, and attention to detail, even beginners can build a reliable system within a few hours. Remember: compatibility matters, physical connections are king, and security starts with strong passwords. Once set up, enjoy peace of mind knowing your property is protected—day or night, locally or remotely.
Ready to expand? Most NVRs support 8 to 32 channels. Just follow the same steps to add more cameras as your needs grow. And always keep backups of your NVR configuration—just in case!
