Connecting a PoE switch to your NVR in 2026 is a seamless way to expand your surveillance system’s reach and power multiple IP cameras without extra cabling. By linking the PoE switch directly to your NVR’s LAN port, you enable plug-and-play compatibility, automatic device discovery, and centralized power and data management. Ensure your switch and NVR support the same PoE standards (like 802.3af/at) for optimal performance and future-proof scalability.

Key Takeaways

• Verify compatibility: Ensure your NVR and PoE switch support the same standards before connecting.
• Power off first: Always disconnect power before adding or modifying network connections.
• Use Cat6 cables: Opt for high-quality cabling to support faster data and stable power delivery.
• Connect via LAN port: Link the PoE switch to the NVR’s LAN port, not the camera port.
• Check PoE budget: Confirm the switch can power all connected cameras without overload.
• Configure VLANs if needed: Segment traffic for better performance and security in large setups.

How to Add a PoE Switch to an NVR: The Ultimate 2026 Integration Guide

In the rapidly evolving world of surveillance technology, the integration of Power over Ethernet (PoE) switches with Network Video Recorders (NVRs) has become a cornerstone of modern security infrastructure. Whether you’re upgrading an existing system or building a new one from scratch, understanding how to add a PoE switch to an NVR is critical for maximizing efficiency, scalability, and performance. By 2026, the global video surveillance market is projected to exceed $75 billion, with PoE-powered systems accounting for over 60% of new installations. This surge is driven by the simplicity, cost-effectiveness, and reliability that PoE brings to IP camera networks.

Adding a PoE switch to your NVR setup isn’t just about plugging in cables—it’s about creating a unified, intelligent network that supports high-resolution cameras, remote access, and future expansion. From small businesses to large campuses, the ability to power and connect multiple cameras over a single Ethernet cable reduces clutter, lowers installation costs, and enhances system resilience. However, without proper planning, configuration, and compatibility checks, this integration can lead to performance bottlenecks, power failures, or even complete system outages. This guide walks you through every step of the process, from hardware selection to final testing, ensuring a seamless and future-proof setup in 2026 and beyond.

Understanding the Basics: PoE Switches and NVRs Explained

What Is a PoE Switch?

A Power over Ethernet (PoE) switch is a network switch that delivers both data and electrical power to compatible devices—most commonly IP cameras, access points, and intercoms—over standard Ethernet cabling (typically Cat5e, Cat6, or Cat6a). Instead of requiring separate power cables and electrical outlets, PoE switches use the same cable for data transmission and power delivery. This dual functionality is governed by IEEE 802.3 standards, including:

• 802.3af (PoE): Delivers up to 15.4W per port, suitable for most standard-resolution IP cameras.
• 802.3at (PoE+): Provides up to 30W per port, ideal for PTZ cameras, dome cameras with heaters, and high-resolution models.
• 802.3bt (PoE++ or 4PPoE): Offers up to 60W (Type 3) or 100W (Type 4), used for advanced devices like thermal cameras or multi-sensor units.

For example, a 24-port PoE+ switch can power and connect up to 24 IP cameras, eliminating the need for 24 separate power adapters or electrical circuits. This is especially valuable in remote or hard-to-wire locations.

What Is an NVR?

A Network Video Recorder (NVR) is a specialized computer system that records and manages video streams from IP cameras. Unlike traditional DVRs that process analog signals, NVRs work exclusively with digital IP cameras, storing video on internal or external hard drives, NAS, or cloud storage. Modern NVRs in 2026 offer advanced features such as:

• AI-powered motion detection and facial recognition
• Remote access via mobile apps and web browsers
• RAID storage configurations for redundancy
• Support for 4K, 8MP, and even 12MP cameras
• Integration with access control and alarm systems

NVRs typically include a limited number of PoE ports (e.g., 8 or 16), which is where external PoE switches come into play. When your camera count exceeds the NVR’s built-in PoE capacity, adding an external PoE switch becomes essential.

Why Combine a PoE Switch with an NVR?

Integrating an external PoE switch with your NVR offers several advantages:

• Scalability: Expand your system from 16 to 64+ cameras without upgrading the NVR.
• Centralized Power Management: Monitor and reset power remotely via the switch’s management interface.
• Redundancy: Use a managed switch with STP (Spanning Tree Protocol) to prevent network loops and ensure uptime.
• Cost Savings: Reduce cabling, electrical work, and hardware costs.
• Future-Proofing: Support higher-wattage cameras and future technologies like Wi-Fi 6E access points.

For instance, a retail chain with 50 stores might use a single NVR per location with a 24-port PoE switch to handle 20 cameras, two access points, and two intercoms—all powered and networked efficiently.

Choosing the Right PoE Switch for Your NVR Setup

Assessing Power and Port Requirements

Before purchasing a PoE switch, conduct a thorough power audit. Each IP camera consumes a specific amount of power, and the total must not exceed the switch’s budget. For example:

• Standard 2MP camera: 5–7W
• 4K PTZ camera: 12–20W
• Thermal or dual-lens camera: 25–35W

Use the formula: Total Power (W) = Σ (Camera Wattage × Quantity). If you plan to connect 18 cameras averaging 10W each, you’ll need at least 180W of PoE power. Always include a 20% buffer (216W total) for future additions. A 24-port PoE+ switch with 250W total PoE budget (e.g., TP-Link TL-SG1428PE) would be ideal.

Managed vs. Unmanaged Switches

The choice between managed and unmanaged switches depends on your technical needs:

• Unmanaged Switches: Plug-and-play, no configuration. Best for small systems (under 16 cameras) with no need for VLANs, QoS, or monitoring. Example: Netgear GS308P.
• Managed Switches: Offer advanced features like:
  • Port-based VLANs to segment camera traffic
  • QoS (Quality of Service) to prioritize video streams
  • SNMP monitoring for real-time diagnostics
  • Remote power cycling of ports

  Ideal for large-scale deployments. Example: Ubiquiti UniFi Switch Pro 24 PoE.

Tip: For systems with 20+ cameras or AI analytics, a managed switch is strongly recommended to prevent network congestion and ensure smooth video playback.

Network Speed and Cable Considerations

Match your switch’s speed to your cameras and NVR. Most 2026 IP cameras support 1000 Mbps (Gigabit), so use a Gigabit PoE switch (not 10/100 Mbps). Key specifications:

• Backplane Bandwidth: Should exceed the total data throughput. For 24 Gigabit ports, look for ≥ 48 Gbps.
• Forwarding Rate: ≥ 35.7 Mpps (packets per second) for full-line-rate performance.
• Cable Type: Use Cat6 or Cat6a for runs over 50 meters to maintain Gigabit speeds and reduce interference.

Example: A 100-meter run with Cat5e may degrade to 100 Mbps, causing video lag. Upgrading to Cat6a ensures consistent Gigabit performance.

Step-by-Step Installation: Connecting the PoE Switch to Your NVR

Step 1: Power Down and Plan the Layout

Begin by shutting down your NVR and all connected devices. Map your installation:

• Locate the NVR in a central, ventilated area (e.g., server room or closet).
• Position the PoE switch within 100 meters of the NVR (Ethernet limit).
• Plan camera locations and cable routes to minimize bends and exposure to moisture/EMI.

Safety Tip: Use cable trays, conduit, or raceways for in-wall or outdoor runs to comply with NEC (National Electrical Code) and prevent tripping hazards.

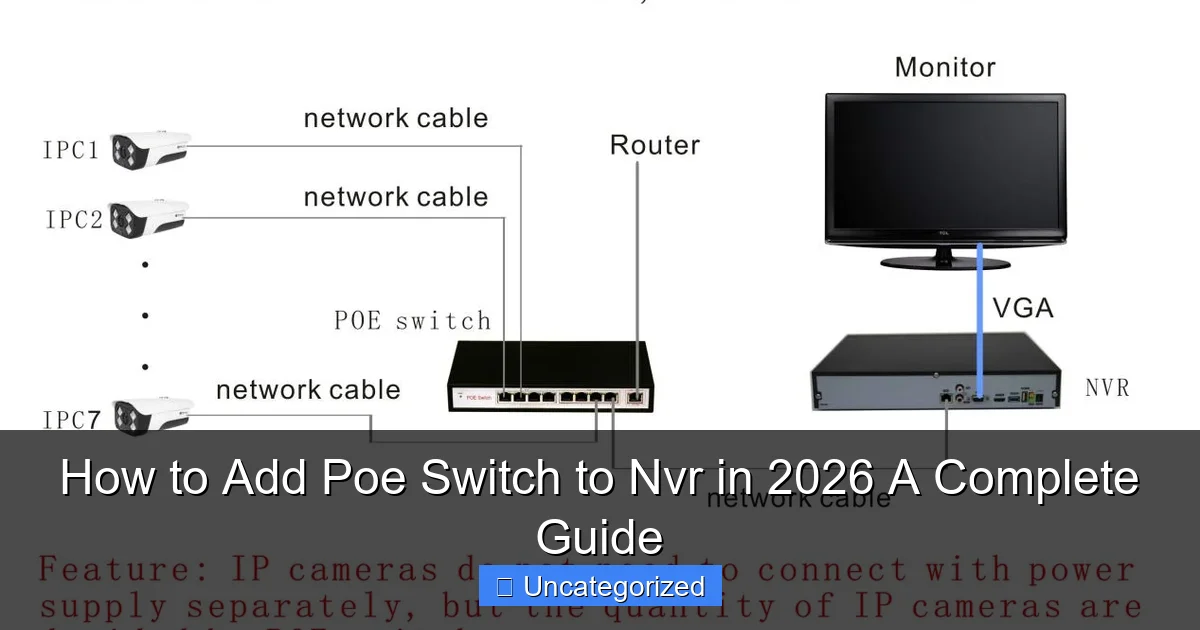

Step 2: Connect the PoE Switch to the NVR

Use a high-quality Ethernet cable (Cat6 or better) to link the NVR and PoE switch:

1. Plug one end into any LAN port on the PoE switch.
2. Connect the other end to a LAN port on the NVR (not the PoE ports).
3. Power on the PoE switch first, then the NVR.

Why not PoE ports? The NVR’s built-in PoE ports are reserved for direct camera connections. The switch-to-NVR link is purely data, so use standard LAN ports.

Step 3: Connect IP Cameras to the PoE Switch

For each camera:

1. Run an Ethernet cable from the camera’s location to a PoE port on the switch.
2. Securely terminate the cable with an RJ45 connector (use a crimper and tester).
3. Plug the cable into the camera and the switch. The camera should power on automatically.

Pro Tip: Label each cable at both ends (e.g., “CAM-01”) to simplify troubleshooting.

Step 4: Configure the Network (Managed Switches)

If using a managed switch, access its web interface (usually via 192.168.1.1 or a dedicated app):

• Assign a static IP address to the switch (e.g., 192.168.1.20).
• Create a VLAN (e.g., VLAN 10) for all camera ports to isolate traffic.
• Enable QoS and prioritize camera ports (set to “High” or “Critical”).
• Configure SNMP for remote monitoring (if supported).

Example: On a Ubiquiti switch, go to Settings > VLAN > Add VLAN 10, assign ports 1–24, and enable IGMP snooping to optimize multicast streams.

Configuring Your NVR to Recognize the PoE Switch Network

Discovering Cameras on the NVR

Most NVRs in 2026 support auto-discovery of cameras on the same subnet. After connecting:

1. Log in to the NVR’s web interface or desktop software.
2. Navigate to Camera > Add Camera.
3. Select Auto Search or Manual Search.

The NVR will scan the network and list all detected cameras. If a camera doesn’t appear:

• Check the PoE switch’s port LED (should be lit).
• Verify the camera’s IP address (use a laptop to ping it).
• Ensure the camera and NVR are on the same subnet (e.g., 192.168.1.x).

Assigning IP Addresses and Subnet Masks

For large systems, assign static IPs to avoid conflicts:

1. In the NVR, go to Camera > IP Configuration.
2. Select each camera and set a unique IP (e.g., 192.168.1.101 for CAM-01).
3. Use a consistent subnet mask (255.255.255.0 for most setups).

Tip: Use the NVR’s DHCP server to assign IPs dynamically if static IPs are not required.

Optimizing Video Settings

After discovery, adjust settings for optimal performance:

• Resolution: Match the camera’s maximum (e.g., 4K for 8MP cameras).
• Frame Rate: Set to 15–30 fps for smooth motion.
• Bitrate: Use the NVR’s recommended value or set manually (e.g., 4096 Kbps for 4K).
• Storage: Allocate sufficient space (e.g., 1 TB per 8 cameras for 30 days of retention).

Example: For a 12MP camera, a bitrate of 8192 Kbps ensures high detail without excessive storage use.

Troubleshooting Common Integration Issues

No Power to Cameras

If cameras don’t power on:

• Verify the PoE switch’s total power budget isn’t exceeded.
• Check for loose connections or damaged cables.
• Test the camera with a PoE injector (bypasses the switch).
• Ensure the switch supports the camera’s PoE standard (e.g., 802.3at for 20W cameras).

Quick Fix: Use a PoE tester (e.g., Fluke MicroScanner) to verify voltage on each port.

Cameras Not Detected by the NVR

When the NVR fails to discover cameras:

• Confirm the switch-to-NVR cable is connected to a LAN port (not PoE).
• Check VLAN settings—cameras and NVR must be on the same VLAN or routed properly.
• Disable the NVR’s firewall temporarily to test connectivity.
• Reset the camera to factory settings if it’s on a different subnet.

Note: Some NVRs require a reboot after adding new network devices.

Video Lag or Packet Loss

For choppy or delayed video:

• Test network speed with a tool like iPerf3—ensure ≥ 100 Mbps per camera.
• Enable QoS on the switch to prioritize camera traffic.
• Replace long or low-quality cables with Cat6a.
• Update the NVR and camera firmware to the latest version.

Example: A 100-meter Cat5e cable causing 50% packet loss can be resolved with a Cat6a cable or a fiber converter.

Data Table: PoE Switch Selection Guide (2026)

Switch Model	Ports	PoE Standard	Total PoE Power	Management	Best For
TP-Link TL-SG1428PE	24	802.3at (PoE+)	250W	Managed	Medium businesses (20–25 cameras)
Netgear GS308P	8	802.3af (PoE)	65W	Unmanaged	Small offices (5–8 cameras)
Ubiquiti UniFi Switch Pro 24 PoE	24	802.3bt (PoE++)	400W	Managed	Large campuses (30+ cameras, PTZ/thermal)
Cisco CBS250-24P-4X	24	802.3at (PoE+)	370W	Managed	Enterprise systems (AI analytics, redundancy)

Best Practices for Long-Term Maintenance and Security

Regular Firmware Updates

Keep your PoE switch, NVR, and cameras updated:

• Check the manufacturer’s website monthly for firmware releases.
• Schedule updates during off-peak hours to avoid downtime.
• Backup configurations before updating (especially on managed switches).

Security Tip: Disable UPnP (Universal Plug and Play) on the switch to prevent unauthorized access.

Monitoring and Alerts

Use SNMP or cloud-based monitoring tools to track:

• Port status and power consumption
• Temperature and fan speed (for rack-mounted switches)
• Camera uptime and video quality

Example: Configure the NVR to send email alerts if a camera goes offline or storage reaches 90% capacity.

Physical Security and Redundancy

Protect your investment:

• Install the NVR and switch in a locked enclosure.
• Use a UPS (Uninterruptible Power Supply) to prevent outages.
• Implement RAID storage on the NVR for data redundancy.

Future-Proofing: Consider adding a secondary PoE switch or NVR for failover in mission-critical environments.

Integrating a PoE switch with your NVR in 2026 is not just a technical upgrade—it’s a strategic decision that enhances security, reduces costs, and prepares your system for tomorrow’s challenges. By following this guide, you’ve learned how to select the right hardware, execute a flawless installation, and maintain optimal performance. Whether you’re securing a single office or a sprawling campus, the principles of compatibility, scalability, and proactive management remain universal. As surveillance technology continues to evolve, with advancements in AI, edge computing, and 5G integration, a well-designed PoE+NVR network will serve as the backbone of your security infrastructure for years to come. Start planning your next expansion today—because in security, preparedness is power.

Frequently Asked Questions

How do I connect a PoE switch to an NVR for my security system?

To connect a PoE switch to an NVR, plug the switch into the NVR’s LAN port using an Ethernet cable, then connect PoE cameras to the switch. This setup centralizes power and data transmission for seamless integration.

Can I use any PoE switch with my NVR system?

Not all PoE switches are compatible—ensure the switch supports IEEE 802.3af/at standards and matches your NVR’s bandwidth requirements. Check your NVR manufacturer’s compatibility list for best results when adding a PoE switch to NVR.

How does adding a PoE switch to NVR improve my network?

A PoE switch expands your NVR system by supporting more cameras and reducing cable clutter. It also allows flexible camera placement without needing separate power sources, streamlining installation and scalability.

Do I need a PoE switch if my NVR already has built-in PoE ports?

Only if you exceed the NVR’s port count. An external PoE switch lets you add more cameras beyond the built-in limit while maintaining power and data delivery across your surveillance setup.

What are the steps to configure a PoE switch with an NVR?

Connect the PoE switch to the NVR via Ethernet, then plug cameras into the switch. Access the NVR’s interface to auto-detect new devices or manually assign IP addresses for each camera.

Why is my NVR not detecting cameras after adding a PoE switch?

This may occur due to IP conflicts, VLAN misconfiguration, or insufficient power. Verify network settings, update firmware, and ensure the PoE switch delivers adequate wattage to all connected cameras.
