This guide walks you through adding port forwarding for multiple Foscam cameras so you can access them remotely from anywhere. You’ll learn how to configure your router, avoid port conflicts, and ensure secure, reliable connections.
Key Takeaways
- Port forwarding enables remote access: It allows you to view your Foscam cameras from outside your home network using the internet.
- Each camera needs a unique port: Assign different external ports (e.g., 8080, 8081) to avoid conflicts between multiple cameras.
- Use static IP addresses: Set fixed local IPs for your cameras so port forwarding rules don’t break after reboots.
- Router setup varies by model: The steps differ slightly depending on your router brand (e.g., TP-Link, Netgear, ASUS), but the core process is similar.
- Security matters: Always change default login credentials and consider using HTTPS or a VPN for added protection.
- Test your setup: Use tools like Foscam’s mobile app or a web browser to verify remote access works correctly.
- Troubleshooting is common: If access fails, check firewall settings, port availability, and camera IP configurations.
Introduction: Why Port Forwarding Matters for Foscam Cameras
So, you’ve got one or more Foscam security cameras set up around your home or office—great choice! These cameras offer excellent video quality, motion detection, and night vision. But here’s the thing: to check in on your feeds when you’re away—say, while on vacation or at work—you need remote access. That’s where port forwarding comes in.
Port forwarding is a networking technique that directs incoming internet traffic to a specific device on your local network—in this case, your Foscam camera. Without it, your router doesn’t know which camera to send the data to when you try to connect from outside your home Wi-Fi. Setting it up correctly means you can log in from your phone, tablet, or laptop and watch live footage anytime, anywhere.
But here’s the catch: if you have multiple Foscam cameras, you can’t just forward the same port to all of them. That would cause conflicts, and none of them would work properly. This guide will show you exactly how to configure port forwarding for multiple Foscam cameras—step by step—so each one gets its own dedicated pathway to the outside world.
We’ll cover everything from assigning static IPs to configuring your router, avoiding common pitfalls, and testing your setup. Whether you’re using a TP-Link, Netgear, ASUS, or any other mainstream router, the principles are the same. By the end, you’ll have secure, reliable remote access to all your Foscam cameras—no tech degree required.
Step 1: Understand How Port Forwarding Works

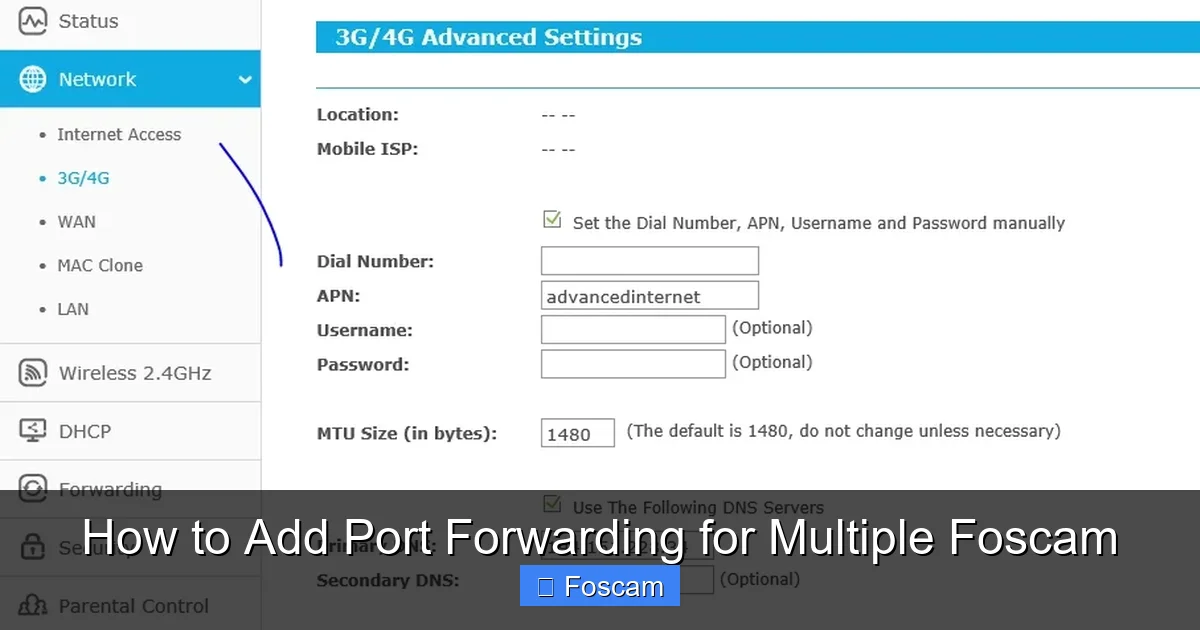

Visual guide about How to Add Port Forwarding for Multiple Foscam
Image source: uploads-eu-west-1.insided.com
Before diving into the setup, it helps to understand what port forwarding actually does. Think of your home network like an apartment building. Your router is the front desk, and each device (like your laptop, phone, or Foscam camera) is an apartment. When someone calls the building (the internet), the front desk needs to know which apartment to connect them to.
By default, your router blocks most incoming connections for security. Port forwarding tells the router: “When someone sends data to port 8080, send it to the camera in apartment 192.168.1.100.” That’s how remote access works.
Each Foscam camera uses a specific port to communicate. By default, many use port 80 for HTTP (web access) and port 443 for HTTPS. But if you have two cameras both trying to use port 80, your router won’t know which one to send traffic to. That’s why we assign unique external ports for each camera.
For example:
– Camera 1: External port 8080 → Internal port 80 → IP 192.168.1.100
– Camera 2: External port 8081 → Internal port 80 → IP 192.168.1.101
This way, when you access your public IP address followed by :8080, it goes to Camera 1. Use :8081, and it goes to Camera 2. Simple, right?
Step 2: Assign Static IP Addresses to Your Foscam Cameras
One of the most common reasons port forwarding fails is because the camera’s IP address changes. Most routers assign IPs dynamically via DHCP, which means your camera might get a new IP after a reboot. If that happens, your port forwarding rule points to the wrong device—or nothing at all.
To prevent this, you need to give each Foscam camera a static (fixed) IP address. Here’s how:
Log in to Your Foscam Camera’s Web Interface
1. Connect your computer to the same network as your Foscam camera.
2. Open a web browser and type the camera’s current IP address (usually found in the Foscam app or router admin panel). Common defaults are 192.168.1.100 or 192.168.0.100.
3. Log in with your username and password (default is often admin/admin—change this for security!).
Navigate to Network Settings
1. Go to Setup > Network > TCP/IP.
2. You’ll see fields for IP Address, Subnet Mask, Gateway, and DNS.
3. Change the IP address to a static one within your router’s range (e.g., 192.168.1.100 for Camera 1, 192.168.1.101 for Camera 2).
4. Make sure the subnet mask is usually 255.255.255.0 and the gateway is your router’s IP (often 192.168.1.1).
5. Save the settings. The camera may reboot.
Alternative: Reserve IPs in Your Router
Some routers let you reserve IP addresses based on a device’s MAC address. This is often easier and more reliable:
1. Log in to your router’s admin page (usually http://192.168.1.1 or http://192.168.0.1).
2. Find the DHCP or LAN settings section.
3. Look for “Address Reservation” or “Static DHCP.”
4. Add each Foscam camera by its MAC address (found on the camera label or in its settings).
5. Assign a unique IP (e.g., 192.168.1.100, 192.168.1.101).
6. Save and reboot the router if needed.
Now your cameras will always get the same IP, even after reboots.
Step 3: Access Your Router’s Admin Panel
To set up port forwarding, you need to log in to your router. Here’s how:
Find Your Router’s IP Address
On Windows:
1. Press Win + R, type cmd, and press Enter.
2. Type ipconfig and look for “Default Gateway”—that’s your router’s IP.
On Mac:
1. Go to System Settings > Network > Wi-Fi > Details > TCP/IP.
2. The “Router” field shows your router’s IP.
Common router IPs include 192.168.1.1, 192.168.0.1, or 10.0.0.1.
Log In to the Router
1. Open a web browser and enter the router’s IP.
2. Enter the admin username and password.
– Defaults vary: try admin/admin, admin/password, or check the router label.
– If you’ve changed it and forgotten, you may need to reset the router.
3. Once logged in, look for a section like Advanced, NAT, Port Forwarding, or Virtual Servers.
Step 4: Configure Port Forwarding for Each Foscam Camera
Now for the main event: setting up port forwarding rules. Each camera needs its own rule with a unique external port.
Create the First Port Forwarding Rule
1. In your router’s port forwarding section, click Add New or Create Rule.
2. Fill in the following fields (example for Camera 1):
– **Service Name**: Foscam_Cam1 (or any descriptive name)
– **External Port**: 8080 (this is what you’ll use remotely)
– **Internal Port**: 80 (the camera’s default HTTP port)
– **Internal IP Address**: 192.168.1.100 (your camera’s static IP)
– **Protocol**: TCP (some routers allow Both or TCP/UDP—use TCP for Foscam)
3. Save the rule.
Add Rules for Additional Cameras
Repeat the process for each camera, changing the external port and IP:
– Camera 2: External Port 8081 → Internal Port 80 → IP 192.168.1.101
– Camera 3: External Port 8082 → Internal Port 80 → IP 192.168.1.102
Tip: Use a consistent numbering system (8080, 8081, etc.) to avoid confusion.
Optional: Forward HTTPS Port (443)
If your Foscam supports HTTPS (secure browsing), you can also forward port 443:
– External Port: 8443 → Internal Port: 443 → IP: 192.168.1.100
This lets you access the camera via https://your-public-ip:8443 for encrypted viewing.
Step 5: Find Your Public IP Address
To access your cameras remotely, you need your router’s public IP address—the one the internet sees.
Check Your Public IP
1. On any device connected to your network, open a browser.
2. Go to a site like whatismyipaddress.com.
3. The number shown is your public IP (e.g., 203.0.113.45).
Note: Most home internet plans use dynamic IPs, which can change periodically. If your IP changes, you’ll lose remote access until you update it. To solve this, consider using a Dynamic DNS (DDNS) service (more on that later).
Step 6: Test Remote Access
Now it’s time to see if everything works.
Access via Web Browser
1. From a device outside your home network (e.g., phone on cellular data), open a browser.
2. Type: http://[your-public-ip]:8080 (replace with your actual IP and port).
3. You should see the Foscam login screen. Log in and view the feed.
Use the Foscam Mobile App
1. Open the Foscam app (Foscam VMS or Foscam Pro).
2. Add a new camera.
3. Choose “Manual Setup” or “IP Camera.”
4. Enter:
– IP: Your public IP
– Port: 8080 (or the external port you assigned)
– Username and password
5. Save and test the connection.
If it works, congratulations! Your port forwarding is set up correctly.
Step 7: Enhance Security (Highly Recommended)
Port forwarding opens a door to your network, so security is crucial.
Change Default Credentials
Never leave your Foscam login as admin/admin. Go to the camera’s settings and create a strong, unique password.
Enable HTTPS
Use HTTPS (port 443) instead of HTTP when possible. It encrypts your login and video stream.
Use a Strong Router Password
Ensure your router’s admin password is strong and unique.
Consider a VPN (Best Practice)
For maximum security, set up a VPN on your router. This lets you access your cameras as if you were on the home network—without exposing them to the open internet. It’s more secure than port forwarding alone.
Disable UPnP
Universal Plug and Play (UPnP) can automatically open ports, which is convenient but risky. Disable it in your router settings to prevent unauthorized access.
Step 8: Set Up Dynamic DNS (Optional but Helpful)
Since most home IPs change, a Dynamic DNS (DDNS) service gives you a permanent web address.
Choose a DDNS Provider
Popular free options:
– No-IP (noip.com)
– DuckDNS (duckdns.org)
– Dynu (dynu.com)
Configure DDNS in Your Router
1. Sign up for a DDNS service and create a hostname (e.g., myfoscam.ddns.net).
2. In your router’s admin panel, find the DDNS section.
3. Enter your DDNS provider, username, password, and hostname.
4. Save and enable.
Now, instead of remembering your public IP, you can use http://myfoscam.ddns.net:8080 to access your camera—even if your IP changes.
Troubleshooting Common Issues
Even with careful setup, problems can happen. Here’s how to fix the most common ones.
Can’t Access Camera Remotely
– Double-check the public IP and port number.
– Ensure the camera’s static IP hasn’t changed.
– Verify the port forwarding rule is active and correct.
– Try accessing from a different network (e.g., phone on 4G).
Port Conflict or “Port in Use” Error
– Make sure no two cameras use the same external port.
– Check if another device (like a web server) is using port 80 or 8080.
– Use a port scanner tool (e.g., CanYouSeeMe.org) to test if the port is open.
Camera Reboots or Loses Connection
– Confirm the static IP is properly set.
– Check power supply and network cables.
– Update the Foscam firmware via the web interface.
Slow or Laggy Video
– Your upload speed may be too low. Test it at speedtest.net.
– Reduce video resolution or frame rate in camera settings.
– Avoid streaming multiple cameras at once on slow connections.
Router Doesn’t Support Port Forwarding
– Some ISP-provided routers (e.g., certain cable modems) restrict port forwarding.
– Consider using a third-party router or contacting your ISP.
Conclusion: Enjoy Secure, Remote Access to All Your Foscam Cameras
Setting up port forwarding for multiple Foscam cameras might seem intimidating at first, but once you break it down into steps, it’s totally doable. By assigning static IPs, configuring unique port rules, and testing your setup, you’ll gain reliable remote access to every camera—whether you’re checking in from the office, on vacation, or just downstairs.
Remember: security is just as important as functionality. Always use strong passwords, enable HTTPS when possible, and consider a VPN for the best protection. And if your public IP changes often, a DDNS service will save you a lot of hassle.
With this guide, you’re not just connecting cameras—you’re building a smarter, safer home monitoring system. So go ahead, give it a try. Your future self (and your peace of mind) will thank you.
