How to Config an Ip Camera

How to Config an Ip Camera

by

Configuring an IP camera is easier than you think! This guide walks you through unboxing, wiring, network setup, and accessing your camera’s settings using a web browser or smartphone. Whether you’re setting up indoor security or outdoor surveillance, we’ll help you get live video, motion alerts, and remote viewing working in under 30 minutes.

Quick Answers to Common Questions

Tip: Use Ethernet During Setup?

Yes! Even if your camera supports Wi-Fi, connect it via Ethernet cable during initial configuration. Wired connections are faster, more stable, and less prone to interference.

Question: Do I Need a Static IP for My Camera?

Not necessarily. Most routers assign IP addresses dynamically, but you can reserve a static IP in your router’s DHCP settings for easier access. This prevents the camera’s address from changing unexpectedly.

Tip: Name Your Camera Clearly

In your router’s device list, rename your camera something like “Front Door Camera” instead of “Unknown Device.” This makes troubleshooting much easier later.

Question: Can I View My Camera Offline?

Nope. To view live footage, your camera needs an active internet connection—either through your local network or remotely via cloud or DDNS. Without connectivity, the feed won’t stream.

Tip: Keep Notes on Login Info

Write down your camera’s IP address, username, and password in a secure place (not on sticky notes!). This saves time when reconfiguring or sharing access with family members.

How to Config an IP Camera: A Step-by-Step Beginner’s Guide

Setting up an IP camera used to be a complicated process reserved only for tech experts. But today, even if you’ve never touched a router before, you can have your camera recording and streaming in under 30 minutes. In this complete guide, we’ll walk you through everything you need to know about how to config an IP camera—from unpacking the box to securing your feed.

Whether you’re installing a camera for home security, monitoring a pet, or keeping an eye on your business after hours, this guide will make the process simple, clear, and stress-free. By the end of this article, you’ll know exactly how to connect, configure, and control your IP camera like a pro.

What You’ll Learn

In this comprehensive tutorial, you’ll learn how to:

  • Unbox and inspect your IP camera
  • Connect the camera to power and your network
  • Find the camera’s IP address
  • Log into the camera’s web interface
  • Configure basic and advanced settings
  • Set up motion detection and alerts
  • Secure your camera from hackers
  • View your camera remotely
  • Troubleshoot common setup issues

Let’s get started!

Step 1: Unbox and Inspect Your IP Camera

Before you begin configuring your IP camera, take a moment to unbox it carefully and verify that all components are included. Most IP cameras come with:

  • The camera unit
  • A power adapter
  • An Ethernet cable (Cat5e or Cat6)
  • A mounting bracket and screws
  • A quick start guide (often just a QR code)

Check for any visible damage. If something looks broken, contact the seller immediately. Also, note the model number and serial number—you’ll need these later for firmware updates and support.

Pro Tip:

Keep the packaging until your camera is fully set up and working. You never know when you might need to return it!

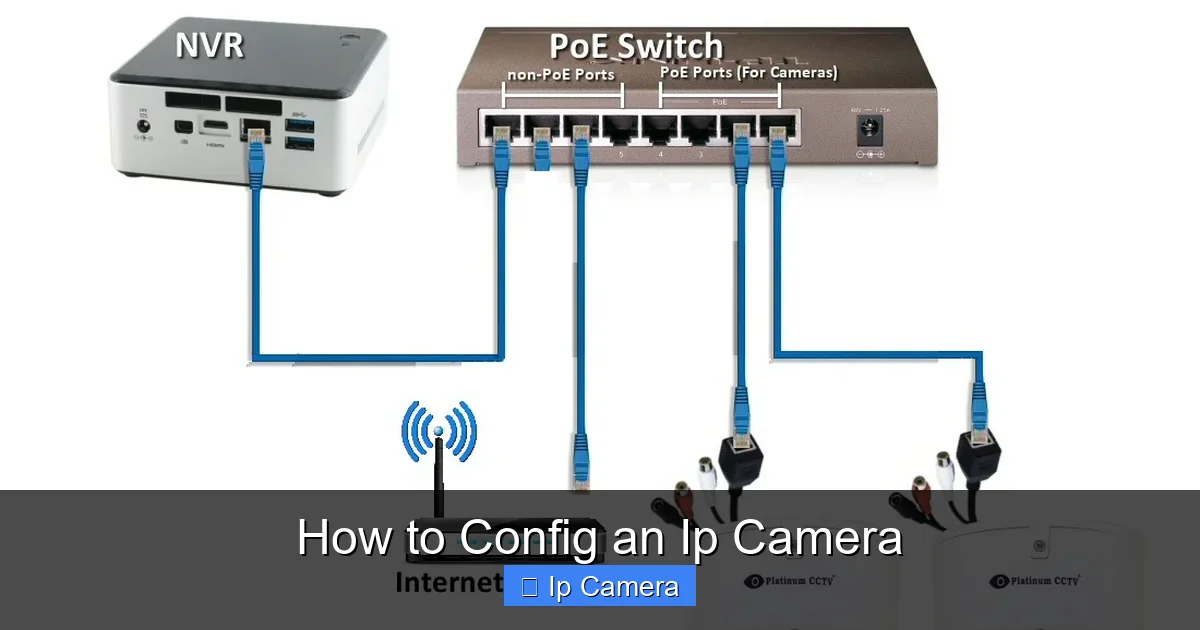

Step 2: Connect Power and Network

To config an IP camera properly, you need to establish a stable connection between the device and your network. The easiest way is using a wired Ethernet connection during initial setup.

Wired Setup (Recommended)

  1. Plug the camera into a power outlet using the provided adapter.
  2. Connect one end of the Ethernet cable to the camera’s LAN port.
  3. Plug the other end into an available port on your router or switch.

Once powered on, the camera’s status light should turn solid green or blue—indicating it has connected to the network. Wait about 30 seconds for the camera to boot up completely.

Wireless Setup (Optional)

If your camera supports Wi-Fi, you can skip the Ethernet cable. However, wireless setup is trickier because you’ll need to connect to the camera’s own temporary Wi-Fi hotspot first—then reconfigure it to join your home network. We recommend doing this only after confirming the wired setup works.

Step 3: Find the Camera’s IP Address

To config an IP camera, you must know its unique IP address on your network. Every device connected to a router gets an IP address automatically (like 192.168.1.100). Here’s how to find yours.

Method 1: Check Your Router’s Admin Panel

  1. Open a web browser and type your router’s IP address (usually http://192.168.1.1 or http://192.168.0.1) into the address bar.
  2. Log in with your admin username and password (check the router label if unsure).
  3. Look for a section labeled “Connected Devices,” “DHCP Clients,” or “Device List.”
  4. Scan the list for your camera’s MAC address (found on the camera’s label) or look for unfamiliar devices.
  5. Note the assigned IP address next to it.

Method 2: Use a Network Scanner Tool

Download a free network scanner like Fing (for mobile) or Angry IP Scanner (for PC). These tools scan your entire network and display all connected devices with their names and IP addresses. Look for entries named “Camera,” “IPC,” or similar.

Step 4: Access the Camera’s Web Interface

Now that you have the IP address, it’s time to log in and start configuring your camera.

Open the Login Page

  1. Open a web browser (Chrome, Firefox, Edge, Safari).
  2. Type the camera’s IP address into the address bar and press Enter.
  3. You should see a login screen asking for a username and password.

Default Login Credentials

Most IP cameras use one of these default combinations:

  • Username: admin / Password: admin
  • Username: admin / Password: (leave blank)
  • Username: root / Password: admin

Check the quick start guide or camera label for the exact defaults. If you can’t find them, try searching online for “[Your Camera Model] default login.”

Step 5: Change Default Passwords

This is critical for security. Hackers often target cameras with weak or default passwords.

How to Change the Password

  1. After logging in, go to Settings > System > User Management.
  2. Select the admin account and click “Edit.”
  3. Enter a strong new password (at least 8 characters, mix of letters, numbers, and symbols).
  4. Save changes.

Never reuse passwords from other accounts. Consider using a password manager to generate and store secure credentials.

Step 6: Update Firmware

Manufacturers release firmware updates to fix bugs, improve performance, and patch security holes. Always update before customizing settings.

How to Update Firmware

  1. Go to Settings > Maintenance > Firmware Upgrade.
  2. Click “Check Now” or “Search Online” to see if an update is available.
  3. If an update exists, download it (usually a .bin file) and upload it to the camera.
  4. Wait while the camera restarts—do not unplug it during this process.

After updating, log back in and verify all settings are preserved.

Step 7: Configure Basic Settings

Now let’s customize your camera’s behavior. Navigate through these key sections:

Video Settings

  • Resolution: Choose 1080p or higher for clearer images.
  • Frame Rate: 25–30 fps for smooth video.
  • Compression: H.264 or H.265 for efficient storage and bandwidth use.

Audio Settings

  • Enable two-way audio if your camera supports it (great for talking to someone at the door).
  • Mute microphone by default if privacy is a concern.

Date & Time

Set the correct timezone and enable NTP (Network Time Protocol) so timestamps on recordings are accurate.

Step 8: Set Up Motion Detection

Motion detection saves storage space and sends timely alerts. Here’s how to fine-tune it.

Enable Motion Alerts

  1. Go to Settings > Event > Motion Detection.
  2. Turn on “Enable Motion Detection.”
  3. Draw zones on the preview image where you want motion alerts (avoid trees swaying in wind).
  4. Adjust sensitivity (Low/Medium/High) based on environment.

Configure Notifications

  1. Go to Settings > Event > Notification.
  2. Enable email or push notifications.
  3. Enter your email address or link your smartphone app (if supported).

Test by walking in front of the camera—you should receive an alert within seconds.

Step 9: Secure Your Camera

Securing your IP camera prevents unauthorized access and protects your privacy.

Best Security Practices

  • Change default passwords (already covered).
  • Disable UPnP (Universal Plug and Play) unless absolutely necessary.
  • Enable HTTPS encryption in the web interface.
  • Close unused ports in firewall settings.
  • Use a guest network for IoT devices if your router supports it.

Advanced: Enable Two-Factor Authentication (2FA)

If your camera or companion app supports 2FA, enable it. This adds an extra layer of protection beyond just a password.

Step 10: Test Remote Viewing

Once everything is configured locally, test accessing your camera from outside your home network.

Option 1: Cloud Service

Many IP cameras come with a cloud service (e.g., Hik-Connect, Amcrest View Pro). Download the app, log in, and add your camera. Then try viewing it from another city or country.

Option 2: Dynamic DNS (DDNS)

If your camera doesn’t support cloud services, set up DDNS through your router or a third-party service (like No-IP). Assign a domain name (e.g., mycamera.ddns.net) to your camera’s public IP.

Then, from anywhere, visit http://mycamera.ddns.net and log in as usual.

Troubleshooting Common Issues

Even experienced users run into hiccups. Here are solutions to frequent problems.

Problem: Can’t Access Camera via Browser

  • Double-check the IP address.
  • Ensure the camera is still connected to power and network.
  • Try pinging the IP address from your computer (open Command Prompt and type “ping [IP]”).

Problem: Blank Screen or Frozen Video

  • Update firmware.
  • Reset the camera to factory defaults and retry setup.
  • Check for overheating—ensure vents aren’t blocked.

Problem: No Motion Alerts

  • Verify motion zones are drawn correctly.
  • Increase sensitivity slightly.
  • Make sure notifications are enabled and your email isn’t in spam.

Conclusion

Configuring an IP camera doesn’t have to be intimidating. By following this step-by-step guide, you’ve learned how to safely and effectively set up your device for reliable surveillance. From finding the IP address to enabling motion alerts and securing your feed, each step brings you closer to peace of mind—whether you’re protecting your home or monitoring a workspace.

Remember: always prioritize security by changing default passwords and updating firmware. And don’t forget to test remote access so you can check in from anywhere, anytime.

With your IP camera now fully configured, you’re ready to enjoy clear, secure, and smart monitoring—no technical degree required!
