How to Configure Dahua Dvr

This guide walks you through how to configure Dahua DVR systems from start to finish. You’ll learn initial setup, network configuration, recording settings, remote viewing, and troubleshooting tips—all in simple, easy-to-follow steps.

Key Takeaways

• Initial Setup Matters: Properly connecting cameras, power, and monitors ensures a smooth configuration process.
• Network Configuration is Key: Assigning a static IP and enabling DHCP helps avoid connectivity issues.
• Remote Access Made Easy: Use the DMSS app or web browser to view your DVR from anywhere with internet.
• Customize Recording Settings: Adjust motion detection, recording schedules, and storage options for efficient surveillance.
• Firmware Updates Improve Performance: Regularly updating your Dahua DVR enhances security and adds new features.
• Troubleshooting is Straightforward: Most issues like no video or lost connection can be fixed with basic checks.
• Security Best Practices: Change default passwords and enable encryption to protect your system.

How to Configure Dahua DVR: A Complete Step-by-Step Guide

Setting up a Dahua DVR (Digital Video Recorder) might seem intimidating at first, especially if you’re new to surveillance systems. But don’t worry—this guide will walk you through every step of how to configure Dahua DVR systems with clarity and confidence. Whether you’re installing a home security setup or managing a small business network, this comprehensive tutorial covers everything from physical connections to remote access and advanced settings.

By the end of this guide, you’ll know how to power up your DVR, connect cameras, configure network settings, set up recording schedules, enable motion detection, and access your system remotely using your smartphone or computer. We’ll also cover firmware updates, troubleshooting common issues, and security best practices to keep your system running smoothly and securely.

Let’s get started!

What You’ll Need Before Starting

Before diving into the configuration process, make sure you have the following items ready:

• Dahua DVR unit (e.g., XVR5104HS, NVR5216-16P, etc.)
• Compatible Dahua cameras (analog, IP, or hybrid depending on your model)
• BNC cables (for analog cameras) or Ethernet cables (Cat5e/Cat6) (for IP cameras)
• Power adapters for cameras (or PoE switch if using Power over Ethernet)
• Monitor or TV with HDMI or VGA input
• HDMI or VGA cable to connect the DVR to the monitor
• Mouse (USB or wireless)
• Router with internet access (for remote viewing)
• Computer or smartphone (for remote access setup)

Having these components ready will save you time and prevent interruptions during setup.

Step 1: Physical Setup and Connections

The first step in configuring your Dahua DVR is getting all the hardware connected properly. This ensures the system can communicate with cameras and display video.

Connect the DVR to a Monitor

Use an HDMI or VGA cable to connect your Dahua DVR to a monitor or TV. Plug one end into the DVR’s video output port and the other into the monitor. Power on both devices. You should see the Dahua logo or a setup screen appear.

Tip: If you don’t see anything on the screen, double-check the cable connections and ensure the monitor is set to the correct input source (e.g., HDMI 1).

Connect Cameras to the DVR

The method depends on your camera type:

• Analog Cameras: Use BNC cables to connect each camera to a video input port on the DVR. Also, connect the camera’s power cable to a power source or use a power distribution box.
• IP Cameras: Connect each camera to your network using Ethernet cables. If your DVR has built-in PoE (Power over Ethernet), you can plug the camera directly into the DVR’s PoE ports—no separate power needed.
• Hybrid DVRs: These support both analog and IP cameras. Connect analog cameras via BNC and IP cameras via Ethernet.

Example: If you have four analog cameras, plug each BNC cable into channels 1–4 on the DVR. For IP cameras, assign each one to a unique channel in the DVR’s settings.

Connect the DVR to Your Network

To enable remote access, connect the DVR to your router using an Ethernet cable. Plug one end into the DVR’s LAN port and the other into an available port on your router.

Note: Avoid using the WAN port unless you’re setting up a direct internet connection (not recommended for most users).

Power On the System

Once all connections are secure, plug in the DVR and cameras. Wait a minute or two for the system to boot up. You should see video feeds from your cameras on the monitor.

Step 2: Initial DVR Configuration

Now that your hardware is connected, it’s time to configure the DVR software. This is where you set up basic settings like date, time, language, and admin password.

Access the Main Menu

Use the mouse to click on the screen. You’ll see a toolbar or menu appear. Click the Menu button (usually represented by three horizontal lines or a gear icon).

Set Date and Time

Accurate time stamps are crucial for security footage. Go to:

Main Menu > System > General > Date & Time

Set the correct date, time, and time zone. Enable Auto Sync with NTP Server to keep the time accurate automatically.

Tip: Use a reliable NTP server like pool.ntp.org for best results.

Change the Default Password

For security, change the default admin password immediately. Go to:

Main Menu > System > User Management

Select the admin account and click Modify. Enter a strong password (at least 8 characters, with letters, numbers, and symbols). Confirm the new password and save.

Warning: Never leave the default password (often “admin” or blank). This is a major security risk.

Select Language and Display Settings

Choose your preferred language under System > General > Language. You can also adjust screen resolution and display layout (e.g., single view, quad view) under Display Settings.

Step 3: Configure Network Settings

To access your DVR remotely, you need to configure its network settings properly. This includes assigning an IP address and enabling internet access.

Assign a Static IP Address

A static IP ensures your DVR always has the same address on your network, making remote access reliable.

Go to:

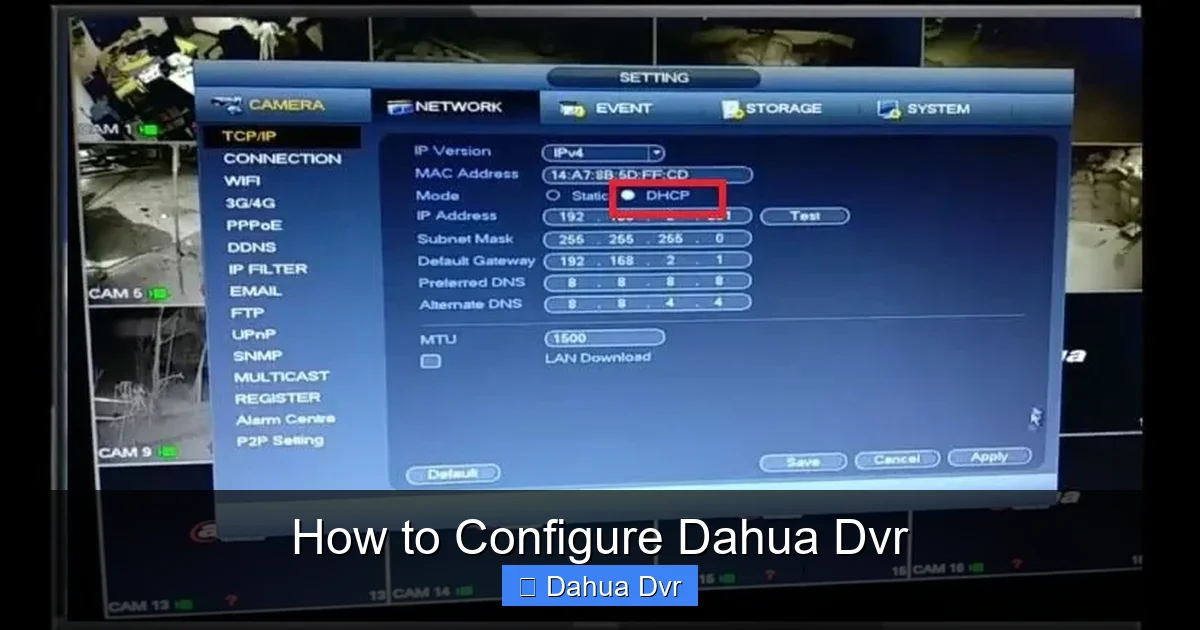

Main Menu > Network > TCP/IP

Set the following:

• IP Address: e.g., 192.168.1.100
• Subnet Mask: 255.255.255.0
• Gateway: Your router’s IP (usually 192.168.1.1)
• DNS: Use your ISP’s DNS or Google’s (8.8.8.8 and 8.8.4.4)

Make sure the IP doesn’t conflict with other devices. Click Save and reboot the DVR if prompted.

Tip: Write down the IP address—you’ll need it for remote access.

Enable DHCP (Optional)

If you prefer automatic IP assignment, enable DHCP. However, static IP is recommended for stability.

Set Up Port Forwarding (For Remote Access)

To access your DVR from outside your home network, you need to set up port forwarding on your router.

Common ports used by Dahua DVRs:

• HTTP Port: 80 (or 81, 8080)
• RTSP Port: 554
• Server Port: 37777

Log in to your router’s admin panel (usually via 192.168.1.1 in a browser). Go to Port Forwarding and add a new rule:

• Service Name: Dahua DVR
• Internal IP: Your DVR’s IP (e.g., 192.168.1.100)
• Internal Port: 80, 554, 37777
• External Port: Same as internal (or custom if needed)
• Protocol: TCP/UDP

Save the settings. Your DVR is now accessible from the internet.

Note: Some ISPs block port 80. Use port 81 or 8080 instead if needed.

Step 4: Configure Recording Settings

Now let’s set up how and when your DVR records video.

Set Recording Mode

Go to:

Main Menu > Storage > Schedule

Choose your recording mode:

• Continuous: Records 24/7
• Motion Detection: Records only when motion is detected
• Schedule: Records at specific times (e.g., business hours)
• Alarm: Records when an alarm is triggered

Select the mode that fits your needs. Most users prefer Motion Detection + Schedule to save storage and capture important events.

Configure Motion Detection

To reduce false alarms and save space, customize motion detection settings.

Go to:

Main Menu > Camera > Motion Detection

Select a camera channel. Enable motion detection and adjust:

• Sensitivity: Higher = more sensitive (but more false alarms)
• Detection Area: Draw zones where motion should be monitored (e.g., exclude trees or roads)
• Trigger Actions: Choose to record, send email, or trigger an alarm

Click Apply to save settings for that channel. Repeat for other cameras.

Tip: Test motion detection by walking in front of the camera. Check if recording starts.

Set Recording Schedule

Under Storage > Schedule, select a camera and set a weekly schedule. For example:

• Monday–Friday: 8 AM–6 PM (Motion Detection)
• Weekends: 24/7 (Continuous)

You can also set different modes for different days.

Manage Storage and Overwrite Settings

Go to:

Main Menu > Storage > HDD Management

Check your hard drive status. Set Overwrite to Enable so old footage is automatically deleted when the drive is full.

Tip: Use a high-quality surveillance HDD (e.g., WD Purple, Seagate SkyHawk) for better performance and longevity.

Step 5: Set Up Remote Access

One of the biggest advantages of a Dahua DVR is the ability to view your cameras from anywhere. Here’s how to set it up.

Option 1: Use the DMSS Mobile App

DMSS (Dahua Mobile Surveillance System) is the official app for iOS and Android.

Steps:

1. Download DMSS from the App Store or Google Play.
2. Open the app and tap Add Device.
3. Choose Manual Add.
4. Enter:
   • Device Name: e.g., “Home DVR”
   • IP Address: Your DVR’s public IP (find it via whatsmyip.com)
   • Port: 37777 (or your custom port)
   • Username: admin
   • Password: Your admin password
5. Tap Save. The app will connect to your DVR.

Tip: If connection fails, double-check port forwarding and firewall settings.

Option 2: Access via Web Browser

You can also view your DVR in a browser.

Steps:

1. Open a browser (Chrome, Firefox, etc.).
2. Enter your DVR’s public IP and port: e.g., http://123.45.67.89:8080
3. Log in with your admin credentials.
4. Install the Dahua plugin if prompted (required for video playback).

Note: Some browsers block plugins. Use Internet Explorer or enable plugin support in Chrome/Firefox.

Option 3: Use P2P (Plug-and-Play) Cloud Service

Dahua offers a P2P service for easy remote access without port forwarding.

Steps:

1. On the DVR, go to Main Menu > Network > P2P.
2. Enable P2P and note the Serial Number (or QR code).
3. In the DMSS app, scan the QR code or enter the serial number.
4. The app will connect automatically via the cloud.

Tip: P2P is simpler but may have slight delays. Use it if port forwarding is not possible.

Step 6: Update Firmware

Keeping your DVR’s firmware up to date improves performance, security, and compatibility.

Check Current Firmware Version

Go to:

Main Menu > System > Maintenance > Upgrade

Note the current version.

Download Latest Firmware

Visit the official Dahua website (www.dahuasecurity.com), go to Support > Downloads, and search for your DVR model. Download the latest firmware file (usually a .dav or .bin file).

Install the Update

Back in the DVR menu:

1. Click Browse and select the firmware file from a USB drive.
2. Click Upgrade.
3. Wait for the process to complete—do not power off the DVR.
4. The system will reboot automatically.

Warning: Never interrupt a firmware update. It can brick your DVR.

Troubleshooting Common Issues

Even with careful setup, problems can occur. Here are solutions to common issues.

No Video on Screen

• Check camera power and connections.
• Ensure the correct input channel is selected.
• Test the camera on another DVR or monitor.

Can’t Access DVR Remotely

• Verify port forwarding is correct.
• Check if your ISP blocks certain ports.
• Try using P2P instead.
• Restart the router and DVR.

Motion Detection Not Working

• Ensure motion detection is enabled for the channel.
• Adjust sensitivity and detection area.
• Check if the camera lens is clean and unobstructed.

Recording Stops or Skips

• Check hard drive health in HDD Management.
• Ensure overwrite is enabled.
• Reduce recording quality or frame rate to save space.

Forgot Admin Password

Contact Dahua support with your DVR’s serial number. They may provide a reset code or guide you through a hardware reset.

Security Best Practices

Protecting your Dahua DVR from hackers is essential.

• Change default passwords immediately.
• Disable UPnP on your router to prevent unauthorized access.
• Use strong, unique passwords for all accounts.
• Enable HTTPS for secure web access (if supported).
• Regularly update firmware to patch vulnerabilities.
• Limit remote access to trusted devices and networks.

Conclusion

Configuring a Dahua DVR doesn’t have to be complicated. By following this guide, you’ve learned how to set up your system from the ground up—connecting hardware, configuring network and recording settings, enabling remote access, and keeping your system secure. Whether you’re monitoring your home, office, or retail space, a properly configured Dahua DVR gives you peace of mind and reliable surveillance.

Remember to test your setup thoroughly, update firmware regularly, and follow security best practices. With these steps, your Dahua DVR will deliver clear, dependable video footage whenever you need it.

Now go enjoy your smart, secure surveillance system!
