This guide walks you through setting up your Dahua DVR online using a static IP address, ensuring stable remote access and improved security. You’ll learn router configuration, DVR network settings, and troubleshooting tips for a seamless setup.

Key Takeaways

  • Static IP ensures reliability: Unlike dynamic IPs, a static IP doesn’t change, giving you consistent remote access to your Dahua DVR from anywhere.
  • Router configuration is essential: You must log into your router to assign a reserved IP and set up port forwarding for external access.
  • Correct port settings prevent connection issues: Common ports like 80 (HTTP), 37777 (main stream), and 554 (RTSP) must be forwarded correctly.
  • Use DDNS as a backup: Even with a static IP, enabling DDNS adds an extra layer of accessibility in case of ISP changes.
  • Firewall and antivirus can block access: Temporarily disable them during setup to rule out interference with DVR connectivity.
  • Test locally before going online: Always verify the DVR works on your local network before attempting remote access.
  • Security matters: Change default passwords, disable unused services, and keep firmware updated to protect your system.

How to Configure Dahua DVR Online with Static IP

Setting up your Dahua DVR for remote access might seem tricky at first, but with the right steps, it’s totally doable—even if you’re not a tech expert. Whether you’re a homeowner, small business owner, or security installer, being able to view your cameras from your phone or laptop while away is a game-changer.

In this guide, we’ll walk you through how to configure your Dahua DVR online using a static IP address. A static IP gives you a permanent address on the internet, making remote access more reliable than using a dynamic IP that changes over time. We’ll cover everything from checking your network setup to configuring your router and DVR settings, plus tips to troubleshoot common issues.

By the end of this guide, you’ll be able to access your Dahua DVR securely from anywhere in the world—no more guessing if your cameras are online. Let’s get started!

Why Use a Static IP for Your Dahua DVR?

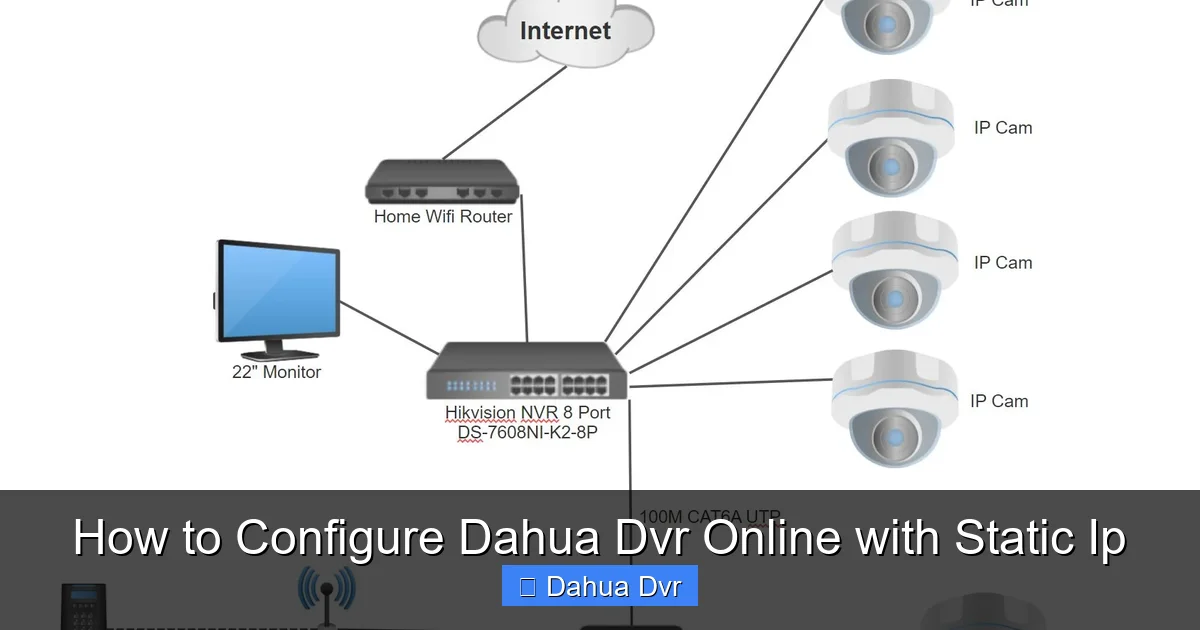

How to Configure Dahua Dvr Online with Static Ip

Visual guide about How to Configure Dahua Dvr Online with Static Ip

Image source: megasgt.com

Before diving into the setup, it’s important to understand why a static IP is the best choice for remote DVR access.

Most internet service providers (ISPs) assign dynamic IP addresses by default. That means your public IP address can change every time you restart your router or after a certain period. If you’re trying to connect to your DVR remotely using that changing IP, you’ll quickly lose access.

A static IP address, on the other hand, stays the same. Once assigned, it doesn’t change unless you manually update it. This makes it perfect for devices like DVRs that need consistent remote access.

Here are the key benefits:

  • Reliable remote access: You can always reach your DVR using the same IP address.
  • Simpler configuration: No need to constantly check for IP changes or update DDNS settings.
  • Better for professional setups: Businesses and installers prefer static IPs for stability and monitoring.

Note: Some ISPs charge extra for static IPs, so check with your provider. If a static IP isn’t available or too costly, you can use DDNS (Dynamic DNS) as an alternative—but for this guide, we’re focusing on the static IP method for maximum reliability.

Prerequisites: What You’ll Need

Before starting the configuration, make sure you have the following:

1. Dahua DVR Connected to Your Network

Your DVR should already be powered on and connected to your router via an Ethernet cable. It should be accessible on your local network (LAN).

2. Router with Admin Access

You’ll need to log into your router’s admin panel. This usually requires a username and password (often found on the router label or in the manual).

3. Static IP Address from Your ISP

Contact your internet service provider to request a static public IP address. Some ISPs offer this for free, while others may charge a monthly fee.

4. Computer or Laptop on the Same Network

You’ll use this to access the DVR’s web interface and router settings.

5. Dahua SmartPSS or Mobile App (Optional)

These tools help you test remote access once the setup is complete.

6. Basic Networking Knowledge

You don’t need to be an expert, but understanding terms like IP address, subnet mask, gateway, and port forwarding will help.

Once you’ve confirmed these items, you’re ready to begin.

Step 1: Find Your DVR’s Local IP Address

The first step is to determine the current local IP address of your Dahua DVR. This is the address it uses on your home or office network.

Method 1: Use Dahua SmartPSS

If you’ve already installed Dahua SmartPSS (the desktop software), you can find the DVR’s IP easily:

  1. Open SmartPSS and go to Device Manager.
  2. Click Add Device and select Auto Search.
  3. The software will scan your network and list all Dahua devices, including their IP addresses.
  4. Note down the IP address (e.g., 192.168.1.108).

Method 2: Check the DVR’s On-Screen Display

If you have a monitor connected to the DVR:

  1. Press the Menu button on the DVR remote or front panel.
  2. Navigate to Network > TCP/IP.
  3. The current IP address, subnet mask, and gateway will be displayed.
  4. Write down the IP address.

Method 3: Use Your Router’s Admin Panel

You can also check your router’s connected devices list:

  1. Open a web browser and enter your router’s IP (commonly 192.168.1.1 or 192.168.0.1).
  2. Log in with your admin credentials.
  3. Go to Connected Devices, DHCP Clients, or LAN Settings.
  4. Look for a device named “Dahua” or with a MAC address matching your DVR.
  5. Note the assigned IP address.

Once you have the DVR’s local IP, move to the next step.

Step 2: Assign a Reserved (Static) Local IP to the DVR

Even though we’re setting up a static public IP, your DVR still needs a fixed local IP on your network. This prevents the router from assigning a different IP later, which could break remote access.

We’ll use DHCP Reservation (also called IP Reservation) to bind the DVR’s MAC address to a specific local IP.

How to Set Up DHCP Reservation

  1. Log into your router’s admin panel (usually via 192.168.1.1).
  2. Navigate to LAN Settings, DHCP Server, or Address Reservation.
  3. Find your DVR in the list of connected devices (use the MAC address to identify it).
  4. Assign a static local IP (e.g., 192.168.1.108) to the DVR’s MAC address.
  5. Save the settings and restart the router if prompted.

Now, even if the DVR reboots, it will always get the same local IP.

Tip: Choose an IP Outside the DHCP Range

Most routers assign IPs from 192.168.1.100 to 192.168.1.200. To avoid conflicts, assign your DVR an IP like 192.168.1.50 or 192.168.1.210.

Step 3: Configure Port Forwarding on Your Router

Port forwarding tells your router to send incoming internet traffic on specific ports directly to your DVR. Without this, external devices can’t reach your DVR.

Dahua DVRs use several ports:

  • Port 80: HTTP web access (for browser login).
  • Port 37777: Main data stream (used by apps and software).
  • Port 554: RTSP streaming (for live video feeds).
  • Port 8000: Alternate HTTP port (sometimes used).

How to Set Up Port Forwarding

  1. Log into your router’s admin panel.
  2. Go to Port Forwarding, Virtual Server, or NAT settings.
  3. Click Add New Rule or Create Entry.
  4. Fill in the following for each port:
    • Service Name: Dahua_HTTP (or any name)
    • External Port: 80
    • Internal Port: 80
    • Internal IP: 192.168.1.108 (your DVR’s local IP)
    • Protocol: TCP (or Both)
  5. Repeat for ports 37777 and 554.
  6. Save all rules and restart the router if needed.

Example Port Forwarding Rules

Service External Port Internal Port Internal IP Protocol
Dahua_HTTP 80 80 192.168.1.108 TCP
Dahua_Main 37777 37777 192.168.1.108 TCP
Dahua_RTSP 554 554 192.168.1.108 TCP

Important Notes

  • Some ISPs block port 80. If you can’t access the DVR via port 80, try using port 81 or 8080 instead (and update the forwarding rule).
  • Never forward unnecessary ports—this reduces security risks.

Step 4: Configure the DVR’s Network Settings

Now that the router is set up, it’s time to configure the DVR itself.

Access the DVR’s Web Interface

  1. Open a web browser on a computer connected to the same network.
  2. Type the DVR’s local IP (e.g., http://192.168.1.108) into the address bar.
  3. Log in with your DVR username and password (default is often admin/admin or admin/123456).

Set a Static IP on the DVR (Optional but Recommended)

Even with DHCP reservation, it’s safer to manually set a static IP on the DVR:

  1. Go to Configuration > Network > TCP/IP.
  2. Select Static instead of DHCP.
  3. Enter the following:
    • IP Address: 192.168.1.108
    • Subnet Mask: 255.255.255.0
    • Gateway: 192.168.1.1 (your router’s IP)
    • DNS Server: 8.8.8.8 (Google DNS) or your ISP’s DNS
  4. Click Save and restart the DVR if prompted.

Enable Remote Access Services

  1. Go to Configuration > Network > Port.
  2. Ensure the following ports are enabled:
    • HTTP Port: 80
    • Server Port: 37777
    • RTSP Port: 554
  3. Save the settings.

Step 5: Test Local Access

Before going online, make sure everything works on your local network.

Test via Web Browser

  1. Open a browser and go to http://192.168.1.108.
  2. Log in and check if you can view live video.

Test via Dahua SmartPSS

  1. Open SmartPSS and add the DVR using its local IP.
  2. Verify you can see camera feeds and playback recordings.

If local access works, proceed to remote testing.

Step 6: Test Remote Access with Static IP

Now for the moment of truth—can you access your DVR from outside your network?

Find Your Public Static IP

  1. On a computer connected to your network, open a browser.
  2. Go to whatismyipaddress.com.
  3. Note the public IP address displayed (e.g., 203.0.113.45).

This is your static public IP. It should not change unless your ISP updates it.

Access the DVR Remotely

  1. From a device outside your network (e.g., phone on mobile data or a friend’s Wi-Fi), open a browser.
  2. Type: http://[your-public-ip]:80 (e.g., http://203.0.113.45:80).
  3. Log in with your DVR credentials.
  4. If successful, you’ll see the live video feed.

Use Dahua Mobile App

  1. Download the DMSS app (Dahua Mobile Surveillance System) on your phone.
  2. Tap Add Device > Manual Add.
  3. Enter:
    • Device Name: My DVR
    • IP/Domain: 203.0.113.45
    • Port: 37777
    • Username & Password: Your DVR login
  4. Tap Save and test the connection.

If it works, congratulations—you’ve successfully configured your Dahua DVR online with a static IP!

Troubleshooting Common Issues

Even with careful setup, problems can occur. Here’s how to fix the most common ones.

Can’t Access DVR Remotely

  • Check port forwarding: Ensure all ports (80, 37777, 554) are correctly forwarded to the DVR’s local IP.
  • Verify public IP: Make sure you’re using the correct static IP. Test it on whatismyipaddress.com.
  • ISP blocking ports: Some ISPs block port 80. Try using port 81 and update forwarding rules.
  • Firewall interference: Temporarily disable Windows Firewall or antivirus software to test.

Connection Timeouts or Slow Video

  • Bandwidth limits: Remote streaming uses internet upload speed. Check your upload speed (aim for at least 2 Mbps).
  • Lower stream quality: In the DVR settings, reduce the main stream resolution or bitrate for smoother remote viewing.
  • Use sub-stream: Enable and use the sub-stream (lower quality) for mobile apps to save bandwidth.

DVR Not Responding Locally

  • IP conflict: Ensure no other device is using the same local IP.
  • Reboot devices: Restart the DVR, router, and computer.
  • Check cables: Ensure Ethernet cables are secure and undamaged.

Forgot DVR Password

  • Use Dahua’s password reset tool (available on their website).
  • You’ll need the DVR’s serial number and a security code.
  • Contact Dahua support if needed.

Security Best Practices

Now that your DVR is online, security is crucial.

  • Change default passwords: Use strong, unique passwords for the DVR and router.
  • Disable UPnP: Universal Plug and Play can open ports automatically—turn it off to prevent unauthorized access.
  • Update firmware: Regularly check for and install DVR firmware updates from Dahua’s official site.
  • Limit access: Only forward necessary ports and avoid exposing the DVR to the open internet longer than needed.
  • Use a VPN (Advanced): For maximum security, set up a VPN to access your network instead of port forwarding.

Conclusion

Configuring your Dahua DVR online with a static IP gives you reliable, secure remote access to your surveillance system. By following this guide—setting up DHCP reservation, configuring port forwarding, and testing connectivity—you’ve taken a big step toward smarter, more accessible security.

Remember, a static IP eliminates the hassle of changing addresses, making your system more dependable for daily use. Combine this with strong passwords and regular updates, and your DVR will stay protected and accessible for years to come.

Whether you’re checking in on your home while traveling or monitoring your business after hours, your Dahua DVR is now ready to deliver peace of mind—anytime, anywhere.
