Setting up your Foscam camera for remote viewing lets you monitor your home or office from anywhere using your smartphone, tablet, or computer. This guide walks you through every step—from initial setup to accessing live video remotely—with clear instructions and helpful troubleshooting tips.
Key Takeaways
- Connect your Foscam camera to your local network: Use an Ethernet cable or Wi-Fi to link the camera to your router for internet access.
- Assign a static IP address: Prevent connection issues by setting a fixed IP for your camera within your router settings.
- Configure port forwarding: Enable remote access by forwarding specific ports (like 80 or 88) on your router to the camera’s IP.
- Set up a DDNS service: Use Dynamic DNS to access your camera with a friendly web address instead of a changing IP number.
- Use the Foscam app or web interface: Download the official Foscam app (iOS/Android) or log in via a browser to view live feeds remotely.
- Enable encryption and strong passwords: Protect your camera from unauthorized access by using WPA2/WPA3 Wi-Fi security and complex login credentials.
- Troubleshoot common issues: Fix problems like “camera offline,” login errors, or poor video quality with proven solutions.
Introduction: Why Remote Viewing Matters
Imagine being able to check on your pets while at work, monitor your front door during vacation, or keep an eye on your business after hours—all from your phone. That’s exactly what remote viewing with a Foscam camera offers. Whether you’re using a Foscam R2, R4, FI9805EP, or any other model, configuring your camera for remote access unlocks powerful security and convenience features.
In this guide, we’ll walk you through the entire process of setting up your Foscam camera for remote viewing. You’ll learn how to connect your camera to your network, configure essential settings, and access live video from anywhere in the world. No technical degree required—just follow our simple, step-by-step instructions. By the end, you’ll have a secure, reliable remote monitoring system up and running.
Step 1: Unbox and Power On Your Foscam Camera

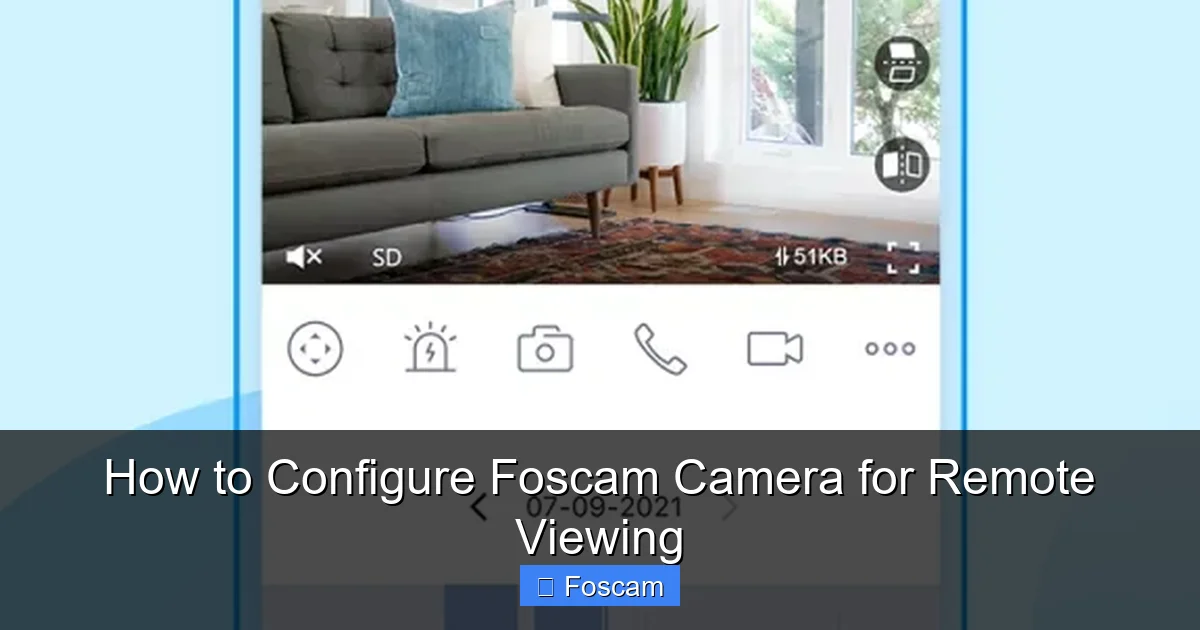

Visual guide about How to Configure Foscam Camera for Remote Viewing
Image source: i.ytimg.com
Before diving into network settings, make sure your camera is properly set up physically.
Unbox and Inspect the Camera
When you open the box, you should find:
– The Foscam camera unit
– Power adapter and cable
– Ethernet cable (for wired setup)
– Mounting hardware (screws, brackets)
– Quick start guide
Check that all components are present and undamaged. If anything is missing, contact Foscam support or your retailer.
Power On the Camera
Plug the power adapter into the camera and connect it to a power outlet. The camera will boot up—this usually takes 30 to 60 seconds. You’ll see indicator lights (usually green or blue) that show the camera is receiving power and initializing.
Initial Setup Mode
Most Foscam cameras enter a setup mode the first time they’re powered on. This allows you to connect them to your Wi-Fi network using the Foscam app. If your camera doesn’t automatically enter setup mode, press and hold the reset button (usually on the back or bottom) for 5–10 seconds until the light flashes rapidly.
Step 2: Connect the Camera to Your Network
Your camera needs internet access to enable remote viewing. You can connect it via Wi-Fi or Ethernet.
Option A: Connect via Ethernet (Recommended for Setup)
For the most reliable initial setup, use an Ethernet cable:
1. Plug one end of the Ethernet cable into the camera’s LAN port.
2. Plug the other end into an available port on your router.
3. Wait 1–2 minutes for the camera to obtain an IP address from your router.
4. The camera’s status light should turn solid green or blue, indicating a successful connection.
Using Ethernet during setup reduces the risk of Wi-Fi configuration errors and ensures a stable connection while you configure settings.
Option B: Connect via Wi-Fi
If you prefer wireless, follow these steps:
1. Download the Foscam app (available on iOS and Android).
2. Open the app and tap “Add Camera” or the “+” icon.
3. Select “Wi-Fi Setup” and follow the on-screen prompts.
4. The app will search for nearby Foscam cameras in setup mode.
5. Select your camera from the list.
6. Enter your Wi-Fi network name (SSID) and password.
7. Wait for the camera to connect—this may take 1–2 minutes.
Tip: Make sure your phone is connected to the same Wi-Fi network you want the camera to use. If the app can’t find the camera, try moving closer to it or restarting both devices.
Step 3: Access the Camera’s Web Interface
To configure advanced settings like port forwarding and DDNS, you’ll need to access the camera’s built-in web interface.
Find the Camera’s IP Address
Your router assigns an IP address to the camera (e.g., 192.168.1.105). To find it:
– Use the Foscam app: Go to camera settings > Network > IP Address.
– Use your router’s admin page: Log in to your router (usually via 192.168.1.1 or 192.168.0.1), go to “Connected Devices,” and look for “Foscam” or the camera’s MAC address.
– Use a network scanner app like Fing (iOS/Android) to scan your network.
Log In to the Web Interface
1. Open a web browser (Chrome, Firefox, Safari).
2. Type the camera’s IP address into the address bar and press Enter.
3. A login page will appear. Enter the default username and password:
– Username: admin
– Password: (leave blank or enter “admin” — check your model’s manual)
4. Click “Login.”
Note: For security, change the default password immediately after logging in. Go to Settings > User Management > Change Password.
Step 4: Assign a Static IP Address
A static (fixed) IP ensures your camera always uses the same address on your network. This is crucial for remote access because port forwarding relies on a consistent IP.
Why Use a Static IP?
Routers often assign temporary (dynamic) IPs that can change after a reboot or lease expiration. If the camera’s IP changes, your remote access setup will break. A static IP prevents this.
How to Set a Static IP
You can set a static IP in two ways:
Method 1: Via the Camera’s Web Interface
1. Log in to the camera’s web interface.
2. Go to Network > TCP/IP.
3. Change “Obtain IP Address Automatically” to “Manual.”
4. Enter the following:
– IP Address: e.g., 192.168.1.105
– Subnet Mask: 255.255.255.0
– Default Gateway: Your router’s IP (e.g., 192.168.1.1)
– DNS Server: Same as gateway or use 8.8.8.8 (Google DNS)
5. Click “Save” and reboot the camera.
Method 2: Via Router DHCP Reservation
1. Log in to your router’s admin page.
2. Go to LAN or DHCP settings.
3. Find “DHCP Reservation” or “Static Leases.”
4. Add a new entry:
– Device: Select your Foscam camera (by name or MAC address)
– IP Address: Assign a fixed IP (e.g., 192.168.1.105)
5. Save and reboot the router.
Tip: Choose an IP outside the DHCP range (e.g., if your router assigns 192.168.1.100–150, use 192.168.1.200).
Step 5: Configure Port Forwarding
Port forwarding tells your router to send incoming internet traffic on a specific port directly to your camera. This is how you access the camera from outside your home network.
Choose the Right Ports
Foscam cameras typically use:
– HTTP Port: 80 (default for web access)
– RTSP Port: 554 (for video streaming)
– HTTPS Port: 443 (secure access, if supported)
You can change these in the camera’s web interface under Network > Port. For security, avoid using port 80—choose a high-numbered port like 8080 or 8888 instead.
Set Up Port Forwarding on Your Router
1. Log in to your router’s admin page.
2. Go to Advanced > Port Forwarding (or NAT, Virtual Server).
3. Create a new rule:
– Service Name: Foscam_HTTP
– External Port: 8080 (or your chosen port)
– Internal IP: 192.168.1.105 (your camera’s static IP)
– Internal Port: 80
– Protocol: TCP
4. Save the rule.
5. Repeat for RTSP (External Port: 5554, Internal Port: 554).
Note: Some ISPs block port 80. Using a non-standard port (like 8080) often works better.
Test Port Forwarding
Use a free online tool like CanYouSeeMe.org:
1. Enter the external port (e.g., 8080).
2. Click “Check Port.”
3. If it says “open,” port forwarding is working. If “closed,” double-check your settings or try a different port.
Step 6: Set Up Dynamic DNS (DDNS)
Your public IP address (the one the internet sees) may change over time. DDNS solves this by linking a friendly domain name (like myhome.foscam.org) to your changing IP.
Why Use DDNS?
Instead of remembering a numeric IP (e.g., 203.0.113.45), you can use a name like “myfoscam.ddns.net.” Even if your IP changes, the DDNS service updates automatically.
Configure DDNS in the Camera
1. Log in to the camera’s web interface.
2. Go to Network > DDNS.
3. Select a DDNS provider:
– Foscam DDNS (free, recommended)
– No-IP, DynDNS, or DuckDNS (third-party options)
4. If using Foscam DDNS:
– Enable DDNS: Yes
– Server: foscam.org
– Hostname: Choose a unique name (e.g., myhome123)
– Username: Your Foscam account email
– Password: Your Foscam account password
5. Click “Save” and wait for the status to show “Success.”
Tip: Create a free Foscam account at myfoscam.com if you don’t have one.
Step 7: Access Your Camera Remotely
Now that everything is configured, you can view your camera from anywhere.
Option 1: Use the Foscam App
1. Open the Foscam app on your phone or tablet.
2. Tap “Add Camera” and select “Remote Camera.”
3. Enter:
– Camera Name: e.g., “Front Door”
– DDNS Address: myhome123.foscam.org
– Port: 8080
– Username: admin
– Password: your password
4. Tap “Save” and then “Connect.”
You should now see live video from your camera.
Option 2: Use a Web Browser
1. Open a browser on any device (phone, tablet, computer).
2. Type: http://myhome123.foscam.org:8080
3. Log in with your username and password.
4. You’ll see the camera’s live feed and control panel.
Tip: Bookmark this URL for quick access.
Option 3: Use Third-Party Apps
Apps like TinyCam Monitor (Android) or SecuritySpy (Mac) support Foscam cameras and offer advanced features like motion detection alerts and multi-camera views.
Step 8: Secure Your Camera
Remote access is convenient but risky if not secured properly. Follow these best practices:
Change Default Credentials
Never leave the default username (admin) and password. Create a strong password with uppercase, lowercase, numbers, and symbols.
Enable HTTPS (If Supported)
In the camera’s web interface, go to Network > HTTPS and enable it. This encrypts data between your device and the camera.
Update Firmware Regularly
Go to Maintenance > Upgrade in the web interface. Check for firmware updates monthly to patch security flaws.
Disable UPnP
Universal Plug and Play can automatically open ports, creating security risks. Disable it in your router settings.
Use a Guest Network
If your router supports it, connect the camera to a separate guest Wi-Fi network. This isolates it from your main devices.
Troubleshooting Common Issues
Even with careful setup, problems can occur. Here’s how to fix the most common ones.
Camera Shows “Offline” in the App
– Check power and network connections.
– Reboot the camera and router.
– Verify the static IP and port forwarding rules.
– Ensure the DDNS status is “Success.”
Can’t Access Camera Remotely
– Confirm your public IP hasn’t changed (check via whatismyip.com).
– Test port forwarding with CanYouSeeMe.org.
– Try accessing via IP instead of DDNS (e.g., http://203.0.113.45:8080).
– Disable firewall or antivirus temporarily to test.
Poor Video Quality or Lag
– Reduce resolution in the camera settings (e.g., 720p instead of 1080p).
– Lower the frame rate (15 fps instead of 30).
– Check your internet upload speed (needs at least 1 Mbps for HD).
– Move the camera closer to the router or use a Wi-Fi extender.
Login Failed or Password Not Working
– Reset the camera to factory defaults (hold reset button for 10+ seconds).
– Reconfigure from scratch.
– Ensure Caps Lock is off and special characters are entered correctly.
DDNS Not Updating
– Log in to your Foscam account and check if the hostname is active.
– Re-enter DDNS credentials in the camera.
– Wait 10–15 minutes for the update to propagate.
Conclusion: Enjoy Secure Remote Monitoring
Congratulations! You’ve successfully configured your Foscam camera for remote viewing. Now you can check in on your home, pets, or business from anywhere with an internet connection.
Remember, the key to a reliable setup is a static IP, proper port forwarding, and a DDNS service. Don’t skip the security steps—strong passwords and firmware updates protect your privacy.
If you run into issues, revisit the troubleshooting section or consult Foscam’s support resources. With this guide, you’re equipped to enjoy peace of mind through smart, secure surveillance.
