This guide walks you through how to configure Foscam R2 from unboxing to full remote access. You’ll learn Wi-Fi setup, mobile app pairing, motion alerts, and troubleshooting tips to get your security camera running smoothly.
Key Takeaways
- Easy Setup Process: The Foscam R2 can be configured in under 15 minutes using the Foscam app or web interface.
- Wi-Fi or Ethernet Connection: Choose between wired (Ethernet) or wireless (Wi-Fi) setup depending on your network and placement needs.
- Remote Viewing Enabled: Once configured, access your camera from anywhere using the Foscam VMS app on iOS or Android.
- Motion Detection & Alerts: Customize motion zones and receive instant push notifications when activity is detected.
- Night Vision & Two-Way Audio: Use built-in IR LEDs for clear night footage and speak through the camera using the app.
- Secure Your Camera: Always change the default password and enable HTTPS for safer remote access.
- Troubleshooting Tips Included: Common issues like connection drops or login errors are covered with simple fixes.
Introduction: Why the Foscam R2 Is a Great Choice
The Foscam R2 is a popular indoor Wi-Fi security camera known for its affordability, HD video quality, and smart features like motion detection and two-way audio. Whether you’re monitoring your home, office, or baby’s room, this camera offers reliable performance with easy setup. In this guide, we’ll walk you through how to configure Foscam R2 step by step—from initial unboxing to accessing live video remotely.
By the end of this guide, you’ll be able to connect your Foscam R2 to your home network, install the mobile app, customize alerts, and view your camera feed from anywhere in the world. We’ll also cover essential security tips and troubleshooting advice to keep your camera running smoothly. No technical expertise is required—just follow along, and you’ll have your camera up and running in no time.
What’s in the Box?
Before you begin, make sure you have all the components that come with your Foscam R2:

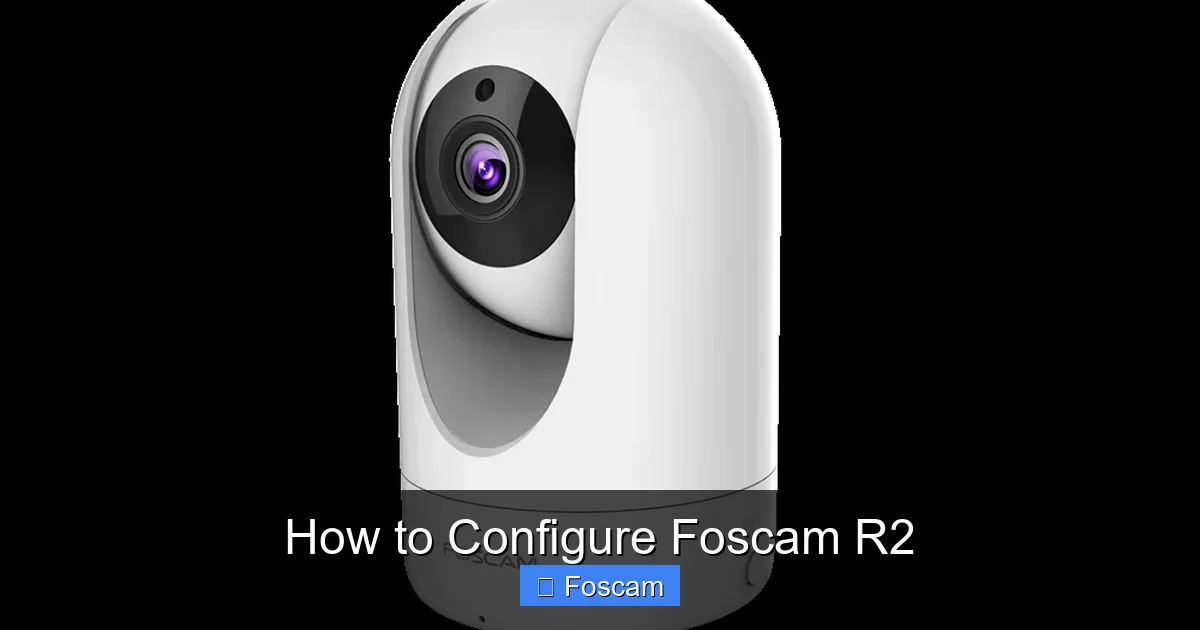

Visual guide about How to Configure Foscam R2
Image source: foscam.eu
- Foscam R2 camera unit
- Power adapter (12V/1A)
- USB power cable
- Mounting bracket and screws
- Quick start guide
- Ethernet cable (optional, for wired setup)
If anything is missing, contact Foscam support or your retailer immediately. It’s also a good idea to check the camera for any visible damage before setup.
Step 1: Power On the Foscam R2
The first step in configuring your Foscam R2 is to power it on. Here’s how:
Connect the Power Adapter
Plug the USB power cable into the camera’s micro-USB port (located on the bottom). Then, connect the other end to the power adapter and plug it into a wall outlet. The camera will power on automatically.
Check the LED Indicator
Once powered, the camera’s LED light will turn solid red. This means the camera is on and ready for setup. If the light is blinking red, it means the camera is in Wi-Fi pairing mode (we’ll cover that soon). A solid green light indicates a successful network connection.
Wait for Initialization
Give the camera about 30–60 seconds to initialize. You may hear a soft beep or see the camera pan slightly—this is normal. Do not unplug the camera during this time.
Step 2: Choose Your Connection Method
The Foscam R2 supports two connection methods: Wi-Fi (wireless) and Ethernet (wired). Choose the one that best fits your needs.
Option A: Wi-Fi Setup (Recommended for Most Users)
Wi-Fi is the most common way to connect your Foscam R2. It allows flexible placement without running cables. However, ensure your Wi-Fi signal is strong where the camera will be placed.
Option B: Ethernet Setup (More Stable)
If you prefer a wired connection for better stability and speed, use the included Ethernet cable. Connect one end to the camera’s LAN port and the other to your router. This method is ideal for areas with weak Wi-Fi or high-security needs.
Tip: For initial setup, some users find it easier to start with Ethernet and then switch to Wi-Fi later via the app.
Step 3: Install the Foscam App
To configure and control your Foscam R2, you’ll need the official Foscam app. It’s available for both iOS and Android.
Download the App
Open the App Store (iOS) or Google Play Store (Android) and search for “Foscam VMS”. Download and install the app. Make sure you’re downloading the official app by Foscam International.
Create a Foscam Account
Open the app and tap “Register” to create a new account. Use a valid email address and create a strong password. You’ll receive a verification email—click the link to activate your account.
Note: If you already have a Foscam account, simply log in with your existing credentials.
Step 4: Add Your Camera to the App
Now it’s time to pair your Foscam R2 with the app. Follow these steps:
Open the App and Tap “+”
Launch the Foscam VMS app and tap the “+” icon in the top-right corner to add a new device.
Select “Add by UID”
Choose “Add by UID” (Unique ID). This is the most reliable method for Foscam cameras. The UID is a 12-character code printed on a label on the bottom of the camera (e.g., “FOSCAM123456”).
Enter the UID and Default Password
Type the UID into the app. The default password is usually “123456”. Tap “Next”.
Security Tip: You’ll be prompted to change the default password during setup. Always choose a strong, unique password to prevent unauthorized access.
Wait for Connection
The app will attempt to connect to your camera. This may take 30–60 seconds. If successful, you’ll see a live video preview.
Step 5: Configure Wi-Fi (If Using Wireless)
If you’re using Wi-Fi, you’ll need to connect the camera to your home network. Here’s how:
Ensure Camera Is in Wi-Fi Mode
Make sure the camera is powered on and the LED is solid red (not blinking). If it’s blinking red, press and hold the “Reset” button (small hole on the bottom) for 5 seconds until it turns solid red.
Use the App to Connect to Wi-Fi
In the Foscam app, go to the camera settings (tap the gear icon). Select “Network” > “Wi-Fi Settings”. The app will scan for available networks.
Select Your Wi-Fi Network
Choose your home Wi-Fi network from the list and enter the password. Tap “Connect”. The camera will attempt to join the network.
Wait for Confirmation
If successful, the LED will turn solid green. You’ll also see a confirmation in the app. If it fails, double-check your Wi-Fi password and signal strength.
Tip: Place the camera within 10–15 feet of your router during setup for the best signal.
Step 6: Set Up Remote Access
One of the best features of the Foscam R2 is remote viewing—being able to check your camera from anywhere using your phone or computer.
Verify Cloud Connectivity
Once connected to Wi-Fi, the camera automatically registers with Foscam’s cloud service. Open the app and tap the camera name. You should see a live feed.
Test Remote Access
Turn off your phone’s Wi-Fi and use mobile data (4G/5G). Open the app and check if you can still view the camera. If yes, remote access is working.
Enable HTTPS (Recommended)
For added security, enable HTTPS in the camera settings. Go to “Network” > “Advanced” > “HTTPS” and toggle it on. This encrypts your video stream.
Step 7: Customize Motion Detection
The Foscam R2 includes smart motion detection that can send alerts when movement is detected. Here’s how to set it up:
Open Motion Detection Settings
In the app, go to the camera settings and select “Alarm” > “Motion Detection”.
Enable Motion Detection
Toggle “Motion Detection” to “On”. You’ll see a grid overlay on the video preview.
Adjust Sensitivity
Use the slider to set sensitivity from 1 (low) to 100 (high). Start with 50 and adjust based on false alarms (e.g., pets, moving curtains).
Set Motion Zones
Tap “Detection Area” and draw zones where you want motion to be monitored. Avoid areas with frequent false triggers (like trees or busy streets).
Enable Push Notifications
Go to “Alarm” > “Push Notification” and toggle it on. You’ll receive alerts on your phone when motion is detected.
Pro Tip: Schedule motion detection to only activate during certain hours (e.g., when you’re away) to reduce unnecessary alerts.
Step 8: Configure Two-Way Audio
The Foscam R2 has a built-in microphone and speaker, allowing you to talk through the camera. Here’s how to use it:
Test Audio in the App
Open the live view and tap the microphone icon. Speak into your phone—you should hear audio from the camera. Tap the speaker icon to listen to sounds from the camera.
Adjust Volume
In the app, go to “Audio” settings to adjust microphone and speaker volume. Set them to a comfortable level.
Use in Real Time
When viewing the camera remotely, tap the mic icon to speak. This is useful for greeting visitors or calming pets.
Note: Two-way audio uses more bandwidth. If you experience lag, try lowering the video resolution.
Step 9: Set Up Night Vision
The Foscam R2 has infrared (IR) LEDs for clear night vision up to 20 feet. Here’s how to optimize it:
Check IR Settings
In the app, go to “Image” > “Night Vision”. Ensure “Auto” mode is selected. The camera will automatically switch to night vision when it gets dark.
Test in Low Light
Turn off the lights and check the live feed. You should see a black-and-white image with good clarity.
Adjust IR Intensity (Optional)
If the image is too bright or too dark, switch to “Manual” mode and adjust the IR level. Avoid pointing the camera at reflective surfaces (like mirrors) to prevent glare.
Step 10: Mount the Camera
Once configured, it’s time to mount your Foscam R2 in its final location.
Choose the Right Spot
Pick a location with a clear view of the area you want to monitor. Avoid direct sunlight, heat sources, or areas with heavy Wi-Fi interference.
Use the Mounting Bracket
Attach the bracket to the camera using the provided screw. Then, mount it to the wall or ceiling with the included screws and anchors.
Adjust the Angle
Tilt and swivel the camera to get the best view. The R2 has a 360° horizontal and 90° vertical range.
Tip: For ceiling mounts, ensure the camera is securely fastened to prevent falling.
Step 11: Secure Your Camera
Security is crucial when using internet-connected devices. Follow these best practices:
Change the Default Password
If you haven’t already, change the default password (“123456”) to a strong, unique one. Use a mix of letters, numbers, and symbols.
Enable HTTPS and Disable UPnP
As mentioned earlier, enable HTTPS for encrypted connections. Also, disable UPnP (Universal Plug and Play) in the network settings to prevent unauthorized port forwarding.
Update Firmware Regularly
Check for firmware updates in the app under “System” > “Upgrade”. Updates often include security patches and new features.
Use a Guest Network (Optional)
If your router supports it, connect the camera to a guest Wi-Fi network. This isolates it from your main devices for added security.
Troubleshooting Common Issues
Even with careful setup, you might encounter problems. Here are solutions to common issues:
Camera Won’t Connect to Wi-Fi
- Ensure the Wi-Fi password is correct.
- Move the camera closer to the router.
- Restart the camera and router.
- Try using Ethernet for initial setup.
Can’t Access Camera Remotely
- Check if the camera is online in the app.
- Verify your internet connection.
- Ensure port forwarding is set up correctly (if not using cloud).
- Restart the camera and try again.
Motion Alerts Not Working
- Confirm motion detection is enabled.
- Check sensitivity and detection zones.
- Ensure push notifications are allowed in your phone settings.
Poor Video Quality
- Lower the resolution in “Image” settings if bandwidth is limited.
- Clean the camera lens.
- Ensure good lighting (for day mode) or clear line of sight (for night vision).
App Crashes or Freezes
- Update the Foscam app to the latest version.
- Restart your phone.
- Reinstall the app if problems persist.
Conclusion: Enjoy Your Fully Configured Foscam R2
Congratulations! You’ve successfully learned how to configure Foscam R2 from start to finish. Your camera is now connected to your network, accessible remotely, and ready to keep an eye on what matters most. With features like motion detection, two-way audio, and night vision, the Foscam R2 offers excellent value for home and small business security.
Remember to keep your firmware updated, use strong passwords, and periodically check your camera’s performance. If you ever run into issues, refer back to this guide or contact Foscam support. With proper setup and maintenance, your Foscam R2 will provide reliable surveillance for years to come.
