How to Configure Hikvision DVR DS-7100 in 2026

Key Takeaways

• Access the DVR menu: Use the default IP to log in via web or local interface.
• Update firmware first: Ensure latest firmware for compatibility and security fixes.
• Configure cameras properly: Add and name each channel to match your layout.
• Set recording schedules: Customize continuous or motion-based recording as needed.
• Enable remote access: Use Hik-Connect for secure mobile and web viewing.
• Test backups early: Export footage to verify storage and retrieval work correctly.

Why This Matters / Understanding the Problem

Setting up your security system shouldn’t feel like solving a riddle. Yet, many homeowners and small business owners struggle with how to configure Hikvision DVR DS-7100 in 2026—especially when they’re new to surveillance tech.

If your cameras aren’t recording, you can’t access footage remotely, or the DVR keeps disconnecting, the issue is usually a misconfiguration. The Hikvision DS-7100 series is powerful but needs proper setup to work smoothly in today’s connected world.

Whether you’re upgrading from an older model or setting it up for the first time, this guide walks you through every step—no tech degree required. We’ll help you get your system running securely and efficiently, so you can monitor your property with confidence.

By the end, you’ll not only know how to configure Hikvision DVR DS-7100 in 2026, but you’ll also avoid common pitfalls that cause system failures or security risks.

What You Need

Before diving in, make sure you have the right tools and materials. A smooth setup starts with preparation.

• Hikvision DS-7100 DVR unit (e.g., DS-7104HGHI-SH, DS-7108HQHI-K1, etc.)
• Security cameras (compatible with the DVR—usually Hikvision analog or Turbo HD)
• BNC video cables (one per camera)
• Power supply for cameras (12V DC adapter or PoC power via DVR)
• Ethernet cable (Cat5e or Cat6) for network connection
• Monitor with HDMI or VGA input (for initial setup)
• Mouse and keyboard (USB, for DVR navigation)
• External hard drive (optional) if expanding storage
• Router with internet access (for remote viewing)
• Smartphone or tablet (to install Hik-Connect app)

Pro Tip: Use the same model cameras when possible. Mixed brands or older analog cameras can cause sync or resolution issues during setup.

Step-by-Step Guide to How to Configure Hikvision DVR DS-7100 in 2026

Follow these clear, no-nonsense steps to get your DVR fully configured. We’ll cover physical setup, basic settings, network connection, remote access, and security—all tailored for 2026’s best practices.

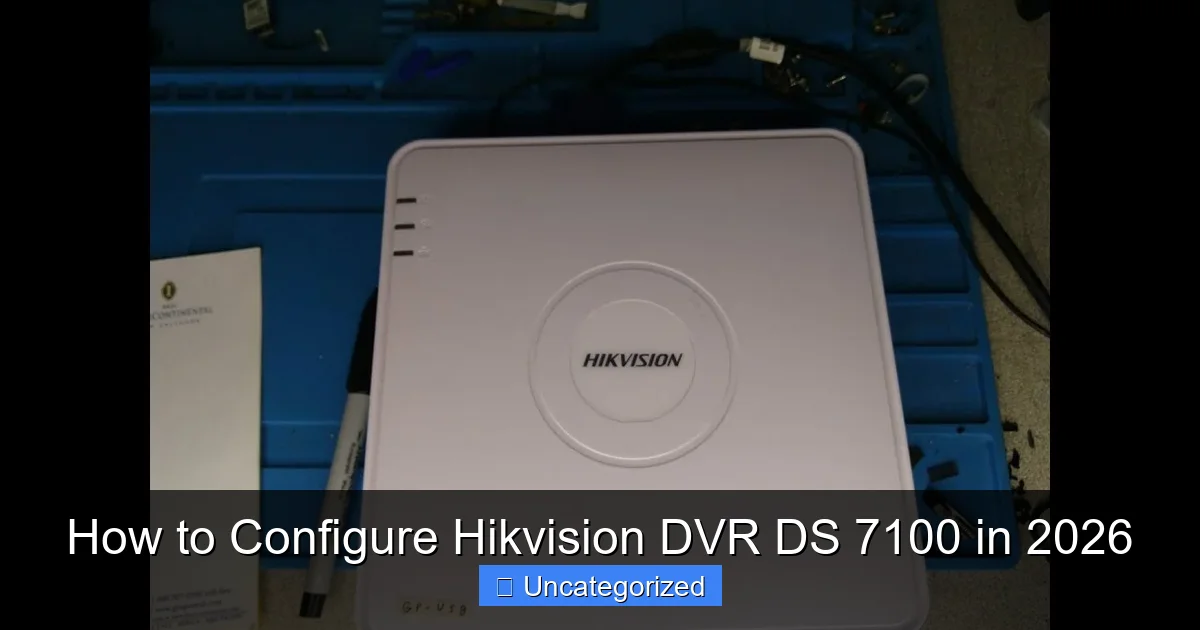

Step 1: Unbox and Physically Connect the DVR

Start by placing your DVR in a dry, ventilated area—ideally near your router and power outlets. Avoid damp basements or direct sunlight.

Connect your monitor to the DVR using an HDMI or VGA cable. Plug in the power adapter and turn on the unit. You should see the Hikvision logo appear within 30 seconds.

Now, connect your cameras. Use BNC cables to link each camera’s video output to a channel on the DVR (e.g., CH1, CH2). If your cameras support Power over Coax (PoC), you can power them through the DVR—no extra power cables needed.

Warning: Never connect or disconnect BNC cables while the DVR is powered on. This can damage the video input ports.

Step 2: Set Up Basic DVR Settings (Date, Time, Language)

Once the DVR boots up, you’ll see the main menu. Use the mouse or front panel buttons to navigate.

Go to Menu > Configuration > General > General. Set the correct Date & Time. If your region observes daylight saving, enable Auto DST to avoid time drift.

Choose your preferred Language and Video Standard (NTSC or PAL, depending on your country). For most of North America, use NTSC.

Click Apply and Save. This ensures all recordings are timestamped correctly—critical for evidence.

Pro Tip: If you plan to use remote access, sync the DVR time with your router or enable Network Time Protocol (NTP) in Step 5. This keeps all devices on the same clock.

Step 3: Add and Test Your Cameras

Go to Menu > Camera > Camera. You’ll see a list of channels (CH1–CH4, CH8, etc., depending on your model).

Each camera should appear with a live feed. If not, check the BNC connection and camera power. Look for a red or green status light on the camera.

Click Edit next to a channel. Set the Camera Type to match your camera (e.g., Turbo HD, AHD, CVBS). For 2026 models, select Turbo HD 5.0 or H.265+ if available.

Adjust the Video Format (1080p, 720p, etc.) to match your camera’s resolution. Mismatched formats cause blurry or black screens.

Click OK and repeat for all cameras. Then, test each feed by moving in front of the camera to confirm motion detection is working.

Common Mistake: Skipping the Camera Type setting. If set to “Analog” when using a Turbo HD camera, you’ll get no signal.

Step 4: Set Up Recording (Continuous, Motion, or Schedule)

Now, decide how and when your DVR records. Go to Menu > Storage > Schedule.

You’ll see a timeline grid for each camera. Click on a channel and set the recording type:

• Continuous: Records 24/7. Best for high-risk areas.
• Motion Detection: Records only when motion is detected. Saves storage and makes footage easier to review.
• Smart Events (if supported): Records based on line crossing, intrusion, or missing objects.

To set a custom schedule, click on time blocks and assign recording types. For example:

• 8 PM–6 AM: Motion detection
• 6 AM–8 PM: Continuous (daytime activity)

Click Copy to to apply the same schedule to other cameras. Then click Apply and Save.

Pro Tip: Use H.265+ compression (under Menu > Storage > Advanced) to reduce file size by up to 50% without losing quality. This extends your storage life.

Step 5: Connect to the Internet and Set Up Network

To access your DVR remotely, you need a stable network connection. Plug one end of the Ethernet cable into the DVR’s LAN port and the other into your router.

Go to Menu > Configuration > Network > TCP/IP. Choose DHCP if your router assigns IP addresses automatically. Otherwise, select Static IP and enter:

• IP Address: e.g., 192.168.1.100
• Subnet Mask: 255.255.255.0
• Gateway: 192.168.1.1 (your router’s IP)
• DNS: 8.8.8.8 (Google DNS) or your ISP’s DNS

Click Apply. Then go to Port settings. Set the HTTP Port to 80 or 8000. The RTSP Port should be 554 (default). Avoid using ports below 1024 unless necessary.

Finally, enable DDNS if you don’t have a static public IP. Hikvision offers free DDNS (e.g., yourname.hik-online.com). Register it under Menu > Network > DDNS.

Warning: Never leave the default admin password. We’ll fix that in Step 6. An unsecured DVR is a hacker’s playground.

Step 6: Secure Your DVR (Change Password & Enable Encryption)

Security is non-negotiable in 2026. Default credentials are the #1 cause of hacked surveillance systems.

Go to Menu > System > Users. Select the admin user and click Modify. Change the password to a strong one (12+ characters, mix of letters, numbers, symbols).

Enable Password Reset Protection. This prevents unauthorized resets via USB or reset button.

Under Menu > Configuration > Network > Security, enable:

• IP Filter: Allow only trusted IPs to access the DVR
• HTTPS: Encrypts web traffic (port 443)
• RTSP Authentication: Prevents unauthorized stream access

Click Apply and restart the DVR to activate security settings.

Pro Tip: Use a password manager to store your DVR password. Writing it on a sticky note near the unit is a security risk.

Step 7: Set Up Remote Viewing (Hik-Connect App)

Now you can check your cameras from anywhere. Download the Hik-Connect app (iOS/Android) from your app store.

Open the app and tap + > Add Device. Choose Hikvision and scan the QR code on the DVR’s label (or enter the DVR’s serial number manually).

Enter the DVR’s IP address or DDNS name, username (admin), and your new password. Tap Add.

If it fails, check:

• Is the DVR online? (Ping it from another device)
• Is port 8000 (or your custom port) open on your router?
• Is the DVR’s Hik-Connect service enabled? (Menu > Network > Platform Access)

Once connected, you’ll see live feeds, playback, and alerts on your phone.

Common Mistake: Forgetting to enable Platform Access. Without it, Hik-Connect can’t reach your DVR—even if the network is fine.

Step 8: Configure Motion Detection and Alerts

Don’t miss important events. Go to Menu > Event > Video Detection > Motion Detection.

Select a camera and draw detection zones. Click Draw Area, then click and drag to cover key areas (e.g., doorways, driveways). Avoid trees or busy roads to reduce false alerts.

Set Sensitivity (50–70 is usually best). Lower = fewer false alarms; higher = catches more motion.

Under Linkage Method, check:

• Send Email (set up SMTP first—see below)
• Notify Surveillance Center (if using HikCentral)
• Trigger Alarm Output (if connected to a siren)

Click Apply. Then go to Menu > Event > Notification > Email to set up email alerts. Enter your SMTP server (e.g., Gmail: smtp.gmail.com, port 465, SSL enabled). Test the email to confirm.

Pro Tip: Use push notifications via Hik-Connect instead of email for faster alerts. Email can be delayed by 5–10 minutes.

Step 9: Expand Storage (Optional)

If your DVR’s internal hard drive fills up too fast, add an external drive. The DS-7100 supports up to 6TB internal and 6TB external (via eSATA or USB).

Connect the external drive via USB or eSATA. Go to Menu > Storage > HDD. The DVR should detect it automatically.

Click Initialize to format the drive. Then go to Menu > Storage > Recording and set the Recording Mode to Auto (records to internal first, then external).

You can also set the DVR to Overwrite old recordings when full—ideal for continuous surveillance.

Warning: Use a surveillance-grade hard drive (e.g., WD Purple, Seagate SkyHawk). Regular drives fail faster under 24/7 write cycles.

Step 10: Test and Finalize

Before calling it done, test everything:

• Walk in front of each camera—check if motion detection triggers.
• Open Hik-Connect and view live feeds from outside your home.
• Check email and app alerts.
• Review playback for the last 10 minutes.

Go to Menu > System > Maintenance > Reboot to restart the DVR. This applies all changes and clears any glitches.

Finally, label your cameras (e.g., “Front Door,” “Backyard”) in the DVR’s Camera Name field. Makes future troubleshooting easier.

Pro Tips & Common Mistakes to Avoid

Even with a perfect setup, small errors can cause big problems. Here’s how to stay ahead:

• Use a UPS (Uninterruptible Power Supply)—Power surges or outages can corrupt recordings. A $50 UPS keeps your DVR running during short outages.
• Keep firmware updated—Hikvision releases patches for bugs and security flaws. Check Menu > System > Maintenance > Upgrade monthly.
• Don’t use public Wi-Fi for remote access—Always connect via cellular or a trusted network. Public Wi-Fi is a hacker’s dream.
• Label all cables—Use tags to mark which camera is which. Saves hours during troubleshooting.
• Disable UPnP—It can open ports automatically, creating security holes. Disable it in your router settings.

Common Mistake: Ignoring disk health. A failing drive can corrupt all recordings. Check Menu > Storage > HDD monthly. Replace drives showing Bad Sectors or Over Temperature.

Another trap: using default settings. The DVR may work, but it’s not optimized. Take 10 minutes to fine-tune motion zones, recording schedules, and network ports.

And remember: how to configure Hikvision DVR DS-7100 in 2026 isn’t just about tech—it’s about peace of mind. A well-set system deters crime and gives you confidence when you’re away.

FAQs About How to Configure Hikvision DVR DS-7100 in 2026

Let’s answer the questions we hear most often from users like you.

Q1: Why won’t my DVR connect to the internet?
A: Check your Ethernet cable, router settings, and IP configuration. Make sure the DVR’s IP isn’t conflicting with another device. Use ping to test connectivity. Also, verify that your router isn’t blocking port 8000.

Q2: Can I use IP cameras with the DS-7100?
A: The DS-7100 series is primarily for analog/Turbo HD cameras. However, some models (like DS-7108HQHI-K1) support hybrid mode with 2–4 IP cameras via network ports. Check your model’s specs before buying.

Q3: How do I reset the DVR if I forget the password?
A: If Password Reset Protection is disabled, use a USB drive with a reset file (download from Hikvision’s site). If enabled, contact Hikvision support with your device’s serial number for a master key.

Q4: Why is my remote viewing lagging or freezing?
A: Lag is usually due to slow internet upload speed. Check your upload speed (should be ≥2 Mbps per camera). Also, reduce the stream type in Hik-Connect to “Sub Stream” for smoother playback.

Q5: Can I access my DVR from a web browser?
A: Yes! Enter the DVR’s IP or DDNS address in Chrome/Firefox, then log in. Use HTTPS for security. Note: Some features (like playback) may require the iVMS-4200 client.

Q6: How long will my recordings last?
A: Depends on camera resolution, recording type, and storage size. A 1TB drive with 4x 1080p cameras in motion mode can last 7–14 days. Use Hikvision’s Storage Calculator online for precise estimates.

Q7: Is the Hik-Connect app free?
A: Yes, the app is free and supports up to 16 devices. For advanced features (like multi-site management), consider HikCentral (paid).

Final Thoughts

Setting up your Hikvision DVR doesn’t have to be stressful. With this guide, you now know exactly how to configure Hikvision DVR DS-7100 in 2026—from unboxing to remote viewing.

Remember: security is an ongoing task. Update firmware, check disk health, and review your settings every few months. A little maintenance goes a long way.

And if you ever get stuck, don’t guess. Hikvision’s support site has manuals, videos, and forums. Or, reach out to a local installer for a quick tune-up.

Your cameras are your eyes when you’re away. Make sure they’re watching clearly, securely, and reliably. Now go enjoy that peace of mind—you’ve earned it.

“`
