Configuring an IP camera adapter allows you to connect your analog camera to a network for remote viewing and monitoring. This guide walks you through the entire setup process, from unboxing to final testing, so you can enjoy live video streaming, motion alerts, and secure access from anywhere. Whether for home security or business surveillance, this guide makes it simple and fast.

Quick Answers to Common Questions

Can I use my old analog cameras with an IP adapter?

Yes! IP camera adapters are designed specifically to convert analog signals from older CCTV cameras into digital streams. As long as your cameras use standard BNC connectors and power via DC, they’ll work with most adapters.

Do I need a special router for IP camera adapters?

No, any modern router will do. However, ensure it supports at least 100 Mbps speeds and has enough LAN ports. For multiple cameras, consider a gigabit router to prevent bottlenecks.

Is remote access safe?

Remote access can be secure if done right. Use strong passwords, enable HTTPS, set up DDNS securely, and keep firmware updated. Avoid exposing your camera directly to the open internet without a firewall.

How many cameras can one adapter support?

It depends on the model. Common options include 1-, 2-, 4-, 6-, or 8-channel adapters. Check the product specs—each channel handles one analog camera.

What’s the difference between an IP camera and an IP camera adapter?

An IP camera connects directly to the network and produces digital video. An IP camera adapter takes analog video from existing cameras and digitizes it for network transmission. The latter lets you upgrade older systems without rewiring.

How to Configure IP Camera Adapter: A Step-by-Step Guide

You’ve just bought an IP camera adapter—also known as an analog-to-IP converter or network video encoder—and you’re excited to upgrade your old security system. But where do you begin? Don’t worry—this guide will walk you through everything, from unpacking the device to accessing your live feed from your smartphone. By the end, you’ll know how to configure IP camera adapter systems quickly and safely.

This guide is perfect for beginners and small businesses upgrading from traditional CCTV cameras to smart, internet-connected systems. We’ll cover hardware setup, network configuration, software installation, remote access, and troubleshooting. Let’s get started!

What Is an IP Camera Adapter?

An IP camera adapter is a device that connects analog cameras (like those using coaxial cables) to a computer network. It converts the analog video signal into digital data that can be viewed over the internet. Think of it as a bridge between your old security setup and modern network-based monitoring.

How to Configure Ip Camera Adapter

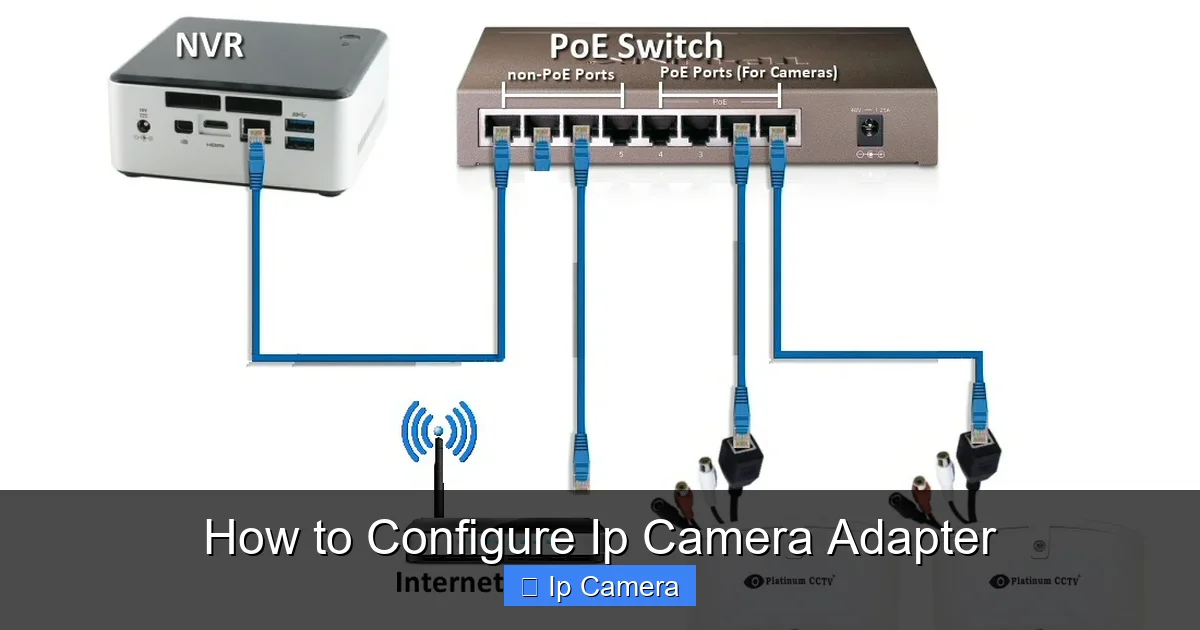

Visual guide about How to Configure Ip Camera Adapter

Image source: platinumcctv.com

These adapters are commonly used in:

  • Small businesses upgrading existing CCTV systems
  • Homeowners adding Wi-Fi to wired security cameras
  • Surveillance systems needing remote access without replacing all cameras

Popular brands include Hikvision, Dahua, Amcrest, and Zmodo. Most support multiple analog inputs (e.g., 4-channel or 8-channel models), making them scalable.

Gather Your Tools and Materials

Before plugging anything in, make sure you have the following items ready:

  • Your IP camera adapter (with power supply)
  • Analog cameras with BNC connectors
  • BNC-to-RCA cables or coaxial cables
  • Ethernet cable (Cat5e or higher)
  • Computer or laptop with internet access
  • Router with available LAN port
  • Access to your router’s admin page (usually via 192.168.1.1)
  • Manufacturer’s setup software or mobile app (check packaging)

💡 Tip: Label your cameras before connecting—this helps identify feeds later.

Step 1: Connect the Analog Cameras

The first physical step is linking your existing cameras to the adapter.

How to Wire the Cameras

  1. Turn off power to both the cameras and the adapter.
  2. Connect each camera’s BNC output to an input port on the adapter using a coaxial cable.
  3. If your adapter uses RCA connectors, use a BNC-to-RCA adapter.
  4. Ensure all connections are tight—loose cables cause signal loss.

Example: If you have four dome cameras in your backyard, plug each one into Channel 1 through 4 on the adapter.

Power Up Devices

  1. Plug the adapter into a power outlet using its included AC adapter.
  2. Most adapters also draw power via PoE (Power over Ethernet). If yours supports PoE, skip the external power supply.
  3. Wait 1–2 minutes for the device to boot up. You’ll see indicator lights turn green or blue.

Step 2: Connect to Your Network

Now it’s time to link the adapter to your local network so your computer or phone can communicate with it.

Option A: Wired Connection (Recommended)

  1. Use an Ethernet cable to connect the adapter’s LAN port to your router or switch.
  2. Wait for the link light on the adapter to stay solid—this means a successful connection.

Option B: Wireless (Wi-Fi) Connection

Some advanced adapters support Wi-Fi setup via a web interface or mobile app. Follow these steps:

  1. Connect temporarily via Ethernet to access initial settings.
  2. Log into the adapter’s web UI (see Step 3).
  3. Navigate to “Network Settings” > “Wireless.”
  4. Select your Wi-Fi SSID and enter the password.
  5. Save and reconnect via Wi-Fi.

⚠️ Note: Wireless may introduce lag or dropped frames. Use wired when possible.

Step 3: Access the Adapter’s Web Interface

Every IP camera adapter has a built-in web server. You’ll use it to assign an IP address and change basic settings.

Find the Default IP Address

Most adapters start with a default IP like:

  • 192.168.1.108
  • 192.168.0.108
  • Check the manual or label on the device.

Log In via Browser

  1. Type the default IP into your browser’s address bar (e.g., http://192.168.1.108).
  2. Enter the default username/password (often admin/admin or blank).
  3. Click “Login.”

🔐 Security Reminder: Change the default password immediately after login.

Step 4: Assign a Static IP Address

A dynamic IP (assigned by DHCP) might change, breaking your connection. To prevent this, assign a static IP.

Steps to Set Static IP

  1. In the web interface, go to Network > TCP/IP.
  2. Set “Obtain IP automatically” to OFF.
  3. Enter a new IP (e.g., 192.168.1.100), subnet mask (255.255.255.0), and gateway (your router’s IP).
  4. Save settings and reconnect.

✅ Example: If your router is at 192.168.1.1, assign the adapter to 192.168.1.100.

Step 5: View Live Video Locally

Now test if your cameras are working.

Method 1: Use Manufacturer Software

  1. Install software from the CD or download from the brand’s website (e.g., Hik-Connect, Dahua DMSS).
  2. Open the software and add a new device.
  3. Enter the adapter’s IP address, port (usually 80 or 554), username, and password.
  4. Test the live view for each channel.

Method 2: Use VLC Media Player

VLC can stream RTSP feeds directly:

  1. Open VLC.
  2. Go to Media > Open Network Stream.
  3. Paste the RTSP URL: rtsp://[IP]:[PORT]/[CHANNEL]
  4. Example: rtsp://192.168.1.100:554/channel1

Step 6: Enable Remote Access

Want to watch your cameras from work or vacation? Enable remote access.

Step 1: Set Up Port Forwarding

  1. Log into your router (typically at 192.168.1.1).
  2. Find Port Forwarding or Virtual Servers.
  3. Add a rule:
    • Service Name: Camera
    • External Port: 8080 (or custom)
    • Internal IP: 192.168.1.100
    • Internal Port: 80
    • Protocol: TCP/UDP
  4. Save and restart router if needed.

Step 2: Use DDNS (Dynamic DNS)

If your public IP changes often, use DDNS:

  1. In the adapter’s web UI, go to Network > DDNS.
  2. Choose a service (No-IP, DynDNS, or the adapter’s own cloud service).
  3. Create an account and register a hostname (e.g., mycam.no-ip.org).
  4. Enter credentials in the adapter’s settings.
  5. Now access your camera via: http://mycam.no-ip.org:8080

Step 7: Secure Your Setup

Security is critical—especially with remote access.

Best Practices

  • Change default usernames and passwords.
  • Enable HTTPS in the web interface (if supported).
  • Disable UPnP to prevent unauthorized port mapping.
  • Update firmware regularly (check under Maintenance > Upgrade).
  • Use strong Wi-Fi passwords and WPA3 encryption.

Troubleshooting Common Problems

Even experts run into hiccups. Here’s how to fix them.

Problem: Can’t Access Web Interface

  • Check physical connections.
  • Verify the IP address is correct.
  • Try pinging the IP from another device.
  • Reset the adapter (hold reset button for 10 seconds).

Problem: No Video Feed

  • Confirm cameras are powered and connected.
  • Check input selection in the software.
  • Test with VLC using RTSP URL.
  • Restart the adapter.

Problem: Laggy or Frozen Video

  • Reduce resolution in the adapter’s settings.
  • Switch from wireless to wired.
  • Close bandwidth-heavy apps (streaming, downloads).

Advanced Tips for Better Performance

  • Use a Dedicated Subnet: Isolate cameras on their own VLAN for better performance and security.
  • Schedule Recordings: Set motion detection zones and recording times to save storage.
  • Enable Email Alerts: Get notified instantly when motion is detected.
  • Use NVR Integration: Pair your adapter with a Network Video Recorder for centralized management.

Conclusion

Configuring an IP camera adapter doesn’t have to be intimidating. With this guide, you now know how to connect your analog cameras, assign network settings, view live feeds, and even access your system remotely. Whether you’re protecting your home or upgrading a small business, mastering the basics opens the door to smarter, more flexible surveillance.

Remember: take it one step at a time. Start with local viewing, then move to remote access. Always prioritize security. And don’t hesitate to consult your user manual or contact support if stuck.

You’re now ready to transform your old security setup into a modern, internet-connected system. Happy monitoring!
