Configuring a PTZ camera in a Hikvision DVR 2026 is a seamless process when you follow the correct steps in the web interface or local menu. Begin by connecting the camera to the DVR via RS-485, ensuring proper protocol, address, and baud rate settings to enable full pan-tilt-zoom control. Use the DVR’s PTZ configuration wizard to auto-detect and calibrate the camera, saving time and minimizing errors.

“`html

How to Configure PTZ Camera in Hikvision DVR 2026 Guide

Key Takeaways

• Verify compatibility first: Ensure your PTZ camera model is supported by the Hikvision DVR.
• Use correct cabling: Connect via RS-485 or IP, matching DVR and camera interfaces.
• Set unique addresses: Assign distinct DIP switch or IP settings to each PTZ camera.
• Configure via web interface: Access DVR settings to add and calibrate PTZ controls.
• Test presets and tours: Save positions and automate movements for efficient surveillance.
• Update firmware regularly: Keep DVR and cameras updated for optimal PTZ functionality.

Why This Matters / Understanding the Problem

Setting up a PTZ (Pan-Tilt-Zoom) camera on your Hikvision DVR can feel like decoding a foreign language—especially if you’re new to surveillance systems. Whether you’re a small business owner monitoring a parking lot or a homeowner securing your property, getting your PTZ camera to move, zoom, and respond to commands is essential for effective security.

The How to Configure PTZ Camera in Hikvision DVR 2026 Guide solves this by walking you through the exact steps to get your system running smoothly. Without proper configuration, your PTZ camera might not respond, lose preset positions, or fail to integrate with the DVR’s remote access features. This guide ensures you avoid those headaches and get full control over your camera’s movement and functionality.

Many users struggle with RS-485 wiring, protocol mismatches, or incorrect baud rates. But don’t worry—by the end of this guide, you’ll have a fully functional PTZ setup that responds to joystick controls, mobile apps, and even automated tours.

What You Need

Before diving into the configuration process, gather the following tools and materials. Having everything ready saves time and reduces frustration.

• Hikvision DVR (2026 or compatible model) – Ensure it supports PTZ control (most Hikvision DVRs do).
• PTZ Camera (Hikvision or compatible) – Check model compatibility (e.g., DS-2DE4225IW-DE, DS-2DE7230IW-AE).
• RS-485 Cabling – Use shielded twisted pair (STP) cable for long runs to prevent interference.
• Network Cable (Cat5e or higher) – For power and video if using PoE, or video-only if using separate power.
• Power Supply (if not PoE) – 12V/24V DC or AC depending on camera specs.
• Small Screwdriver or Crimping Tool – For connecting RS-485 terminals.
• Computer or Smartphone – For accessing the DVR interface via web browser or iVMS-4500 app.
• Hikvision iVMS-4500 or Hik-Connect App (optional) – For mobile control.

Pro tip: Always double-check your camera and DVR’s PTZ protocol and baud rate in the user manual. Mismatches here are the #1 cause of configuration failure.

Step-by-Step Guide to How to Configure PTZ Camera in Hikvision DVR 2026 Guide

Step 1: Power Up and Connect the Camera

Start by physically installing your PTZ camera in its desired location—high enough to avoid tampering, but with a clear line of sight to the DVR via network and RS-485.

• Connect the camera to the DVR using an Ethernet cable. If your camera supports PoE (Power over Ethernet), it will power up automatically through the DVR’s PoE ports. Otherwise, connect the external power supply.
• Ensure the camera appears in the DVR’s live view. You should see a video feed on the corresponding channel (e.g., Channel 1).
• If the feed isn’t showing, check cable connections and verify the camera is powered on.

For the How to Configure PTZ Camera in Hikvision DVR 2026 Guide, this first step is critical—without video, PTZ control won’t work.

Tip: Use a PoE switch or injector if your DVR doesn’t have enough PoE ports. This keeps power and data in one cable, reducing clutter.

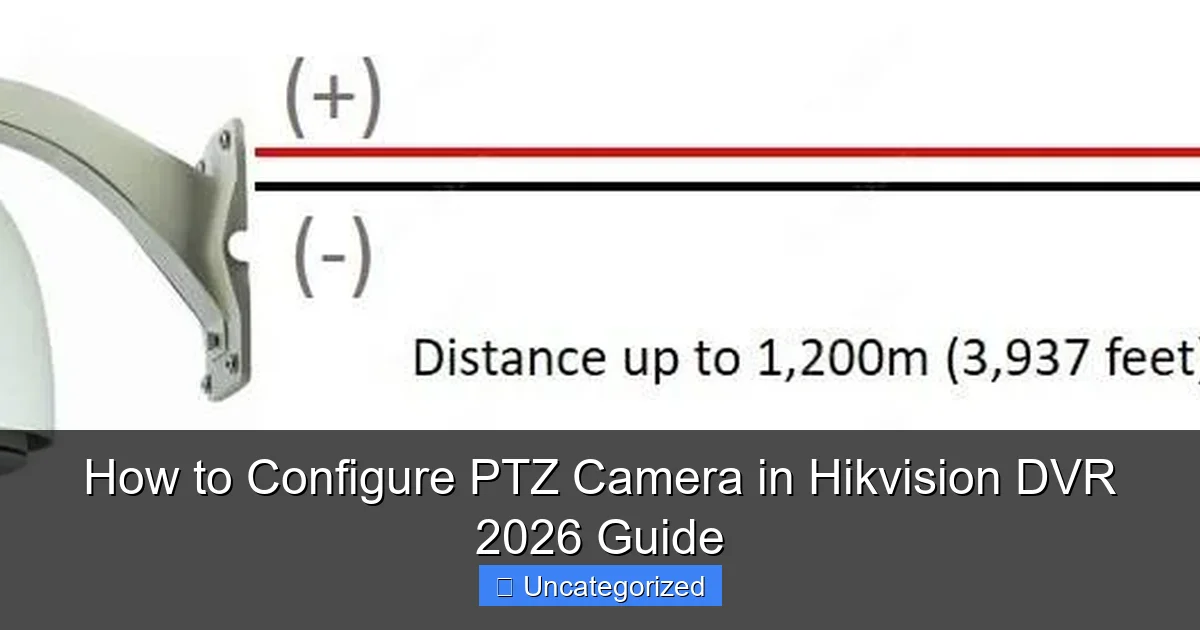

Step 2: Wire the RS-485 Connection

RS-485 is the communication backbone for PTZ control. It allows the DVR to send commands to the camera for pan, tilt, zoom, and presets.

• Locate the RS-485 terminals on both the DVR (usually labeled “RS-485”) and the PTZ camera (often labeled “A” and “B” or “+” and “-”).
• Connect the DVR’s RS-485+ to the camera’s A (or +) terminal.
• Connect the DVR’s RS-485- to the camera’s B (or -) terminal.
• Use a shielded cable and keep the run under 1,200 meters (3,900 ft) to avoid signal loss.

For multiple PTZ cameras, daisy-chain the RS-485 lines—connect the DVR to Cam 1, Cam 1 to Cam 2, etc. Ensure each camera has a unique device address (ID) set via dip switches or OSD menu.

Warning: Reversing A and B wires is a common mistake. This will cause communication failure. Double-check connections before powering up.

Step 3: Set the Camera’s PTZ Protocol and Address

Every PTZ camera must have a unique address and use the same protocol as the DVR. Hikvision cameras typically use PELCO-D or HIKVISION protocol by default.

• Access the camera’s OSD (On-Screen Display) using the DVR’s PTZ control menu (right-click on the camera feed > PTZ Control).
• Navigate to System > PTZ Settings (or similar, depending on firmware).
• Set the Device Address (ID) to match the channel number (e.g., Channel 1 → Address 1).
• Set the Protocol to “HIKVISION” (recommended) or “PELCO-D” if using third-party cameras.
• Set the Baud Rate to 9600 (default for most Hikvision setups).
• Save and exit the OSD.

This step is essential for the How to Configure PTZ Camera in Hikvision DVR 2026 Guide—mismatched protocols or addresses prevent control.

Tip: If the OSD isn’t accessible, use the camera’s physical dip switches (on the back) to set the address and protocol. Refer to the camera’s manual for switch positions.

Step 4: Configure PTZ Settings on the DVR

Now, tell the DVR how to talk to the camera.

• On the DVR, go to Menu > Camera > PTZ.
• Select the channel your PTZ camera is connected to (e.g., Channel 1).
• Set the following:
  • Protocol: Match the camera (e.g., HIKVISION).
  • Baud Rate: 9600 (default).
  • Device Address: Same as camera ID (e.g., 1).
  • Data Bit: 8.
  • Stop Bit: 1.
  • Parity: None.
• Click Apply to save.

After saving, test the connection by right-clicking the camera feed and selecting PTZ Control. A control panel should appear.

Warning: If the PTZ control panel doesn’t appear, recheck the RS-485 wiring, protocol, and address settings. A single incorrect digit can break communication.

Step 5: Test PTZ Functionality

Time to see if your camera responds!

• Right-click the camera feed and select PTZ Control.
• Use the on-screen joystick to pan, tilt, and zoom. The camera should move smoothly.
• Test zoom by clicking the + and – icons. The lens should extend and retract.
• Try focusing (if supported) using the focus buttons.

If the camera moves in the wrong direction (e.g., up when you press down), swap the A and B wires or reverse the pan/tilt direction in the DVR’s PTZ settings.

This step confirms your How to Configure PTZ Camera in Hikvision DVR 2026 Guide is working—no more static surveillance!

Tip: Use the “Auto” button to test auto-focus and auto-iris. This ensures the camera adjusts to lighting changes.

Step 6: Set Preset Positions and Tours

Presets let you save specific camera angles (e.g., front door, cash register). Tours cycle through presets automatically.

• Move the camera to the desired position using PTZ controls.
• Click the Set Preset button and assign a number (1–255).
• Repeat for other positions (e.g., preset 1 = parking lot, preset 2 = entrance).
• To create a tour:
  • Go to Menu > PTZ > Tour.
  • Select a tour number (1–10).
  • Add presets and set dwell time (seconds each position stays).
  • Save and start the tour.

For example, a retail store might set a tour to scan the entrance, cash register, and back stock area every 30 seconds.

Tip: Use presets for quick access via remote apps. You can jump to a preset with one tap.

Step 7: Enable Remote Access (Optional)

Want to control your PTZ camera from your phone or computer?

• On the DVR, go to Menu > Network > General.
• Enable HTTP/HTTPS and set a port (e.g., 80 or 8080).
• Set up Hik-Connect (DVR’s cloud service) or port forward your router for direct access.
• Download the Hik-Connect or iVMS-4500 app.
• Add your DVR using the serial number or IP address.
• Log in and access the PTZ camera remotely.

Now you can pan, tilt, zoom, and recall presets from anywhere—perfect for checking on your home or business.

Warning: Always use strong passwords and enable two-factor authentication to prevent unauthorized access.

Pro Tips & Common Mistakes to Avoid

Even with the How to Configure PTZ Camera in Hikvision DVR 2026 Guide, things can go wrong. Here’s how to stay ahead:

• Use shielded RS-485 cable: Unshielded wires pick up electrical noise, causing erratic camera behavior. STP cable is worth the extra cost.
• Label everything: Mark RS-485 wires and camera IDs. Future you will thank you.
• Check firmware: Update your DVR and camera firmware to avoid compatibility bugs. Go to Menu > Maintenance > Upgrade.
• Don’t daisy-chain too many cameras: RS-485 supports up to 32 devices, but signal quality degrades with long chains. Use a repeater for large setups.
• Test after power cycles: Some cameras lose PTZ settings after power loss. Reboot and retest.
• Use the right protocol: HIKVISION protocol is best for Hikvision cameras. PELCO-D works for older or third-party models.

Common Mistake: Assuming “Plug and Play” works. PTZ requires manual configuration—even with Hikvision devices.

Pro Tip: Save your DVR configuration to a USB drive (Menu > Maintenance > Import/Export). If the DVR fails, restore settings quickly.

FAQs About How to Configure PTZ Camera in Hikvision DVR 2026 Guide

Q: Why isn’t my PTZ camera responding?
A: Check the RS-485 wiring (A to A, B to B), protocol, and address settings. Also, verify the camera is powered and appears in the DVR’s live view.

Q: Can I use a non-Hikvision PTZ camera?
A: Yes, but you must match the protocol (e.g., PELCO-D) and baud rate. Check the third-party camera’s manual for compatibility.

Q: How do I reset PTZ settings?
A: On the camera, use the OSD to restore defaults. On the DVR, go to Menu > Camera > PTZ and click Restore Default.

Q: What if the camera moves in the wrong direction?
A: Swap the A and B wires on the RS-485 connection, or reverse the pan/tilt direction in the DVR’s PTZ settings.

Q: Can I control PTZ via the web browser?
A: Yes. Access your DVR’s IP address in a browser (e.g., Chrome), log in, and use the PTZ control panel.

Q: How many presets can I set?
A: Up to 255 presets per camera. Use them for key areas (e.g., doors, windows, driveways).

Q: Do I need a separate power supply for the camera?
A: Only if it’s not PoE. Most Hikvision PTZ cameras support PoE, which simplifies wiring.

Final Thoughts

Configuring a PTZ camera in your Hikvision DVR doesn’t have to be intimidating. By following the How to Configure PTZ Camera in Hikvision DVR 2026 Guide, you’ve learned how to wire, set protocols, test movement, and even enable remote control.

Remember: the key to success is attention to detail—especially with RS-485 connections and protocol matching. Don’t rush. Take your time, double-check settings, and test after each step.

Now that your PTZ camera is up and running, use it to its full potential. Set up automated tours, save presets for critical areas, and monitor your property with confidence. Whether you’re securing a home, store, or warehouse, a well-configured PTZ system is your best defense.

Got more questions? Refer back to this guide or reach out to Hikvision support. And most importantly—test your system regularly to ensure it’s always ready when you need it.

“`
