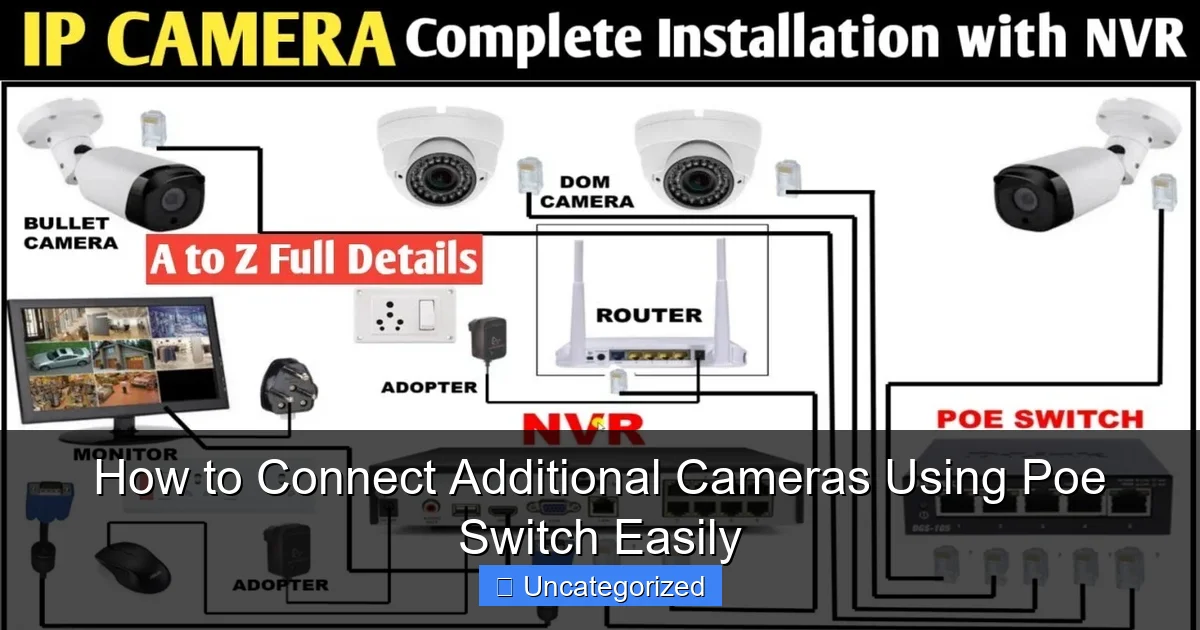

How to Connect Additional Cameras Using Poe Switch Easily

Key Takeaways

• Choose a PoE switch with enough ports and power for all cameras.
• Connect cameras via Ethernet directly to the PoE switch for power and data.
• Ensure proper cable length to avoid signal loss or power drop-offs.
• Verify VLAN settings to optimize network performance and security.
• Use a PoE tester to confirm power delivery before final installation.
• Label all connections for easy troubleshooting and future scalability.

Why This Matters / Understanding the Problem

You’ve got your main security camera up and running, but now you need more coverage. Maybe you want to monitor the backyard, the garage, or the side of your house. The challenge? Running new power outlets and Ethernet cables can be messy, expensive, and time-consuming. That’s where the How to Connect Additional Cameras Using Poe Switch Easily method comes in.

Power over Ethernet (PoE) switches simplify expanding your security system. Instead of juggling two cables—one for data, one for power—PoE delivers both over a single Ethernet cable. This means you can add more cameras without rewiring your home or business. Whether you’re upgrading a home security system or scaling a commercial setup, a PoE switch is the smart, clean, and efficient solution.

But here’s the catch: not all PoE switches work the same, and connecting extra cameras without planning can lead to power overloads, poor video quality, or even damaged equipment. That’s why understanding how to do it right—not just if you can—is key. This guide will walk you through the entire process, step by step, so you can expand your surveillance with confidence and ease.

Pro Insight: A single Cat5e or Cat6 cable can carry both power and video up to 328 feet (100 meters) with PoE. That’s enough to cover most homes, offices, and outdoor areas without signal loss.

What You Need

Before you start, gather the right tools and components. Using the correct equipment ensures a smooth setup and long-term reliability. Here’s your checklist:

• PoE Switch: Choose a managed or unmanaged switch with enough ports and power budget. For example, an 8-port switch with 150W total power can support 6–8 cameras (depending on model).
• PoE-Compatible Cameras: Ensure your new cameras support PoE (802.3af or 802.3at). Most modern IP cameras do, but always check the specs.
• Ethernet Cables: Use Cat5e or Cat6 cables (shielded for outdoor runs). Avoid cheap, thin cables—they can cause voltage drops.
• Network Video Recorder (NVR): If you’re using a centralized system, make sure your NVR supports PoE or is connected to the PoE switch.
• Network Router or Modem: For internet access and remote viewing via apps.
• Power Outlet: The PoE switch needs its own power source (usually a wall plug).
• Cable Management Tools: Zip ties, clips, or conduit for clean, safe cable routing.
• Smartphone or Laptop: For initial setup, camera pairing, and configuration.

Optional but helpful:

• PoE Tester: To verify power delivery and cable integrity.
• Surge Protector: Especially important for outdoor or long cable runs.
• Label Maker: Label each cable at both ends for easy troubleshooting later.

Once you’ve got everything, you’re ready to dive into the How to Connect Additional Cameras Using Poe Switch Easily process. No guesswork, no confusion—just a clear path to a smarter security system.

Step-by-Step Guide to How to Connect Additional Cameras Using Poe Switch Easily

Step 1: Choose the Right PoE Switch for Your Needs

Not all PoE switches are created equal. Picking the wrong one is the #1 reason setups fail. Start by calculating your total power needs.

Each PoE camera typically uses 5–15 watts, depending on features like night vision, pan-tilt-zoom (PTZ), or heating. For example:

• Basic dome camera: 7W
• Outdoor PTZ camera: 15W
• Thermal camera: 12W

Add up the watts for all your new cameras, then multiply by 1.2 to account for future expansion or power spikes. For 6 cameras at 10W each: 6 × 10 = 60W × 1.2 = 72W minimum.

Next, check the switch’s total power budget (e.g., 150W). It should exceed your calculated need. Also, count the number of ports: if you’re adding 4 cameras, get at least a 6-port switch (leaves room for a router or future camera).

Warning: Overloading a PoE switch can cause it to shut down or damage connected devices. Always stay under 80% of the max power budget for safety.

Look for switches with 802.3af (PoE) or 802.3at (PoE+) standards. PoE+ delivers up to 30W per port—ideal for high-power cameras. Avoid “passive PoE” unless your cameras specifically require it.

Step 2: Plan Your Camera Locations and Cable Runs

Before drilling holes or pulling cables, map out where each camera will go. Think like a burglar: cover blind spots, entry points, and high-traffic areas.

Use a floor plan or sketch a simple diagram. Mark:

• Camera positions (front door, garage, backyard, etc.)
• Distance from the PoE switch (max 328 feet)
• Obstacles (walls, trees, electrical boxes)
• Indoor vs. outdoor placements

For outdoor runs, plan to use conduit or bury cables (if allowed by local codes). Use waterproof connectors and seal cable entry points with silicone. Indoor runs can use baseboard clips or crown molding.

Pro tip: Measure each run with a measuring tape or string. Add 10–15% extra length for slack and routing. Nothing’s worse than a cable that’s just 6 inches too short.

Pro Tip: If a camera is over 100 feet from the switch, consider a mid-span PoE extender or a second switch to avoid voltage drop.

Step 3: Mount the PoE Switch in a Central, Accessible Location

The PoE switch should be near your main router or NVR but in a cool, dry, and ventilated area. Avoid attics, damp basements, or direct sunlight.

Ideal spots:

• Home network closet
• Office server rack
• Basement utility room
• Wall-mounted cabinet

Mount it securely using screws or a rack tray. Ensure there’s space around it for airflow—overheating kills electronics. Plug the switch into a surge protector, not a power strip.

Label the switch with its purpose (e.g., “Security Cameras”) to avoid accidental unplugging. This small step saves hours of troubleshooting later.

Step 4: Run and Terminate Ethernet Cables

Now it’s time to connect the physical links. Start with one camera at a time to avoid confusion.

For each camera:

1. Run the Ethernet cable from the PoE switch location to the camera site. Use cable clips every 12–18 inches for support.
2. At the camera end, strip the cable jacket (about 1 inch) and separate the 4 twisted pairs.
3. Use a punch-down tool or screw terminal (for field-terminated cables) to attach the wires to the camera’s RJ45 jack. Follow the T568B wiring standard (white-orange, orange, white-green, blue, white-blue, green, white-brown, brown).
4. At the switch end, plug the cable directly into a PoE port. No termination needed if using pre-made cables.

If you’re using pre-made cables, test each one with a cable tester before installation. A single crossed wire can cause the camera to fail or the switch to reject it.

Warning: Never run Ethernet cables parallel to power lines. Keep at least 12 inches of separation to avoid interference (crosstalk).

Step 5: Connect the PoE Switch to Your Network

Now link your PoE switch to the rest of your network. This step is crucial for remote access and NVR integration.

Use a short Ethernet cable to connect:

• One of the switch’s non-PoE (uplink) ports to your router or modem.
• Or, connect a PoE port to your NVR if it supports direct PoE input.

Plug the PoE switch into power and turn it on. The power LED should light up. Check the switch’s front panel: each connected camera port should show a green or blinking light, indicating data and power are active.

If a port stays dark, unplug and reseat the cable. Still no light? Test the cable with a PoE tester or swap it with a known-good one.

Step 6: Power On and Pair Each Camera

With the network live, it’s time to power up your cameras. The PoE switch will automatically detect and power each camera when it’s plugged in.

For each camera:

1. Plug the Ethernet cable into the camera. The camera should power on automatically.
2. Wait 1–2 minutes for boot-up. You’ll see LED indicators (usually blue or green) on the camera.
3. Use the manufacturer’s app (e.g., Hik-Connect, Lorex, Reolink) or NVR interface to search for new devices.
4. Follow the on-screen prompts to add the camera. You may need to enter the camera’s serial number or scan a QR code.
5. Assign a name (e.g., “Backyard Camera”) and set recording preferences.

Most cameras use DHCP to get an IP address from your router. If your NVR uses static IPs, assign them manually in the camera’s web interface.

Pro Tip: Update each camera’s firmware during setup. Outdated firmware can cause compatibility issues with PoE switches.

Step 7: Test Video Quality and Power Stability

Don’t assume everything’s working just because the camera powers on. Test thoroughly.

For each camera:

• Check the live feed for clarity, focus, and field of view.
• Test night vision by covering the camera or waiting for dusk.
• Verify motion detection and recording (check the NVR or cloud storage).
• Monitor the PoE switch’s power usage via its web interface (if managed). Ensure no port is overloaded.

Look for signs of trouble:

• Flickering video = power fluctuation
• Pixelation or lag = bandwidth or cable issue
• Camera disconnects = poor cable or port

Fix issues by:

• Replacing low-quality cables
• Reducing the number of cameras on a single switch
• Using a PoE+ switch for high-power cameras

Step 8: Secure and Organize Your Setup

A clean setup is a reliable setup. Take time to organize cables and secure devices.

Do:

• Bundle cables with zip ties, leaving slack for movement.
• Label each cable at both ends (e.g., “Cam 1 – Front Door”).
• Seal outdoor entry points with silicone or conduit.
• Set up remote access via the camera app or NVR.

Don’t:

• Leave cables dangling where kids or pets can chew them.
• Ignore firmware updates—they patch security holes.
• Forget to test backups (SD cards, cloud, or NVR).

This step ensures your How to Connect Additional Cameras Using Poe Switch Easily project stays hassle-free for years.

Pro Tips & Common Mistakes to Avoid

Even with perfect gear, small mistakes can ruin your setup. Here’s what the pros know—and what you should too.

Pro Tip #1: Use a managed PoE switch if you have 8+ cameras. It lets you monitor power per port, prioritize traffic, and reboot devices remotely.

Pro Tip #2: Enable VLANs (Virtual LANs) on your router and switch. This isolates camera traffic from your main network, improving speed and security.

Pro Tip #3: Label your switch ports. If Cam 3 goes down, you’ll know exactly which port to check—no guesswork.

Common Mistakes:

• Ignoring Power Budget: Adding 10 cameras to a 100W switch? It’ll crash. Always calculate total wattage.
• Using Old Cables: Damaged or outdated cables cause voltage drops. Replace anything older than 5 years.
• Skipping Cable Tests: A “working” cable might still have a bad pair. Test every run.
• Overloading One Switch: If you have 12 cameras, use two 8-port switches instead of one 16-port. It’s more reliable.
• Forgetting Firmware: A camera with outdated firmware might not work with your switch or NVR.
• No Surge Protection: A lightning strike can fry your entire system. Use a UPS or surge protector.

Remember: the How to Connect Additional Cameras Using Poe Switch Easily method is only as good as your planning. A little extra time upfront saves hours of frustration later.

FAQs About How to Connect Additional Cameras Using Poe Switch Easily

Q1: Can I use a regular Ethernet switch with PoE cameras?

No. Regular switches don’t deliver power. You’d need separate power adapters for each camera, defeating the purpose of PoE. Always use a PoE switch or PoE injector.

Q2: What’s the max distance for PoE cameras?

The standard limit is 328 feet (100 meters) for Cat5e/Cat6 cables. Beyond that, use a PoE extender, fiber converter, or a second switch at the far end.

Q3: Can I mix PoE and non-PoE devices on the same switch?

Yes. Most PoE switches have both PoE and non-PoE ports. Just plug your router or computer into a non-PoE port. The switch won’t send power to non-PoE devices.

Q4: Why is my camera not powering on?

Check these in order:

1. Is the cable properly seated in the switch and camera?
2. Is the switch port working? Try a different port.
3. Test the cable with a PoE tester.
4. Is the camera compatible with your switch’s PoE standard (af/at)?
5. Is the switch’s power budget exceeded?

Q5: Can I connect a PoE switch to another PoE switch?

Yes, but use a non-PoE (uplink) port on the first switch to avoid a power loop. Connect the second switch to a PoE port on the first. This is called “daisy-chaining” and works well for large setups.

Q6: Do outdoor cameras need special PoE switches?

Not the switch, but the cameras should be rated for outdoor use (IP66 or higher). Use shielded cables and weatherproof enclosures for connections. The switch itself should stay indoors.

Q7: How do I expand my system later?

Plan for growth from the start. Buy a switch with more ports than you need, and leave 20% of the power budget free. When adding more cameras, just run new cables and plug them in—no new switch needed.

Final Thoughts

Expanding your security system doesn’t have to be a headache. With the How to Connect Additional Cameras Using Poe Switch Easily approach, you get a clean, scalable, and future-proof setup. No messy power outlets, no tangled wires—just plug, power, and protect.

The key takeaway? Plan first, install second. Choose the right PoE switch, calculate your power needs, and test every cable. A little extra effort now means fewer problems down the road.

Whether you’re securing your home, office, or business, PoE technology makes it easy to grow your system as your needs change. So grab your tools, follow this guide, and enjoy the peace of mind that comes with full coverage.

Ready to get started? Pick up a reliable PoE switch, map your camera spots, and take the first step toward a smarter, safer space. Your future self will thank you.
