How to Connect Alarm to Dahua Dvr

Connecting an alarm to your Dahua DVR enhances security by triggering recordings and alerts when motion or sensors are activated. This guide walks you through hardware wiring, software configuration, and testing to ensure reliable alarm integration.

Key Takeaways

• Understand alarm types: Know the difference between dry contact, voltage-based, and sensor-triggered alarms to choose the right setup.
• Check DVR compatibility: Confirm your Dahua DVR model supports alarm input and verify the number of available alarm ports.
• Proper wiring is crucial: Use shielded cables and follow correct polarity to avoid signal interference or damage.
• Configure via web interface or Smart PSS: Set up alarm rules, notifications, and recording schedules using Dahua’s software tools.
• Test thoroughly: Simulate alarm triggers to ensure the system responds with recordings, pop-ups, or email alerts.
• Troubleshoot common issues: Fix problems like false alarms, no response, or delayed triggers with simple checks.
• Use external power when needed: Some sensors require separate power sources—don’t rely solely on DVR power.

How to Connect Alarm to Dahua DVR: A Complete Step-by-Step Guide

Are you looking to boost your home or business security by connecting an alarm system to your Dahua DVR? You’re in the right place. Integrating an alarm with your Dahua DVR allows you to trigger video recordings, send instant alerts, and even activate on-screen pop-ups when a sensor is tripped. Whether you’re using door sensors, motion detectors, or glass break alarms, this guide will walk you through the entire process—from hardware setup to software configuration—so you can get your system working smoothly and reliably.

In this comprehensive how-to guide, you’ll learn how to connect alarm to Dahua DVR using both wired and basic wireless methods. We’ll cover everything from identifying your DVR’s alarm inputs and choosing the right sensors, to wiring them correctly and configuring the software for real-time alerts. By the end, you’ll have a fully functional alarm-triggered surveillance system that enhances your security without requiring advanced technical skills.

Understanding Dahua DVR Alarm Inputs

Before you start connecting any alarms, it’s important to understand how Dahua DVRs handle alarm signals. Most Dahua DVR models come with built-in alarm input ports—usually labeled as “ALARM IN” or “SENSOR IN”—on the back panel. These ports allow you to connect external devices like door sensors, motion detectors, smoke alarms, or panic buttons.

Each alarm input port is typically a dry contact input, meaning it doesn’t supply power but instead detects a change in electrical continuity (like a switch opening or closing). When the connected sensor is triggered, it completes or breaks the circuit, sending a signal to the DVR. The DVR then responds based on your settings—such as starting a recording, sending an email, or displaying an alert on the monitor.

Most Dahua DVRs support multiple alarm inputs—commonly 4, 8, or 16—depending on the model. For example, a 4-channel DVR usually has 4 alarm inputs, while an 8-channel model may have 8. Always check your DVR’s user manual or product specifications to confirm the number and type of alarm ports available.

Types of Alarms You Can Connect

You can connect a variety of alarm devices to your Dahua DVR, including:

• Magnetic door/window sensors: These detect when a door or window is opened.
• PIR (Passive Infrared) motion sensors: Detect movement in a room or area.
• Glass break sensors: Trigger when they detect the sound frequency of breaking glass.
• Panic buttons: Manual switches for emergency alerts.
• Smoke or fire detectors: Some models can send dry contact signals when smoke is detected.
• Water leak sensors: Useful in basements or server rooms.

All these devices can be connected as long as they provide a dry contact output (normally open or normally closed). Avoid using alarms that require high voltage or complex communication protocols unless you’re using a compatible interface module.

What You’ll Need to Connect an Alarm to Dahua DVR

To successfully connect an alarm to your Dahua DVR, gather the following tools and components:

• Dahua DVR with alarm input ports: Confirm your model supports alarm inputs.
• Alarm sensors: Choose sensors with dry contact outputs (NO/NC).
• Shielded twisted-pair cable (STP): Preferably 22-24 AWG, for clean signal transmission.
• Screwdrivers and wire strippers: For connecting wires to terminals.
• Power supply (if needed): Some sensors require external power.
• Computer or smartphone: To access the DVR’s web interface or Smart PSS software.
• Ethernet cable or Wi-Fi connection: For remote configuration.

Optional but helpful: a multimeter to test continuity and voltage, and cable labels to keep track of connections.

Step 1: Locate the Alarm Input Ports on Your Dahua DVR

The first step is to find the alarm input terminals on your Dahua DVR. These are usually located on the back panel, near the video and audio inputs. Look for a block of screw terminals labeled something like “ALARM IN,” “SENSOR,” or “IO.”

Each alarm input typically consists of two terminals: one for the signal (often labeled “IN” or “S”) and one for ground (labeled “GND” or “COM”). Some models may also have a “+12V” terminal to power certain sensors, but most dry contact sensors don’t require external power.

For example, on a Dahua XVR5104HS, you’ll find 4 alarm input pairs (IN1 to IN4), each with a corresponding GND terminal. Always refer to your DVR’s label or manual to avoid confusion.

Tip: Label Your Ports

Before connecting anything, label each alarm input (e.g., “Front Door,” “Back Window”) so you can easily identify them later during software setup. This saves time and reduces errors.

Step 2: Choose and Prepare Your Alarm Sensors

Select sensors that match your security needs. For most home setups, magnetic door sensors and PIR motion detectors are ideal. Make sure the sensors you choose have a dry contact output—this is essential for compatibility with Dahua DVRs.

Check the sensor’s specifications to confirm it uses a normally open (NO) or normally closed (NC) circuit. A normally open sensor completes the circuit when triggered (e.g., door opens), while a normally closed sensor breaks the circuit (e.g., wire cut).

For this guide, we’ll assume you’re using a normally open (NO) door sensor, which is common and easy to wire.

Wiring the Sensor

To wire the sensor:

1. Strip about 1 cm of insulation from both ends of your shielded cable.
2. Connect one wire to the NO terminal on the sensor.
3. Connect the other wire to the COM (common) terminal on the sensor.
4. Run the cable from the sensor to the DVR’s alarm input block.
5. At the DVR end, connect the wire from the NO terminal to the “IN” port (e.g., IN1).
6. Connect the wire from the COM terminal to the corresponding “GND” port.

Ensure the connections are tight and secure. Loose wires can cause false alarms or no response.

Using Shielded Cable

Always use shielded twisted-pair (STP) cable to reduce electromagnetic interference (EMI). Connect the shield (braided outer layer) to the DVR’s ground terminal or leave it unconnected at the sensor end to avoid ground loops.

Step 3: Power Considerations

Most dry contact sensors do not require external power—they simply act as a switch. However, some active sensors (like certain PIR detectors) may need 12V DC power to operate.

If your sensor requires power:

• Use the DVR’s +12V terminal (if available) to power the sensor.
• Connect the sensor’s positive (+) wire to the +12V terminal.
• Connect the sensor’s negative (-) wire to the GND terminal.
• Ensure the total power draw does not exceed the DVR’s alarm power limit (usually 500mA).

If the DVR doesn’t provide enough power, use an external 12V DC power supply. Connect the sensor to the external supply and wire the dry contact output to the DVR as usual.

Warning: Avoid Overloading

Never connect high-power devices (like sirens or lights) directly to the DVR’s alarm output. Use a relay module to isolate high-current devices and protect your DVR.

Step 4: Configure the Alarm in Dahua DVR Software

Once the hardware is connected, it’s time to configure the alarm settings in the DVR’s software. You can do this via the local monitor, web browser, or Dahua’s Smart PSS software.

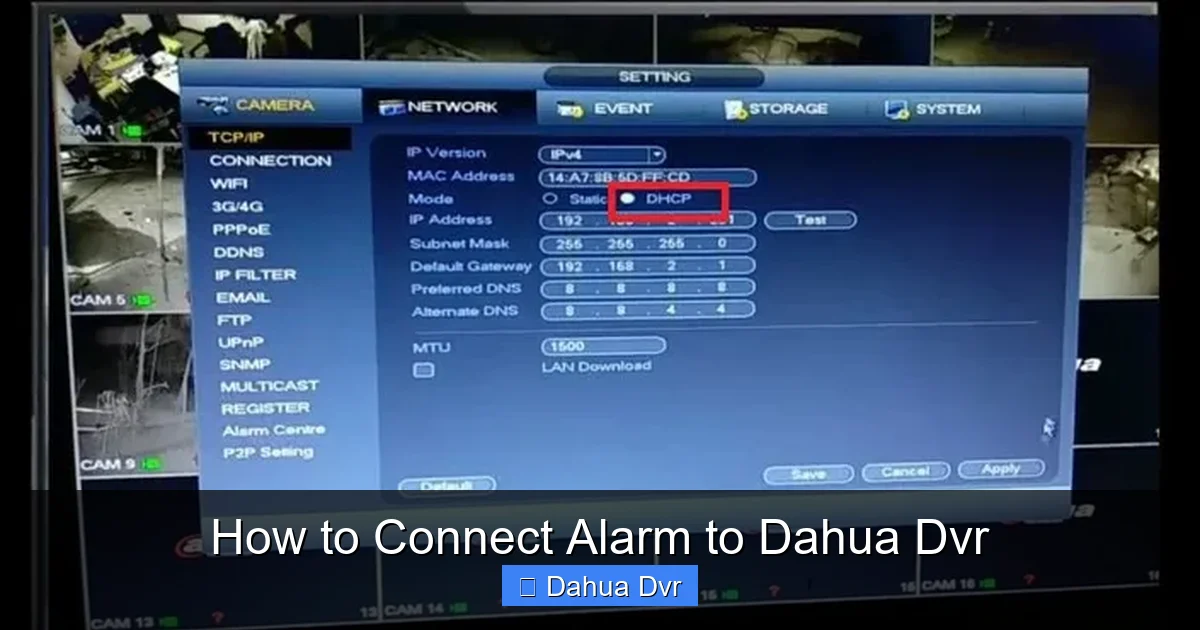

Accessing the DVR Interface

To access the DVR settings:

1. Connect the DVR to your network using an Ethernet cable.
2. Find the DVR’s IP address (check the label or use Dahua’s ConfigTool software).
3. Open a web browser and enter the IP address (e.g., http://192.168.1.108).
4. Log in with your admin username and password (default is often admin/admin).

Navigating to Alarm Settings

Once logged in:

1. Go to Setup > Event > Alarm Input.
2. Select the alarm input channel you connected (e.g., Alarm Input 1).
3. Enable the alarm by checking the “Enable” box.
4. Set the Trigger Type to “NO” (Normally Open) or “NC” (Normally Closed) based on your sensor.
5. Set the Alarm Type to “Local Alarm” or “Remote Alarm” depending on your needs.

Setting Up Alarm Actions

Now, define what happens when the alarm is triggered:

• Record: Enable “Record” to start recording on selected channels.
• PTZ Preset: If you have a PTZ camera, set it to move to a preset position.
• Popup Video: Enable “Popup” to show the camera feed on the monitor.
• Send Email: Enter your email address and SMTP server details to receive alerts.
• Trigger Alarm Output: If your DVR has alarm outputs, you can activate a siren or light.
• Upload to FTP: Save alarm-triggered snapshots or videos to an FTP server.

For example, if you connect a front door sensor to IN1, you might set it to record Channel 1, send an email, and show a popup for 10 seconds.

Scheduling Alarm Times

You can also set a schedule for when the alarm is active. For instance, disable the alarm during the day and enable it only at night. Go to Schedule and set the time periods for each day of the week.

Step 5: Test the Alarm System

After configuration, it’s crucial to test the system to ensure everything works.

How to Test

1. Arm the system (if using a schedule, make sure it’s active).
2. Trigger the sensor (e.g., open the door).
3. Check if the DVR starts recording.
4. Verify if a popup appears on the monitor.
5. Check your email for an alert (if configured).
6. Review the recorded footage in the playback section.

If nothing happens, double-check your wiring, trigger type, and software settings.

Common Test Scenarios

• Door sensor: Open and close the door to see if the DVR responds.
• Motion sensor: Walk in front of the sensor to trigger it.
• Panic button: Press the button and confirm the alert is sent.

Troubleshooting Common Issues

Even with careful setup, you might encounter problems. Here’s how to fix the most common ones:

Alarm Doesn’t Trigger

• Check wiring: Ensure wires are connected to the correct IN and GND terminals.
• Verify trigger type: Make sure the software setting (NO/NC) matches the sensor.
• Test sensor: Use a multimeter to check if the sensor closes the circuit when triggered.
• Check power: If the sensor needs power, confirm it’s receiving 12V.

False Alarms

• Secure loose wires that may vibrate and cause intermittent contact.
• Use shielded cable to reduce interference from lights or motors.
• Adjust sensor sensitivity (if adjustable).
• Relocate sensors away from heat sources or air vents.

No Email Alerts

• Confirm SMTP settings (server, port, username, password).
• Check if your email provider allows SMTP access (e.g., Gmail requires app passwords).
• Test with a different email address.
• Ensure the DVR has internet access.

Delayed Response

• Check network latency if using remote access.
• Reduce the number of simultaneous alarm actions.
• Update DVR firmware to the latest version.

Recording Doesn’t Start

• Verify that “Record” is enabled in the alarm settings.
• Check if the correct channels are selected for recording.
• Ensure the hard drive has space and is functioning.

Advanced Tips for Better Alarm Integration

Once your basic setup is working, consider these advanced tips to improve performance:

Use Zones for Multiple Sensors

If you have multiple sensors, group them into zones (e.g., “Perimeter,” “Interior”) and configure different responses for each. This helps prioritize alerts and reduce false alarms.

Integrate with Smart PSS

Download Dahua’s Smart PSS software for Windows or mobile apps for iOS/Android. This allows you to monitor alarms remotely, receive push notifications, and manage multiple DVRs from one interface.

Enable Audio Alerts

Some Dahua DVRs support audio output. You can configure a custom sound (like a beep or voice alert) to play when an alarm is triggered.

Use Relay Modules for External Devices

To control lights, sirens, or locks, connect a relay module to the DVR’s alarm output. The relay acts as a switch, allowing low-voltage signals to control high-power devices safely.

Regular Maintenance

Test your alarm system monthly. Clean sensors, check wire connections, and update firmware to ensure long-term reliability.

Conclusion

Connecting an alarm to your Dahua DVR is a smart way to enhance your security system. By linking sensors like door contacts, motion detectors, or panic buttons, you can trigger recordings, receive instant alerts, and respond quickly to potential threats. With the right wiring, proper software configuration, and thorough testing, your Dahua DVR can become the central hub of a responsive and intelligent surveillance setup.

Remember to choose compatible sensors, use shielded cables, and configure alarm actions that suit your needs. Whether you’re protecting your home, office, or warehouse, this integration adds a powerful layer of automation and peace of mind. Follow this guide step by step, and you’ll have a reliable alarm-triggered DVR system up and running in no time.
