Connecting an Apexis IP camera to a router is simple with the right steps. This guide walks you through setup, configuration, and troubleshooting for a seamless connection. By the end, your camera will be online and ready to monitor your space.

Quick Answers to Common Questions

Can I use Wi-Fi instead of Ethernet?

Yes, but Ethernet is more reliable for security cameras. Wi-Fi can suffer from interference and signal loss, especially outdoors or in large buildings.

Do I need a special app to view my camera?

Not necessarily. You can access the camera via any web browser on a computer. However, apps like the official Apexis viewer offer easier mobile access, push notifications, and playback features.

What if my router doesn’t allow port forwarding?

Some ISPs block common ports. Try using a non-standard port (e.g., 8080 instead of 80) or contact your ISP. Alternatively, use the camera’s built-in P2P service.

How often should I update the firmware?

Check every 3–6 months. Only update when necessary—some updates may reset settings. Always back up configurations first.

Can multiple Apexis cameras connect to one router?

Absolutely. Just assign each camera a unique static IP and ensure your router supports the number of devices. Most home routers handle 10–20 devices easily.

How to Connect Apexis IP Camera to Router: Complete Step-by-Step Guide

Setting up an Apexis IP camera to work with your router opens the door to reliable, high-quality surveillance for your home or business. Whether you’re monitoring your front door, office lobby, or backyard, getting your camera online is the most important first step. This guide will walk you through every part of the process—from unboxing to remote viewing—using simple language and clear instructions. No technical jargon, just practical steps anyone can follow.

By the end of this article, you’ll know exactly how to connect your Apexis IP camera to your router, configure it properly, and troubleshoot any hiccups along the way. We’ll also share tips for improving performance and keeping your system secure. Let’s get started!

What You’ll Learn

This guide covers everything you need to know about connecting an Apexis IP camera to a router. You’ll learn:

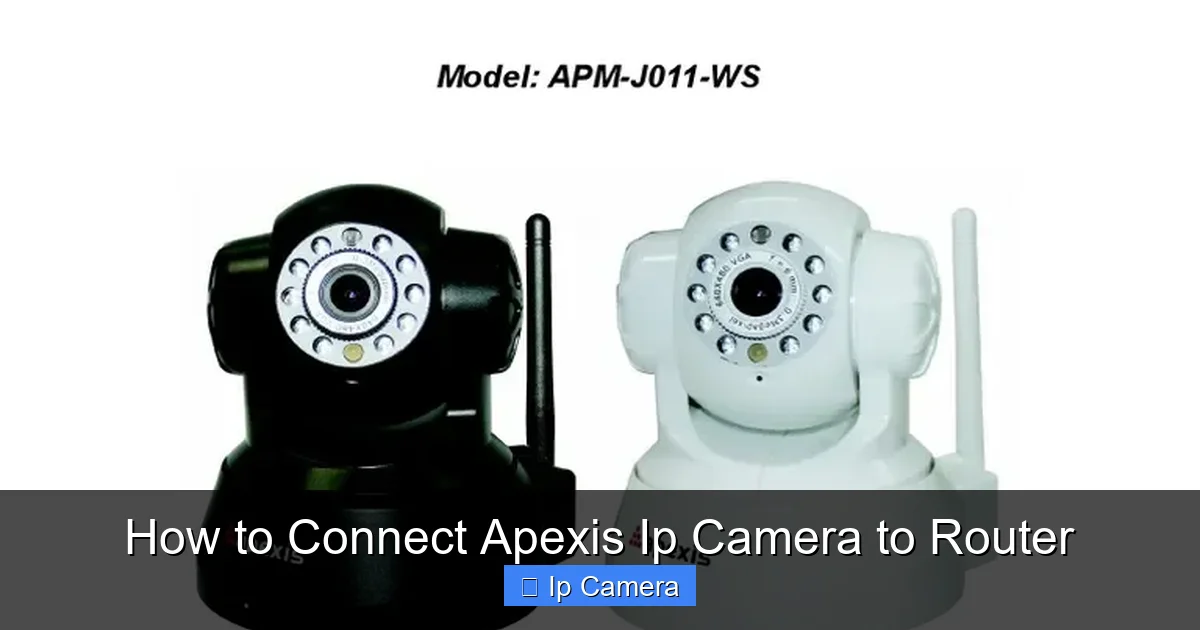

How to Connect Apexis Ip Camera to Router

Visual guide about How to Connect Apexis Ip Camera to Router

Image source: imgv2-2-f.scribdassets.com

  • How to physically set up the camera and router
  • How to access the camera’s web interface using its IP address
  • How to assign a static IP and configure network settings
  • How to enable remote access safely
  • Common troubleshooting steps if things go wrong

Let’s begin with the basics.

Step 1: Unbox and Inspect Your Apexis IP Camera

Before you start connecting anything, make sure you have all the components that came with your Apexis IP camera. Most packages include:

  • The camera unit
  • Power adapter
  • Mounting bracket (if included)
  • Ethernet cable (usually short)
  • Quick installation guide
  • CD with software (optional, may not be needed)

Check each item for damage. If anything is missing or broken, contact Apexis support before proceeding.

Where to Install the Camera

Choose a location with good visibility and stable power. Avoid direct sunlight or areas with extreme temperatures. Make sure the camera has a clear view of the area you want to monitor. If mounting on a wall or ceiling, use the included screws and anchors.

Step 2: Power On the Camera

Connect the power adapter to the camera and plug it into a nearby outlet. The status LED should light up within a few seconds, indicating the camera is booting. Wait about 1–2 minutes for the camera to fully initialize. You should hear a beep or see the LED blink in a pattern that confirms it’s ready.

If the camera doesn’t power on, check:
– Is the power adapter working? Try another outlet.
– Are the connections tight?
– Is the fuse blown (if applicable)?

Step 3: Connect Camera to Router via Ethernet

For the first-time setup, it’s best to use a wired connection. This avoids Wi-Fi signal issues and ensures a stable link between the camera and router.

  1. Take the Ethernet cable that came with the camera.
  2. Plug one end into the LAN port on your router.
  3. Plug the other end into the RJ45 port on the back of the Apexis camera.

Wait a moment—the camera’s indicator lights should show activity. A solid green or blinking light means data is flowing.

Tip: Use a Known Good Cable

If the connection fails, try swapping the Ethernet cable with one you know works. Faulty cables are a common cause of connectivity problems.

Step 4: Find the Camera’s IP Address

To access the camera’s settings, you need its IP address. Here’s how to find it:

Method 1: Check the Default IP Label

Some Apexis cameras have a label on the bottom or side showing the default IP address, username, and password. Common defaults are:
– IP: 192.168.1.108
– Username: admin
– Password: admin or blank

Method 2: Use ARP Command or Network Scanner

If no label exists, scan your network:

  1. Open Command Prompt (Windows) or Terminal (Mac/Linux).
  2. Type arp -a and press Enter.
  3. Look for an entry with a MAC address starting with the camera manufacturer’s code (often 00:0C:29, 00:1B:2F, etc.).
  4. Match the IP address to the MAC address.

Alternatively, download a free network scanner like Angry IP Scanner or Fing. These tools automatically detect devices on your network, including IP cameras.

Step 5: Access the Camera’s Web Interface

Now that you have the IP address, open a web browser (Chrome, Firefox, Edge, etc.) and type the IP into the address bar. Press Enter.

Example: http://192.168.1.108

Log In to the Camera

You’ll see a login screen. Enter the default credentials:
– Username: admin
– Password: admin (or leave blank)

Click Login.

⚠️ Change the default password immediately after logging in! This is critical for security.

Configure Basic Settings

Once logged in, navigate to the Network or Setup section. Here you can:
– Set a new password
– Adjust image quality
– Enable motion detection
– Configure recording settings

Save changes when done.

Step 6: Assign a Static IP Address to the Camera

Dynamic IP addresses assigned by your router can change, causing connection issues. To prevent this, assign a static IP.

Steps to Assign Static IP:

  1. In the camera’s web interface, go to Network > TCP/IP.
  2. Change from DHCP to Static.
  3. Enter a new IP address (e.g., 192.168.1.110).
  4. Set Subnet Mask (usually 255.255.255.0).
  5. Set Default Gateway to your router’s IP (e.g., 192.168.1.1).
  6. Set DNS to your router or public DNS (like 8.8.8.8).
  7. Save and reboot the camera.

Verify the Static IP on Your Router

Log into your router (usually at 192.168.1.1 or 192.168.0.1). Go to Connected Devices or DHCP Client List. Ensure the camera now shows the static IP you assigned.

Step 7: Connect the Camera to Wi-Fi (Optional)

If you prefer wireless, you can switch from Ethernet to Wi-Fi. However, wired is more reliable for security cameras.

Enable Wi-Fi in Camera Settings

  1. In the camera interface, go to Network > Wireless.
  2. Select your Wi-Fi network from the list.
  3. Enter the Wi-Fi password.
  4. Save and wait for the camera to reconnect.

The camera will disconnect from Ethernet and join Wi-Fi. You may need to remove the Ethernet cable during this process.

Note on Signal Strength

Place the camera near the router for best results. Weak signals cause lag, disconnections, or loss of video feed. Use a Wi-Fi extender if needed.

Step 8: Test the Connection

After setup, verify everything works:

  • Refresh the camera’s webpage. Live video should appear.
  • Play a short video clip (if available).
  • Check audio (if supported).
  • Test motion alerts (if enabled).

If video loads but is blurry, adjust the resolution or focus ring on the lens.

Step 9: Enable Remote Access (View from Anywhere)

Want to view your camera from your phone while traveling? Enable remote access.

Option 1: Port Forwarding (Advanced)

This method opens a port on your router so external devices can reach the camera.

  1. Log into your router.
  2. Find Port Forwarding (under Advanced or Firewall settings).
  3. Add a new rule:
    • Service Name: Apexis_Camera
    • External Port: 80 or 8080
    • Internal IP: Your camera’s static IP (e.g., 192.168.1.110)
    • Internal Port: 80
    • Protocol: TCP
  4. Save and restart the router.

Now, use your public IP address (find it via whatismyip.com) followed by the port to access the camera remotely. Example: http://203.0.113.10:8080

Option 2: Use ONVIF or P2P (Easier)

Many Apexis cameras support ONVIF or private P2P services. Look for an option like Cloud Link, QR Code Setup, or P2P ID in the camera settings.

Scan the QR code with the Apexis mobile app (available on iOS and Android). The app will handle port forwarding automatically and give you a secure link to your camera.

Security Reminder

Never expose your camera to the internet without strong passwords and encryption. Consider changing default ports and enabling HTTPS if supported.

Step 10: Update Firmware

Manufacturers release firmware updates to fix bugs, improve performance, and patch security flaws.

How to Update:

  1. In the camera interface, go to Maintenance > Upgrade.
  2. Download the latest firmware from Apexis official site.
  3. Upload the file and click Start.
  4. Wait for the update to complete—do not power off the camera.

After updating, the camera will reboot. Log back in and verify settings.

Troubleshooting Common Issues

Even with careful setup, problems can arise. Here’s how to fix them.

Problem: Camera Not Showing Up on Network

  • Check Ethernet cable and power.
  • Reboot the camera and router.
  • Try a different LAN port on the router.
  • Use a network scanner to detect the device again.

Problem: Can’t Access Camera Web Page

  • Confirm the IP address is correct.
  • Disable firewall or antivirus temporarily.
  • Ensure the camera and computer are on the same network.

Problem: Remote Viewing Fails

  • Check if port forwarding is enabled.
  • Verify your public IP hasn’t changed (use a dynamic DNS service if needed).
  • Try the Apexis mobile app instead of a web browser.

Problem: Poor Video Quality

  • Adjust resolution in camera settings (lower if bandwidth is low).
  • Move camera closer to router or use Ethernet.
  • Reduce lighting glare or reflections.

Best Practices for Long-Term Use

  • Regularly back up camera settings.
  • Monitor storage usage—delete old recordings or upgrade SD cards.
  • Keep firmware updated.
  • Use strong, unique passwords.
  • Enable two-factor authentication if available.

Conclusion

Connecting your Apexis IP camera to your router is a straightforward process when broken down into clear steps. From physical setup to remote access, this guide covers every stage to ensure your surveillance system runs smoothly. Whether you’re protecting your home or monitoring a small business, a properly connected camera provides peace of mind.

Remember: always prioritize security by changing default passwords and keeping firmware current. And don’t hesitate to revisit this guide if you run into issues—most problems have simple fixes.

Your Apexis camera is now part of a smarter, safer environment. Enjoy the benefits of modern surveillance!
