How to Connect Cameras TP-Link and POE Switch – Easy Setup Guide

Key Takeaways

• Verify compatibility: Ensure your TP-Link cameras support PoE before connecting.
• Use Cat5e/Cat6 cables: Reliable connections require high-quality Ethernet cables.
• Power via PoE switch: Connect cameras directly for power and data in one step.
• Check switch capacity: Confirm the PoE switch provides sufficient power for all cameras.
• Secure the network: Enable VLANs or firewalls to protect camera feeds from threats.
• Test connectivity: Use TP-Link software to verify camera detection and video quality.

Why This Matters / Understanding the Problem

Setting up a security camera system at home or in a small business should be simple—but it’s not always smooth sailing. One of the most common roadblocks? Figuring out how to connect cameras TP-Link and POE switch without frying your gear or getting lost in confusing menus.

Many people assume that plugging a camera into a switch is all it takes. But without understanding power over Ethernet (POE), IP addressing, or network compatibility, you could end up with dead cameras, poor video quality, or a system that crashes every time someone uses the microwave.

This guide walks you through the exact steps to set up your TP-Link POE cameras with a TP-Link POE switch—whether you’re installing two outdoor cams or a full 16-camera surveillance system. We’ll keep it practical, avoid tech jargon, and make sure your cameras go live on the first try.

By the end, you’ll know how to connect cameras TP-Link and POE switch safely, efficiently, and with minimal stress—no IT degree required.

What You Need

Before you start, gather these tools and materials. Most are likely already in your setup, but double-check to avoid mid-installation delays.

• TP-Link POE Cameras (e.g., Tapo C200, Tapo C210, or VIGI series) – Make sure they’re POE-compatible.
• TP-Link POE Switch (e.g., TL-SG105PE, TL-SG108PE, or VIGI S3124P) – Must support 802.3af/at POE standards.
• Ethernet (Cat5e or Cat6) Cables – For connecting cameras to the switch. Use outdoor-rated cables if running through walls or outdoors.
• Power Source – Plug the POE switch into a wall outlet or surge protector.
• Router or Network Gateway – To connect the switch to your home or business network.
• Smartphone, Tablet, or Computer – For initial setup and camera management via the Tapo or VIGI app.
• Optional: Network Cable Tester – Handy for troubleshooting connection issues.
• Optional: POE Tester (like TP-Link’s POE150S) – To verify power delivery before installing cameras.

Pro Tip: Always check your camera’s POE requirements. Most TP-Link cameras need 802.3af (15.4W per port), but some high-resolution or PTZ models may require 802.3at (up to 30W). Match your switch accordingly.

Step-by-Step Guide to How to Connect Cameras TP-Link and POE Switch – Easy Setup Guide

Follow these steps in order. Skipping ahead can cause configuration issues or prevent cameras from being discovered. This method works for both Tapo and VIGI series cameras.

Step 1: Plan Your Camera Locations and Cable Runs

Before touching any hardware, decide where each camera will go. Think about coverage, lighting, and accessibility for future maintenance.

Measure the distance from each camera location to the POE switch. Ethernet cables should not exceed 100 meters (328 feet) without signal boosters. For longer runs, use fiber converters or intermediate switches.

Sketch a simple layout: where the switch sits, which cameras connect to which ports, and how cables will run (under eaves, through conduit, etc.). This prevents confusion later and helps avoid tangled wires.

For outdoor installations, use weatherproof cable glands or conduit to protect connections. Avoid sharp bends in the cable—they can damage internal wires.

This planning phase is critical to a clean, reliable setup. Rushing here is the #1 reason people struggle with how to connect cameras TP-Link and POE switch effectively.

Warning: Never run Ethernet cables parallel to power lines (AC wires). This can cause interference and video flickering. Keep at least 12 inches (30 cm) of separation.

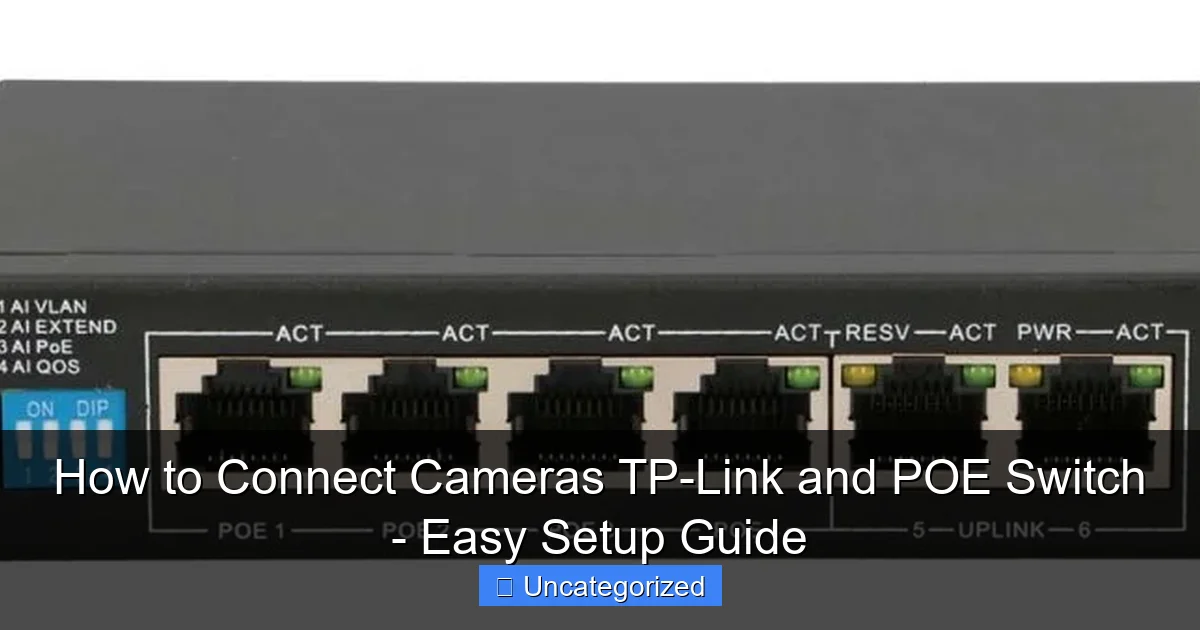

Step 2: Mount and Power the TP-Link POE Switch

Place your POE switch in a central, dry location—like a utility closet, basement, or network cabinet. Avoid attics or garages with extreme temperatures.

Secure the switch using the mounting brackets or screws provided. If it’s a desktop model, place it on a stable surface away from water or heavy foot traffic.

Plug the switch into a wall outlet using the included power adapter. Use a surge protector to guard against voltage spikes—especially in areas with unreliable power.

Once powered, look for the green power LED on the front panel. If it’s not on, check the outlet and power cable.

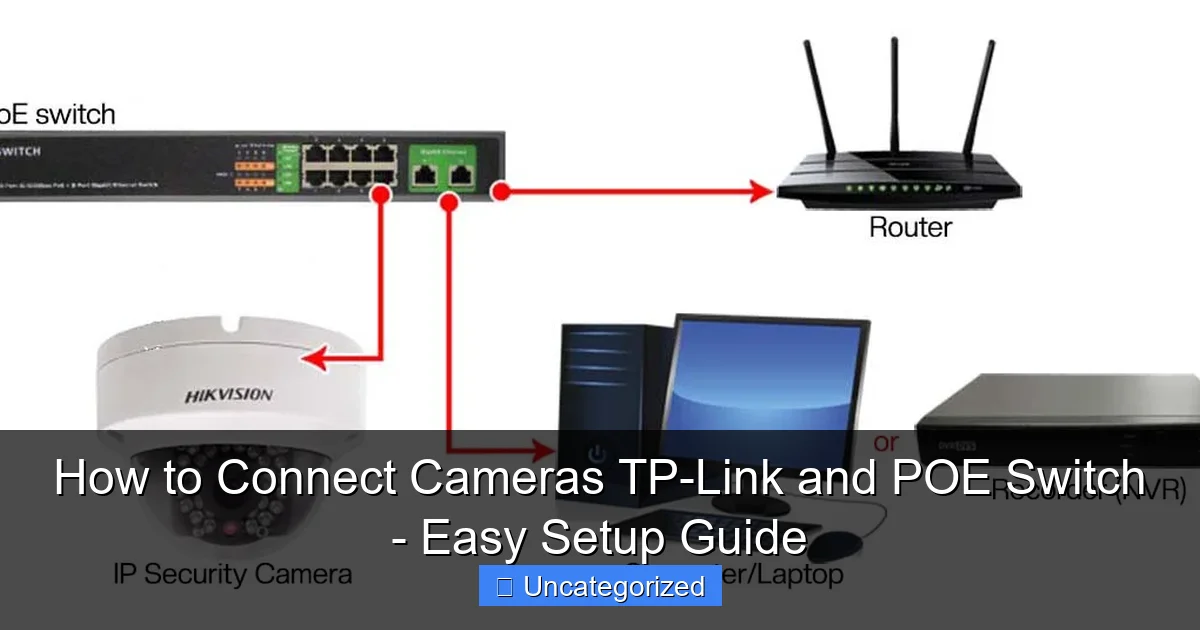

Now, connect the switch to your router using a standard Ethernet cable. Plug one end into a LAN port on your router and the other into the switch’s “Uplink” or “Router” port.

This connection gives your cameras access to the internet and your local network. Without it, you won’t be able to view footage remotely or use cloud features.

Pro Tip: Label the switch ports (e.g., “Front Door,” “Backyard”) with masking tape or a label maker. You’ll thank yourself later when troubleshooting.

Step 3: Run Ethernet Cables from Switch to Cameras

Now it’s time to lay your cables. Use a drill with a small bit to make holes in walls or soffits. Feed the Ethernet cable through, starting from the switch location and ending at each camera site.

Leave about 1–2 feet of extra cable at both ends for slack. This makes it easier to connect and disconnect without pulling on the cable.

At the camera end, strip about 1 inch of the outer jacket to expose the internal wires. Use a cable crimper and RJ45 connector to make a clean termination—or use pre-made cables if you’re not comfortable splicing.

Plug one end of the cable into a POE port on the switch (ports 1–8 on most TP-Link models). Plug the other end into the camera’s Ethernet port.

As soon as the camera connects, it should receive power and data through the same cable. You’ll see a status LED on the camera light up—usually green or blue.

Repeat this for each camera. Don’t worry about the order yet—you can reassign IP addresses later in the app.

Warning: Do not use a non-POE switch or inject power separately unless the camera supports it. Mixing power sources can damage the camera’s internal POE module.

Step 4: Verify Power and Network Connection

After connecting all cables, check that each camera is receiving power. Look for the camera’s status LED—steady green or blinking blue usually means it’s powered and connecting.

If a camera isn’t lighting up, check these:

• Is the cable properly seated in the switch and camera?
• Is the switch port enabled for POE? (Some switches disable POE by default.)
• Is the cable damaged or longer than 100 meters?
• Is the camera compatible with 802.3af/at POE?

Use a network cable tester if available. It will show if all 8 wires are connected correctly and if the cable can carry data and power.

For extra confidence, plug a POE tester (like TP-Link’s POE150S) between the switch and camera. It will display the voltage and wattage being delivered—ideal for diagnosing weak power issues.

Once all cameras are lit up, you’re ready to configure them in the app. This step is essential for ensuring a smooth how to connect cameras TP-Link and POE switch process.

Step 5: Install and Open the TP-Link Tapo or VIGI App

Download the correct app:

• For Tapo cameras (Tapo C200, C210, etc.): Use the Tapo app (iOS/Android).
• For VIGI cameras (VIGI C340, S3124P, etc.): Use the VIGI app.

Create an account or log in. Enable location and camera permissions so the app can discover your devices.

Tap “+” to add a new device. Select “Camera” and then “POE Camera.” The app will scan your network for unconfigured cameras.

You should see your cameras appear as “Unconfigured” or “Offline.” If they don’t show up, wait 1–2 minutes—cameras take time to boot up and join the network.

Select each camera and follow the on-screen prompts. The app will guide you through naming, setting a password, and choosing a recording mode (cloud, microSD, or NVR).

Pro Tip: Name your cameras clearly (e.g., “Front Door – North,” “Garage – East”). This helps during playback and alerts.

Step 6: Assign Static IP Addresses (Recommended)

By default, your cameras use DHCP (automatic IP assignment). That’s fine for small setups—but if your router restarts or the network changes, cameras might get new IPs and stop working.

To prevent this, assign static IP addresses to each camera. Here’s how:

1. Open the Tapo or VIGI app.
2. Go to the camera’s settings.
3. Find “Network” or “IP Settings.”
4. Switch from “DHCP” to “Static IP.”
5. Enter an IP address in your router’s subnet (e.g., if your router is 192.168.1.1, use 192.168.1.101 for the first camera, 192.168.1.102 for the second, etc.).
6. Set the subnet mask (usually 255.255.255.0) and gateway (your router’s IP).
7. Save and restart the camera.

Now, even if your network resets, the cameras will always use the same IP. This is a must for larger systems or remote access via NVRs.

This step is often overlooked but is a game-changer for reliability in any how to connect cameras TP-Link and POE switch setup.

Step 7: Set Up Alerts, Recording, and Remote Viewing

With cameras online, customize their behavior:

• Motion Alerts: Enable push notifications. Adjust sensitivity to avoid false alarms from pets or moving shadows.
• Recording Mode: Choose between microSD card (local), cloud (paid), or NVR (centralized). For 24/7 recording, microSD is cost-effective.
• Video Quality: Set resolution (1080p, 2K, or 4K) based on your bandwidth and storage. Higher resolution uses more data.
• Night Vision: Enable IR or color night vision. Most TP-Link cameras switch automatically.

To view cameras remotely:

1. Enable “Remote Access” in the app.
2. Log in from another device using the same account.
3. You can now view live feeds, playback recordings, and receive alerts from anywhere.

For business use, consider setting up user roles—so employees can view only certain cameras.

Warning: Never share your camera login with untrusted people. Use strong passwords and enable two-factor authentication (2FA) if available.

Step 8: Test and Optimize Your System

After setup, do a full test:

• Walk in front of each camera to trigger motion detection.
• Check that alerts arrive on your phone.
• Review recorded footage to ensure quality and field of view are correct.
• Test night vision in low-light conditions.
• Verify remote access works from a different Wi-Fi network.

If a camera has poor signal or lag, check:

• Is the cable damaged or too long?
• Is the switch overloaded with too many high-power devices?
• Are there network bottlenecks? (Check router bandwidth.)

Adjust camera angles, replace cables if needed, and fine-tune motion zones. A well-tuned system reduces false alerts and improves security.

Pro Tips & Common Mistakes to Avoid

Even with a perfect setup, small mistakes can ruin performance. Here are expert insights from real installers.

• Don’t skip the planning phase. Rushing leads to tangled wires, weak signals, and cameras pointing at walls. Sketch your layout first.
• Use Cat6 cables for future-proofing. Cat5e works fine for 1080p, but Cat6 handles 4K and longer runs better.
• Label everything. Use labels on cables, switch ports, and camera housings. Saves hours during troubleshooting.
• Enable firmware updates. TP-Link releases updates to fix bugs and improve security. Check monthly in the app.
• Don’t overload the POE switch. Most 8-port switches provide 65W total. A single 802.3at camera uses ~15W. Don’t connect more than 4 high-power cams to an 8-port 65W switch.
• Use VLANs for large systems. If you have 10+ cameras, isolate them on a separate VLAN to reduce network congestion.
• Secure your network. Change default router passwords, disable WPS, and use WPA3 encryption.

Common Mistake: Assuming all POE switches work the same. Some “POE” switches only power devices but don’t support data—or use proprietary POE that won’t work with TP-Link. Always check specs.

Pro Tip: If you’re using a managed switch (like TP-Link’s JetStream series), you can monitor power usage per port, set up QoS, and even schedule camera downtime for maintenance.

FAQs About How to Connect Cameras TP-Link and POE Switch – Easy Setup Guide

Q: Can I use a non-TP-Link POE switch with TP-Link cameras?
Yes, as long as the switch supports 802.3af/at POE standards. TP-Link cameras are compatible with most standard POE switches. However, TP-Link switches offer better integration, like auto-discovery in the app and power monitoring.

Q: Why isn’t my camera showing up in the app?
Common causes: loose cable, disabled POE on the switch port, incorrect IP subnet, or the camera not receiving power. Check the camera’s LED, verify the cable, and restart the switch. If still missing, try a different port or cable.

Q: Do I need a separate power supply for the cameras?
No. POE delivers power and data over one cable. Only use a separate power supply if the camera has a “DC 12V” option and you’re using a non-POE switch. Never mix power sources.

Q: How many cameras can I connect to a TP-Link POE switch?
It depends on the model. A 5-port TL-SG105PE supports up to 5 cameras. An 8-port TL-SG108PE supports 8. Also consider total power: a 65W switch can’t run 8 high-power cameras. Check the switch’s POE budget.

Q: Can I connect cameras to a POE switch without a router?
Yes, but only for local viewing (via app on the same network). For remote access, cloud recording, or NVR integration, you must connect the switch to a router with internet.

Q: What if my camera keeps disconnecting?
First, check the cable and power. Then, assign a static IP. Also, ensure your switch isn’t overheating or overloaded. If using Wi-Fi extenders, avoid placing cameras too far from the switch.

Q: Is it safe to run Ethernet cables outdoors?
Yes, but use outdoor-rated (UV-resistant, waterproof) Cat5e or Cat6 cables. Run them through conduit or soffits, and seal entry points with silicone to prevent moisture damage.

Final Thoughts

Connecting TP-Link cameras to a POE switch doesn’t have to be intimidating. With the right tools, a bit of planning, and this how to connect cameras TP-Link and POE switch – easy setup guide, you can have a professional-grade security system running in under an hour.

Remember: start with a layout, use quality cables, verify power, and assign static IPs. These small steps make the difference between a system that works and one that frustrates you.

Whether you’re securing your home, monitoring a store, or watching over a warehouse, TP-Link’s POE ecosystem offers reliability, clarity, and ease of use.

Now that you know the process, go ahead and set it up. Test it thoroughly, tweak the settings, and enjoy peace of mind knowing your property is under 24/7 watch.

And if you run into issues? Don’t panic. Check the cables, restart the switch, and refer back to this guide. You’ve got this.

Your security starts with a single connection—make it count.

“`
