How to Connect Dahua Dvr to Pc

How to Connect Dahua Dvr to Pc

by

Connecting your Dahua DVR to a PC allows you to monitor, manage, and playback footage remotely. This guide walks you through wired, wireless, and software-based methods for a smooth setup.

Key Takeaways

  • Use the right cables: An Ethernet cable (Cat5e or higher) is essential for a direct or network connection between your Dahua DVR and PC.
  • Install Dahua software: Download and install the official SmartPSS or ConfigTool from Dahua’s website for full control and playback.
  • Set up network settings: Assign a static IP address to your DVR or ensure it’s on the same subnet as your PC for reliable communication.
  • Enable remote access: Configure port forwarding and DDNS if you want to view your DVR from outside your local network.
  • Test the connection: Always verify connectivity using ping commands or the software’s device search feature before relying on the system.
  • Update firmware: Keep your DVR’s firmware current to avoid compatibility issues and improve security.
  • Use strong passwords: Protect your DVR and PC with unique, complex passwords to prevent unauthorized access.

Introduction: Why Connect Your Dahua DVR to a PC?

If you’ve invested in a Dahua DVR system for home or business security, you’re already ahead of the game. Dahua is a trusted brand known for high-quality surveillance equipment. But to get the most out of your system, you’ll want to connect your Dahua DVR to a PC. Why? Because it unlocks powerful features like remote viewing, easy playback, system configuration, and centralized management.

Whether you’re a tech-savvy user or a beginner, this guide will walk you through every step of connecting your Dahua DVR to your PC. You’ll learn how to set up a wired connection, use Dahua’s official software, configure network settings, and even troubleshoot common issues. By the end, you’ll be able to monitor your cameras from your computer with confidence.

Let’s get started!

What You’ll Need Before You Begin

Before diving into the setup, make sure you have the following items ready:

How to Connect Dahua Dvr to Pc

Visual guide about How to Connect Dahua Dvr to Pc

Image source: i0.wp.com

  • Dahua DVR unit (with power adapter connected and turned on)
  • PC or laptop running Windows (Windows 7, 8, 10, or 11 recommended)
  • Ethernet cable (Cat5e or Cat6, preferably shielded for better performance)
  • Router or network switch (if connecting via local network)
  • Monitor and HDMI/VGA cable (to access DVR settings initially)
  • Internet connection (for software downloads and remote access)
  • Dahua software (SmartPSS or ConfigTool – we’ll cover downloading this)

Having these ready will save you time and frustration during setup.

Step 1: Connect the Dahua DVR to Your Network

The first step is getting your DVR online. There are two main ways to do this: a direct connection or through your home/office network.

Option A: Direct Connection (DVR to PC)

If you want to connect your DVR directly to your PC without a router, follow these steps:

  1. Power off both the DVR and the PC.
  2. Use an Ethernet cable to connect the LAN port on the DVR to the Ethernet port on your PC.
  3. Power on the DVR first, then the PC.
  4. Wait a minute for both devices to initialize.

This method is simple but limits you to local access only. You won’t be able to view the DVR remotely unless you set up additional networking.

Option B: Network Connection (Via Router)

This is the recommended method for most users because it allows remote access and easier management.

  1. Connect the DVR to your router using an Ethernet cable.
  2. Connect your PC to the same router (via Wi-Fi or Ethernet).
  3. Power on all devices.
  4. Ensure all devices are on the same local network (e.g., 192.168.1.x).

This setup allows your PC and DVR to communicate over the local network and enables future remote access via the internet.

Step 2: Access the DVR’s Web Interface

Once connected, you can access the DVR’s settings through a web browser. This is useful for initial configuration.

Find the DVR’s IP Address

You’ll need the DVR’s IP address to connect. Here’s how to find it:

  • Connect a monitor to the DVR using HDMI or VGA.
  • Use the mouse to navigate to Main Menu > Network > TCP/IP.
  • Note the IP address (e.g., 192.168.1.108).

If the DVR is set to obtain an IP automatically (DHCP), it may change. For stability, we recommend setting a static IP.

Set a Static IP Address (Recommended)

To avoid connection issues, assign a fixed IP:

  1. In the DVR’s network settings, change the IP mode from DHCP to Static.
  2. Enter an IP address within your router’s range (e.g., 192.168.1.108).
  3. Set the subnet mask to 255.255.255.0.
  4. Enter your router’s IP as the gateway (e.g., 192.168.1.1).
  5. Save and reboot the DVR.

Now your DVR will always use the same IP, making it easier to connect.

Log in via Web Browser

On your PC:

  1. Open a web browser (Chrome, Firefox, or Edge).
  2. Type the DVR’s IP address into the address bar (e.g., http://192.168.1.108).
  3. Press Enter.
  4. Log in with the default username and password (usually admin and admin or 123456).

You should now see the DVR’s live view or configuration page. If not, check your firewall settings or try a different browser.

Step 3: Install Dahua Software on Your PC

While the web interface works, Dahua’s dedicated software offers better performance and more features. The two main tools are SmartPSS and ConfigTool.

Download SmartPSS

SmartPSS (Smart Professional Surveillance System) is Dahua’s flagship PC software for managing DVRs and cameras.

  1. Go to the official Dahua website: https://www.dahuasecurity.com.
  2. Navigate to Support > Download Center.
  3. Search for “SmartPSS” and download the latest version for Windows.
  4. Run the installer and follow the on-screen instructions.

SmartPSS supports live viewing, playback, device management, and remote access.

Download ConfigTool

ConfigTool is a lightweight utility for discovering and configuring Dahua devices on your network.

  1. On the same download page, search for “ConfigTool”.
  2. Download and install it.
  3. Launch ConfigTool after installation.

ConfigTool is great for finding your DVR’s IP address if you’ve forgotten it or if it’s not showing up.

Step 4: Add Your Dahua DVR to SmartPSS

Now that SmartPSS is installed, let’s add your DVR.

Launch SmartPSS

Open the SmartPSS application on your PC. You’ll see a login screen. Use the default credentials or your custom login if you’ve changed them.

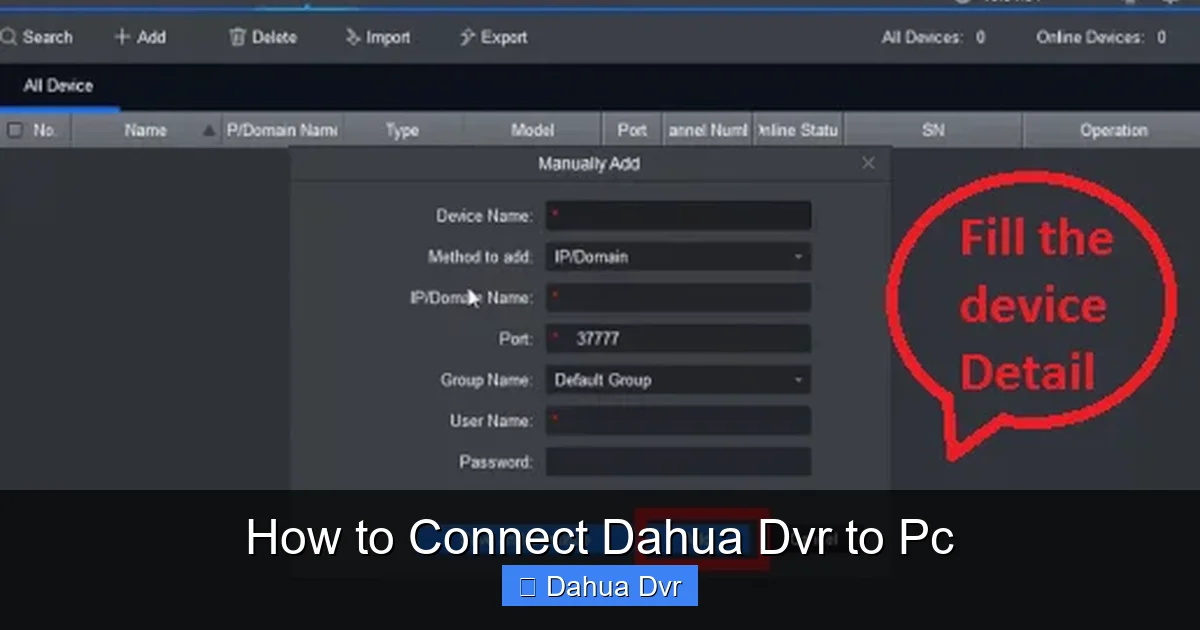

Add the DVR Manually

  1. Click on Device Management in the left panel.
  2. Click the + button to add a new device.
  3. Choose Manual Add.
  4. Enter the DVR’s IP address, port (default is 37777), username, and password.
  5. Click OK.

SmartPSS will attempt to connect. If successful, the DVR will appear in the device list.

Use ConfigTool to Discover the DVR

If you’re unsure of the IP address, use ConfigTool:

  1. Open ConfigTool.
  2. Click Search.
  3. Wait for the tool to scan your network.
  4. Your DVR should appear in the list with its IP, model, and status.
  5. Double-click the DVR to log in and verify connectivity.

Once confirmed, you can add it to SmartPSS using the discovered IP.

Step 5: Configure Remote Access (Optional but Recommended)

Want to view your cameras from your phone or another location? You’ll need to set up remote access.

Enable Port Forwarding on Your Router

Port forwarding allows external devices to connect to your DVR through the internet.

  1. Log in to your router’s admin page (usually http://192.168.1.1).
  2. Find the Port Forwarding or Virtual Server section.
  3. Add a new rule:
    • Service Name: Dahua DVR
    • External Port: 37777 (or a custom port)
    • Internal IP: Your DVR’s IP (e.g., 192.168.1.108)
    • Internal Port: 37777
    • Protocol: TCP/UDP
  4. Save the settings.

Now your DVR is accessible from outside your network using your public IP address.

Set Up DDNS (Dynamic DNS)

Most home internet connections have a dynamic public IP that changes. DDNS solves this by linking a domain name to your changing IP.

  1. In the DVR’s network settings, go to DDNS.
  2. Choose a DDNS provider (Dahua supports dyndns.org, no-ip.com, etc.).
  3. Create an account with the provider and register a hostname (e.g., mydvr.ddns.net).
  4. Enter the hostname, username, and password in the DVR’s DDNS settings.
  5. Save and test the connection.

Now you can access your DVR using the hostname instead of remembering a changing IP.

Use P2P (Plug-and-Play) for Easier Setup

Many newer Dahua DVRs support P2P, which simplifies remote access without port forwarding.

  1. In the DVR’s network settings, enable P2P.
  2. Note the P2P UID (a long string of numbers and letters).
  3. In SmartPSS, add the DVR using the P2P UID instead of the IP.
  4. Log in with your Dahua account (create one on Dahua’s website if needed).

P2P is the easiest method for beginners and works well for most users.

Step 6: View Live Feeds and Playback Footage

Once connected, you can start using your DVR’s full capabilities.

Live View

In SmartPSS:

  1. Go to Live View.
  2. Select your DVR from the device list.
  3. Choose the camera channels you want to view.
  4. Click Start to begin streaming.

You can view up to 16 cameras at once, depending on your DVR model.

Playback Recorded Footage

To review past recordings:

  1. Go to Playback in SmartPSS.
  2. Select the DVR and camera channel.
  3. Choose a date and time range.
  4. Click Search to load recordings.
  5. Use the timeline to scrub through footage.
  6. Right-click to export or save clips.

You can also set up motion detection alerts and export video in AVI or MP4 format.

Step 7: Configure Alerts and Notifications

Stay informed when something happens.

Set Up Motion Detection

In the DVR’s settings:

  1. Go to Event > Motion Detection.
  2. Select the camera channel.
  3. Draw detection zones on the screen.
  4. Set sensitivity and trigger duration.
  5. Enable email or push notifications.

When motion is detected, the DVR can send an alert to your PC or smartphone.

Enable Email Alerts

To receive email notifications:

  1. Go to Network > Email.
  2. Enter your SMTP server details (e.g., Gmail: smtp.gmail.com, port 587).
  3. Enter your email address and password.
  4. Enable TLS/SSL if required.
  5. Test the email settings.

Now you’ll get alerts when motion is detected or if the system goes offline.

Troubleshooting Common Issues

Even with careful setup, problems can occur. Here’s how to fix the most common ones.

“Device Not Found” in SmartPSS

  • Check that the DVR and PC are on the same network.
  • Verify the IP address and port number.
  • Disable firewall or antivirus temporarily.
  • Use ConfigTool to rediscover the device.

Can’t Access DVR via Web Browser

  • Ensure the DVR’s HTTP port is enabled (default: 80).
  • Try a different browser or clear cache.
  • Check if the DVR’s web service is enabled in network settings.

Video Lag or Freezing

  • Reduce the stream resolution in the DVR settings.
  • Use a wired connection instead of Wi-Fi.
  • Close other bandwidth-heavy applications on your PC.

Forgot DVR Password

  • Use the Dahua password reset tool (available on their website).
  • You’ll need the DVR’s serial number and a security code.
  • Contact Dahua support if the tool doesn’t work.

Remote Access Not Working

  • Double-check port forwarding rules.
  • Ensure your ISP isn’t blocking ports.
  • Test with P2P instead of manual port forwarding.
  • Restart the router and DVR.

Tips for a Smooth Experience

  • Keep firmware updated: Check for updates every few months on Dahua’s website.
  • Use strong passwords: Change default credentials immediately.
  • Label your cameras: Name each channel in SmartPSS for easy identification.
  • Backup configurations: Export your DVR settings regularly.
  • Use a UPS: Protect your DVR from power outages.

Conclusion: Enjoy Full Control of Your Dahua DVR

Connecting your Dahua DVR to a PC opens up a world of possibilities. You can monitor your property in real time, review past events, receive alerts, and manage your system from anywhere. Whether you used a direct connection, network setup, or P2P, you now have the tools to get the most out of your surveillance system.

Remember to keep your software and firmware updated, use secure passwords, and test your setup regularly. With the steps in this guide, you’re well-equipped to handle any challenge that comes your way.

Stay safe, stay connected, and enjoy peace of mind with your Dahua DVR and PC working together seamlessly.
