How to Connect Foscam to Ftp

How to Connect Foscam to Ftp

by

This guide walks you through how to connect Foscam to FTP for automatic video and image backups. You’ll learn setup steps, configuration tips, and troubleshooting advice to ensure reliable remote storage.

Key Takeaways

  • FTP enables automatic backups: Connecting your Foscam camera to an FTP server allows it to upload recordings and snapshots without manual intervention.
  • Choose a compatible FTP server: Use reliable services like FileZilla Server, vsftpd, or cloud-based options such as Google Drive (via third-party tools) or Amazon S3 (with middleware).
  • Correct network settings are crucial: Ensure your Foscam camera and FTP server are on the same network or accessible via port forwarding if remote.
  • Use strong credentials: Always set secure usernames and passwords to protect your footage from unauthorized access.
  • Test the connection immediately: After setup, trigger a motion event or snapshot to confirm files upload successfully.
  • Troubleshoot common errors: Issues like “FTP connection failed” often stem from incorrect IPs, blocked ports, or firewall restrictions.
  • Regularly monitor uploads: Check your FTP directory periodically to ensure continuous and reliable storage.

Introduction: Why Connect Your Foscam Camera to FTP?

If you own a Foscam security camera, you already know how valuable real-time monitoring can be. But what happens when motion is detected or an alert is triggered? Without proper storage, those critical moments might be lost—especially if your camera relies solely on local SD cards or cloud subscriptions that may fail or expire.

That’s where connecting your Foscam to FTP comes in. FTP (File Transfer Protocol) lets your camera automatically upload snapshots and video clips to a remote server. This means even if your camera is damaged, stolen, or disconnected, your footage remains safe and accessible. Whether you’re using a home server, a NAS device, or a cloud-hosted FTP service, this setup gives you full control over your data.

In this comprehensive guide, we’ll walk you through every step of the process—from choosing the right FTP solution to configuring your Foscam camera and troubleshooting common problems. By the end, you’ll have a reliable, automated backup system that works quietly in the background, giving you peace of mind.

What You’ll Need Before Starting

Before diving into the configuration, make sure you have the following ready:

How to Connect Foscam to Ftp

Visual guide about How to Connect Foscam to Ftp

Image source: i.ytimg.com

  • A Foscam IP camera (most models are supported, including FI9800P, FI9900P, R2, R4, etc.)
  • Access to the camera’s web interface (usually via a browser using the camera’s IP address)
  • An FTP server – either self-hosted (like on a Raspberry Pi or Windows PC) or a paid/cloud service
  • FTP server credentials: hostname (or IP), port (usually 21), username, and password
  • Stable internet connection for both the camera and FTP server
  • Basic networking knowledge (understanding IP addresses, ports, and firewalls helps)

Don’t worry if you’re new to FTP—we’ll explain everything in simple terms. The goal is to make this process as straightforward as possible, even for beginners.

Step 1: Set Up Your FTP Server

The first step in connecting your Foscam to FTP is ensuring your FTP server is running and accessible. You have two main options: self-hosted or cloud-based.

Option A: Self-Hosted FTP Server (Recommended for Privacy)

If you want full control over your data, setting up your own FTP server is ideal. Here’s how:

On Windows (Using FileZilla Server)

  1. Download and install FileZilla Server from the official website.
  2. Launch the FileZilla Server Interface and connect to the server (localhost).
  3. Go to Edit > Users and click Add to create a new user account.
  4. Set a strong username and password. Avoid common names like “admin” or “user.”
  5. Under the Shared folders tab, add a directory where Foscam will upload files (e.g., C:\Foscam_Uploads).
  6. Grant the user Write and Read permissions for that folder.
  7. Start the server by clicking the green “Start” button.

On Linux (Using vsftpd)

  1. Open a terminal and install vsftpd:
    sudo apt update && sudo apt install vsftpd
  2. Edit the configuration file:
    sudo nano /etc/vsftpd.conf
  3. Ensure the following lines are uncommented and set correctly:
    • anonymous_enable=NO
    • local_enable=YES
    • write_enable=YES
    • chroot_local_user=YES
  4. Restart the service:
    sudo systemctl restart vsftpd
  5. Create a user:
    sudo adduser foscamftp and set a secure password.
  6. Create a upload directory:
    sudo mkdir /home/foscamftp/uploads
    sudo chown foscamftp:foscamftp /home/foscamftp/uploads

Option B: Cloud-Based FTP Service

If you prefer not to manage your own server, consider cloud FTP services like:

  • DriveHQ – Offers free and paid FTP accounts with web access.
  • FTP Today – Reliable hosting with SSL support.
  • Google Drive or Dropbox – Not native FTP, but can be used with tools like Rclone or SFTP Gateway to bridge the gap.

For most users, a self-hosted server on a home PC or NAS is sufficient and more secure. However, cloud options offer convenience and off-site redundancy.

Step 2: Find Your FTP Server’s IP Address and Port

Your Foscam camera needs to know where to send files. That means providing the correct FTP server address and port.

Finding Your Local IP Address (For Home Networks)

If your FTP server is on the same network as your Foscam camera (e.g., both connected to your home router), use the local IP address.

  • On Windows: Open Command Prompt and type ipconfig. Look for “IPv4 Address” under your active network adapter (e.g., 192.168.1.100).
  • On Linux/macOS: Open Terminal and type ifconfig or ip a. Find the IP under your Ethernet or Wi-Fi interface.

Note: This IP is only accessible within your local network. If you want remote access (e.g., from outside your home), you’ll need to set up port forwarding (covered later).

Default FTP Port

Most FTP servers use port 21 by default. Unless you’ve changed it during setup, stick with 21. If you’re using FTPS (FTP over SSL), the port might be 990, but standard FTP on port 21 is sufficient for most home setups.

Step 3: Access Your Foscam Camera’s Web Interface

Now it’s time to configure your Foscam camera to connect to the FTP server.

Step-by-Step Login

  1. Make sure your Foscam camera is powered on and connected to your network.
  2. Find the camera’s IP address. You can do this by:
    • Using the Foscam app (iOS/Android) – it usually displays the IP.
    • Checking your router’s connected devices list.
    • Using a network scanner like Advanced IP Scanner or Fing.
  3. Open a web browser (Chrome, Firefox, etc.) and enter the camera’s IP address in the address bar (e.g., http://192.168.1.50).
  4. Log in using your admin credentials. The default is often:
    • Username: admin
    • Password: (leave blank or enter the one you set during initial setup)

    Tip: If you’ve never changed the password, check the camera’s manual—some models use “111111” or “888888”.

Once logged in, you’ll see the camera’s live view and a menu on the left or top.

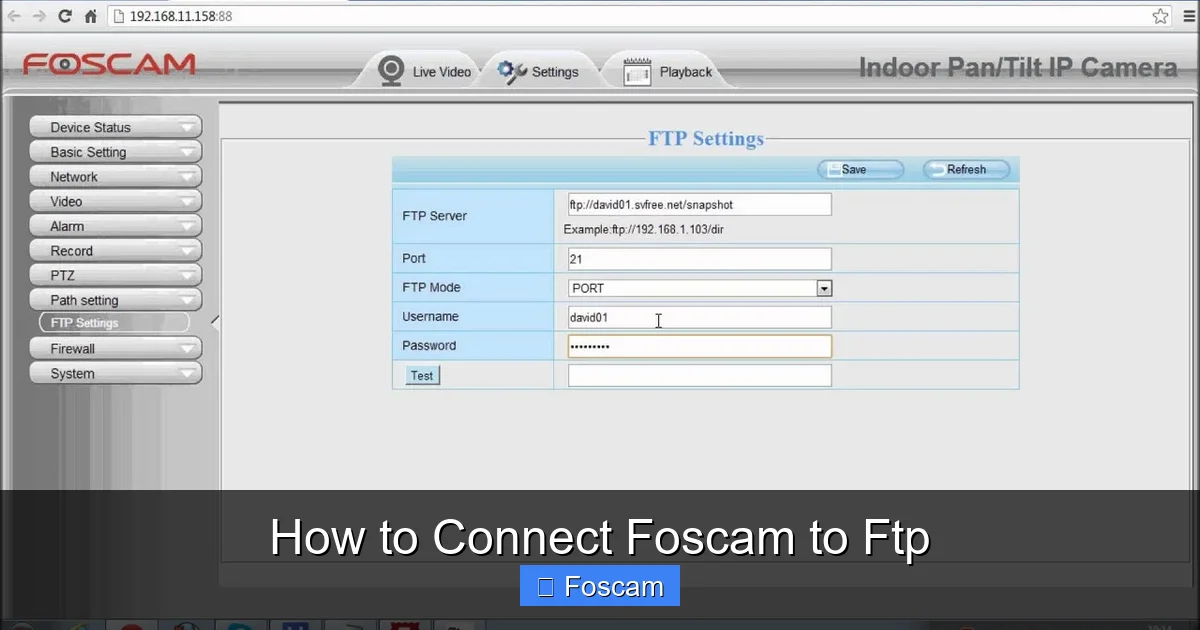

Step 4: Configure FTP Settings in Foscam

This is the core part of the process. You’ll now tell your Foscam camera where and how to upload files.

Navigate to FTP Settings

  1. In the web interface, look for a menu labeled Settings, Network, or Storage.
  2. Find the FTP or FTP Upload section. It may be under “Event Settings” or “Alarm Settings” on some models.
  3. Click to open the FTP configuration page.

Enter FTP Server Details

Fill in the following fields with your FTP server information:

  • FTP Server: Enter the IP address of your FTP server (e.g., 192.168.1.100).
    Note: Do not include “http://” or “ftp://” — just the IP or domain.
  • Port: Enter 21 (unless you’ve configured a different port).
  • Username: The FTP account username you created (e.g., foscamftp).
  • Password: The corresponding password.
  • Upload Path: The folder where files should be saved (e.g., /uploads or C:\Foscam_Uploads).
    Tip: Use forward slashes (/) even on Windows servers.
  • Upload Interval: Set how often snapshots are uploaded (e.g., every 5 seconds during motion).
  • File Name: Choose a naming format like Camera1_%Y%m%d_%H%M%S.jpg to include date and time.

Enable FTP Upload Triggers

FTP uploads only happen when triggered. Make sure the following are enabled:

  • Motion Detection: Turn this on and link it to FTP upload. Set sensitivity and detection zones if needed.
  • Snapshot on Event: Enable this to upload images when motion is detected.
  • Video Upload (if supported): Some Foscam models allow short video clips to be uploaded. Check if your model supports this under “Record Settings.”

Save and Apply Settings

After entering all details, click Save or Apply. The camera may restart briefly. Wait a minute, then return to the FTP settings page to confirm the values are saved.

Step 5: Test the FTP Connection

Configuration is only half the battle—now you need to verify it works.

Manual Test: Trigger a Snapshot

  1. In the Foscam web interface, go to the live view.
  2. Look for a Snapshot or Take Photo button (often a camera icon).
  3. Click it. The camera should capture an image and attempt to upload it via FTP.
  4. Wait 10–30 seconds, then check your FTP server’s upload folder.
  5. If you see a new image file (e.g., Camera1_20240510_143022.jpg), congratulations—it’s working!

Automated Test: Trigger Motion Detection

  1. Wave your hand in front of the camera or walk through its field of view.
  2. Wait for the motion detection alert (you may hear a beep or see a notification).
  3. Check the FTP folder again. You should see new images or videos uploaded automatically.

If no files appear, don’t panic—move to the troubleshooting section below.

Step 6: Enable Remote Access (Optional)

So far, your Foscam and FTP server are on the same local network. But what if you want to access your footage from anywhere? You’ll need to set up remote access.

Port Forwarding on Your Router

This allows external devices to reach your FTP server through your public IP address.

  1. Log in to your router’s admin page (usually 192.168.1.1 or 192.168.0.1).
  2. Find the Port Forwarding or Virtual Server section.
  3. Add a new rule:
    • Service Name: FTP
    • External Port: 21
    • Internal IP: Your FTP server’s local IP (e.g., 192.168.1.100)
    • Internal Port: 21
    • Protocol: TCP
  4. Save the rule.

Now, instead of using the local IP in your Foscam settings, use your public IP address (find it at whatismyip.com).

Warning: Opening port 21 to the internet can be a security risk. Use strong passwords, consider changing the default port, or use a VPN for safer remote access.

Step 7: Monitor and Maintain Your FTP Uploads

Once everything is working, it’s important to keep an eye on the system to ensure long-term reliability.

Check Uploads Regularly

Visit your FTP folder weekly to confirm new files are appearing. If you notice gaps, investigate immediately.

Set Up Alerts (Optional)

Some FTP servers or NAS devices allow email or push notifications when new files arrive. Enable these to get alerts when motion is detected.

Backup Your FTP Data

Even though your footage is now offloaded from the camera, don’t forget to back up the FTP server itself. Use external drives, cloud sync, or RAID configurations to prevent data loss.

Troubleshooting Common FTP Connection Issues

Even with careful setup, problems can occur. Here are the most common issues and how to fix them.

“FTP Connection Failed” Error

This is the most frequent problem. Causes include:

  • Incorrect IP address: Double-check the FTP server IP in the Foscam settings. Ping the server from another device to confirm it’s reachable.
  • Wrong port: Ensure port 21 is open and not blocked by a firewall.
  • Firewall blocking FTP: On your FTP server, allow port 21 through the firewall. On Windows, go to Windows Defender Firewall > Advanced Settings > Inbound Rules and create a new rule for port 21.
  • Router blocking traffic: If using remote access, verify port forwarding is correctly configured.

Files Not Uploading Despite Successful Connection

  • Check upload path: Ensure the folder exists and has write permissions.
  • Verify motion detection is enabled: FTP uploads only happen when triggered.
  • Test with a manual snapshot: If manual uploads work but motion doesn’t, adjust motion sensitivity or detection zones.

Slow or Intermittent Uploads

  • Network congestion: Avoid uploading large video files over a slow connection. Use snapshots instead.
  • Server performance: If your FTP server is underpowered (e.g., an old PC), consider upgrading or switching to a cloud service.

Authentication Errors

  • Wrong username/password: Re-enter credentials carefully. Avoid special characters that might be misinterpreted.
  • Account locked: Some FTP servers lock accounts after failed login attempts. Restart the server or reset the account.

Best Practices for Secure and Reliable FTP Uploads

To get the most out of your Foscam-to-FTP setup, follow these best practices:

  • Use strong, unique passwords for both your Foscam camera and FTP account.
  • Change default login credentials on your camera immediately after setup.
  • Update firmware regularly to patch security vulnerabilities.
  • Limit FTP access to only necessary users and IP addresses if possible.
  • Use FTPS (FTP Secure) if your server and camera support it—this encrypts data in transit.
  • Monitor logs on your FTP server to detect unauthorized access attempts.
  • Test monthly to ensure the system is still functioning after network changes.

Conclusion: Enjoy Peace of Mind with Automated Backups

Connecting your Foscam camera to FTP might seem technical at first, but it’s one of the smartest things you can do to protect your security footage. By automating uploads to a remote server, you eliminate single points of failure and gain full control over your data.

From setting up your FTP server to configuring motion-triggered uploads and troubleshooting connection issues, this guide has covered everything you need to succeed. Whether you’re securing your home, monitoring a business, or keeping an eye on a vacation property, FTP integration adds a powerful layer of reliability.

Remember: the key to success is testing early and monitoring often. Once your system is running smoothly, you can rest easy knowing your footage is safe—no matter what happens to the camera.

Now go ahead, set it up, and enjoy the confidence that comes with true security.
