Connecting your Hikvision IP camera to an NVR is a straightforward process that ensures reliable video surveillance. This guide walks you through physical connections, network settings, and software configuration using clear steps and practical examples. Whether you’re setting up a home or business system, you’ll get your cameras online quickly and securely.
Quick Answers to Common Questions
Can I use a non-Hikvision NVR with a Hikvision camera?
Yes, but only if the camera supports ONVIF protocol. Many modern Hikvision cameras are ONVIF-compliant, allowing integration with third-party NVRs like Dahua or Amcrest. However, full feature access (like two-way audio or smart alerts) may be limited.
Do I need a separate power supply for PoE cameras?
No. PoE (Power over Ethernet) cameras receive both power and data through a single Ethernet cable. Just ensure your NVR or switch supports PoE+/802.3af/at standards. If not, use a PoE injector between the camera and network.
How many cameras can one NVR support?
It depends on the NVR model. Entry-level NVRs support 4–8 channels, while high-end units (like the DS-9664NI-I8) can handle up to 64 cameras. Check the product specs for maximum resolution per channel as well.
Why isn’t my camera showing up after setup?
Common causes include loose cables, incorrect IP settings, or power issues. First, verify the camera is lit (indicating power). Then, log into the camera directly via its web interface using its default IP (often 192.168.1.64). Reset the camera if necessary.
Is wireless better than wired for IP cameras?
Wired connections (via Ethernet) are more reliable and secure. Wireless cameras (Wi-Fi) are convenient for retrofits but can suffer from interference, range limits, and bandwidth congestion. Use Wi-Fi only if running cables isn’t feasible.
How to Connect Hikvision IP Camera to NVR: A Complete Step-by-Step Guide
Setting up a surveillance system doesn’t have to be intimidating. With Hikvision IP cameras and NVRs, you get professional-grade security tools designed for easy integration and long-term reliability. Whether you’re installing a single-camera setup or expanding an existing network, connecting your Hikvision IP camera to an NVR is the foundation of a functional video monitoring system.
In this comprehensive guide, you’ll learn exactly how to connect Hikvision IP cameras to an NVR—whether it’s a standalone unit or part of a larger network. We’ll cover everything from physical wiring to software configuration, including tips for troubleshooting and optimizing your setup. By the end, you’ll have a fully operational surveillance system ready to protect your home or business.
—
What You’ll Learn in This Guide
This guide will walk you through:
- The tools and equipment you need
- Step-by-step physical and network setup
- Configuring camera settings on the NVR
- Accessing and viewing footage remotely
- Common troubleshooting techniques
We’ll keep things simple, avoid technical jargon where possible, and include real-world examples to help you succeed.
—
Tools and Equipment You Need
Before you begin, make sure you have the following:
- Hikvision IP Camera: Ensure it supports PoE (Power over Ethernet) unless you’re using a separate power adapter.
- Hikvision NVR (Network Video Recorder): Compatible models include DS-76xxN, DS-96xxN, and DS-91xxN series.
- Ethernet Cables (Cat5e or Cat6): Minimum length depends on camera placement; longer runs may require signal boosters.
- Network Switch (optional): If your NVR has limited ports or you’re adding multiple cameras.
- Computer or Smartphone: For initial setup and remote access via Hik-Connect app.
- Hikvision Software: iVMS-4200 desktop client or Hik-Connect mobile app.
Tip: Always check the camera and NVR model numbers on the packaging or device label to confirm compatibility. Most Hikvision systems are plug-and-play, but mixing older analog cameras with new IP setups can cause issues.
—
Step 1: Plan Your Installation Location
Proper planning prevents headaches later. Consider:
- Camera Positioning: Mount cameras where they have optimal coverage without obstructions.
- Cable Routing: Run Ethernet cables along walls, ceilings, or conduits. Avoid running parallel to power lines to reduce interference.
- Power Availability: While PoE cameras get power through the cable, confirm your NVR or switch supports PoE+ if needed.
- NVR Placement: Keep the NVR in a secure, ventilated location near your router or network hub.
For example, if you’re installing a camera in your backyard, plan for weatherproof enclosures and shielded cables to protect against moisture and temperature changes.
—
Step 2: Connect the Camera to the NVR Using Ethernet Cable
This is the most direct method and works for most setups.
Option A: Direct Connection (Single Camera)
If you’re connecting only one camera:

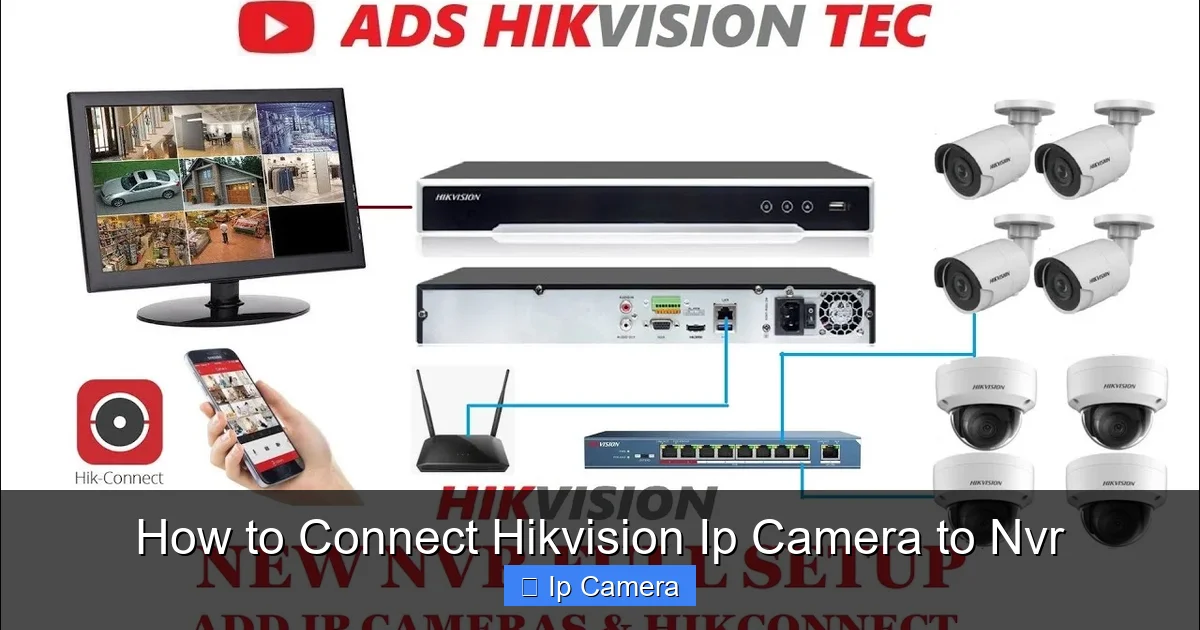

Visual guide about How to Connect Hikvision Ip Camera to Nvr
Image source: i.ytimg.com
- Plug one end of the Ethernet cable into the camera’s LAN port.
- Connect the other end to any available port on your NVR.
- Wait 1–2 minutes for the camera to boot and register.
Option B: Via Network Switch (Multiple Cameras)
If you’re adding more than four cameras or your NVR has limited ports:
- Connect the NVR to a PoE-enabled network switch using an Ethernet cable.
- Run individual cables from each camera to the switch.
- Ensure the switch supports PoE if cameras require power over the same line.
Example: A homeowner installs three Hikvision dome cameras around their property. They use a 8-port PoE switch connected to the NVR, allowing all cameras to receive power and data through a single cable.
—
Step 3: Power On and Initial Boot-Up
Once everything is wired:
- Turn on the NVR first, then the cameras.
- Check the NVR’s status lights. A solid green light on the camera port indicates a successful connection.
- Log into the NVR’s interface using the default login (usually admin/password).
If the NVR has a built-in monitor and mouse, you can navigate directly. Otherwise, connect a monitor and keyboard via HDMI and USB.
—
Step 4: Access the NVR Interface
You can interact with your NVR in several ways:
- On-Screen Display (OSD): Use the NVR’s built-in menu if connected to a monitor.
- Web Browser: Type the NVR’s IP address into a browser (find it via router admin panel or label on the NVR).
- iVMS-4200 Software: Download from Hikvision’s website and install on your computer.
- Hik-Connect App: Available for iOS and Android; ideal for remote viewing.
Note: The first time you log in, you’ll be prompted to change the password and set up network parameters.
—
Step 5: Detect and Add the Camera
Most Hikvision NVRs automatically detect connected cameras.
Automatic Detection Process
- In the NVR menu, go to Menu > Camera Management > Device Management.
- Click Auto-Detect or Search. The system will scan for cameras on the network.
- When the camera appears in the list (with its name, IP, and status), select it and click Add.
If the camera isn’t found:
- Verify the Ethernet cable is secure.
- Check that the camera is powered on.
- Confirm the camera and NVR are on the same subnet.
—
Step 6: Configure Camera Settings
After adding the camera, customize its behavior:
Set Recording Schedule
- Go to Storage > Schedule.
- Enable continuous recording or motion-triggered modes.
Adjust Image Quality
- Navigate to Camera Management > Image.
- Modify resolution, brightness, contrast, and exposure based on lighting conditions.
Enable Motion Detection
- Under Event > Motion Detection, draw zones and sensitivity levels.
- This reduces storage usage and sends alerts when activity is detected.
Tip: For outdoor cameras, enable IR cut filter and night vision settings to improve image clarity in low light.
—
Step 7: Set Up Remote Viewing (Optional but Recommended)
To view your cameras from anywhere:
Using Hik-Connect App
- Download Hik-Connect from the App Store or Google Play.
- Open the app and tap Add Device.
- Scan the QR code on the NVR or enter the device serial number manually.
- Follow prompts to create an account and link the device.
Port Forwarding (For Direct Internet Access)
- Log into your router’s admin panel.
- Find Port Forwarding or Virtual Servers.
- Forward ports 80 (HTTP), 443 (HTTPS), and 554 (RTSP) to the NVR’s local IP.
Security Reminder: Change default passwords and enable two-factor authentication in Hik-Connect to prevent unauthorized access.
—
Step 8: Test and Verify the System
Before finalizing:
- Watch live feeds on the NVR and mobile app.
- Play back recorded footage to confirm storage works.
- Trigger motion detection and verify alerts are sent (if enabled).
- Check audio (if your camera supports two-way talk).
If something doesn’t work, refer to the troubleshooting section below.
—
Troubleshooting Common Issues
Even experienced users run into hiccups. Here’s how to solve them:
Camera Not Detected by NVR
- Check Ethernet cable integrity (try a different cable).
- Restart both camera and NVR.
- Manually assign an IP address to the camera via its web interface.
No Video Feed
- Verify camera is powered.
- Ensure correct channel is selected in NVR interface.
- Update camera firmware via Hikvision’s official site.
Intermittent Connection
- Use shorter cables or install a PoE injector/extender.
- Avoid daisy-chaining switches without proper configuration.
Advanced Tip: Use Wireshark or network scanning tools like Angry IP Scanner to diagnose connectivity issues.
—
Best Practices for Long-Term Reliability
To keep your system running smoothly:
- Update Firmware Regularly: Visit Hikvision’s support site and download updates for both camera and NVR.
- Use Static IPs: Prevent IP conflicts by assigning fixed addresses via your router or NVR settings.
- Backup Configurations: Export NVR settings periodically using iVMS-4200.
- Monitor Storage Usage: Delete old recordings or upgrade hard drives if space runs low.
- Secure Your Network: Disable UPnP, change default ports, and use strong passwords.
—
Conclusion
Connecting a Hikvision IP camera to an NVR is a manageable task when broken into clear steps. From physical wiring to software configuration, each phase builds toward a reliable, high-quality surveillance system. By following this guide, you’ve learned how to establish a secure connection, configure settings, and access your cameras remotely.
Remember, the key to success lies in attention to detail—secure connections, proper network setup, and regular maintenance. Whether you’re protecting your home garage or monitoring a multi-location business, Hikvision’s ecosystem offers flexibility and scalability.
Now that your system is up and running, explore advanced features like AI analytics, facial recognition, and cloud backup to maximize your investment. And don’t hesitate to revisit this guide whenever you add new cameras or upgrade components.
Your surveillance system is not just a one-time setup—it’s a living tool that evolves with your needs.
—
