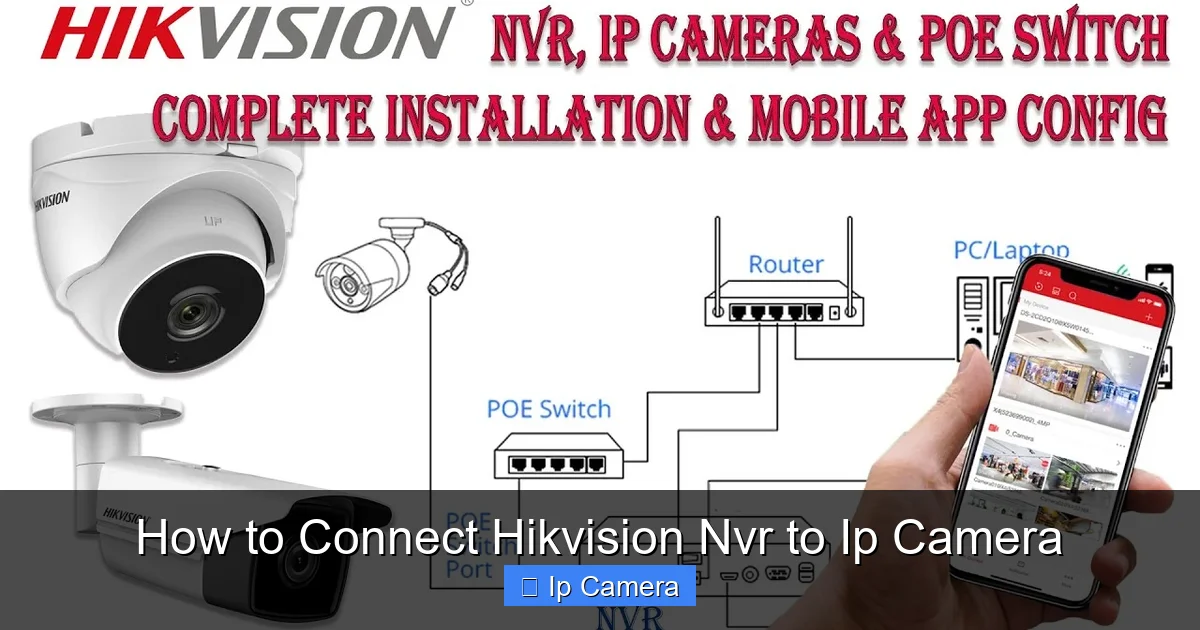

# How to Connect Hikvision NVR to IP Camera
Setting up a reliable security system doesn’t have to be complicated. Whether you’re installing a new surveillance system or upgrading your existing setup, connecting your Hikvision NVR (Network Video Recorder) to IP cameras is the foundation of everything that follows. This guide will walk you through every step, from unboxing to remote access, so you can get your system running smoothly without headaches.
By following these instructions, you’ll learn how to properly configure your Hikvision NVR and IP cameras, troubleshoot common issues, and ensure your surveillance system delivers crystal-clear footage when you need it most. Let’s get started!
## What You’ll Need Before Beginning
Before diving into the connection process, gather these essential items:
– Hikvision NVR unit
– Compatible IP cameras
– Ethernet cables (Cat5e or better recommended)
– Network switch (if using multiple cameras)
– Power adapters (unless using PoE)
– Monitor with HDMI/VGA input
– Computer with internet browser
– Hikvision iVMS-4200 software (optional but helpful)
Having everything ready prevents interruptions during setup and ensures a smooth installation experience.
## Step 1: Physical Installation of Your Equipment
The first step in connecting your Hikvision NVR to IP cameras involves proper physical placement of all components.
### Position Your NVR
Place your NVR in a central location with good ventilation. Avoid enclosed spaces or areas exposed to direct sunlight, moisture, or extreme temperatures. Ensure it’s near your router or switch for easy network connectivity.
### Mount Your Cameras Strategically
Install your IP cameras at desired locations before connecting them. Remember:
– Position cameras to cover key areas
– Avoid pointing toward bright light sources
– Mount at appropriate heights for clear facial recognition
– Protect connections from weather if outdoors
### Prepare Your Network Infrastructure
Set up your network switch and ensure all devices are powered off before making connections. This prevents potential electrical issues during initial setup.
## Step 2: Initial NVR Setup
Before connecting cameras, you need to set up your NVR itself.
### Connect the Monitor
Plug your monitor into the NVR using an HDMI cable. Power on the NVR and wait for the boot-up sequence to complete. You should see the main menu interface.
### Configure Basic Settings
Navigate through the initial setup wizard:
– Set date and time correctly
– Create administrator password
– Select language preferences
– Configure network settings (DHCP usually works initially)
### Update Firmware
Check for firmware updates immediately after setup. Updated firmware often includes bug fixes, new features, and improved compatibility with various camera models.
## Step 3: Connecting IP Cameras to Your Network
Now comes the crucial part—connecting your actual IP cameras to the NVR.
### Option A: Using PoE (Recommended)
Power over Ethernet simplifies installation by combining data and power transmission:
1. Connect each camera to your network switch using Ethernet cables
2. If your NVR has built-in PoE ports, connect cameras directly to those ports
3. The NVR will automatically detect and configure compatible cameras
### Option B: Separate Power and Data
For non-PoE setups:
1. Connect cameras to your network switch with Ethernet cables
2. Plug power adapters into wall outlets near each camera
3. Wait 30-60 seconds for cameras to initialize and appear on the network
### Verify Camera Detection
Return to your NVR’s camera detection screen. You should see your connected cameras listed with their status indicators.
## Step 4: Configuring Camera Parameters
Once detected, you need to properly configure each camera.
### Assign Static IP Addresses
Avoid DHCP conflicts by assigning static IPs:
1. Note your NVR’s subnet mask and gateway
2. Choose IP addresses within the same range but outside DHCP pool
3. Enter these details in each camera’s web interface
Example configuration:
– NVR IP: 192.168.1.100
– Camera 1: 192.168.1.101
– Camera 2: 192.168.1.102
### Adjust Resolution and Frame Rate
Optimize video quality vs. storage usage:
– Higher resolution = clearer images but larger files
– Lower frame rates = smaller files but choppier motion
– Balance based on your monitoring needs
### Configure Motion Detection
Enable motion alerts for important areas:
– Define detection zones
– Set sensitivity levels
– Configure alert notifications
## Step 5: Adding Cameras to Your NVR System
After configuration, register cameras with your NVR.
### Automatic Discovery
Most modern Hikvision systems automatically find and add compatible cameras:
1. Go to Main Menu > Camera Management
2. Click “Auto-Discovery”
3. Select detected cameras and assign names/locations
### Manual Addition (If Needed)
For cameras not automatically found:
1. Select “Manual Add” option
2. Enter camera’s IP address, username, and password
3. Test connection before saving
### Verify Live View
Test each camera by clicking on its thumbnail in the live view window. You should see real-time video feed with audio (if supported).
## Step 6: Remote Access Setup
One of the biggest advantages of IP cameras is remote monitoring capability.
### Enable Remote Access on NVR
1. Go to Main Menu > Network > Advanced Configuration
2. Enable “Remote Management” option
3. Note the default port number (usually 8000)
### Configure Router Port Forwarding
For direct access from outside your network:
1. Log into your router’s admin panel
2. Find Port Forwarding section
3. Create new rule mapping external port to NVR’s internal IP and port
### Install Hik-Connect App
Download the official Hikvision mobile app:
– Available for iOS and Android
– Scan QR code from NVR screen or manually enter device info
– Create account and add your NVR
## Step 7: Recording Configuration
Proper recording settings ensure you capture important events without overwhelming storage.
### Schedule Recording Times
Configure when recordings occur:
– Continuous recording for 24/7 coverage
– Scheduled recording for specific hours
– Event-based recording triggered by motion or alarms
### Set Retention Periods
Determine how long to keep recordings:
– Short periods for recent activity only
– Longer periods for comprehensive review
– Balance between storage costs and investigative needs
### Enable Smart Features
Take advantage of Hikvision’s intelligent capabilities:
– Face detection
– License plate recognition
– People counting
– Intrusion detection
## Troubleshooting Common Connection Issues
Even with careful setup, problems can occur. Here’s how to resolve them.
### Camera Not Showing in Live View
– Verify physical connections
– Check if camera is powered on
– Confirm IP addresses are correct
– Try accessing camera directly via web browser
### Poor Video Quality
– Reduce resolution settings
– Increase bitrate
– Check network bandwidth availability
– Clean camera lenses
### Remote Access Failures
– Verify port forwarding rules
– Check firewall settings
– Confirm dynamic DNS is configured (for dynamic IPs)
– Test with mobile data instead of WiFi
### Audio Not Working
– Ensure camera supports audio
– Check microphone permissions in settings
– Verify audio codec compatibility
– Test speaker output separately
## Advanced Configuration Options
Once basics are working, explore these enhancements.
### RAID Storage Configuration
For maximum reliability:
– Configure RAID 5 or 6 arrays
– Set up hot spares
– Monitor drive health regularly
### Multi-Site Management
Manage multiple locations from one interface:
– Add additional NVRs to central management system
– Create user accounts with role-based permissions
– Set up centralized recording schedules
### Integration with Other Systems
Connect with third-party platforms:
– Security management systems
– Access control systems
– Alarm monitoring services
## Best Practices for Long-Term Success
Follow these guidelines to maintain optimal performance.
### Regular Maintenance Schedule
– Update firmware monthly
– Clean camera lenses weekly
– Review storage utilization weekly
– Test backup systems quarterly
### Documentation Keep
– Record all IP addresses and passwords
– Document camera locations and angles
– Save configuration backups
– Track warranty information
### Security Measures
– Change default passwords immediately
– Disable unused services
– Implement two-factor authentication where available
– Regularly audit user accounts
## Conclusion
Connecting your Hikvision NVR to IP cameras opens up a world of possibilities for home and business security. By following these steps carefully and understanding the underlying principles, you can create a robust surveillance system that meets your specific needs.
Remember that successful implementation combines proper planning, correct technical execution, and ongoing maintenance. Don’t hesitate to consult Hikvision’s extensive documentation or contact their support team if you encounter challenges beyond your expertise.
With your system now properly connected and configured, you’re ready to enjoy peace of mind knowing your property is protected by professional-grade surveillance technology.
Quick Answers to Common Questions
Tip: Should I use PoE or separate power?
Use PoE whenever possible as it simplifies installation by combining data and power transmission through a single cable, reduces clutter, and makes troubleshooting easier.
Question? How do I find my camera’s IP address?
You can find your camera’s IP address by checking its network settings through the web interface, using a network scanning tool like Hikvision’s IP Config Tool, or looking at the camera’s label if it displays network information.
Tip: What’s the best way to organize multiple cameras?
Group cameras by location or purpose (entry points, parking lots, indoor areas) and assign descriptive names rather than just numbers to make quick identification much easier during monitoring sessions.
Question? Can I mix different camera models with my NVR?
Yes, most modern Hikvision NVRs support ONVIF protocol, allowing you to mix different compatible camera models while maintaining basic functionality, though some advanced features may vary between models.
Tip: How often should I back up my NVR configuration?
Back up your NVR configuration weekly and after any major changes. This protects against hardware failure and makes reinstallation much faster if needed.
