How to Connect IP Camera to AHD DVR: Complete Step-by-Step Guide
Are you trying to add an IP camera to your existing AHD DVR security system? Maybe you’ve upgraded one component but not the other, or you want to future-proof your setup without replacing everything at once. Either way, connecting an IP camera to an AHD DVR isn’t as straightforward as plugging in a traditional analog camera—but it’s absolutely possible!
This guide walks you through everything from checking compatibility to configuring your devices, troubleshooting common hiccups, and even setting up remote viewing. Whether you’re a homeowner, small business owner, or DIY enthusiast, you’ll find practical tips and clear instructions tailored to real-world scenarios.
Understanding the Basics: IP Cameras vs. AHD Systems
Before diving into wiring and configuration, let’s clarify what makes IP and AHD technologies different—and why they don’t always speak the same language.

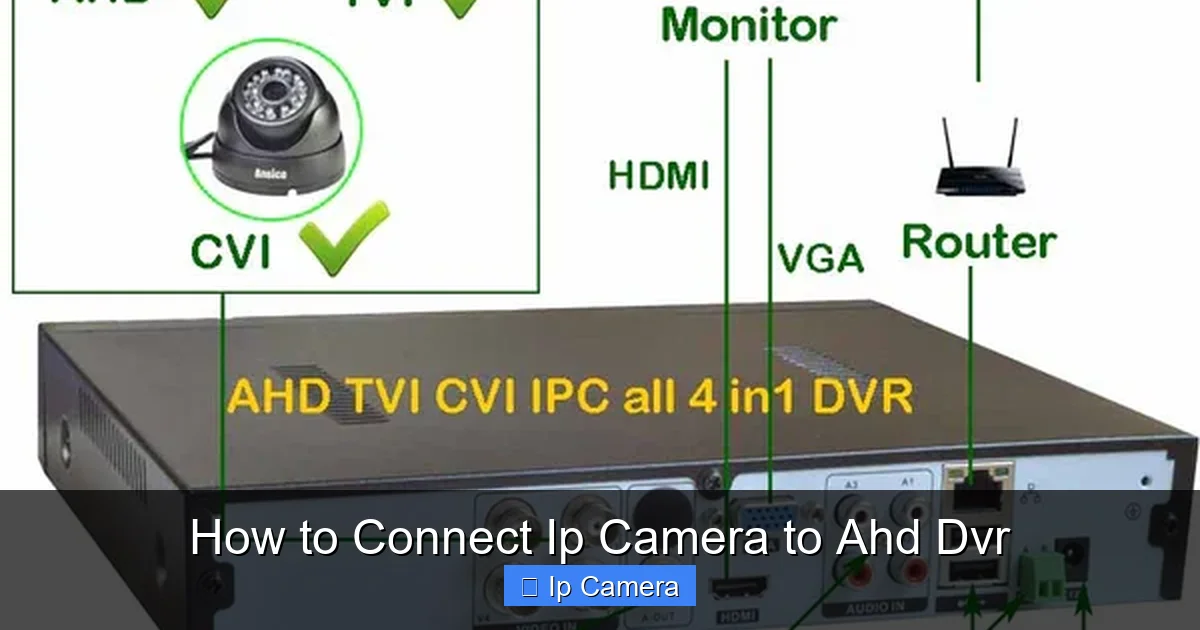

Visual guide about How to Connect Ip Camera to Ahd Dvr
Image source: cdn.shopify.com
What Is an IP Camera?
An IP (Internet Protocol) camera sends digital video data over a network cable (usually Ethernet). It has its own IP address, processes images on-board, and streams high-definition video directly to a recorder or computer. Popular brands include Hikvision, Dahua, Reolink, and Amcrest.
What Is an AHD DVR?
AHD (Analog High Definition) DVRs accept analog video signals transmitted over coaxial cables (like older CCTV systems). They digitize those signals internally to provide HD resolution—often mistaken for true HD because output looks sharp, but they lack the bandwidth and features of IP systems.
The Core Challenge
Most AHD DVRs cannot natively decode IP camera streams. So simply plugging an Ethernet cable from your IP camera into the DVR won’t work. You need either:
- A hybrid DVR that supports both AHD and IP channels
- A media converter (also called an encoder or transcoder)
- Or a workaround using NVR software on a separate machine
Option 1: Use a Hybrid DVR (Recommended)
If you’re open to upgrading slightly, a hybrid DVR is the cleanest solution. These recorders have both BNC ports (for AHD/analog cameras) and PoE+ Ethernet ports (for IP cameras).
Step 1: Verify Your DVR Model
Check your current DVR’s manual or label. Look for terms like “Hybrid,” “Multi-Format,” or “Supports IP Cameras.” If yours only lists AHD or CVBS inputs, it likely doesn’t support IP.
Step 2: Purchase a Compatible Hybrid DVR
Buy a model that explicitly states it supports both AHD and IP cameras—for example, Dahua XVR5104HS-I2 or Hikvision DS-DH-XVR5104T2-4KL-I2. Ensure it has enough total channels for all your cameras.
Step 3: Connect the IP Camera
- Plug the IP camera’s Ethernet cable into a PoE port on the DVR.
- If your camera uses external power, connect it separately.
- Power on both devices.
Step 4: Access the DVR Menu
Use a monitor and mouse (or connect via mobile app) to enter the DVR interface. Navigate to Channel Management or Add Device.
Step 5: Add the IP Camera
- Select IP Camera as the input type.
- Enter the camera’s IP address (found in its web UI or via DHCP client list).
- Input login credentials (default is often admin/admin).
- Set resolution and stream type (Main Stream recommended).
Step 6: Save and Test
Save settings and verify live view appears correctly. Adjust focus or exposure if needed via the camera’s web interface.
Option 2: Use a Media Converter (Encoder)
If you prefer to keep your existing AHD DVR, you’ll need a device to convert the IP camera’s digital signal into an analog format the DVR can understand.
What Is a Media Converter?
A media converter (sometimes called a video encoder) grabs the IP camera’s stream, decodes it, and outputs a standard analog signal via BNC connector—which your AHD DVR can record.
Step 1: Choose the Right Encoder
Look for models like:
- Hikvision DS-6704HUHI-K4
- Dahua DH-VT1101C
- Amcrest ENC-H264-1CH
Ensure it supports your camera’s codec (H.264/H.265) and max resolution (e.g., 4K).
Step 2: Power and Connect Devices
- Connect the IP camera to the encoder via Ethernet.
- Link the encoder’s BNC output to any unused AHD channel on your DVR.
- Provide power to both units (many encoders use PoE or external adapters).
Step 3: Configure the Encoder
Access the encoder’s web interface (via its IP address). Match settings to your DVR:
- Set output resolution (e.g., 1080p)
- Enable ONVIF if supported
- Assign static IP to avoid conflicts
Step 4: Add to DVR
In your AHD DVR menu, go to Manual Add > Analog Camera. The encoder will appear as a regular camera feed.
Option 3: Use a Computer as an Intermediate Server
For advanced users, you can run surveillance software (like Blue Iris or Milestone XProtect) on a Windows PC. The PC receives the IP camera stream and re-streams it as an analog signal via HDMI-to-coax converter boxes.
Pros:
- Full control over recording schedules and motion detection
- Can mix IP and analog cameras seamlessly
Cons:
- Requires a dedicated PC (or mini-PC)
- Higher cost and complexity
- Not ideal for battery-powered or low-bandwidth setups
Network Configuration Tips
Regardless of method, proper network setup ensures smooth communication between devices.
Assign Static IP Addresses
DHCP can cause IP changes, breaking connectivity. Reserve IPs for cameras, DVRs, and encoders in your router, or set static addresses manually.
Subnet Consistency
All devices must be on the same subnet (e.g., 192.168.1.x). Don’t place them on guest networks or VLANs unless configured properly.
VLANs and Firewalls
If using VLANs, ensure inter-VLAN routing allows camera traffic. Disable unnecessary firewall rules that block RTSP or ONVIF ports (default: 554, 80, 8000).
Troubleshooting Common Issues
No Video Feed
- Check physical connections (cables, power)
- Verify IP addresses match across devices
- Test ping between camera and DVR/PC
- Confirm ONVIF or RTSP URLs are correct
Poor Image Quality
- Reduce resolution/stream type in DVR settings
- Disable bandwidth-heavy features (e.g., smart detection)
- Ensure cabling isn’t damaged or too long (>100m for Ethernet)
Camera Disconnects Frequently
- Check for IP conflicts
- Update firmware on all devices
- Inspect router logs for dropped packets
Long-Term Considerations
While workarounds exist today, consider these factors before investing time:
- Scalability: Adding more IP cameras later may require another encoder or full NVR upgrade.
- Storage: IP cameras generate larger files—ensure your DVR has enough HDD space or plan to archive footage externally.
- Remote Access: AHD DVRs rarely support modern cloud apps. For smartphone alerts, you may need a separate NVR or third-party service.
Conclusion
Connecting an IP camera to an AHD DVR isn’t impossible—it just requires understanding the technology gap and choosing the right bridging solution. Whether you opt for a hybrid DVR, a media converter, or a custom server setup, the key is planning ahead and verifying compatibility at each step.
By following this guide, you’ve taken the first step toward a smarter, more flexible surveillance system. Remember: test each connection incrementally, document your IP scheme, and never skip firmware updates. Your future self—and your peace of mind—will thank you.
