Connecting an IP camera to a Dahua DVR is easier than you think—even if you’re not a tech expert. This guide walks you through every step, from checking compatibility to final configuration, ensuring a secure and reliable surveillance setup.
Key Takeaways
- Check compatibility first: Not all IP cameras work with every Dahua DVR. Verify model support using Dahua’s official compatibility list or the Smart PSS software.
- Use the right network setup: Both the IP camera and DVR must be on the same local network (same subnet) for initial connection.
- Assign a static IP or use DHCP: Ensure the IP camera has a consistent IP address to avoid connection drops.
- Leverage Dahua’s Plug-and-Play (P2P) feature: Many Dahua DVRs support auto-detection of Dahua-branded IP cameras via the LAN port.
- Configure ONVIF for third-party cameras: Non-Dahua IP cameras can often connect using the ONVIF protocol—enable it on both devices.
- Update firmware regularly: Outdated firmware on either the DVR or camera can cause connection issues. Always check for updates.
- Test and troubleshoot systematically: If the camera doesn’t appear, check cables, power, IP settings, and firewall rules step by step.
How to Connect IP Camera to Dahua DVR: A Complete Step-by-Step Guide
Setting up a surveillance system with a Dahua DVR and IP cameras might sound complicated, but it’s actually quite straightforward—especially when you follow the right steps. Whether you’re upgrading your home security or installing a professional-grade system for your business, connecting an IP camera to a Dahua DVR is a common and effective solution. In this guide, we’ll walk you through the entire process, from preparation to final configuration, so you can get your cameras up and running with confidence.
By the end of this guide, you’ll know how to connect both Dahua-branded and third-party IP cameras to your Dahua DVR. We’ll cover network requirements, configuration steps, troubleshooting tips, and best practices to ensure a stable and secure connection. No prior networking experience? No problem. We’ll keep things simple, clear, and jargon-free.
Understanding the Basics: Dahua DVR and IP Cameras
Before diving into the setup, let’s clarify what we’re working with. A Dahua DVR (Digital Video Recorder) is a device that records video footage from security cameras. While traditional DVRs are designed for analog cameras (like coax-based CCTV), many modern Dahua DVRs support IP cameras—digital cameras that transmit video over a network using Internet Protocol.

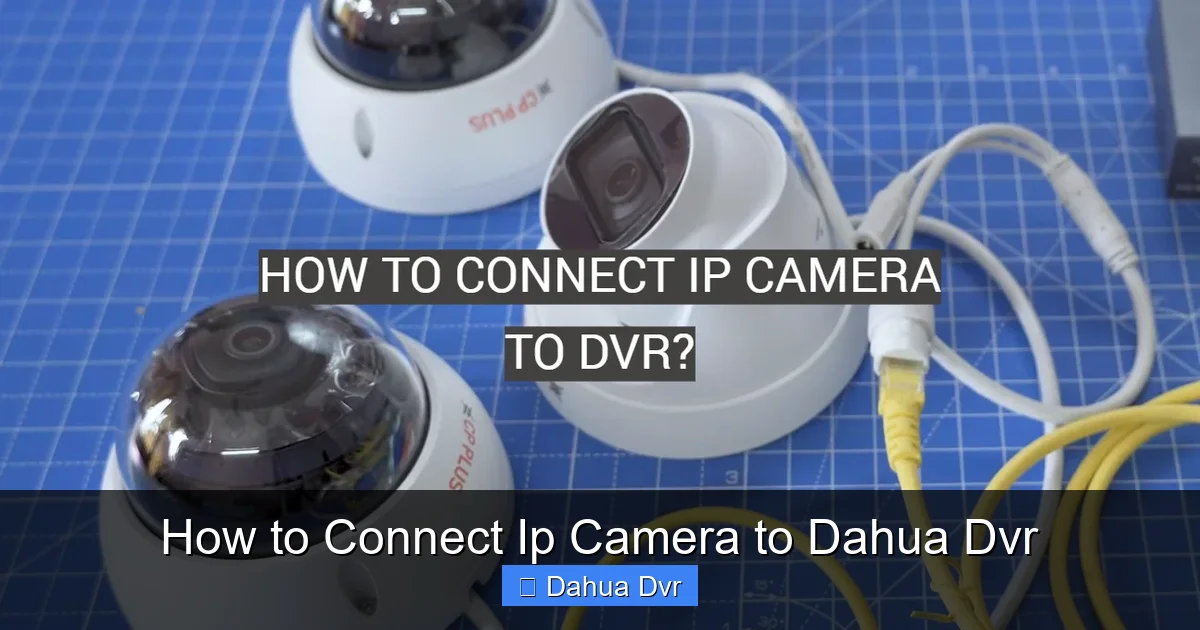

Visual guide about How to Connect Ip Camera to Dahua Dvr
Image source: fotoprofy.com
IP cameras offer higher resolution, remote access, and advanced features like motion detection and night vision. Dahua DVRs with IP channel support (often labeled as “Hybrid DVRs” or “NVRs”) can connect to these cameras via Ethernet cables or Wi-Fi, giving you flexibility in camera placement and system scalability.
It’s important to note that not all Dahua DVRs support IP cameras. Check your model’s specifications to confirm it has IP channel inputs. For example, models like the Dahua XVR5104HS-X support both analog and IP cameras, making them ideal for hybrid setups.
Prerequisites: What You’ll Need
Before starting the connection process, make sure you have the following:
- A Dahua DVR with IP camera support – Confirm your model supports IP channels (usually 4, 8, or 16 IP inputs).
- An IP camera – Can be a Dahua camera or a third-party model (ONVIF-compatible).
- Ethernet cables (Cat5e or Cat6) – For wired connections between the camera, DVR, and router.
- A network switch (if needed) – If your DVR doesn’t have enough LAN ports, a switch expands connectivity.
- Power supply for the IP camera – Most IP cameras use PoE (Power over Ethernet) or a separate 12V adapter.
- A computer or smartphone – For initial configuration and remote access.
- Access to your router’s admin panel – To check IP addresses and network settings.
Having these items ready will save you time and frustration during setup.
Step 1: Check Compatibility Between Your IP Camera and Dahua DVR
Not every IP camera will work seamlessly with a Dahua DVR. Compatibility is key to a smooth connection. Here’s how to verify it:
Check the Dahua Compatibility List
Dahua maintains an official list of compatible IP cameras on their website. Visit the Dahua Support Page and search for your DVR model. Look for a “Compatible Devices” or “ONVIF Support” document. This list includes Dahua cameras and select third-party brands that have been tested and verified.
Use Smart PSS Software
Download and install Smart PSS (Smart Professional Surveillance System) from Dahua’s website. This free software allows you to manage Dahua devices on your computer. Open Smart PSS, add your DVR, and use the “Device Search” tool to scan your network for compatible IP cameras. If your camera appears, it’s likely compatible.
Verify ONVIF Support
If you’re using a non-Dahua IP camera, ensure it supports the ONVIF protocol (Open Network Video Interface Forum). ONVIF is a universal standard that allows different brands of cameras and recorders to communicate. Check your camera’s manual or product page for ONVIF certification (usually ONVIF Profile S or Profile G).
Pro Tip: Even if your camera isn’t on Dahua’s list, it may still work if it supports ONVIF and uses standard RTSP streaming.
Step 2: Set Up Your Network Environment
A stable network is essential for IP camera connectivity. Both the DVR and the IP camera must be on the same local network (same subnet) to communicate.
Connect Devices to the Same Network
Here’s how to ensure everything is on the same network:
- Connect your Dahua DVR to your router using an Ethernet cable (usually plugged into the LAN port).
- Connect your IP camera to the same router or a network switch connected to the router.
- If your camera supports PoE (Power over Ethernet), you can use a PoE switch or PoE injector to power the camera through the Ethernet cable—no separate power adapter needed.
Check IP Addresses
Each device on your network needs a unique IP address. Most devices use DHCP (Dynamic Host Configuration Protocol) to get an IP automatically from the router. To verify:
- Log in to your router’s admin panel (usually by typing
192.168.1.1or192.168.0.1into a browser). - Go to the “Connected Devices” or “DHCP Client List” section.
- Look for your DVR and IP camera by name or MAC address.
- Note their IP addresses (e.g., DVR: 192.168.1.100, Camera: 192.168.1.101).
Ensure both devices are on the same subnet (e.g., both start with 192.168.1.x). If not, adjust your network settings.
Assign Static IPs (Recommended)
While DHCP is convenient, it can cause issues if IP addresses change. For reliability, assign static IP addresses to your DVR and camera:
- On the DVR: Go to Main Menu > Network > TCP/IP, set a static IP (e.g., 192.168.1.100), subnet mask (255.255.255.0), and gateway (your router’s IP).
- On the IP camera: Access its web interface (type its IP into a browser), go to network settings, and assign a static IP (e.g., 192.168.1.101).
This prevents connection drops due to IP changes.
Step 3: Connect the IP Camera to the Dahua DVR
Now that your network is ready, it’s time to connect the camera. There are two main methods: auto-detection (for Dahua cameras) and manual configuration (for third-party cameras).
Method 1: Auto-Detection (Dahua IP Cameras)
If you’re using a Dahua IP camera, the DVR can often detect it automatically:
- Power on the DVR and camera.
- On the DVR, go to Main Menu > Camera > Camera Management.
- Click Search or Auto Scan. The DVR will scan the network for Dahua devices.
- When your camera appears in the list, select it and click Add.
- Choose the channel you want to assign the camera to (e.g., IP Channel 1).
- The DVR will configure the connection automatically. Wait a few seconds for the video feed to appear.
This method works best with Dahua cameras and requires both devices to be on the same network.
Method 2: Manual Configuration (Third-Party or Non-Detected Cameras)
If the camera isn’t detected automatically, configure it manually using ONVIF or RTSP:
- On the DVR, go to Main Menu > Camera > Camera Management.
- Select an unused IP channel and click Edit.
- Set the following parameters:
- Protocol: ONVIF (recommended) or Custom (for RTSP)
- IP Address: The camera’s static IP (e.g., 192.168.1.101)
- Port: Usually 80 (HTTP) or 554 (RTSP). Check your camera’s manual.
- Username: Admin or the camera’s login username
- Password: The camera’s login password
- Click Test to verify the connection. If successful, click Save.
- The video feed should now appear on the assigned channel.
Pro Tip: If using RTSP, the stream URL might look like: rtsp://192.168.1.101:554/cam/realmonitor?channel=1&subtype=0. You can find this in your camera’s settings.
Step 4: Configure Camera Settings on the DVR
Once connected, you’ll want to optimize the camera’s performance through the DVR interface.
Adjust Video Quality and Resolution
Go to Main Menu > Camera > Encode and select the connected channel. Set:
- Main Stream: High resolution (e.g., 1080p or 4MP) for recording
- Sub Stream: Lower resolution (e.g., 720p) for remote viewing
- Bitrate: Higher bitrate = better quality but more storage usage
- Frame Rate: 15–30 fps for smooth motion
Balance quality with storage needs. Higher settings use more hard drive space.
Enable Motion Detection and Alerts
To get alerts when motion is detected:
- Go to Main Menu > Event > Motion Detection.
- Select the camera channel.
- Draw detection zones (optional) and adjust sensitivity.
- Enable Alarm Output or Email Notification if supported.
- Save settings.
Set Up Recording Schedule
Configure when the DVR should record:
- Go to Main Menu > Storage > Schedule.
- Choose the camera channel.
- Set recording mode: Continuous, Motion, or Scheduled.
- Select days and times (e.g., record only at night).
- Save and apply.
This ensures you’re only recording when needed, saving storage space.
Step 5: Access Your Camera Remotely
One of the biggest advantages of IP cameras is remote access. You can view live footage from anywhere using a smartphone, tablet, or computer.
Use Dahua Mobile App (DMSS)
Download the DMSS (Dahua Mobile Surveillance System) app on your iOS or Android device:
- Open the app and tap Add Device.
- Choose DVR/NVR and scan the QR code on your DVR (found in Main Menu > Network > P2P).
- Or manually enter the DVR’s serial number and verification code.
- Log in with your DVR credentials.
- You’ll see all connected cameras. Tap to view live feed.
Enable P2P (Plug-and-Play)
P2P simplifies remote access without complex port forwarding:
- On the DVR, go to Main Menu > Network > P2P.
- Enable P2P and note the device serial number.
- Use this serial number in the DMSS app or Smart PSS software.
P2P is secure and works through firewalls, making it ideal for home users.
Troubleshooting Common Connection Issues
Even with careful setup, problems can occur. Here’s how to fix the most common issues:
Camera Not Detected by DVR
- Check network connection: Ensure both devices are powered and connected to the same network.
- Verify IP addresses: Use a network scanner (like Advanced IP Scanner) to confirm the camera is online.
- Restart devices: Power cycle the DVR and camera.
- Update firmware: Outdated firmware can cause compatibility issues. Update both DVR and camera from Dahua’s website.
No Video Feed After Connection
- Check camera power: Ensure the camera is receiving power (LED should be on).
- Verify stream settings: Confirm the correct protocol (ONVIF/RTSP), IP, port, and credentials.
- Test camera separately: Access the camera’s web interface to confirm it’s working.
- Check firewall/router settings: Ensure ports 80, 554, or 8000 are not blocked.
Intermittent or Laggy Video
- Reduce bitrate or resolution: High settings can overload the network.
- Use wired connection: Wi-Fi can cause latency. Use Ethernet for stability.
- Upgrade network hardware: Use a Gigabit switch and Cat6 cables for better performance.
Authentication Failed
- Double-check username/password: Default is often “admin” with no password or “123456”.
- Reset camera to factory settings: Use the reset button on the camera.
- Enable ONVIF user: Some cameras require creating an ONVIF user account.
Best Practices for Long-Term Reliability
To keep your system running smoothly:
- Update firmware regularly: Check for updates every 3–6 months.
- Use strong passwords: Change default credentials to prevent unauthorized access.
- Monitor storage: Set up overwrite rules or external backups.
- Label cables and devices: Makes troubleshooting easier.
- Test system monthly: Ensure all cameras are recording and accessible remotely.
Conclusion
Connecting an IP camera to a Dahua DVR is a powerful way to enhance your security system with high-quality video, remote access, and smart features. Whether you’re using a Dahua camera or a third-party model, the process is manageable with the right preparation and step-by-step guidance.
Start by verifying compatibility, setting up a stable network, and assigning static IPs. Use auto-detection for Dahua cameras or manual ONVIF/RTSP configuration for others. Once connected, optimize video settings, enable motion detection, and set up remote access via the DMSS app. If issues arise, troubleshoot systematically—checking power, network, and credentials.
With this guide, you’re equipped to build a reliable, scalable surveillance system that meets your needs. Remember, a well-configured system not only protects your property but also gives you peace of mind—anytime, anywhere.
