Connecting an IP camera to a Dahua DVR is simpler than you think. This guide walks you through every step—from checking compatibility to final configuration—so you can build a reliable surveillance system with confidence.
Key Takeaways
- Check compatibility first: Ensure your IP camera and Dahua DVR support ONVIF or Dahua’s proprietary protocol for seamless integration.
- Use the right network setup: A stable local network (LAN) is essential—wired Ethernet is preferred over Wi-Fi for reliability.
- Assign static IPs or use DHCP wisely: Prevent connection drops by managing IP addresses properly within the same subnet.
- Leverage Dahua’s ConfigTool or Smart PSS: These free software tools simplify camera discovery and configuration.
- Test and verify live view: Always confirm video feed, audio (if supported), and recording functionality after setup.
- Update firmware when needed: Outdated firmware on either device can cause compatibility issues—keep both up to date.
- Secure your system: Change default passwords and enable encryption to protect your surveillance data.
Introduction: Why Connect an IP Camera to a Dahua DVR?
If you’re building or upgrading a security system, you might be wondering how to connect an IP camera to a Dahua DVR. Whether you’re a homeowner, small business owner, or IT professional, integrating IP cameras with a Dahua Digital Video Recorder (DVR) gives you centralized control, high-quality recording, and remote access—all in one package.
Dahua is a leading brand in the surveillance industry, known for its reliable hardware and user-friendly software. Their DVRs support both analog and IP cameras, making them versatile for hybrid setups. However, connecting an IP camera isn’t always as simple as plugging in a cable. It requires proper network configuration, compatibility checks, and sometimes a bit of troubleshooting.
In this comprehensive guide, you’ll learn everything you need to know to successfully connect an IP camera to your Dahua DVR. We’ll cover compatibility, network requirements, step-by-step setup using both the DVR interface and Dahua’s software tools, and common pitfalls to avoid. By the end, you’ll have a fully functional surveillance system that records smoothly and lets you monitor your property from anywhere.
Step 1: Verify Compatibility Between Your IP Camera and Dahua DVR
Before you start wiring or configuring anything, the most important step is confirming that your IP camera and Dahua DVR can actually work together. Not all IP cameras are compatible with all DVRs—even if they’re both from reputable brands.

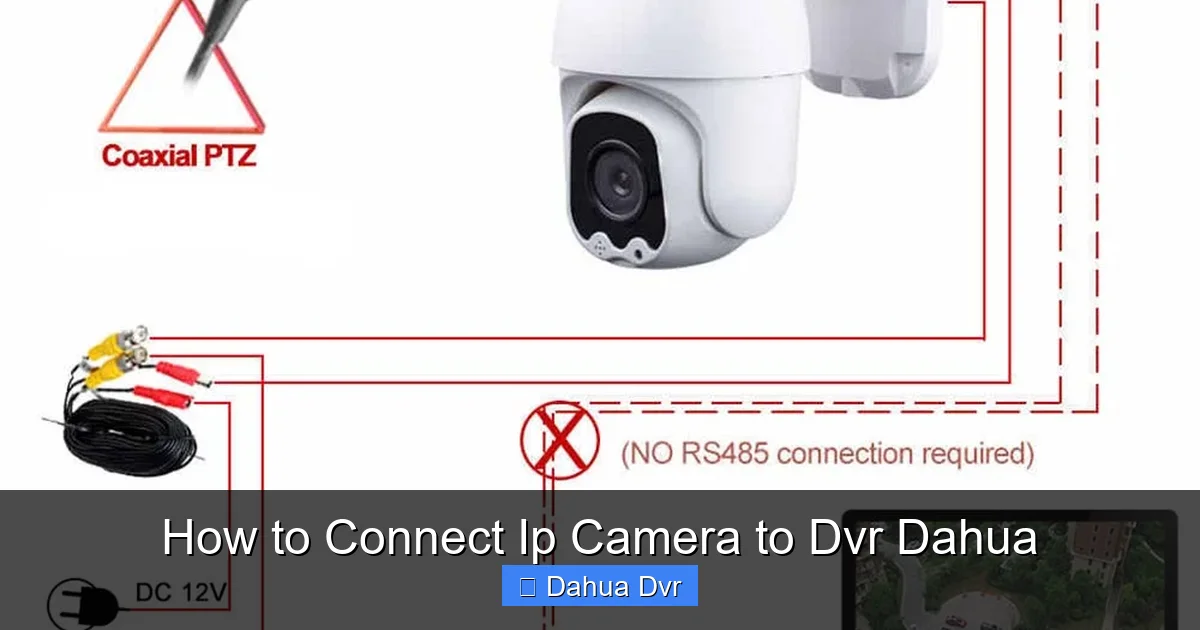

Visual guide about How to Connect Ip Camera to Dvr Dahua
Image source: 1.bp.blogspot.com
Check Protocol Support
Dahua DVRs typically support two main protocols for IP camera integration:
- ONVIF (Open Network Video Interface Forum): This is an industry-standard protocol that allows devices from different manufacturers to communicate. If your IP camera supports ONVIF Profile S (or higher), it should work with most modern Dahua DVRs.
- Dahua Private Protocol: Some Dahua DVRs also support direct integration with Dahua-branded IP cameras using their proprietary protocol, which often offers better performance and more features.
To check if your camera supports ONVIF, look at the product specifications on the manufacturer’s website or the camera’s web interface. Most reputable brands like Hikvision, Axis, and even some budget models now include ONVIF support.
Confirm DVR Model Capabilities
Not all Dahua DVRs support IP cameras. Older or entry-level models may only accept analog (TVI/CVI/AHD) cameras. Check your DVR’s model number and consult the user manual or Dahua’s official product page. Look for terms like “Hybrid DVR,” “IP channel support,” or “Network Video Input.”
For example, models like the Dahua XVR5104HS-X or NVR5216-16P support multiple IP channels, while basic analog DVRs do not. If your DVR doesn’t support IP inputs, you’ll need an NVR (Network Video Recorder) instead—or consider upgrading your DVR.
Firmware Matters
Even if your hardware is compatible, outdated firmware can block integration. Always ensure both your DVR and IP camera are running the latest firmware. You can download updates from Dahua’s official support site. Updating firmware improves stability, adds features, and often fixes known compatibility bugs.
Step 2: Set Up Your Network Properly
IP cameras rely entirely on your local network to communicate with the DVR. A poorly configured network is the #1 reason for connection failures.
Use a Wired Ethernet Connection (Recommended)
While some IP cameras support Wi-Fi, we strongly recommend using a wired Ethernet connection for reliability. Wi-Fi can suffer from interference, signal drops, and latency—especially in large homes or buildings with thick walls.
Run an Ethernet cable (Cat5e or Cat6) from your IP camera to a network switch or directly to the DVR if it has built-in PoE (Power over Ethernet) ports. Many Dahua DVRs include PoE switches, which deliver both power and data over a single cable—making installation cleaner and easier.
Ensure All Devices Are on the Same Subnet
Your DVR, IP camera, and any network switches or routers must be on the same local area network (LAN) and share the same subnet (e.g., 192.168.1.x). If they’re on different subnets, they won’t see each other.
For example:
- DVR IP: 192.168.1.100
- IP Camera IP: 192.168.1.101
- Router/Gateway: 192.168.1.1
If your camera gets an IP like 192.168.0.50 but your DVR is on 192.168.1.100, they can’t communicate. You’ll need to adjust the camera’s IP settings or reconfigure your network.
Assign Static IPs or Use DHCP Reservations
IP cameras should ideally have a fixed IP address so the DVR can always find them. There are two ways to do this:
- Static IP: Manually set the camera’s IP address in its web interface. This gives you full control but requires careful planning to avoid conflicts.
- DHCP Reservation: Let your router assign the IP automatically but “reserve” it for the camera’s MAC address. This is easier and less error-prone.
We recommend DHCP reservations for most users. Log into your router, find the connected devices list, locate your camera by its MAC address, and reserve an IP for it.
Step 3: Connect the IP Camera Physically
Now that your network is ready, it’s time to physically connect the camera.
Option A: Use the DVR’s Built-in PoE Ports
If your Dahua DVR has PoE (Power over Ethernet) ports (usually labeled “PoE” or “IP”), simply plug one end of an Ethernet cable into the camera and the other into the PoE port on the DVR. The DVR will supply power and data—no separate power adapter needed.
This is the cleanest and most reliable method. Just make sure the total power draw of all connected cameras doesn’t exceed the DVR’s PoE budget (check the specs).
Option B: Use an External PoE Switch
If your DVR doesn’t have PoE or you’re connecting more cameras than the DVR can power, use a standalone PoE switch. Connect the switch to your router or network, then plug the camera into the switch. The DVR connects to the same network via Ethernet.
Option C: Use a Separate Power Supply
If your camera doesn’t support PoE or you’re using a non-PoE switch, you’ll need to power the camera separately. Plug the camera into a power outlet using its included adapter, and connect it to the network via Ethernet.
Note: Avoid powering the camera through USB or low-quality adapters—this can cause instability.
Step 4: Discover and Add the IP Camera to the DVR
Once the camera is powered and connected, the DVR needs to “see” it and add it as a channel.
Method 1: Using the DVR’s Built-in Search Tool
Most Dahua DVRs have a camera search function right in the menu.
- Access the DVR’s main menu (usually by right-clicking the mouse or pressing the Menu button).
- Navigate to Camera > Camera Management > Add.
- Click Search or Auto Scan. The DVR will scan the network for compatible IP cameras.
- When your camera appears in the list, select it and click Add.
- Enter the camera’s username and password (default is often admin/admin or admin/123456—change this later for security).
- Choose the protocol (ONVIF or Dahua Private) and click OK.
The camera should now appear as a new channel. You can rename it (e.g., “Front Door”) and adjust settings like resolution and frame rate.
Method 2: Using Dahua ConfigTool (Recommended for Advanced Users)
ConfigTool is a free Windows application from Dahua that makes managing multiple devices much easier.
- Download and install ConfigTool from Dahua’s official website.
- Launch the software and click Search. It will scan your network for Dahua devices and ONVIF cameras.
- Find your IP camera in the list. If it’s not showing up, ensure it’s on the same subnet and that firewalls aren’t blocking communication.
- Right-click the camera and select Modify IP if needed (e.g., to match your subnet).
- Select the camera and click Add to DVR. Choose your DVR from the list and enter credentials.
- The tool will automatically configure the connection and add the camera to the DVR.
ConfigTool is especially helpful when setting up multiple cameras or troubleshooting connection issues.
Method 3: Manual IP Entry
If auto-discovery fails, you can add the camera manually:
- Find the camera’s current IP address (check its web interface or use a network scanner app).
- In the DVR menu, go to Camera > Manual Add.
- Enter the camera’s IP address, port (usually 80 or 8000), username, and password.
- Select the correct protocol (ONVIF or Dahua).
- Click Add.
This method works but is more prone to errors—double-check every field.
Step 5: Configure Camera Settings on the DVR
After adding the camera, fine-tune its settings for optimal performance.
Set Resolution and Frame Rate
Go to Camera > Encode Settings and choose the highest resolution your camera supports (e.g., 4MP, 5MP, or 8MP). Set the frame rate to 15–25 fps for smooth motion without overloading the DVR.
Enable Motion Detection and Alerts
Under Event > Motion Detection, draw detection zones and set sensitivity. You can also enable email alerts or push notifications to your phone when motion is detected.
Adjust Recording Schedule
Go to Storage > Record Schedule and set when the camera should record—24/7, only during motion, or on a custom schedule.
Enable Audio (If Supported)
If your camera has a microphone or audio input, enable audio recording in the encode settings. Note: Some regions have laws about audio surveillance—check local regulations.
Step 6: Test the Connection and Live View
Before considering the job done, verify everything works.
Check Live Video Feed
Go to the live view screen on your DVR. You should see a clear, stable image from the IP camera. If the screen is black, frozen, or shows “No Signal,” revisit the connection steps.
Test Remote Access
Install Dahua’s mobile app (DMSS) or use Smart PSS on your PC. Log in with your DVR’s credentials and confirm you can view the camera remotely. This confirms your network and port forwarding (if used) are working.
Verify Recording
Trigger motion or manually start recording. Wait a few minutes, then play back the footage from the DVR’s playback menu. Ensure video and audio (if enabled) are clear and synchronized.
Troubleshooting Common Issues
Even with careful setup, problems can occur. Here’s how to fix the most common ones.
Camera Not Found During Search
- Ensure the camera and DVR are on the same subnet.
- Disable firewalls temporarily on your router or PC.
- Try pinging the camera’s IP from a computer to test connectivity.
- Reset the camera to factory defaults and reconfigure.
Black or Frozen Screen
- Check the Ethernet cable—replace if damaged.
- Verify the camera is powered (LED should be on).
- Lower the resolution or frame rate—the DVR may be overloaded.
- Update the camera’s firmware.
“Authentication Failed” Error
- Double-check the username and password.
- Reset the camera’s password via its web interface.
- Ensure the camera isn’t locked out due to too many failed login attempts.
Poor Video Quality or Lag
- Use a wired connection instead of Wi-Fi.
- Reduce the bitrate in the camera’s settings.
- Ensure your network switch and cables support Gigabit speeds.
Conclusion: Enjoy Your Secure, Integrated Surveillance System
Connecting an IP camera to a Dahua DVR might seem complex at first, but by following these steps—checking compatibility, setting up your network, using the right tools, and testing thoroughly—you’ll have a professional-grade security system up and running in no time.
Remember, the key to success is preparation. Take the time to verify specs, plan your IP addresses, and use reliable hardware. And don’t forget security: always change default passwords and keep your firmware updated.
With your Dahua DVR and IP camera working together, you’ll enjoy crystal-clear footage, smart alerts, and peace of mind—whether you’re at home, at work, or halfway around the world.
