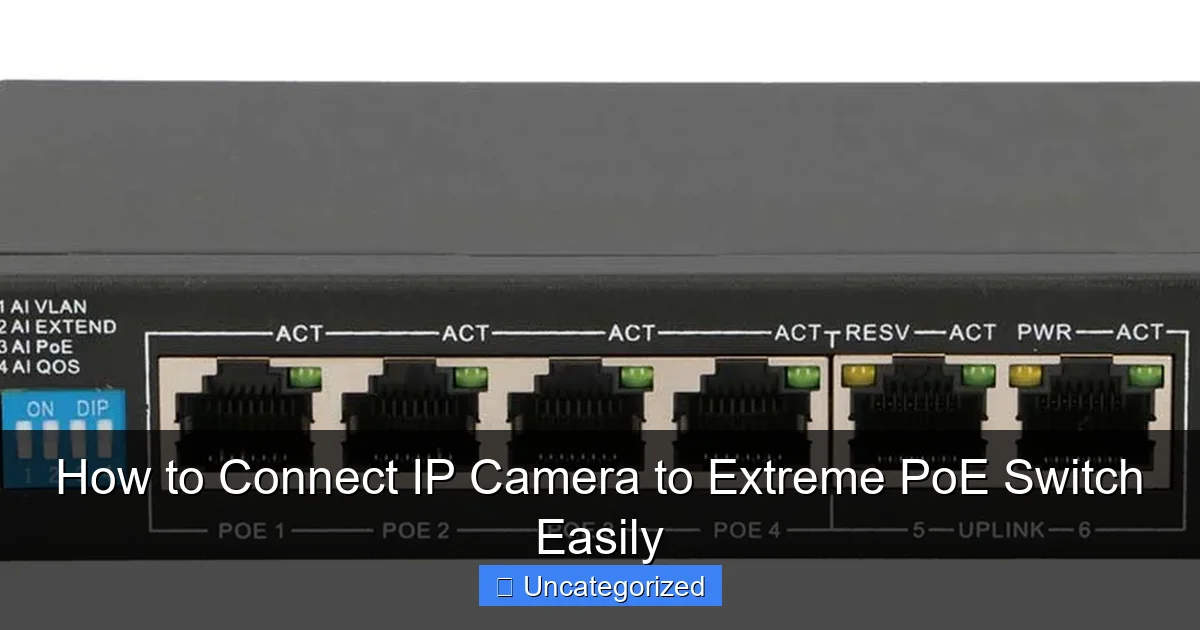

How to Connect IP Camera to Extreme PoE Switch Easily

Key Takeaways

• Verify PoE compatibility: Ensure your IP camera supports PoE standards used by the Extreme switch.
• Use Cat5e/Cat6 cables: Always choose high-quality Ethernet cables for reliable power and data delivery.
• Check switch port settings: Confirm the PoE port is enabled and properly configured in the switch interface.
• Secure physical connections: Firmly plug in both ends of the Ethernet cable to avoid signal drops.
• Monitor power budget: Ensure the switch has enough PoE power for all connected cameras.
• Test connectivity first: Verify camera feed before final installation to troubleshoot issues early.

Why This Matters / Understanding the Problem

Setting up a surveillance system can feel overwhelming, especially when you’re dealing with network devices like IP cameras and PoE switches. If you’ve ever tried to connect an IP camera to a switch only to find it won’t power on or isn’t visible on the network, you’re not alone. The truth is, many people struggle with the how to connect IP camera to Extreme PoE switch easily process—especially when mixing brands, dealing with power issues, or configuring network settings.

Whether you’re securing your home, monitoring a small business, or expanding an existing security system, a reliable connection between your IP camera and PoE switch is essential. Without it, you risk blind spots, poor video quality, or complete system failure. That’s where the Extreme PoE switch comes in. Known for its robust performance and enterprise-grade reliability, this switch can power and connect multiple cameras efficiently—but only if you set it up correctly.

This guide walks you through the how to connect IP camera to Extreme PoE switch easily process, step by step. We’ll cover everything from basic wiring to advanced configuration, ensuring your cameras are up and running with minimal downtime. No tech degree required—just clear, practical advice you can use today.

What You Need

Before you start, gather all the tools and materials. Skipping this step often leads to delays, confusion, or even hardware damage. Here’s what you’ll need to successfully complete the how to connect IP camera to Extreme PoE switch easily process.

• Extreme PoE switch (e.g., ExtremeXOS or Summit series with PoE+ support)
• IP cameras (ensure they are PoE-compatible; most modern ones are)
• Ethernet cables (Cat 5e or Cat 6) – use shielded cables in outdoor or noisy environments
• Network patch panel or wall jack (if using structured cabling)
• Computer or laptop with network access (for configuration)
• PoE power meter (optional but recommended) – helps verify power delivery
• Network switch configuration software (e.g., Extreme Management Center, CLI via terminal)
• Camera configuration tool or web browser – most IP cameras have a web interface
• Label maker or tape – for organizing cables and ports

Pro tip: Check your Extreme PoE switch’s power budget. For example, a 24-port PoE+ switch may support 370W total, so if each camera draws 15W, you can safely connect up to 24 cameras. Overloading the switch can cause ports to shut down or damage connected devices.

Step-by-Step Guide to How to Connect IP Camera to Extreme PoE Switch Easily

Step 1: Plan Your Network Layout

Start by mapping out where each camera will go and how cables will run. This step is critical for avoiding signal loss, power drops, or messy wiring later.

Draw a simple diagram showing:
– Camera locations
– Cable paths
– Switch placement
– Power outlets (for switch and any non-PoE devices)

Use the 100-meter rule: Ethernet cables should not exceed 100 meters (328 feet) from the switch to the camera. Longer runs can cause data errors or power loss. If you need longer distances, consider using a mid-span PoE extender or fiber connection.

Pro Tip: Label each camera and cable at both ends. For example, “Front Door – Port 3” on the camera end and “Port 3 – Front Door” on the switch. This saves time during troubleshooting.

Step 2: Install the Extreme PoE Switch

Mount the Extreme PoE switch in a secure, well-ventilated location—ideally in a network rack or a locked cabinet. Avoid placing it near heat sources or water.

Connect the switch to a power outlet using the supplied power cable. Make sure the grounding is proper, especially in commercial or industrial settings.

Once powered, wait for the system LED to stabilize (usually solid green). This indicates the switch has booted successfully. Some Extreme switches take 30–60 seconds to initialize.

Now, connect your computer to one of the non-PoE ports using an Ethernet cable. This will allow you to access the switch’s management interface.

Warning: Do not daisy-chain multiple PoE switches without checking the total power budget. Overloading can cause system crashes or fire hazards.

Step 3: Configure the Switch for PoE and VLANs (If Needed)

Log into the Extreme PoE switch using either:
– Web interface (via browser)
– CLI (Command Line Interface) via SSH or console cable
– Extreme Management Center (XMC) for centralized control

To access the web interface, enter the switch’s default IP (often 192.168.1.1) in your browser. Log in with the admin credentials (check the manual or sticker on the device).

Navigate to the PoE settings section. Enable PoE on the ports where you’ll connect cameras. Most Extreme switches allow you to:
– Enable/disable PoE per port
– Set power priority (critical, high, low)
– Monitor power usage in real time

If you’re setting up a secure network, create a VLAN (Virtual LAN) for your cameras. For example:
– VLAN ID: 10
– Name: “Security Cameras”
– Assign ports 1–8 to this VLAN

This keeps camera traffic separate from other network devices (like computers or printers), improving performance and security.

Pro Tip: Use VLANs to prevent camera traffic from clogging your main network. It also makes it harder for hackers to access your cameras from other devices.

Step 4: Run and Connect Ethernet Cables

Now it’s time to connect the cameras. Run Ethernet cables from the switch to each camera location. Use wall conduits, raceways, or cable trays to keep things neat and protected.

At the camera end, plug the cable into the camera’s RJ45 port. Most IP cameras have a single Ethernet port that handles both data and power (PoE).

At the switch end, plug the cable into the designated PoE-enabled port. Make sure the port is labeled and matches your network diagram.

As you connect each camera, check the switch’s PoE status LED. It should turn green or amber, indicating power delivery. If it stays off or blinks red, there’s an issue (more on that later).

Common Mistake: Using damaged or low-quality cables. Even a small kink can cause power loss or data corruption. Always use certified Cat 5e or Cat 6 cables.

Step 5: Power On and Detect Cameras

Once all cameras are connected, wait 1–2 minutes. Most IP cameras take time to boot up and negotiate with the network.

Now, use a camera discovery tool to locate them. Popular options include:
– ONVIF Device Manager (free, supports most brands)
– Blue Iris (for advanced users)
– Manufacturer’s app (e.g., Hikvision SADP, Dahua ConfigTool)

Open the tool and scan the network. It will list all connected IP cameras, their IP addresses, MAC addresses, and model numbers.

If a camera doesn’t appear, don’t panic. Try the following:
– Check the PoE LED on the switch
– Swap the cable
– Reboot the switch
– Manually assign an IP (see Step 6)

Pro Tip: Use a PoE power meter to test each cable before connecting the camera. It shows voltage, power draw, and whether the switch is delivering PoE correctly.

Step 6: Assign IP Addresses (Static or DHCP)

Each camera needs a unique IP address to communicate on the network. You can use:
– DHCP (Dynamic Host Configuration Protocol) – switch assigns IPs automatically
– Static IP – you manually set the IP for each camera

For small setups, DHCP is fine. But for larger systems (10+ cameras), static IPs are better. They prevent IP conflicts and make troubleshooting easier.

To assign a static IP:
1. Open the camera’s web interface (enter its IP in a browser)
2. Log in with admin credentials
3. Go to Network Settings
4. Disable DHCP and enter:
– IP address (e.g., 192.168.10.20)
– Subnet mask (usually 255.255.255.0)
– Gateway (e.g., 192.168.10.1)
– DNS server (use your router or 8.8.8.8)

Save the settings and reboot the camera. It should now respond to the new IP.

Warning: Avoid using duplicate IPs. Two devices with the same IP will conflict, causing network instability. Use a spreadsheet to track assigned addresses.

Step 7: Configure Camera Settings

Now that the camera is online, fine-tune its settings for optimal performance.

In the web interface, adjust:
– Resolution and frame rate (e.g., 1080p at 15fps for smooth video)
– Motion detection – set zones to avoid false alarms
– Night vision mode – enable IR cut filter for clear night shots
– Audio settings (if your camera supports it)
– Storage – set up SD card or NVR recording

Also, update the camera’s firmware. Manufacturers release updates to fix bugs, improve security, and add features.

Pro Tip: Enable HTTPS and strong passwords. Default credentials like “admin:12345” are easy targets for hackers.

Step 8: Test and Monitor the System

Before calling it a day, test the entire system.

Check:
– Live video feed from each camera
– Motion detection alerts
– Night vision performance
– Power stability (no flickering or shutdowns)

Use the Extreme switch’s monitoring tools to:
– View real-time PoE power usage
– Check port status (up/down)
– Set up alerts for power failures or disconnections

For remote access, set up port forwarding or use a cloud service (e.g., manufacturer’s app or P2P connection). Never expose your switch directly to the internet without a firewall.

Common Mistake: Skipping the test phase. A camera may appear to work but have a blind spot, poor focus, or delayed recording. Always verify every feature.

Step 9: Label and Document Everything

Take 10 minutes to label each port, cable, and camera. Use a label maker or waterproof tags.

Create a simple documentation file with:
– Camera names and locations
– IP addresses
– MAC addresses
– Firmware versions
– Network settings (VLAN, PoE priority)
– Troubleshooting notes

This will save you hours if you need to expand, replace, or fix something later.

Pro Tip: Store the documentation in a secure cloud folder (e.g., Google Drive) and keep a printed copy near the switch.

Pro Tips & Common Mistakes to Avoid

Even with a solid plan, things can go wrong. Here are expert tips and pitfalls to avoid when learning how to connect IP camera to Extreme PoE switch easily.

• Use shielded cables in outdoor or industrial areas. Unshielded cables can pick up electromagnetic interference, causing flickering or data loss.
• Don’t overload the PoE budget. If the switch says “PoE over budget,” disconnect non-essential devices or upgrade to a higher-capacity model.
• Always update firmware. Outdated firmware can cause compatibility issues, especially with newer Extreme switch models.
• Secure your network. Change default passwords, disable unused services, and use VLANs to segment camera traffic.
• Test in stages. Connect one camera first, confirm it works, then add others. This isolates problems faster.
• Avoid daisy-chaining PoE devices. Only the switch should provide PoE. Never use a PoE camera to power another camera.
• Use a UPS (Uninterruptible Power Supply). A power outage can corrupt camera storage or damage the switch.

Warning: Mixing PoE standards (e.g., 802.3af and 802.3at) is usually safe, but some cameras may not power on if the switch delivers the wrong type. Check compatibility before connecting.

FAQs About How to Connect IP Camera to Extreme PoE Switch Easily

Q: Can I connect a non-PoE IP camera to an Extreme PoE switch?
A: Yes, but you’ll need a PoE splitter. The splitter draws power from the switch and sends data to the camera via a separate Ethernet cable. Without it, the non-PoE camera won’t power on. Always verify voltage compatibility (usually 12V or 24V).

Q: What if the camera doesn’t power on?
A: First, check the switch’s PoE status LED. If it’s off, try a different port or cable. Use a PoE power meter to verify voltage. If the switch is delivering power but the camera is dead, it may be faulty. Also, ensure the camera supports the PoE standard (802.3af/at).

Q: How do I find a camera’s IP address if it’s not showing up?
A: Use a network scanner like Angry IP Scanner or the manufacturer’s discovery tool. You can also check the switch’s ARP table (via CLI or web interface) to see connected devices. If all else fails, reset the camera to factory settings and let it use DHCP.

Q: Can I use a PoE switch with Wi-Fi cameras?
A: Only if the Wi-Fi camera has a PoE port. Most do not. Wi-Fi cameras typically need a power adapter. However, some hybrid models support both Wi-Fi and PoE—check the specs before buying.

Q: What’s the difference between PoE, PoE+, and PoE++?
A:
– PoE (802.3af) – up to 15.4W per port
– PoE+ (802.3at) – up to 30W (ideal for most IP cameras)
– PoE++ (802.3bt) – up to 90W (for high-power devices like PTZ cameras)
Most Extreme PoE switches support PoE+ or PoE++. Match the switch to your camera’s power needs.

Q: How many cameras can I connect to one Extreme PoE switch?
A: It depends on the switch model and camera power draw. A 24-port PoE+ switch can support up to 24 cameras if each uses 12–15W. But if cameras use 25W+, you may only fit 12–15. Always check the switch’s total power budget.

Q: Is it safe to run Ethernet cables outdoors?
A: Yes, but use outdoor-rated, UV-resistant cables with waterproof connectors. For long runs, bury the cable in conduit or use overhead cable trays. Indoor cables can degrade quickly in sunlight or moisture.

Final Thoughts

Connecting an IP camera to an Extreme PoE switch doesn’t have to be complicated. With the right tools, a clear plan, and a little patience, you can set up a reliable surveillance system in just a few hours. The key to mastering how to connect IP camera to Extreme PoE switch easily is attention to detail—from cable quality to network configuration.

Remember: start small, test often, and document everything. Whether you’re securing a home, office, or warehouse, a well-connected camera system gives you peace of mind and real-time awareness.

Now it’s your turn. Gather your gear, follow the steps, and get your cameras online. And if you run into issues, don’t hesitate to consult the Extreme support site or reach out to a local integrator. With this guide, you’re well on your way to a seamless, professional-grade setup.

Stay safe, stay secure, and happy monitoring!
