How to Connect IP Camera to POE NVR: A Complete Step-by-Step Guide
Setting up a reliable surveillance system doesn’t have to be complicated. With the right tools and a little know-how, you can connect an IP camera to a POE NVR in just a few minutes. Whether you’re securing your home, office, or retail space, understanding how to link these devices properly ensures clear recordings, easy access, and peace of mind.
In this guide, you’ll learn exactly how to wire and configure your IP cameras so they work perfectly with your POE NVR. We’ll cover everything from choosing the right cables to troubleshooting common hiccups. Let’s get started!
What You’ll Need Before You Begin
Before diving into the wiring process, gather all the necessary equipment. Having everything ready makes the setup faster and less stressful.

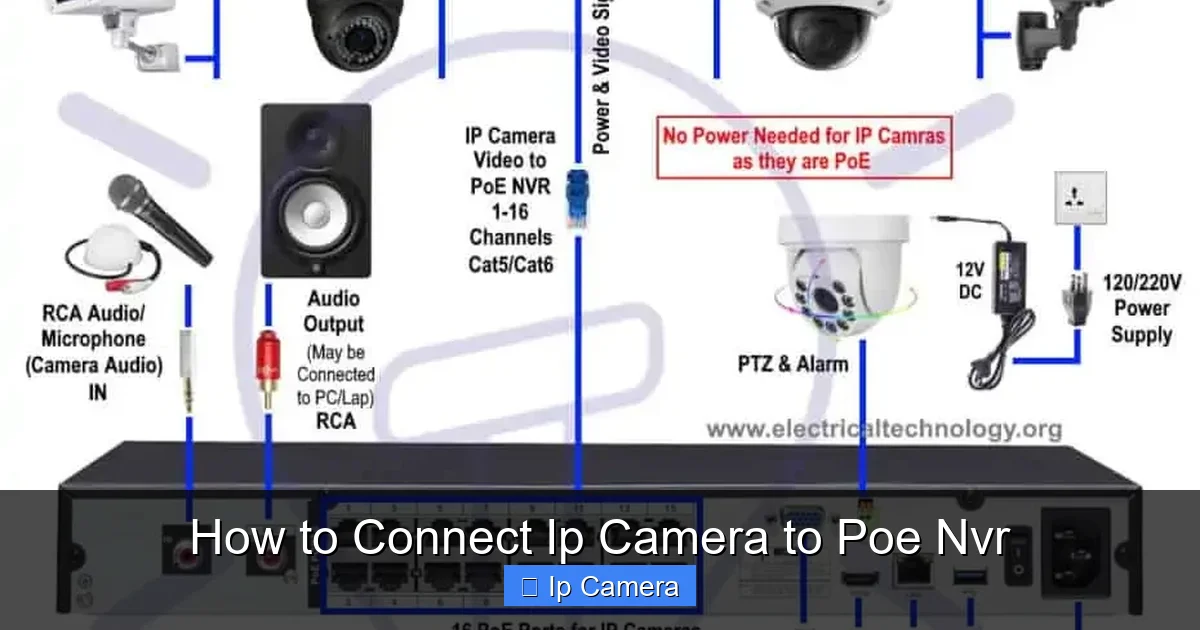

Visual guide about How to Connect Ip Camera to Poe Nvr
Image source: i.weibomingzi.com
Essential Tools & Equipment
- POE NVR: The brain of your security system. It records video from connected cameras and allows remote viewing via a monitor or smartphone.
- IP Cameras with POE Support: Make sure your cameras support Power over Ethernet (POE). Most modern models do, but double-check the specs.
- Cat5e or Cat6 Cable: These Ethernet cables carry both data and power. Cat6 is faster and better shielded, ideal for long distances.
- PoE Splitter (if needed): Some IP cameras require external power if they aren’t POE-compatible. A splitter converts POE power to standard DC voltage.
- Network Switch (optional): If your NVR has limited ports, a POE switch can expand connectivity.
- Monitor & Keyboard: For initial setup and configuration of the NVR.
- Ethernet Cables (short lengths): To connect the NVR to your router or modem.
- Drill & Mounting Hardware: For camera placement.
Software & Accessories
- NVR Software: Usually pre-installed on the device. You may also use manufacturer apps for mobile access.
- Web Browser: To access the NVR’s interface remotely.
- MicroSD Card or External Hard Drive: For extra storage if your NVR supports it.
Understanding POE and NVR Basics
To connect an IP camera to a POE NVR effectively, you need a basic grasp of how these technologies work together.
What Is POE?
Power over Ethernet (POE) is a technology that delivers electrical power and data over a single Ethernet cable. This means you don’t need separate power adapters or outlets near each camera. The POE switch or injector supplies power through the same cable that carries video data back to the NVR.
What Is an NVR?
A Network Video Recorder (NVR) is a dedicated device that receives, processes, and stores video footage from IP cameras. Unlike analog DVRs, NVRs work exclusively with digital IP cameras and offer higher resolution, better compression, and advanced features like motion detection and remote access.
Why Use POE with NVR?
Combining POE and NVR simplifies installation, improves reliability, and reduces cabling costs. You avoid running separate power lines, which is especially useful in outdoor or hard-to-reach locations. Plus, centralized power management makes maintenance easier.
Step 1: Plan Your Camera Layout
Before plugging anything in, plan where each camera will go. Consider coverage areas, lighting conditions, and potential obstructions.
Map Key Areas
- Front door
- Backyard
- Parking lot
- Interior hallways
Check Cable Run Length
Most POE systems support up to 100 meters (about 328 feet) per camera. Measure the distance from each camera location to the nearest network point (like the NVR or a POE switch). If runs exceed 100 meters, consider using a fiber extender or placing a POE switch closer.
Label Everything
Use labels or color-coded cables to identify which camera connects to which port. This saves time during setup and future upgrades.
Step 2: Install the POE NVR
The NVR is the central unit. Proper placement ensures stable operation and easy access.
Mount the NVR
- Place it in a dry, ventilated area away from direct sunlight or heat sources.
- Ensure it’s within reach of your main network connection.
- If rack-mounted, secure it firmly to prevent vibration or disconnection.
Connect to Power and Network
- Plug the NVR into a grounded power outlet.
- Use a short Ethernet cable to connect the NVR’s LAN port to your router or modem.
- Turn on the NVR. The status light should turn solid green or blue once booted.
Initial Setup
- Connect a monitor and keyboard directly to the NVR.
- Follow the on-screen wizard to set language, date/time, and network settings.
- Update firmware if prompted—this ensures security and performance.
Step 3: Run Ethernet Cables to Each Camera Location
This is where POE shines. One cable does the job of two—power and data.
Choose Cable Path
- Run cables through walls, ceilings, or underground conduits as needed.
- Use cable clips or raceways to keep wires neat and protected.
- Avoid sharp bends; maintain a minimum radius to prevent signal loss.
Terminate Ends Correctly
- Use RJ45 connectors and a crimping tool for clean, secure ends.
- Test continuity with a cable tester before mounting cameras.
Leave Excess Cable
Coil and tuck extra length at both ends. This makes future repairs or adjustments easier.
Step 4: Connect Cameras to the NVR Using POE
Now it’s time to link your cameras to the NVR using POE.
Option A: Direct Connection (Recommended)
- Plug one end of the Ethernet cable into an available POE port on the NVR.
- Run the other end to your camera location.
- Attach the RJ45 connector to the camera’s input jack.
- The camera should power on automatically within 30–60 seconds.
Option B: Via POE Switch
- Connect the NVR to a POE-enabled network switch using an Ethernet cable.
- Plug cameras into any POE port on the switch.
- Ensure the switch is powered and functioning.
Troubleshooting Connection Issues
- No Power? Check cable integrity and ensure the port is POE-capable.
- Blurry or Frozen Feed? Verify bandwidth usage—too many cameras on one switch can cause lag.
- Intermittent Signal? Replace damaged cables or use shorter runs.
Step 5: Access the NVR Interface and Add Cameras
Once wired, you must tell the NVR to recognize and configure each camera.
Access the NVR Menu
- On the monitor: Navigate to Menu > Camera Management > Add Device.
- Alternatively, type the NVR’s IP address into a web browser on a computer on the same network.
Search for Cameras
- Click Auto Search or Manual Search.
- The NVR scans the network and lists detected cameras.
- Select each camera and click Add.
Configure Camera Settings
- Assign names (e.g., “Front Door,” “Garage”).
- Set recording schedules and motion detection zones.
- Adjust resolution and frame rate based on storage capacity.
Test the Live View
- Go to Live View on the NVR interface.
- Verify image quality, focus, and field of view.
- Pan/tilt/zoom if your cameras support PTZ controls.
Step 6: Set Up Remote Access (Optional but Recommended)
Want to check your cameras from your phone while on vacation? Remote access is key.
Enable Port Forwarding
- Log into your router’s admin panel (usually via 192.168.1.1).
- Find Port Forwarding or Virtual Server settings.
- Forward ports 80 (HTTP), 443 (HTTPS), and the NVR’s custom ports (e.g., 37777).
- Set the internal IP address to your NVR’s static IP.
Create a Dynamic DNS Account
- Sign up with a service like No-IP or DynDNS.
- Install the DDNS client on your NVR or router.
- This gives your NVR a permanent domain name even if your ISP changes your IP.
Download the Mobile App
- Most NVR brands have companion apps (e.g., Hikvision iVMS, Dahua SADP).
- Scan the QR code printed on the NVR label or download from app stores.
- Enter your NVR’s credentials and server address (your DDNS domain).
Test Remote Viewing
- Disconnect from Wi-Fi and try accessing the feed from a cellular data connection.
- Ensure video loads smoothly and controls respond quickly.
Step 7: Final Checks and Maintenance Tips
A proper setup isn’t complete without verification and upkeep.
Verify All Feeds
- Check every camera’s live view for clarity, brightness, and coverage.
- Look for dead spots or glare from sunlight.
Adjust Camera Angles
- Loosen mounting brackets and reposition as needed.
- Secure tightly after adjustment to avoid drift.
Update Firmware Regularly
- Visit the manufacturer’s website periodically.
- Download and install updates for both NVR and cameras.
- New firmware often fixes bugs, improves stability, and adds features.
Backup Important Data
- Export event logs or configuration files.
- Consider cloud backup if your NVR supports it.
Clean Camera Lenses
- Use a microfiber cloth to wipe smudges or dust weekly.
- Avoid chemical cleaners that may damage coatings.
Troubleshooting Common Problems
Even experienced installers run into snags. Here’s how to solve them fast.
Camera Not Detected by NVR
- Confirm the camera is powered (look for status LED).
- Check cable connections at both ends.
- Try swapping cables or ports.
- Reset the camera to factory defaults if needed.
Poor Video Quality
- Reduce resolution or frame rate in settings.
- Limit bandwidth-heavy features like night vision or audio.
- Ensure no other devices are hogging network bandwidth.
Intermittent Disconnections
- Inspect cables for cuts or kinks.
- Replace old or low-quality Cat5 cables with Cat6.
- Use shielded cables in electrically noisy environments.
NVR Won’t Boot
- Unplug and replug power adapter.
- Check for loose internal SATA drives or RAM.
- Contact support if hardware failure is suspected.
Can’t Access NVR Remotely
- Verify port forwarding rules are active.
- Confirm DDNS is updating correctly.
- Disable firewalls temporarily for testing.
Conclusion: You’re All Set!
Congratulations! You now know how to connect IP camera to POE NVR like a pro. From planning your layout to enabling remote access, each step brings you closer to a robust, reliable surveillance system. Remember, the secret to success lies in careful preparation, quality components, and regular maintenance.
Whether you’re protecting a small apartment or a sprawling warehouse, this setup gives you full control over who sees what—and when. And with modern encryption and secure passwords, your footage stays private too.
If you follow this guide, you’ll spend less time troubleshooting and more time enjoying the peace of mind that comes with knowing your property is always watched over.
Bonus: Future-Proofing Your System
Thinking ahead? Here’s how to make your system adaptable:
- Choose Expandable NVRs: Look for models with extra POE ports or support for additional channels.
- Upgrade to Wired Backups: Add USB or NAS storage for longer retention periods.
- Integrate Smart Devices: Link cameras with smart locks, alarms, or lighting systems.
- Use Analytics: Enable AI-powered features like people counting or facial recognition if supported.
The world of IP surveillance keeps evolving—stay curious, stay updated, and enjoy smarter security today.
