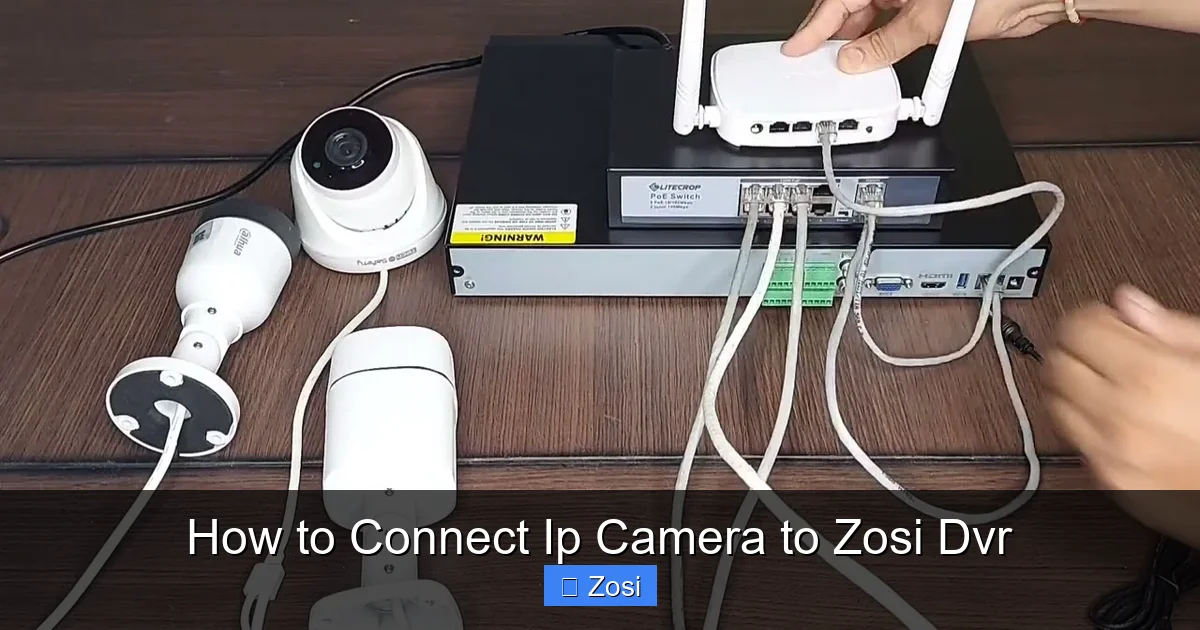

How to Connect Ip Camera to Zosi Dvr

Connecting an IP camera to a Zosi DVR is possible with the right setup and configuration. This guide walks you through every step—from checking compatibility to final testing—so you can expand your surveillance system with confidence.

Key Takeaways

• Not all IP cameras work with Zosi DVRs: Only ONVIF-compliant or Zosi-compatible IP cameras can be added.
• Use the Zosi Smart app or web interface: These tools simplify IP camera discovery and configuration.
• Ensure both devices are on the same network: Your DVR and IP camera must share the same local network to communicate.
• Assign a static IP to the camera: This prevents connection issues caused by changing IP addresses.
• Check power and cables: Use PoE switches or adapters if your camera requires Power over Ethernet.
• Update firmware regularly: Keep your Zosi DVR and IP camera updated for best performance and security.
• Troubleshoot with Zosi support: If issues persist, contact Zosi customer service with your model numbers and error details.

Quick Answers to Common Questions

Can I connect any IP camera to a Zosi DVR?

No, only ONVIF-compliant or Zosi-compatible IP cameras will work. Check the camera’s specifications before purchasing.

Do I need a PoE switch to connect an IP camera?

Not always. You can use a separate power adapter, but a PoE switch simplifies wiring by delivering power and data over one cable.

Why can’t my Zosi DVR find the IP camera?

This usually happens when the camera and DVR are on different networks or the camera’s IP is incorrect. Double-check the IP settings and network connection.

Can I view my IP camera remotely through the Zosi app?

Yes, once the camera is added to the DVR, you can view it remotely using the Zosi Smart app on your phone or tablet.

How many IP cameras can I add to a Zosi DVR?

It depends on the model. Most hybrid DVRs support 1–4 IP cameras in addition to analog ones. Check your DVR’s specifications for limits.

How to Connect IP Camera to Zosi DVR: A Complete Step-by-Step Guide

If you’re looking to expand your home or business security system, you might be wondering: Can I connect an IP camera to my Zosi DVR? The good news is—yes, you can! While Zosi DVRs are primarily designed for analog cameras, many newer models support IP cameras through ONVIF or direct integration. This guide will walk you through everything you need to know to successfully connect an IP camera to your Zosi DVR, whether you’re a beginner or have some tech experience.

By the end of this guide, you’ll understand which Zosi DVR models support IP cameras, how to check compatibility, and how to configure your system step by step. We’ll also cover common issues and how to fix them, so you can enjoy a seamless surveillance setup without frustration.

Understanding Zosi DVR and IP Camera Compatibility

Before you start connecting devices, it’s important to know whether your Zosi DVR can actually work with an IP camera. Not all DVRs are created equal, and compatibility is key.

Most modern Zosi DVRs—especially those labeled as “Hybrid” or “8CH/16CH Hybrid DVR”—support both analog (TVI/CVI/AHD) and IP cameras. These hybrid models allow you to mix different camera types, giving you flexibility in your setup.

To check if your Zosi DVR supports IP cameras:

• Look for “ONVIF” or “IP Camera Support” in the product description or manual.
• Check the back or side of the DVR for an Ethernet (LAN) port—this is required for IP camera connections.
• Visit the Zosi official website and search your model number under “Specifications.”

Important: If your DVR only has BNC ports and no Ethernet port, it likely does not support IP cameras. In that case, you’d need to upgrade to a hybrid or NVR (Network Video Recorder) model.

What You’ll Need Before Starting

Before diving into the setup, gather the following items to ensure a smooth process:

• Zosi Hybrid DVR with IP camera support – Confirm your model supports IP cameras.
• ONVIF-compatible IP camera – Most mainstream brands like Hikvision, Dahua, or even Zosi-branded IP cameras work well.
• Ethernet cables (Cat5e or Cat6) – To connect the camera to your network.
• Router or PoE switch – To provide network connectivity and power (if using PoE).
• Power adapter (if not using PoE) – For cameras that don’t support Power over Ethernet.
• Computer or smartphone – To access the DVR’s interface via app or web browser.
• Zosi Smart app (optional but recommended) – Available on iOS and Android for remote access and setup.

Having these tools ready will save you time and prevent mid-process interruptions.

Step 1: Prepare Your Network and Devices

A stable network is the backbone of any IP camera system. Both your Zosi DVR and IP camera must be connected to the same local network (LAN) to communicate.

Connect the DVR to Your Router

1. Use an Ethernet cable to connect the LAN port on your Zosi DVR to an available port on your router.
2. Power on the DVR and wait for it to boot up (usually takes 1–2 minutes).
3. The DVR should automatically obtain an IP address from your router via DHCP.

Tip: You can check the DVR’s IP address by going to Menu > Network > TCP/IP. Note this down—you’ll need it later.

Connect the IP Camera to the Network

There are two main ways to power and connect your IP camera:

Option A: Using a PoE Switch

• Connect the IP camera to a PoE (Power over Ethernet) switch using an Ethernet cable.
• Connect the PoE switch to your router.
• The camera will receive both power and data through one cable.

Option B: Using a Separate Power Adapter

• Plug the camera into a power outlet using its included adapter.
• Connect the camera to your router or switch using an Ethernet cable.

Note: Avoid using long Ethernet cables (over 100 meters) as they can cause signal loss. Use a network switch if extending the range.

Step 2: Assign a Static IP Address to the Camera

IP cameras often get dynamic IP addresses from the router, which can change and break the connection. To avoid this, assign a static (fixed) IP address.

Find the Camera’s Current IP Address

1. Use the Zosi Smart app or a network scanner tool like Advanced IP Scanner (Windows) or Fing (mobile).
2. Look for a device with a name like “IPC,” “Camera,” or the brand name (e.g., Hikvision).
3. Note the IP address, subnet mask, and gateway.

Set a Static IP

1. Access the camera’s web interface by typing its IP address into a browser (e.g., http://192.168.1.100).
2. Log in using the default credentials (usually admin/admin or admin/12345—check the manual).
3. Go to Network > TCP/IP settings.
4. Change from “DHCP” to “Static.”
5. Enter an IP address within your router’s range (e.g., 192.168.1.105), matching the subnet (255.255.255.0) and gateway (usually 192.168.1.1).
6. Save the settings and reboot the camera.

Example: If your router is 192.168.1.1, use 192.168.1.105 for the camera. Avoid using addresses already taken by other devices.

Step 3: Add the IP Camera to Your Zosi DVR

Now that both devices are on the same network and the camera has a static IP, it’s time to add it to the DVR.

Method 1: Using the Zosi DVR Menu (Local Setup)

1. Connect a monitor to your DVR using HDMI or VGA.
2. Power on the DVR and log in using your admin password.
3. Go to Menu > Camera > Add IP Camera.
4. The DVR will scan the network for available IP cameras.
5. Select your camera from the list. If it doesn’t appear, choose “Manual Add.”
6. Enter the camera’s IP address, port (usually 80 or 8000), username, and password.
7. Set the stream type (Main Stream or Sub Stream) and resolution.
8. Click “Save” or “Add.”

Tip: Use the Main Stream for high-quality recording and the Sub Stream for smoother remote viewing.

Method 2: Using the Zosi Smart App (Remote Setup)

1. Download and install the Zosi Smart app on your smartphone.
2. Log in with your DVR’s account or scan the QR code on the DVR.
3. Tap the “+” icon to add a device.
4. Select “Add IP Camera.”
5. Choose “Auto Search” to find the camera on the network.
6. If not found, tap “Manual Add” and enter the camera’s IP, port, username, and password.
7. Confirm the settings and wait for the connection.

The app will show a live preview once the camera is successfully added.

Step 4: Configure Recording and Viewing Settings

After adding the camera, customize how it records and appears in your system.

Set Recording Mode

1. Go to Menu > Storage > Schedule.
2. Select the IP camera channel.
3. Choose recording type: Continuous, Motion Detection, or Scheduled.
4. Set the time periods for recording (e.g., 24/7 or only at night).
5. Save the settings.

Tip: Motion detection saves storage space and makes playback easier.

Adjust Video Quality and Frame Rate

1. Go to Menu > Camera > Encode.
2. Select the IP camera channel.
3. Set the resolution (e.g., 1080p, 4MP), bitrate, and frame rate (e.g., 15–30 fps).
4. Lower bitrates save storage but reduce quality.

Enable Remote Viewing

1. Ensure your DVR is connected to the internet.
2. In the Zosi Smart app, tap the camera to view live feed.
3. You can also access the DVR via web browser using its DDNS address (if enabled).

Troubleshooting Common Issues

Even with careful setup, problems can arise. Here’s how to fix the most common ones.

Camera Not Detected by DVR

• Check network connection: Ensure both devices are on the same subnet (e.g., 192.168.1.x).
• Verify IP address: Make sure the camera’s IP is correct and not conflicting with another device.
• Test camera independently: Access the camera’s web interface to confirm it’s working.
• Restart devices: Power cycle the camera, DVR, and router.

No Video or Black Screen

• Check camera power: Ensure the camera is receiving power (LED should be on).
• Verify stream settings: Make sure the DVR is set to the correct stream type (Main/Sub).
• Update firmware: Outdated firmware can cause compatibility issues.

Poor Video Quality or Lag

• Reduce resolution or frame rate: High settings can overload the network.
• Use a wired connection: Wi-Fi can cause instability; Ethernet is preferred.
• Check bandwidth: Multiple cameras can saturate your network—use a gigabit switch if needed.

Login Failed or Authentication Error

• Reset camera password: Use the reset button or manufacturer’s tool.
• Use correct credentials: Default usernames/passwords vary by brand.
• Enable ONVIF: In the camera’s settings, make sure ONVIF is enabled for DVR compatibility.

Tips for a Reliable IP Camera Setup

To keep your system running smoothly, follow these best practices:

• Use a dedicated network for cameras: If possible, set up a separate VLAN or subnet for surveillance devices to reduce interference.
• Label your cables: This makes troubleshooting and future upgrades easier.
• Secure your network: Change default passwords, enable WPA3 encryption, and disable remote access if not needed.
• Monitor storage: IP cameras use more space than analog ones—check your hard drive capacity regularly.
• Test after setup: Walk through each camera’s field of view and check recordings to ensure everything works.

Conclusion

Connecting an IP camera to a Zosi DVR is a smart way to enhance your security system with higher resolution, smarter features, and flexible placement. While it requires a bit more setup than analog cameras, the process is straightforward once you understand the basics of networking and compatibility.

By following this guide—checking compatibility, preparing your network, assigning static IPs, and configuring the DVR—you can successfully integrate IP cameras into your Zosi system. Whether you’re monitoring your home, office, or retail space, this hybrid setup gives you the best of both worlds: the reliability of a DVR and the advanced capabilities of IP technology.

Remember to keep your firmware updated, secure your network, and test your system regularly. With the right setup, your Zosi DVR and IP cameras will work together seamlessly for years to come.
