Connecting a microphone to your Hikvision IP camera enables two-way audio, enhancing security monitoring. This guide walks you through hardware wiring, camera settings, and software configuration using simple steps and practical examples. Whether you’re using analog or PoE microphones, you’ll get clear, real-time voice recording for professional surveillance systems.
Quick Answers to Common Questions
Can I use any microphone with my Hikvision camera?
Answer: Not all microphones work. Use a 3.5mm electret or dynamic mic with built-in preamp for best results. Check your camera’s specs for supported types and voltage requirements.
Do I need a special app to hear the microphone audio?
Answer: No. Audio plays through the same software you use for video—iVMS-4200, the web client, or mobile app. Just ensure “Enable Audio Input” is turned on.
Is two-way audio free with Hikvision cameras?
Answer: Yes, two-way audio is built-in and free. You just need a microphone and optional speaker wired to compatible ports. Firmware updates may be needed for full functionality.
Will adding a microphone affect video quality?
Answer: No. Audio runs independently. However, heavy audio processing (like echo cancellation) uses minimal CPU and won’t impact video resolution or frame rate.
Can I record audio separately from video?
Answer: In most cases, no—audio is tied to video channels. But some advanced NVRs allow audio-only triggers or separate storage paths. Check your system’s capabilities in the settings.
How to Connect Microphone to Hikvision IP Camera: Complete Guide
If you’re setting up a surveillance system with a Hikvision IP camera, adding a microphone opens up powerful possibilities—like two-way communication, real-time alerts, and enhanced situational awareness. Whether you’re monitoring your home, office, or retail space, integrating audio can make your security system far more effective.
This comprehensive guide will walk you through everything you need to know about connecting a microphone to your Hikvision IP camera—from checking compatibility to final testing. We’ll cover both wired and plug-and-play options, explain how to configure the software, and share pro tips to avoid common pitfalls. By the end, you’ll have a fully functional audio-enabled camera ready for action.
What You’ll Learn
In this article, you’ll discover:

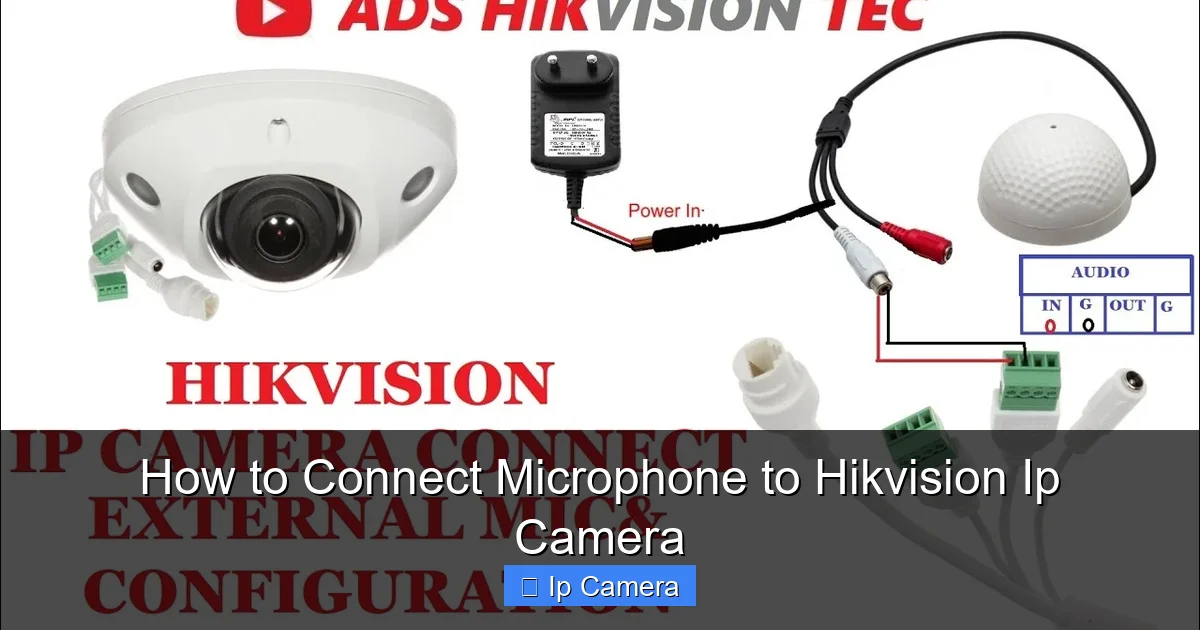

Visual guide about How to Connect Microphone to Hikvision Ip Camera
Image source: i.ytimg.com
- How to determine if your Hikvision camera supports audio input
- The types of microphones compatible with Hikvision systems
- Step-by-step wiring instructions for connecting a microphone
- How to enable and configure audio in the Hikvision software
- Tips for optimal audio quality and noise reduction
- Troubleshooting steps for when audio doesn’t work
Let’s get started!
Before You Begin: Check Camera Compatibility
Not every Hikvision IP camera comes with an audio input port. Before buying a microphone, confirm whether your camera model supports external audio. Look for these indicators:
- Audio-in (3.5mm) jack labeled “MIC IN” or “Audio Input”
- Support for analog audio input in the user manual
- Two-channel audio capability (for simultaneous recording and playback)
Popular models like the Hikvision DS-2CD2142WD-I, DS-2CD2385G1-LU, and many DS-2CD2T series include built-in audio input. You can also check the camera’s technical specification sheet online or in the product documentation.
If your camera doesn’t have an audio-in port, consider using a Hikvision audio extension module or a third-party NVR that supports audio passthrough. Some newer models even allow USB microphones via firmware updates—check Hikvision’s official website for compatibility lists.
Choosing the Right Microphone for Your Hikvision Camera
There are several types of microphones you can use with Hikvision cameras. The best choice depends on your environment, budget, and required audio quality.
1. Built-In Microphones
Many Hikvision cameras come with small built-in microphones. While convenient, these often lack clarity and pick up background noise. They’re fine for basic monitoring but not ideal for two-way communication.
2. External Condenser Microphones
For better sound quality, use a small condenser mic with a 3.5mm plug. These are sensitive and capture clear voice details but may require phantom power—something most Hikvision cameras don’t supply.
3. Dynamic or Electret Microphones
These are rugged, low-power mics perfect for outdoor or industrial use. Electret mics only need 3–5V power, which some Hikvision cameras provide through the audio-in port.
4. Wireless Microphones (Bluetooth or RF)
While possible, wireless mics add complexity. Bluetooth pairing isn’t officially supported by Hikvision, so RF-based systems with dedicated receivers are safer bets—but still rare in standard setups.
Pro Tip: For most users, a simple 3.5mm electret microphone with built-in preamp works best. Avoid expensive studio mics unless you’re doing professional-grade surveillance.
Tools and Materials Needed
Gather these items before starting:
- Hikvision IP camera with audio input support
- Microphone (3.5mm plug recommended)
- 3.5mm TRRS or TRS audio cable (depends on mic type)
- Screwdriver (if mounting or accessing ports)
- Ethernet cable (for camera-NVR connection)
- Computer or mobile device for software access
Optional but helpful:
- Microphone stand or mount
- Noise-reducing foam or windscreen
Step-by-Step: How to Wire a Microphone to Hikvision IP Camera
Wiring a microphone is straightforward if you follow the pinout diagram. Most Hikvision cameras use a 3.5mm TRS (Tip-Ring-Sleeve) connector for mono audio input.
Understanding the 3.5mm Audio Jack
- Tip: Left channel / Positive (+)
- Ring: Right channel / Negative (-)
- Sleeve: Ground
Since we’re using a mono mic, only connect the Tip and Sleeve. Here’s how:
Step 1: Locate the Audio-In Port
On the back or side of your Hikvision camera, find a small 3.5mm jack labeled “MIC IN” or “AUDIO IN.” It’s usually near the Ethernet port and power input.
Step 2: Prepare the Microphone Cable
Cut a 3.5mm male-to-male audio cable. Strip the ends to expose the inner wires:
- Red wire → Tip (positive)
- Black wire → Sleeve (ground)
Step 3: Connect the Microphone
- Insert one end of the cable into the microphone.
- Plug the other end into the camera’s audio-in port.
Step 4: Power the Microphone (If Needed)
Some mics draw power from the camera. If yours doesn’t work, check if your camera provides 5V auxiliary power. On certain models, you can enable “External Mic Power Supply” in the settings menu under “Audio Settings.”
Step 5: Secure the Connection
Wrap the cable neatly and secure it with zip ties to prevent strain. Avoid placing the cable near power lines to reduce interference.
Configuring Audio in Hikvision Software
After wiring the microphone, you must enable audio in the camera’s software settings. We’ll use Hikvision iVMS-4200 and the web client as examples.
Using Hikvision iVMS-4200
- Open iVMS-4200 and log in.
- Right-click your camera and select Device Manager.
- Go to Configuration > Basic Parameters > Audio.
- Check Enable Audio Input and set Input Source to “External Mic.”
- Adjust Input Volume slider to avoid clipping or silence.
- Save settings and restart the camera if prompted.
Using Web Client (Browser-Based Setup)
- Type the camera’s IP address into a web browser.
- Log in with your admin credentials.
- Click the Settings (gear) icon.
- Navigate to Configuration > Audio.
- Enable Audio Input and select the correct channel.
- Set Audio Compression to G.711 or AAC depending on your needs.
- Click Apply and test the mic.
Recording Audio
Once enabled, audio will be recorded alongside video. To verify:
- Play a sound near the mic and watch for volume spikes in the live view.
- Review recordings in the playback section—look for waveform bars.
Testing and Optimizing Audio Quality
After setup, test your microphone thoroughly to ensure clear, distortion-free audio.
How to Test Audio
- Speak clearly into the mic at normal volume.
- Check the live preview for audio level meters (usually a vertical bar).
- Play back recent footage and listen for clarity.
Optimizing Sound Quality
- Reduce background noise: Place the mic away from vents, fans, or traffic.
- Use a windscreen: Especially important for outdoor mics.
- Lower gain: High input levels cause distortion. Start at 50% and adjust.
- Enable echo cancellation: In iVMS-4200, go to Audio settings and turn on “Echo Cancellation” if using two-way audio.
Two-Way Audio: Adding a Speaker (Optional)
Want to respond to visitors? You can add a speaker to create two-way communication.
Requirements
- Hikvision camera with audio-out port
- Small speaker (3.5mm)
- TRS cable
Setup Steps
- Connect the speaker to the camera’s audio-out port.
- In software settings, enable Audio Output.
- Assign a playback channel (usually Channel 2).
- Test by speaking into the mic and listening through the speaker.
Note: Two-way audio requires firmware version 4.0 or higher and proper codec support (G.711 is most reliable).
Troubleshooting Common Issues
Even with perfect setup, things don’t always work as expected. Here’s how to fix common problems.
No Audio Detected
- Double-check cable connections.
- Ensure the mic is powered (if needed).
- Verify “Enable Audio Input” is checked in settings.
- Update camera firmware to the latest version.
Distorted or Noisy Audio
- Lower the input volume in software.
- Move the mic away from sources of interference (Wi-Fi routers, motors).
- Use shielded cables.
- Add a pop filter or foam cover to the mic.
Feedback When Using Speakers
- Increase the physical distance between mic and speaker.
- Enable echo cancellation in settings.
- Use headphones instead of speakers for testing.
Audio Works in Preview But Not in Recordings
- Check recording settings—audio might be disabled in scheduled recordings.
- Confirm the storage device (NVR or SD card) has enough space.
- Ensure the playback software supports audio decoding.
Security and Privacy Considerations
With audio recording comes responsibility. Always comply with local laws regarding surveillance and privacy.
- Notify people: Post signs indicating audio recording in monitored areas.
- Limit access: Restrict who can view or download audio files.
- Encrypt data: Use HTTPS and strong passwords to protect your system.
- Delete old recordings: Set retention policies to avoid storing unnecessary audio.
Conclusion
Connecting a microphone to your Hikvision IP camera is a smart upgrade that transforms passive surveillance into an interactive security solution. With the right tools and a few simple steps, you can add clear audio recording—or even two-way communication—to your setup. Whether you’re monitoring a storefront, warehouse, or home entryway, the added context from sound makes all the difference.
Remember to verify compatibility, choose a suitable microphone, wire it correctly, and configure the software properly. And don’t skip testing—real-world verification prevents headaches later.
Now that you know how to connect microphone to Hikvision IP camera, you’re ready to build smarter, more responsive surveillance systems. Stay safe, stay informed, and monitor with confidence.
