How to Connect New Cameras to Zosi NVR
Setting up a home or business security system with Zosi cameras and NVR (Network Video Recorder) is a smart way to keep your property safe. But what happens when you want to add new cameras to your existing setup? Whether you’re expanding coverage to a new area or replacing a faulty unit, connecting new cameras to your Zosi NVR doesn’t have to be complicated. This comprehensive guide will walk you through every step—from checking compatibility to final configuration and troubleshooting.
By the end of this guide, you’ll know exactly how to connect new cameras to your Zosi NVR, whether you’re using analog (HD-TVI) or IP cameras. We’ll cover the tools you need, the correct setup order, and tips to avoid common mistakes. Let’s get started!
Understanding Your Zosi NVR System

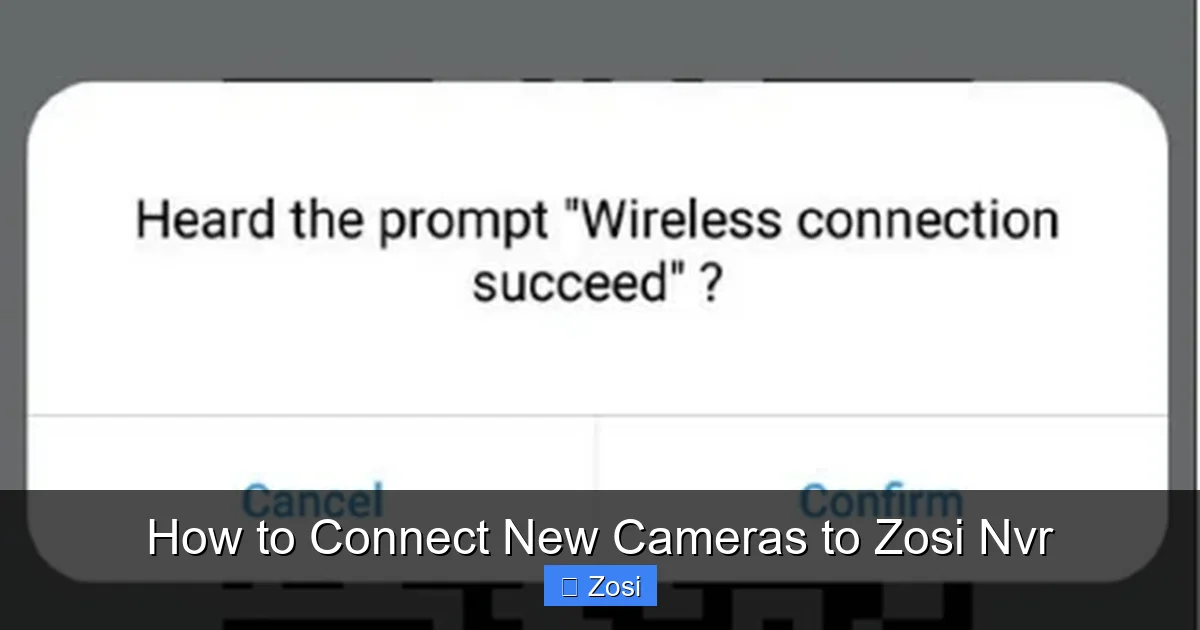

Visual guide about How to Connect New Cameras to Zosi Nvr
Image source: supports.zositech.com
Before adding new cameras, it’s important to understand how your Zosi NVR works. Zosi offers a range of NVRs that support different types of cameras, primarily analog HD-TVI (High Definition Transport Video Interface) and some newer models that support IP cameras.
Most Zosi NVRs come with built-in power supplies and BNC video inputs. This means you can plug in your cameras directly using coaxial cables for video and power cables for electricity. Some advanced models also support PoE (Power over Ethernet), allowing you to power and transmit data over a single Ethernet cable.
Knowing your NVR model is crucial. Check the label on the back or bottom of your NVR unit. Models like ZR1080P-4CH, ZR1080P-8CH, or ZR4K-16CH indicate the number of channels (how many cameras it supports) and resolution capabilities. This will help you determine how many cameras you can add and what types are compatible.
Step 1: Check Camera and NVR Compatibility
Not all cameras work with all NVRs. Before buying or connecting a new camera, verify compatibility.
Check the Camera Type
Zosi NVRs typically support:
– HD-TVI cameras (most common)
– AHD (Analog High Definition) cameras
– CVI (Composite Video Interface) cameras
– Some newer models support IP cameras
If your NVR is labeled as “TVI-compatible,” it will work best with HD-TVI cameras. Mixing different analog formats (like AHD and TVI) may work in some cases, but it’s not guaranteed. For best results, use cameras from the same product line or confirmed compatible models.
Match Resolution and Frame Rate
Ensure your new camera’s resolution matches or is lower than your NVR’s maximum supported resolution. For example, if your NVR supports 1080p, you can connect 720p or 1080p cameras—but not 4K unless your NVR explicitly supports it.
Also, check the frame rate. Most Zosi NVRs support up to 30fps (frames per second) per channel. If your camera outputs more than that, the NVR may downscale it.
Verify Channel Availability
Count how many camera channels your NVR has and how many are already in use. If you have an 8-channel NVR and already use 6 cameras, you can only add 2 more. Overloading the NVR can cause performance issues or prevent new cameras from being detected.
Step 2: Gather the Right Tools and Cables
Having the right equipment makes the installation process smooth and error-free.
Essential Tools and Materials
- New Zosi-compatible camera(s)
- BNC coaxial cables (for analog cameras) or Ethernet cables (Cat5e/Cat6 for IP cameras)
- Power cables (usually included with the camera)
- Screwdriver (for mounting)
- Drill and wall anchors (if mounting outdoors or on concrete)
- Zip ties or cable clips (for cable management)
- Ladder (if installing at height)
If your NVR has a built-in power supply, you can plug the camera’s power cable directly into the NVR’s power output ports. Otherwise, you’ll need individual power adapters for each camera.
Cable Length Considerations
Keep cable runs under 300 feet (about 90 meters) for analog cameras to avoid signal loss. For IP cameras using Ethernet, the maximum recommended length is 328 feet (100 meters). Use signal boosters or switches if you need longer runs.
Step 3: Mount the New Camera
Proper placement ensures maximum coverage and reduces blind spots.
Choose the Right Location
– Install cameras at least 8–10 feet high for better coverage and to prevent tampering.
– Point cameras slightly downward to capture faces and license plates.
– Avoid pointing directly at bright lights or the sun to prevent glare.
– Cover entry points like doors, windows, driveways, and backyards.
Mount the Camera
1. Use the mounting template (included with the camera) to mark drill holes.
2. Drill holes and insert wall anchors if needed.
3. Secure the camera bracket with screws.
4. Attach the camera to the bracket and adjust the angle.
Run the Cables
– Route BNC and power cables from the camera to the NVR location.
– Use cable conduits or clips to protect wires from weather and pests.
– Label each cable at both ends to avoid confusion during connection.
Step 4: Connect the Camera to the NVR
Now it’s time to physically connect your new camera.
For Analog (HD-TVI) Cameras
1. Plug the BNC connector into an available BNC video input on the back of the NVR.
2. Connect the power cable to the camera’s power input.
3. Plug the other end of the power cable into the NVR’s power output port (if available) or use a separate power adapter.
4. Repeat for each new camera, using different channels.
For IP Cameras (if supported)
1. Connect one end of an Ethernet cable to the camera.
2. Plug the other end into an available PoE port on the NVR (if it supports PoE).
3. If your NVR doesn’t have PoE, use a PoE injector or connect the camera to a PoE switch, then link the switch to the NVR.
Power On in the Right Order
Always connect all cameras before turning on the NVR. This ensures the system detects them during startup. If you power on the NVR first, it may not recognize newly connected cameras.
Step 5: Configure the Camera on the NVR
Once connected, your NVR should automatically detect the new camera. But you may need to adjust settings for optimal performance.
Access the NVR Menu
1. Connect a monitor to the NVR using an HDMI or VGA cable.
2. Use the included mouse or remote control to navigate the interface.
3. Go to the main menu and select “Camera” or “Channel Management.”
Verify Camera Detection
You should see the new camera listed under the corresponding channel. If the screen shows “No Signal,” double-check the BNC and power connections.
Adjust Camera Settings
– Set the resolution (e.g., 1080p, 720p).
– Adjust frame rate (30fps is standard).
– Enable motion detection if desired.
– Set recording schedule (continuous, motion-triggered, or scheduled).
– Rename the camera (e.g., “Front Door”) for easy identification.
Test the Live View
Click on the camera channel to view the live feed. Check for clear image quality, proper focus, and correct angle. Make adjustments if needed.
Step 6: Set Up Remote Viewing with the ZOSI Smart App
To view your cameras from your phone or tablet, download the ZOSI Smart app.
Download and Install the App
– Available on iOS (App Store) and Android (Google Play).
– Search for “ZOSI Smart” and install.
Connect the NVR to the Internet
1. Connect an Ethernet cable from the NVR’s LAN port to your router.
2. Power on the NVR and wait for it to connect to the network.
Add the NVR to the App
1. Open the app and create an account or log in.
2. Tap the “+” icon to add a device.
3. Choose “Scan QR Code” and point your phone at the QR code on the NVR (usually on the back or in the menu).
4. Alternatively, enter the NVR’s UID manually (found in the system info menu).
5. Enter your NVR’s password (default is often “admin” or “123456”—change it for security).
6. The app will connect and display all camera channels.
View and Control Cameras Remotely
– Watch live feeds from anywhere.
– Play back recorded footage.
– Receive motion alerts on your phone.
– Control PTZ (pan-tilt-zoom) cameras if supported.
Step 7: Update Firmware (Recommended)
Keeping your NVR and cameras updated ensures security and performance.
Check for Updates
1. Go to the NVR’s main menu.
2. Navigate to “System” > “Maintenance” > “Upgrade.”
3. Insert a USB drive with the latest firmware (download from Zosi’s official website).
4. Follow on-screen instructions to install.
Update Cameras (if applicable)
Some IP cameras allow firmware updates via the NVR or app. Check the camera settings or Zosi’s support page for details.
Troubleshooting Common Issues
Even with careful setup, problems can occur. Here’s how to fix the most common ones.
Camera Shows “No Signal”
– Check BNC and power connections.
– Ensure the camera is powered on (look for LED lights).
– Try swapping the BNC cable with a known working one.
– Test the camera on another channel.
Image is Blurry or Dark
– Clean the camera lens.
– Adjust the focus ring (if available).
– Check for IR reflection (common with dome cameras)—move the camera slightly.
– Ensure the camera isn’t pointed at a bright light source.
Camera Not Detected by NVR
– Power cycle the NVR (turn off, wait 10 seconds, turn on).
– Verify the camera is compatible with your NVR model.
– Check if the channel is enabled in the NVR settings.
Remote Viewing Not Working
– Confirm the NVR is connected to the internet.
– Check your router’s firewall settings.
– Ensure the correct UID and password are entered in the app.
– Restart the app and router.
Recording Issues
– Check if the hard drive is full—delete old recordings or expand storage.
– Verify the recording schedule is set correctly.
– Ensure motion detection zones are properly configured.
Tips for a Smooth Installation
– Label all cables and cameras for easy identification.
– Use weatherproof housings for outdoor cameras.
– Avoid running power and video cables together to reduce interference.
– Test each camera before final mounting.
– Keep the NVR in a cool, dry, and ventilated area.
Conclusion
Connecting new cameras to your Zosi NVR is a straightforward process when you follow the right steps. Start by checking compatibility, gather the necessary tools, mount the cameras properly, and connect them using the correct cables. Power on the system in the right order, configure settings through the NVR menu, and set up remote viewing with the ZOSI Smart app. Don’t forget to update firmware and troubleshoot any issues promptly.
With this guide, you can confidently expand your security system and enjoy peace of mind knowing your property is well-protected. Whether you’re adding one camera or several, Zosi’s user-friendly design makes it easy to scale your setup as needed.
