Connecting a PoE IP camera is easier than you think! This guide walks you through everything from unboxing to final configuration, so you can set up your surveillance system quickly and securely. Whether you’re a beginner or upgrading your existing network, our step-by-step instructions make it simple to get your camera online and monitoring in minutes.

Quick Answers to Common Questions

Tip/Question?

Answer: Always use a surge protector for your PoE switch to protect against power surges. This simple step can prevent costly damage to your equipment during storms or electrical fluctuations.

Tip/Question?

Answer: Label your Ethernet cables clearly with the camera location and port number. This makes future maintenance and troubleshooting much easier, especially with larger camera systems.

Tip/Question?

Answer: Test your camera connection with a smartphone before finalizing the installation. This lets you verify image quality and adjust angles without climbing ladders repeatedly.

Tip/Question?

Answer: Keep spare Ethernet cables on hand for quick replacements. Even minor cable damage can cause connection issues that seem mysterious until you realize the cable is the culprit.

Tip/Question?

Answer: Schedule firmware updates during off-hours to minimize disruption. Many manufacturers release important security updates that improve system stability and add new features.

How to Connect Poe Ip Camera: Complete Step-by-Step Guide

Setting up a PoE IP camera might sound technical, but with the right guidance, it’s actually quite straightforward. Whether you’re installing a single camera for home security or building an entire surveillance network for your business, this comprehensive guide will walk you through every step of connecting your PoE IP camera. You’ll learn about equipment requirements, wiring techniques, network configuration, and troubleshooting tips that professionals use daily.

By the end of this guide, you’ll have a fully functional surveillance system that provides crystal-clear video footage and reliable remote access. We’ll cover everything from unboxing your camera to testing the final connection, ensuring you have all the knowledge needed for a successful installation.

Gathering Your Equipment

Essential Components

Before you begin, make sure you have all the necessary equipment. The good news is that you won’t need a complicated setup with multiple power sources or extensive wiring.

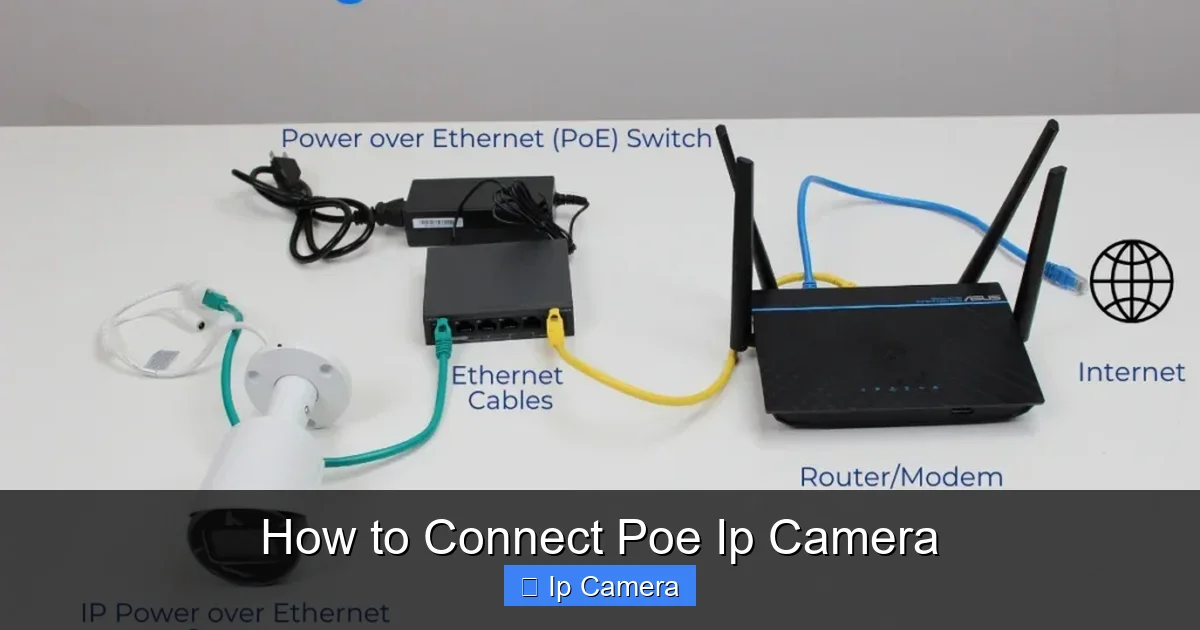

How to Connect Poe Ip Camera

Visual guide about How to Connect Poe Ip Camera

Image source: i.pinimg.com

  • PoE IP Camera: Your surveillance device comes with mounting hardware and mounting brackets
  • PoE Switch or Injector: Either a switch with built-in PoE capability or a separate power injector
  • Cat5e, Cat6, or Cat6a Ethernet Cable: Standard networking cable (up to 100 feet recommended)
  • Router/Network Hub: Your existing internet-connected device
  • Computer or Smartphone: For initial configuration and testing
  • Phillips Head Screwdriver: For mounting the camera

Understanding PoE Technology

Power over Ethernet (PoE) technology allows you to transmit both data and electrical power through a single Ethernet cable. This innovation has revolutionized IP camera installations by eliminating the need for separate power adapters and outlets near each camera location.

Modern PoE systems use IEEE 802.3af/at/bt standards, which can deliver up to 90 watts of power through standard Ethernet cables. Most IP cameras require between 4-15 watts, making them perfect candidates for PoE implementation.

Planning Your Installation

Camera Placement Strategy

Strategic camera placement is crucial for effective surveillance. Consider these factors when positioning your camera:

  • Entry Points: Focus on doors, windows, and main entrances first
  • Coverage Areas: Aim for overlapping fields of view where possible
  • Lighting Conditions: Avoid direct sunlight and ensure adequate illumination
  • Height Requirements: Mount at least 7-10 feet high for optimal coverage and vandal resistance
  • Weather Protection: Choose weatherproof models for outdoor installations

Network Infrastructure Assessment

Evaluate your existing network infrastructure before installation:

  • Bandwidth Calculation: Each IP camera typically uses 2-8 Mbps bandwidth
  • Switch Capacity: Ensure your PoE switch has enough ports and power budget
  • Cable Management: Plan cable routing to avoid tripping hazards and maintain aesthetics
  • Future Expansion: Leave extra ports available for additional cameras

Step-by-Step Connection Process

Step 1: Mount the Camera

Start by securely mounting your camera according to the manufacturer’s specifications:

  1. Position the mounting bracket where you want to install the camera
  2. Mark screw holes with a pencil or marker
  3. Drill pilot holes and secure the bracket with appropriate anchors
  4. Attach the camera to the bracket using the provided screws
  5. Adjust the camera angle for optimal coverage

Step 2: Connect the Ethernet Cable

This is the core connection that enables both power and data transmission:

  1. Run your Ethernet cable from the camera location to your network switch
  2. Connect one end to the camera’s Ethernet port
  3. Connect the other end to your PoE-enabled switch or injector
  4. Ensure all connections are snug and secure
  5. Allow the camera to power up (usually indicated by LED lights)

Step 3: Configure Network Settings

Once connected, configure your camera’s network settings:

  1. Connect your computer to the same network as the camera
  2. Access the camera’s web interface through a browser
  3. Use the default IP address (usually found in the manual or on the camera label)
  4. Change default login credentials immediately
  5. Update network settings if using DHCP or assigning static IP

Network Configuration Details

IP Address Assignment

Determine whether your camera should use DHCP or static IP addressing:

  • DHCP (Recommended): Automatically assigns IP addresses from your router
  • Static IP: Manually assign a fixed IP address for consistent access
  • Subnet Mask: Typically 255.255.255.0 for home networks
  • Default Gateway: Usually your router’s IP address
  • DNS Server: Your ISP’s DNS or public DNS like Google (8.8.8.8)

Port Forwarding Setup

Configure port forwarding to access your camera remotely:

  1. Log into your router’s admin panel
  2. Find the Port Forwarding section
  3. Add a new rule for your camera’s HTTP/HTTPS ports (typically 80/443)
  4. Set the internal IP address to match your camera’s assigned address
  5. Save changes and test remote access

Advanced Configuration Options

Mobile App Integration

Most modern IP cameras come with companion mobile apps for convenient monitoring:

  • Download the app: Available on iOS and Android platforms
  • Scan QR Code: Many cameras have a QR code for quick app linking
  • Manual Setup: Enter camera details if QR scanning isn’t available
  • Push Notifications: Configure alerts for motion detection or other events
  • Two-Way Audio: Enable microphone/speaker functionality if supported

Motion Detection Setup

Optimize your camera’s motion detection capabilities:

  1. Access the camera’s settings menu
  2. Navigate to Motion Detection or Event Settings
  3. Draw detection zones on the video preview
  4. Adjust sensitivity levels to reduce false alarms
  5. Set recording schedules and notification preferences

Troubleshooting Common Issues

No Power or Data Connection

If your camera isn’t receiving power or establishing a network connection:

  • Check PoE Compatibility: Verify your switch or injector supports the required PoE standard
  • Inspect Cables: Look for damaged or improperly connected Ethernet cables
  • Test with Known Good Cable: Replace suspect cables with confirmed working ones
  • Reset Camera: Some cameras have reset buttons for recovery
  • Check Power Budget: Ensure your PoE switch has sufficient remaining power capacity

Intermittent Connectivity Problems

Address unstable connections and frequent disconnections:

  • Cable Length: Stay within the 100-meter limit for reliable performance
  • Electrical Interference: Keep Ethernet cables away from power lines and transformers
  • Heat Dissipation: Ensure adequate ventilation around PoE switches
  • Firmware Updates: Install latest firmware for stability improvements
  • Network Congestion: Reduce bandwidth usage from other devices during peak hours

Safety and Best Practices

Electrical Safety Precautions

When working with network equipment, always follow safety guidelines:

  • Turn Off Power: Disconnect power before handling electrical components
  • Ground Connections: Ensure proper grounding for outdoor installations
  • Weather Protection: Use weatherproof enclosures and cable glands
  • Ladder Safety: Use proper ladders and have someone spot you when working at heights
  • Equipment Handling: Handle electronic components by edges only

Security Considerations

Protect your surveillance system from unauthorized access:

  1. Change Default Passwords: Always use strong, unique passwords
  2. Enable Encryption: Use HTTPS and WPA3 encryption where available
  3. Regular Updates: Keep firmware current to patch security vulnerabilities
  4. Firewall Rules: Limit external access to only necessary ports
  5. Guest Networks: Consider placing cameras on isolated networks

Maintenance and Monitoring

Regular System Checks

Maintain your surveillance system with routine inspections:

  • Weekly Visual Inspection: Check for physical damage or obstructions
  • Monthly Testing: Verify all cameras are functioning properly
  • Biannual Cleaning: Clean lenses and housing to maintain image quality
  • Quarterly Review: Update passwords and review access logs
  • Annual Assessment: Evaluate system performance and upgrade components as needed

Performance Optimization

Maximize your camera system’s effectiveness:

  1. Resolution Settings: Balance image quality with bandwidth usage
  2. Frame Rate Adjustment: Optimize frame rates for your specific needs
  3. Storage Management: Implement automated deletion policies for recorded footage
  4. Night Vision Calibration: Adjust infrared settings for optimal low-light performance
  5. Audio Quality: Fine-tune microphone and speaker settings

Conclusion

Connecting a PoE IP camera is now a straightforward process thanks to modern networking technologies and user-friendly interfaces. By following this comprehensive guide, you’ve learned how to successfully install, configure, and maintain your surveillance system. Remember that proper planning, careful execution, and ongoing maintenance are key to achieving reliable performance.

The benefits of PoE IP cameras extend far beyond simple video monitoring—they provide peace of mind, deter potential intruders, and offer valuable documentation for security incidents. With the knowledge you’ve gained, you’re well-equipped to handle any installation challenge that comes your way.

Don’t hesitate to consult your camera’s user manual for model-specific instructions, and always prioritize safety during installation. Your surveillance system will serve you well for years to come with proper care and attention.
